Magnetic Ring Tube Forming Machine

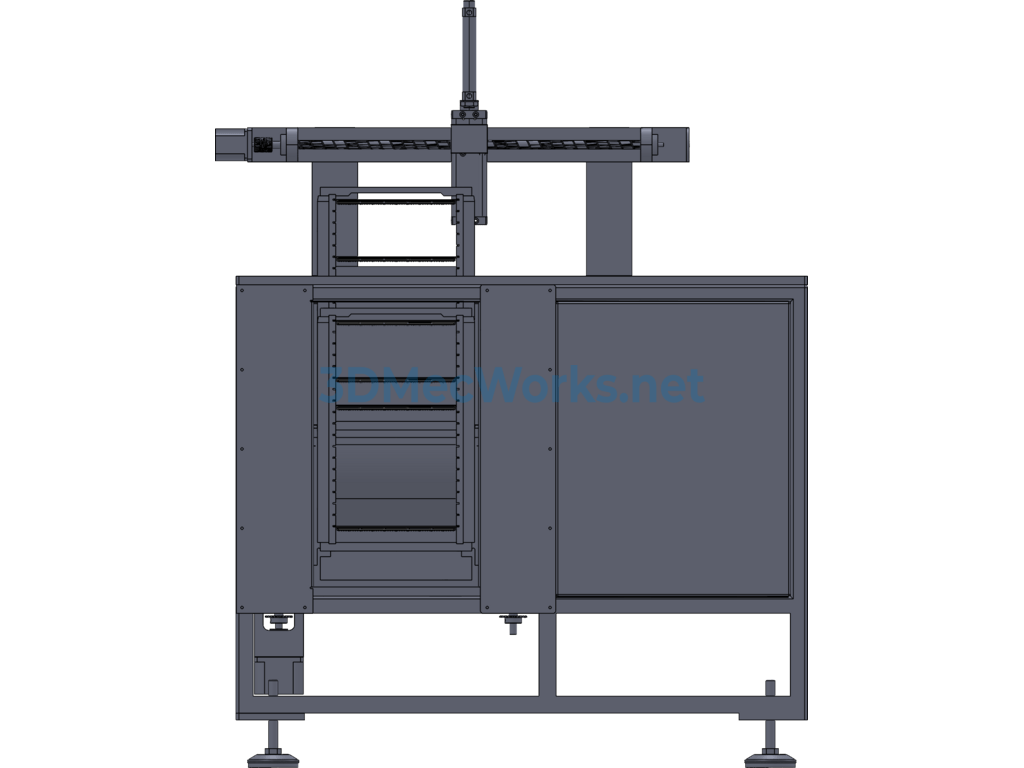

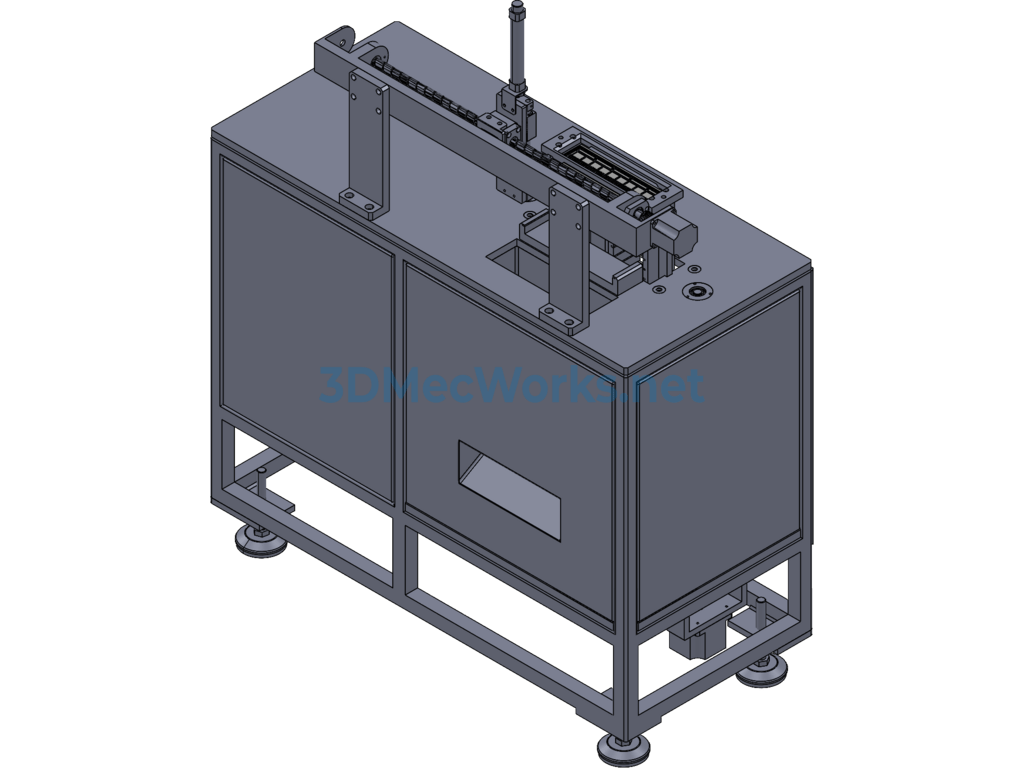

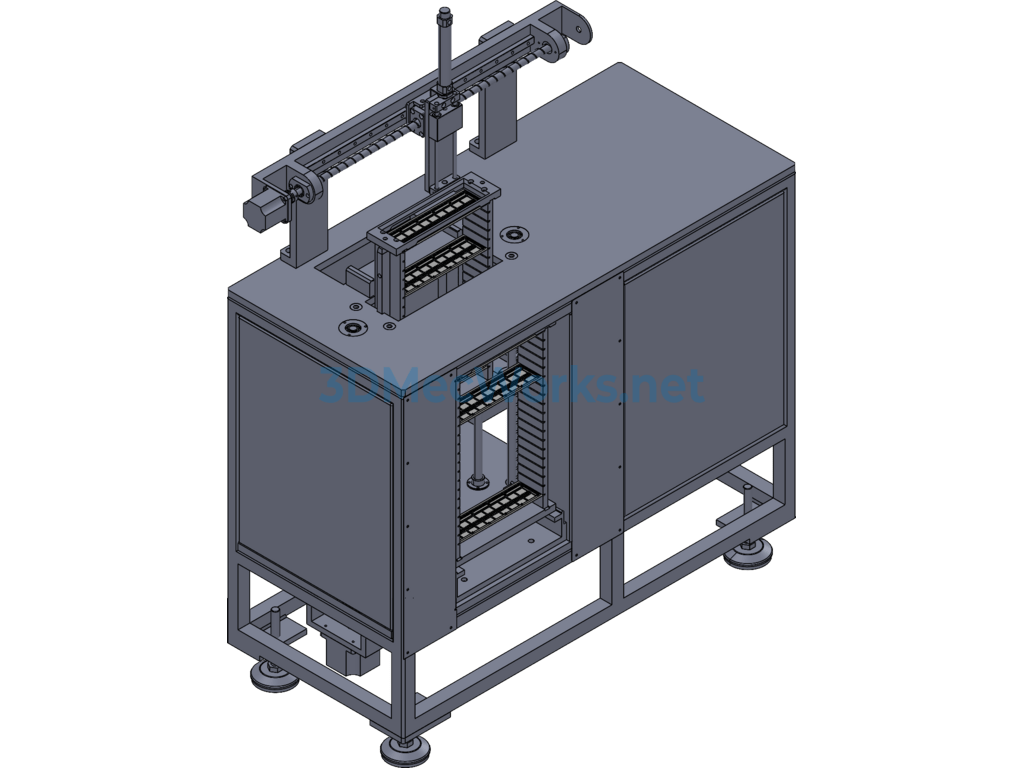

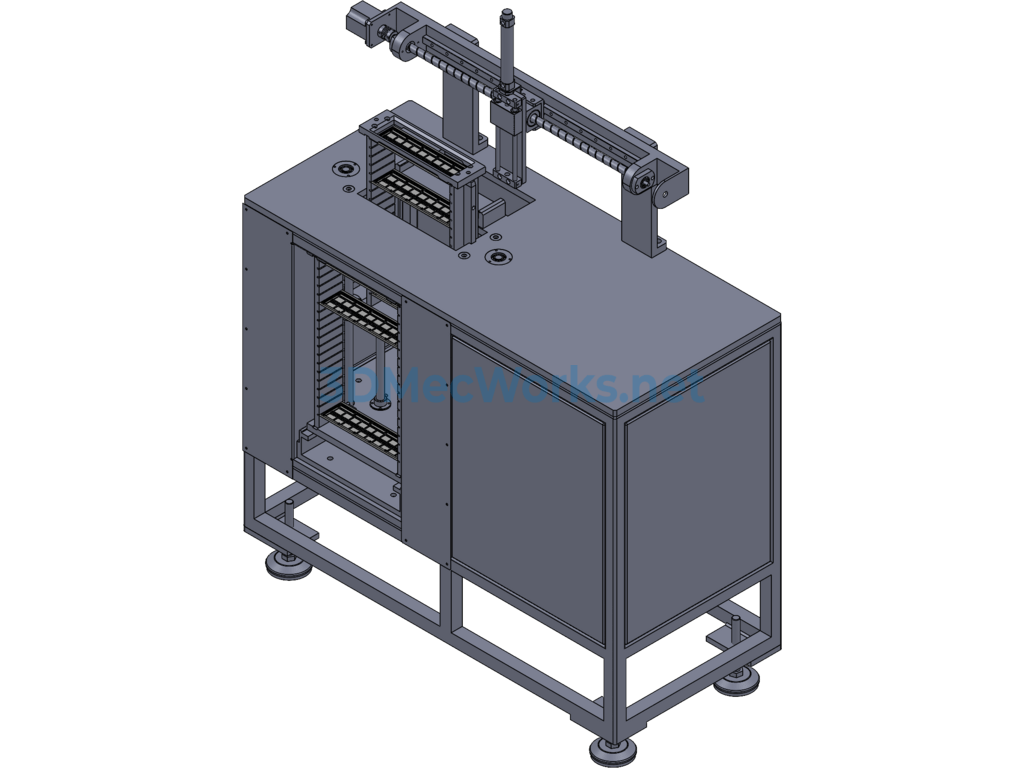

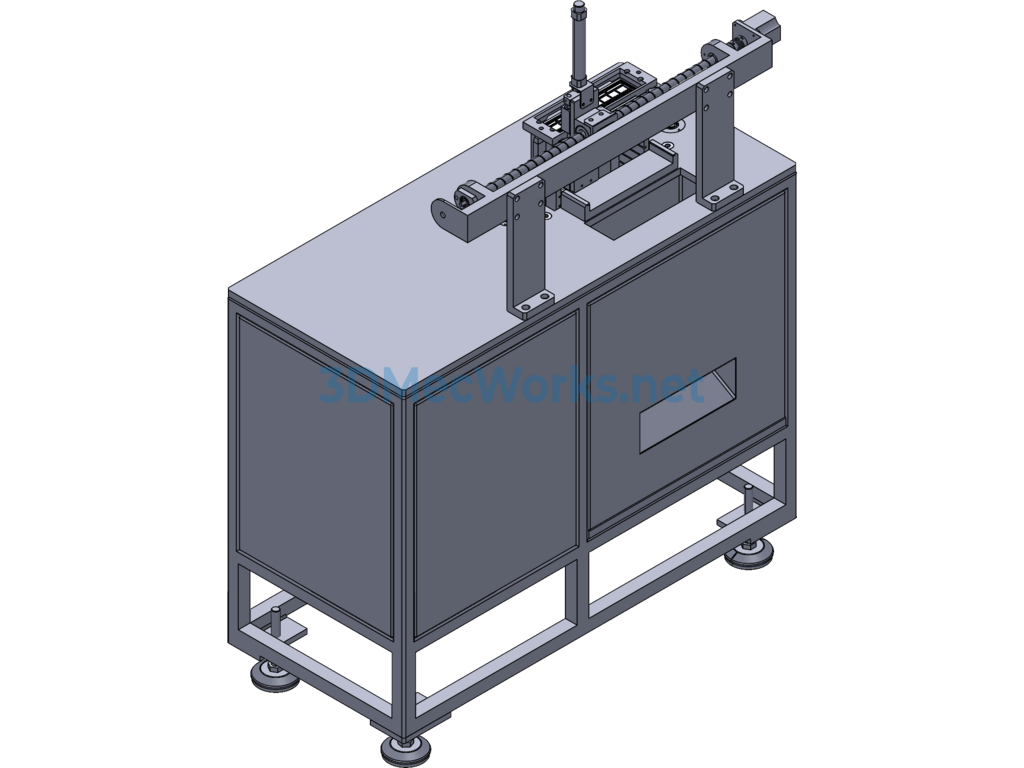

The toroidal inductor forming machine is designed with SW2011, and the device parameters can be edited. This equipment is a forming device for toroidal inductor parts in the electronics industry. It uses a three-axis lead screw structure design, which ensures high precision and stable, reliable operation!

The X-axis lead screw makes stepper movements, while the Z-axis lead screw raises and moves the material for forming bends. Although the equipment structure is relatively simple, the mechanism design still involves a significant level of technical expertise.
