Magnetic Core Assembly Machine

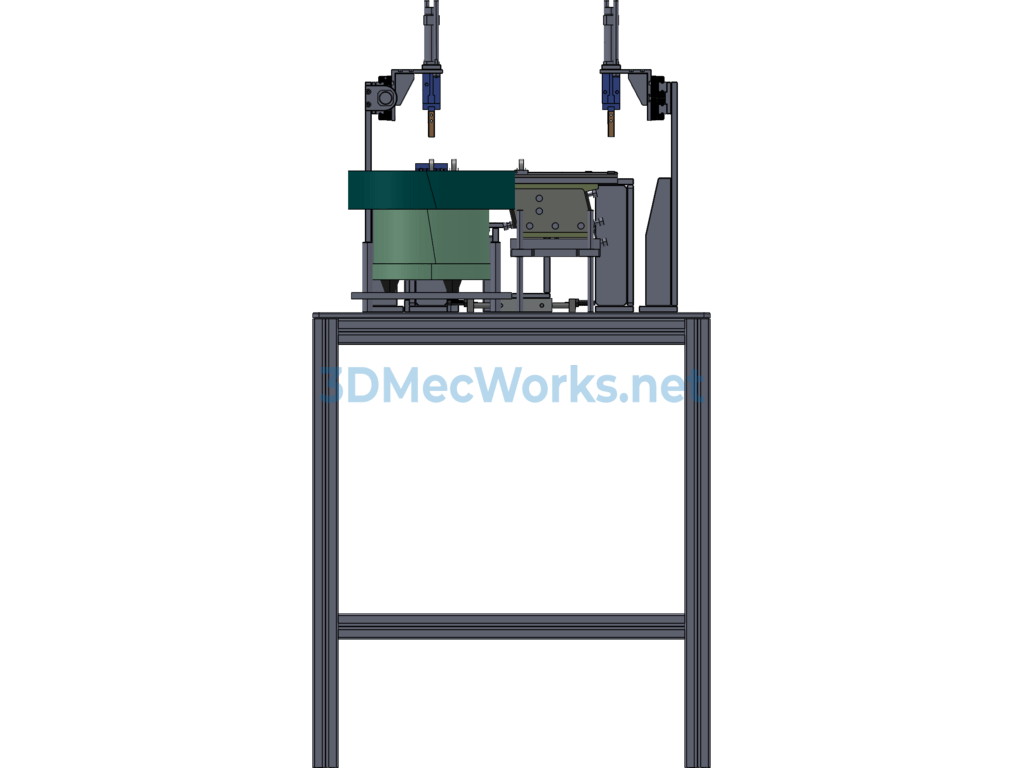

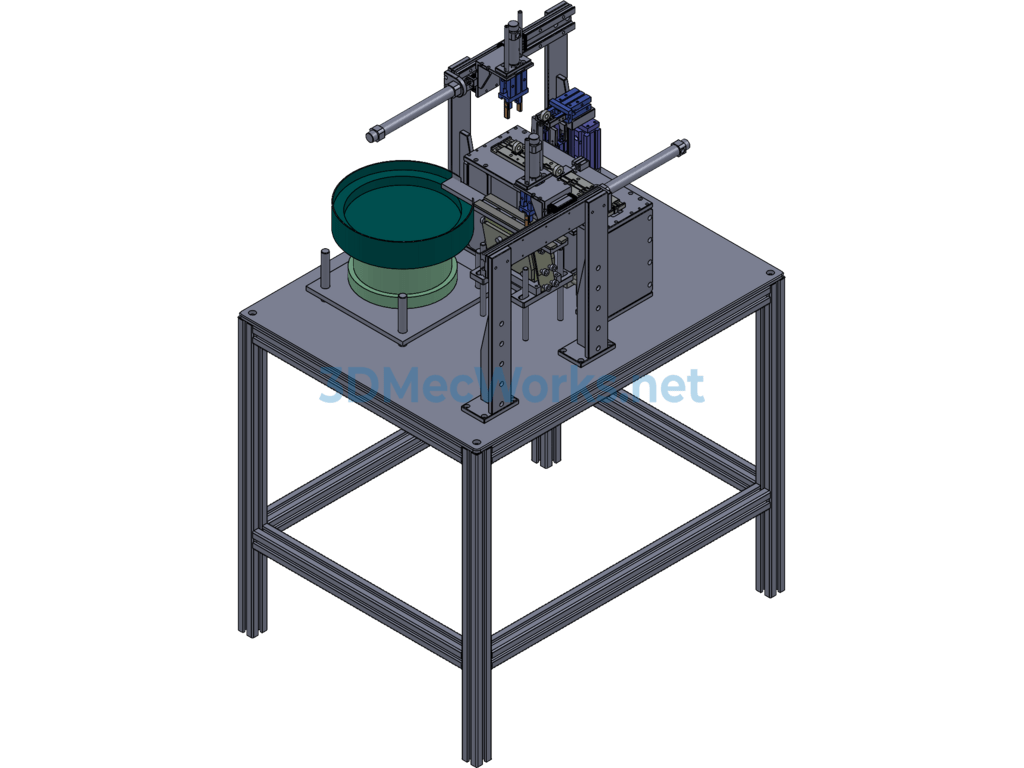

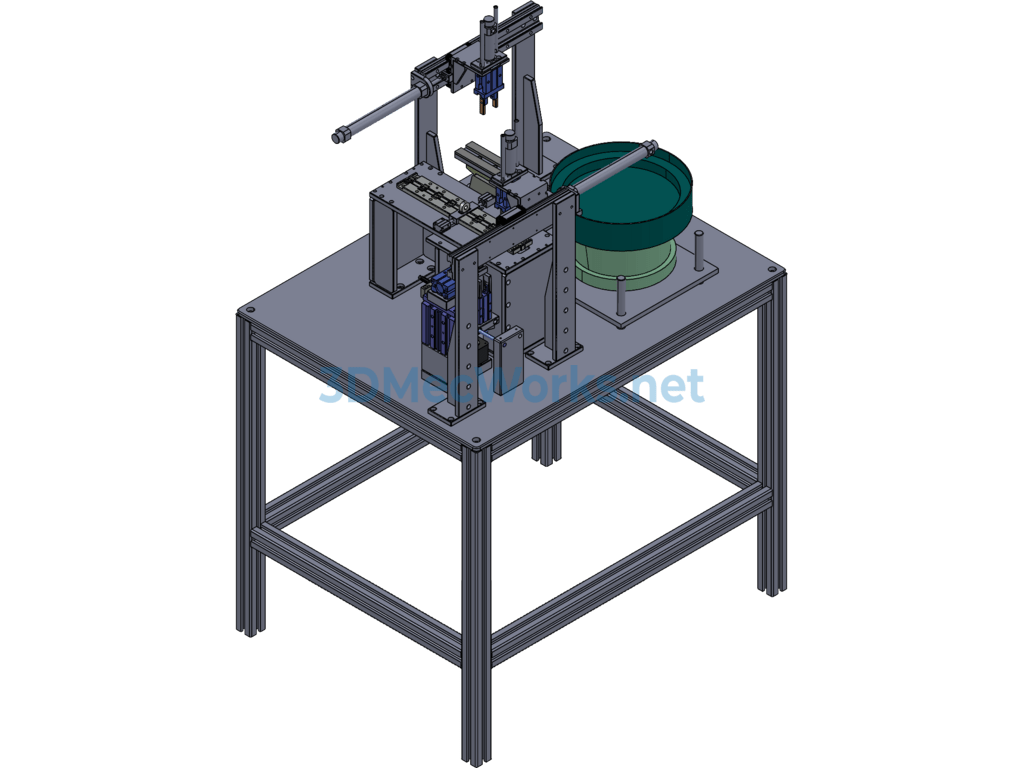

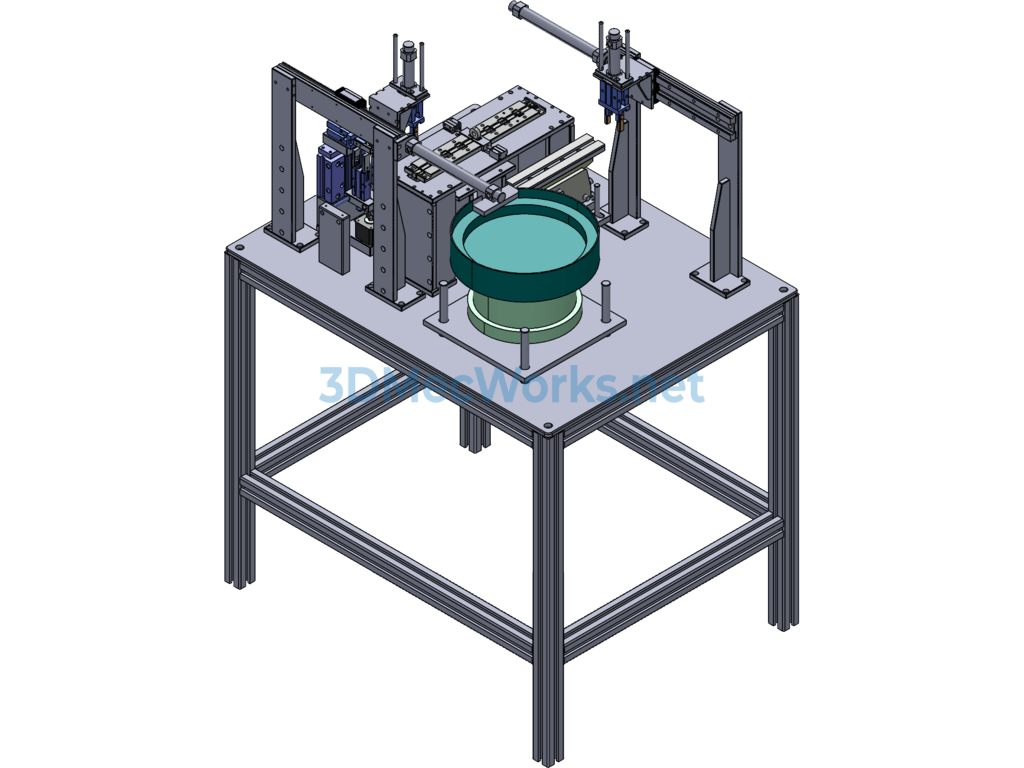

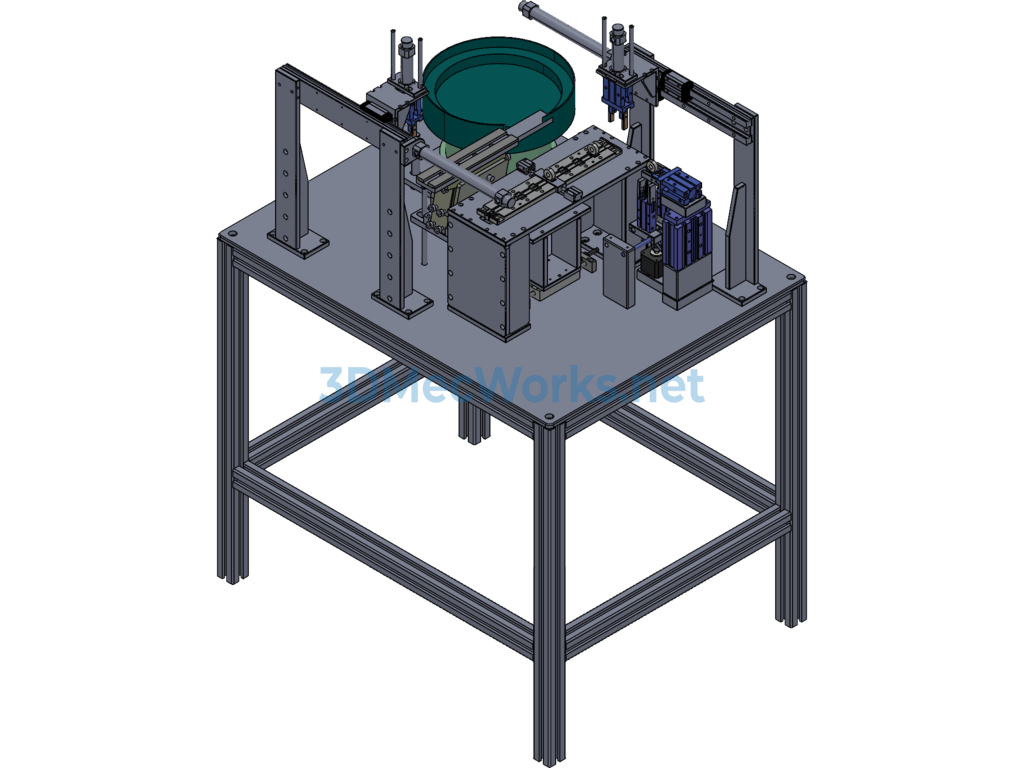

Magnetic Core Assembly Machine 3D Model, SW2013 Version File. This equipment is a highly successful device in the electronics industry, with an aesthetically pleasing appearance and complex structure. The device uses a tray-type feeding system, where a robotic arm grabs the tray to feed the items. Then, the X-axis individually picks and places the product into a jig on the conveying mechanism, performing the corresponding assembly at each station. Once assembly is completed, the product is placed back into the tray, preparing it for the next equipment. The device includes parameters.
