Machine Tool Processing Precision Hydraulic Fixture

Machine Tool Precision Hydraulic Fixture (Assembly + Parts) 3D Model (Designed in SolidWorks, available in STEP (stp)/Sldprt/Sldasm files)

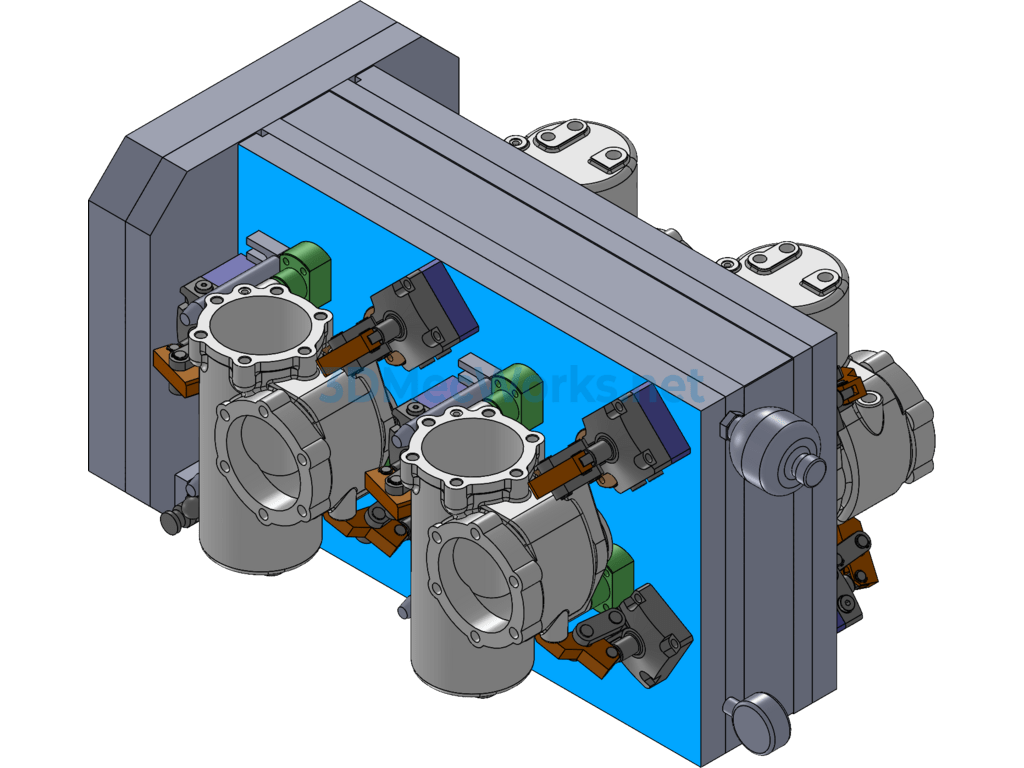

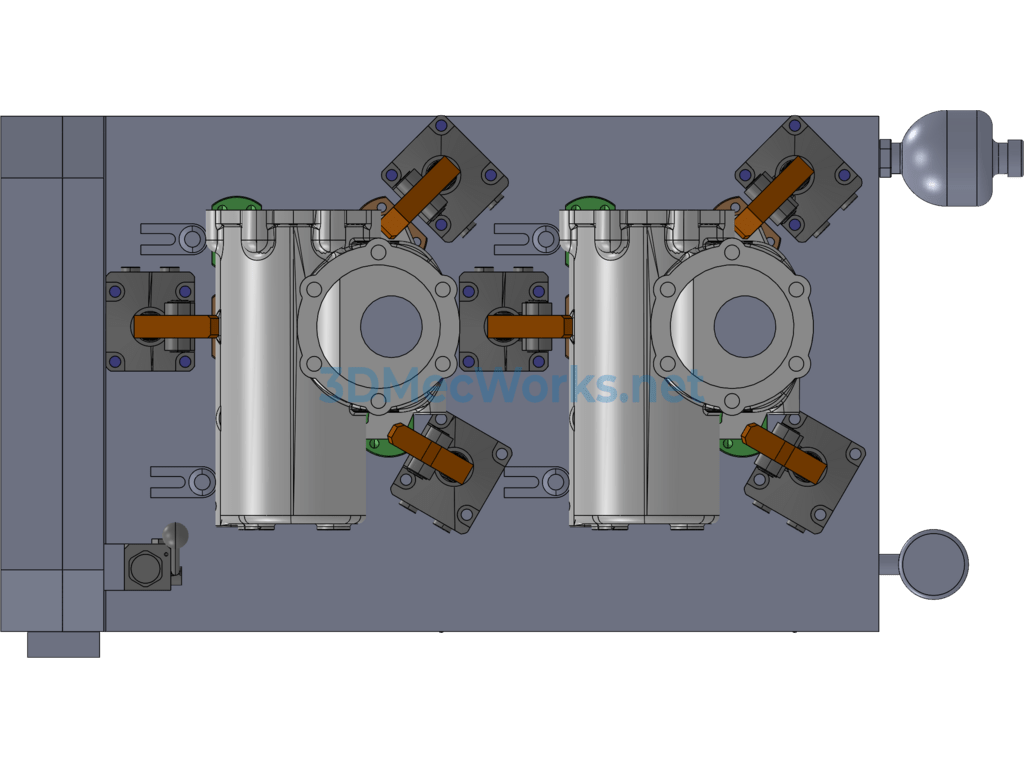

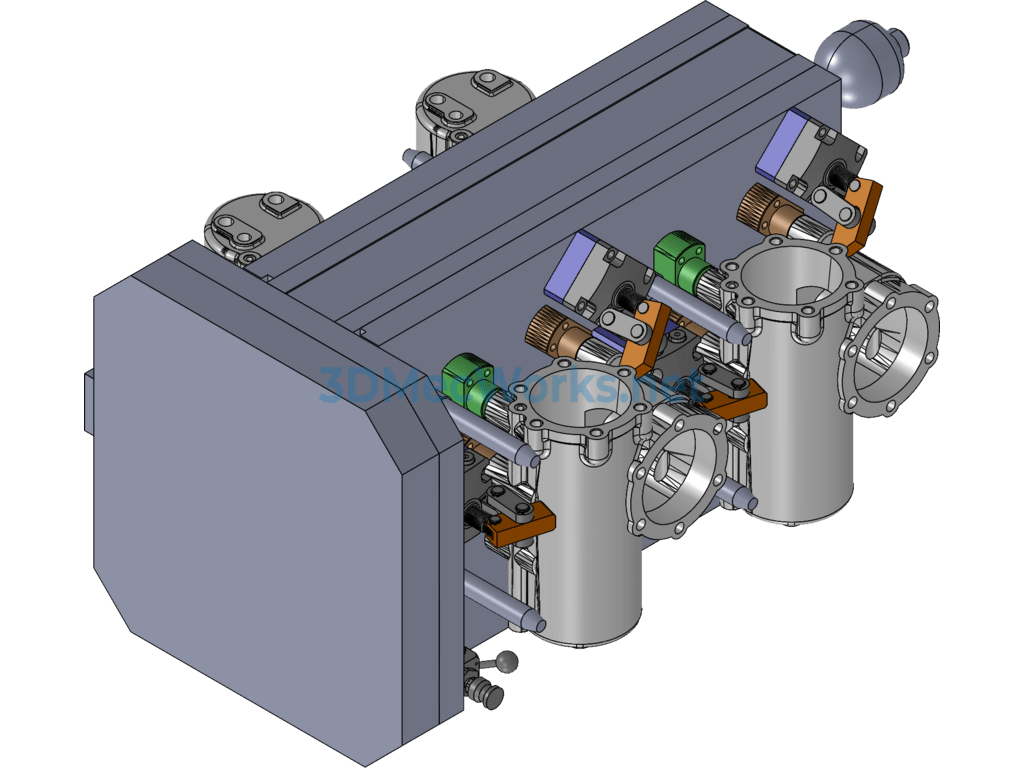

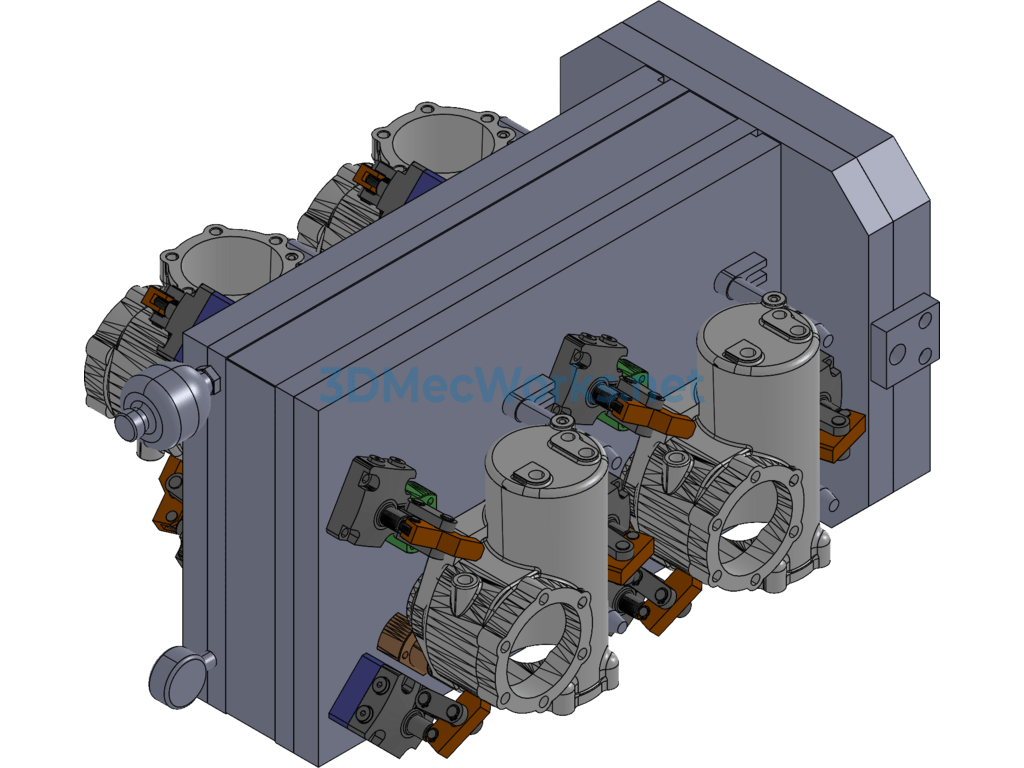

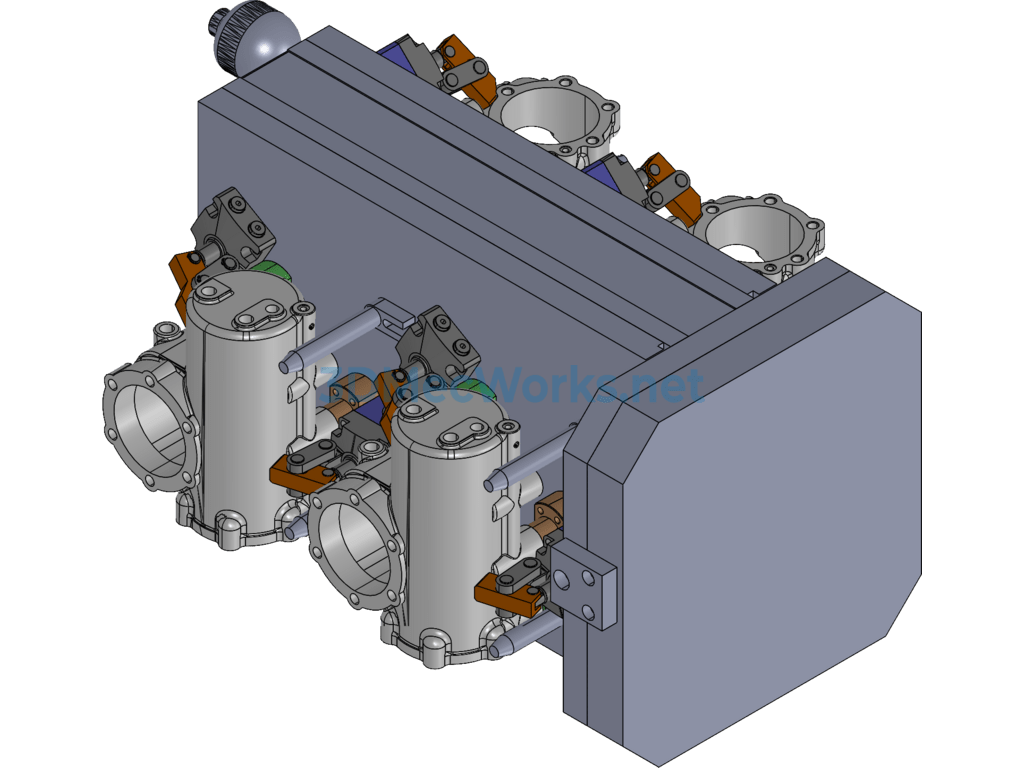

Four-axis hydraulic fixture with four stations. The four-axis turntable moves the two stations on one side to the machining position, and the machine tool begins processing these two sets of products. Once processing is complete, the four-axis turntable moves the other two stations to the same machining position to process the other two sets of products. All four sets of products are completed in one cycle. Provides 3D models of both assembly and parts, compatible with SolidWorks 2012 and later versions, as well as in STEP format.
