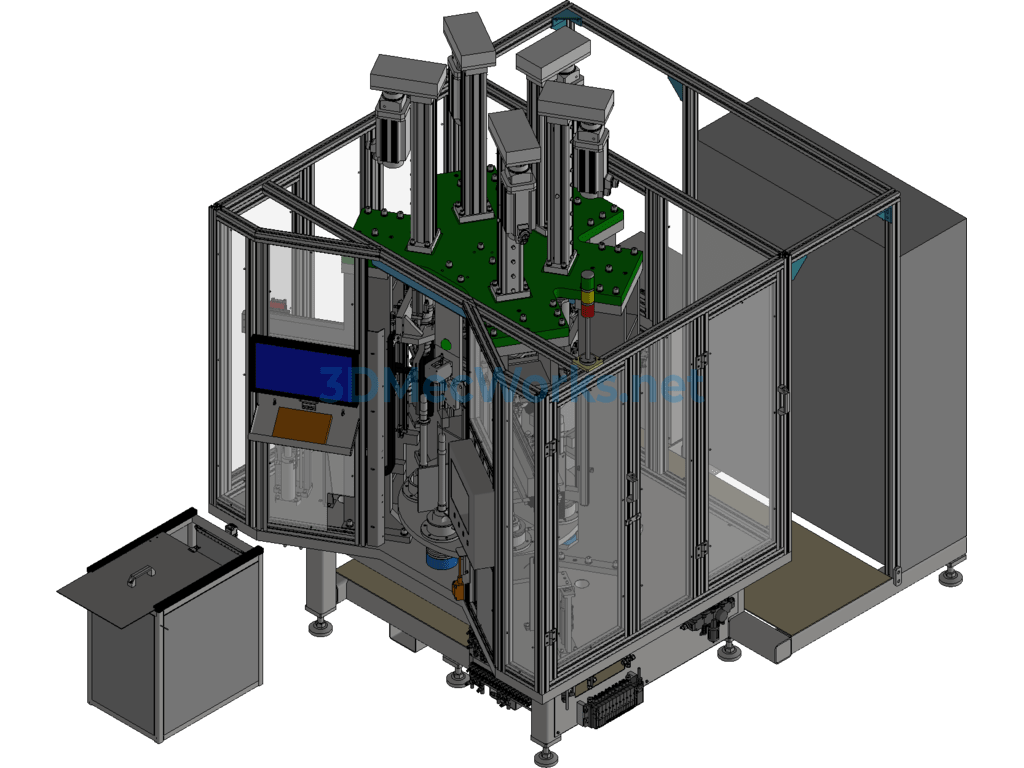

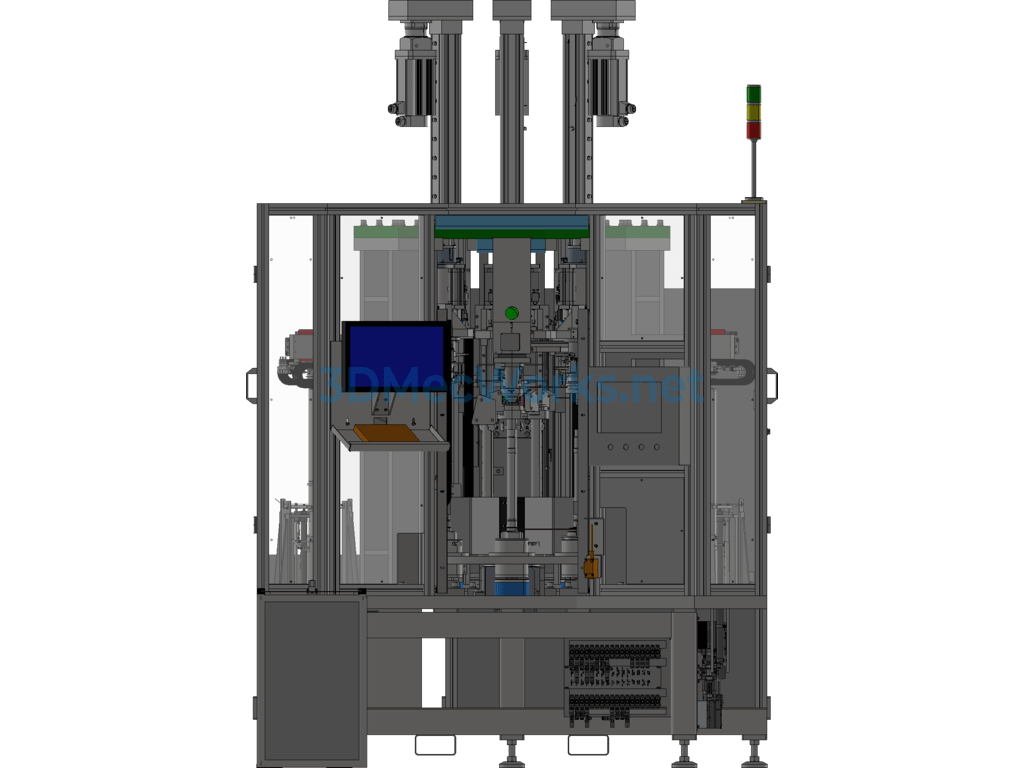

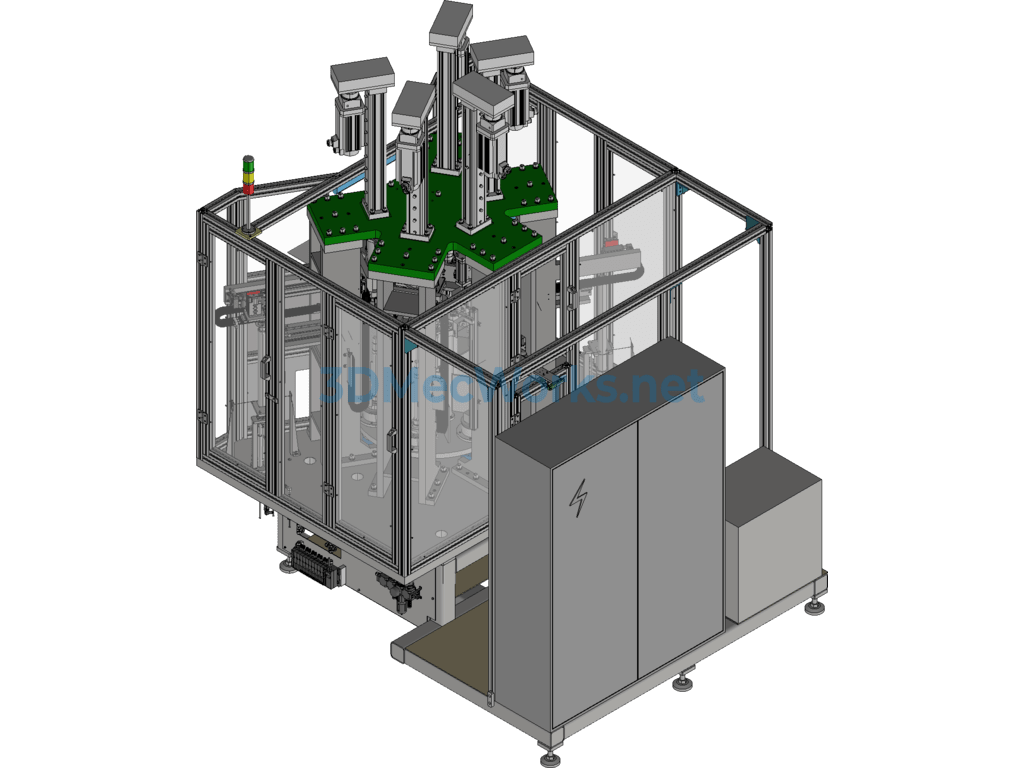

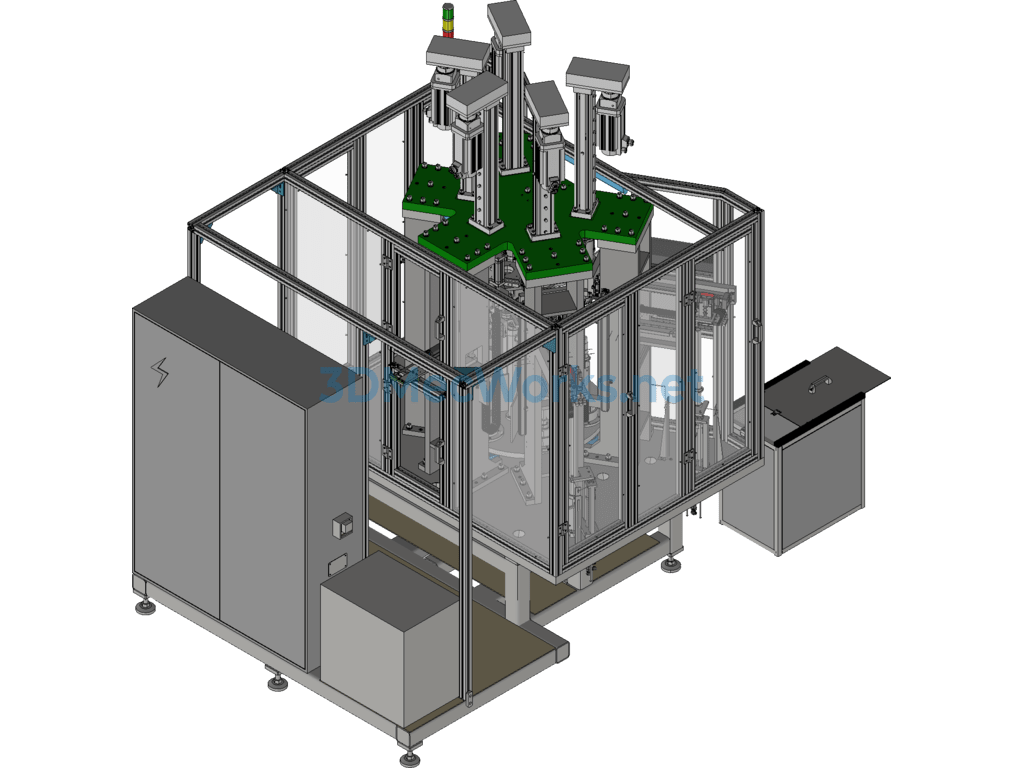

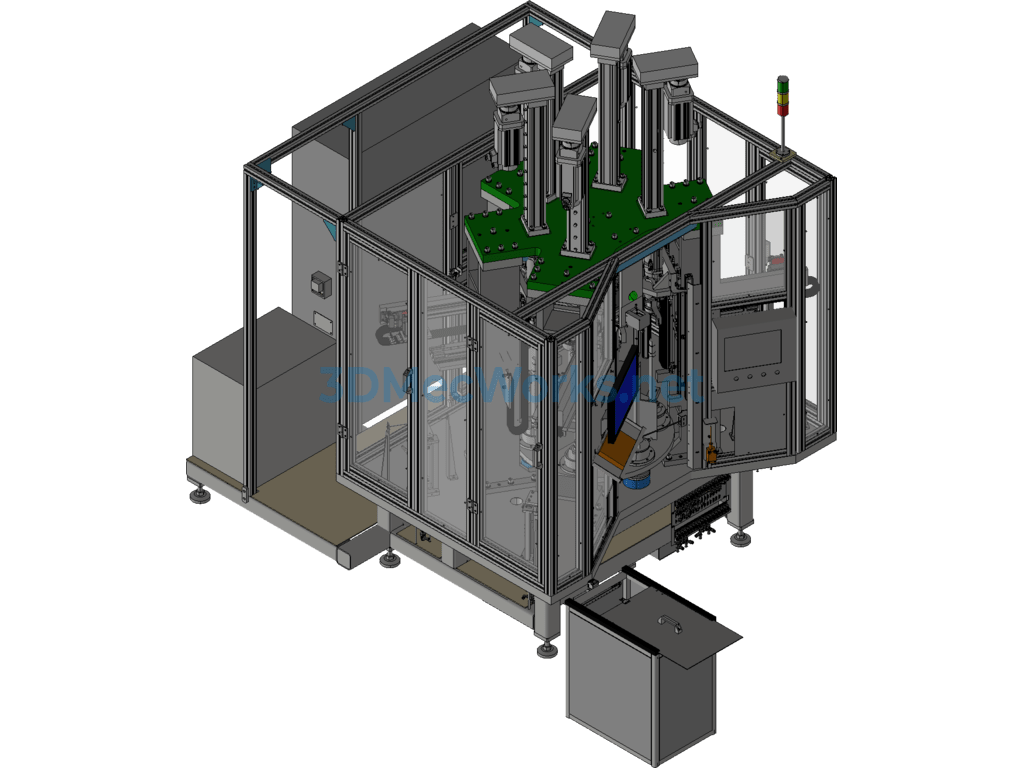

Long Handle Sliding Sleeve Assembly Unit_x000D_
Purpose: 1. Press-fit bushing, press-fit bearing cap I, press-fit bearing cap II, press-fit bearing seat assembly, press-fit circlip;_x000D_
2. Compatible products: KZ20, S301, S101AT, S101MT, E18, D2UX

Specification: Long Handle Sliding Sleeve Assembly Unit - Inventor - Free Download

Design Software	Inventor
Editable	Editable, With parameters
File Formats	step(stp)~\|~ipj~\|~ipt~\|~iam
Industry Application	Mechanical Equipment
Sharing Level	Diamond
Version	2016
