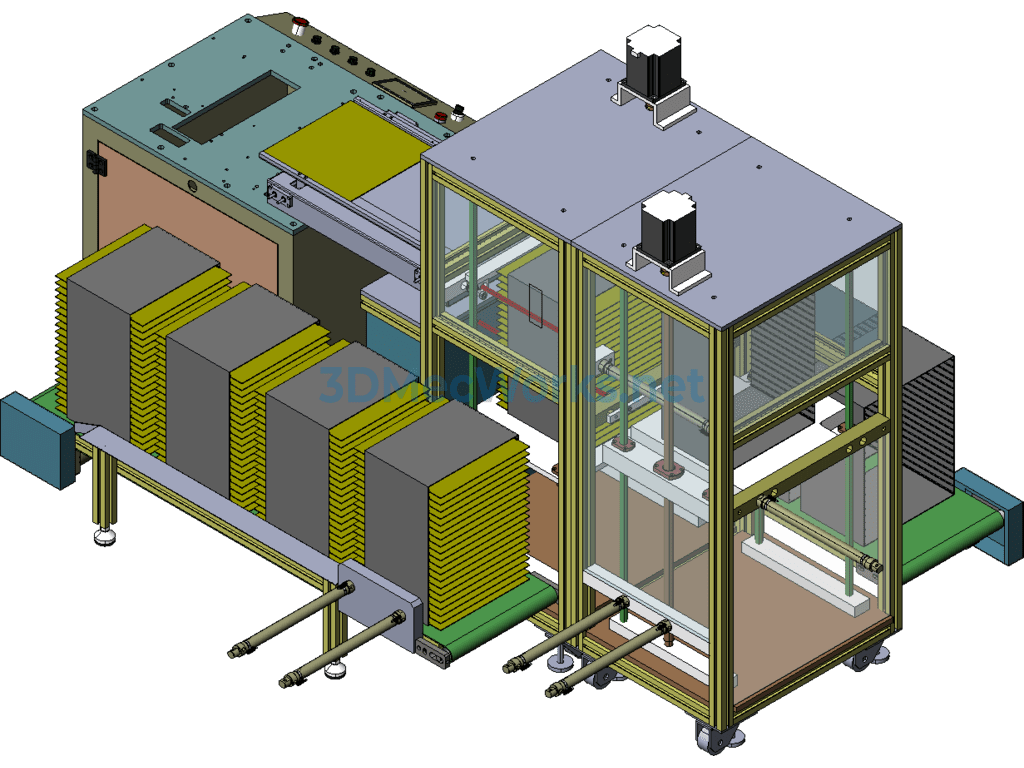

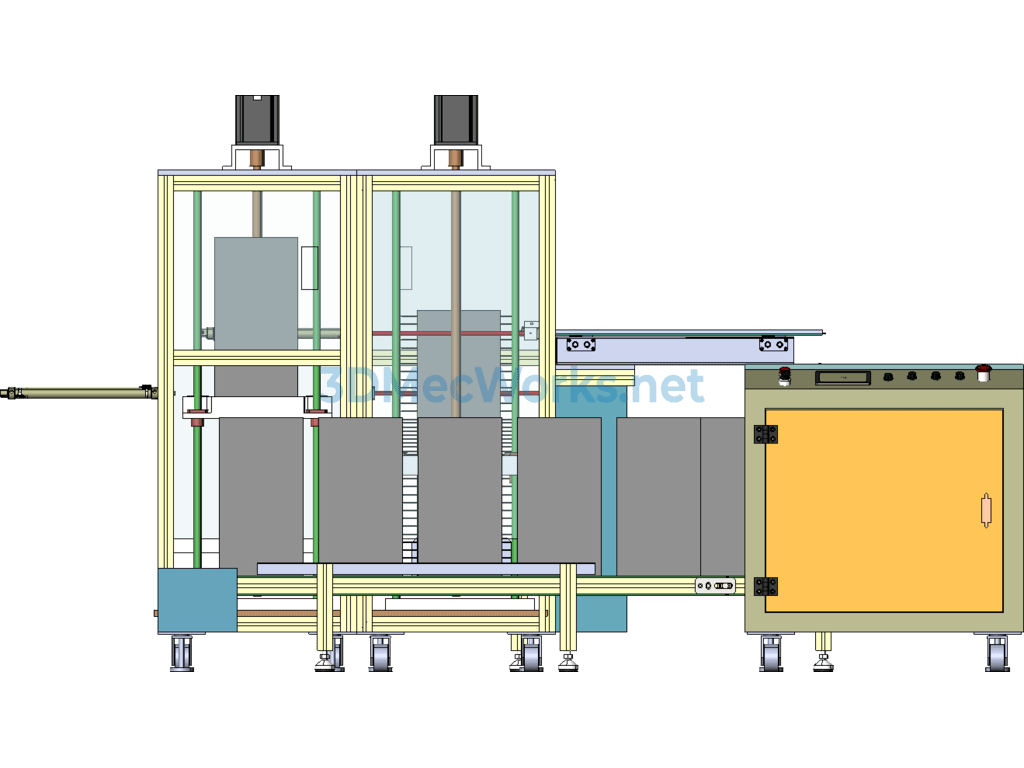

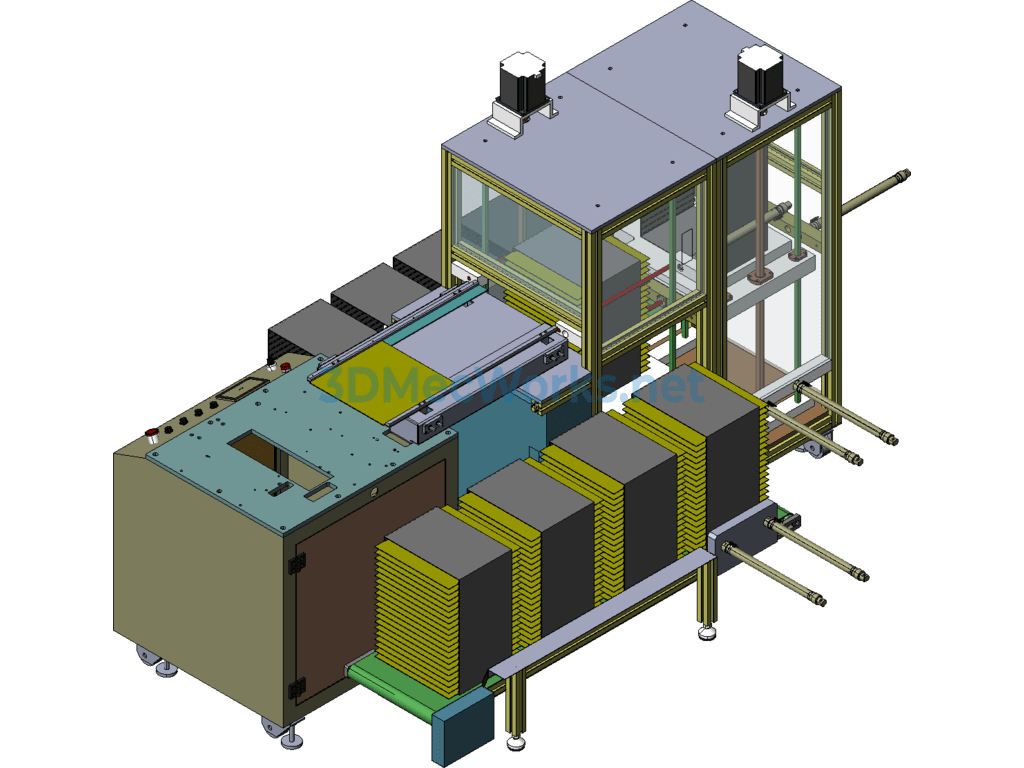

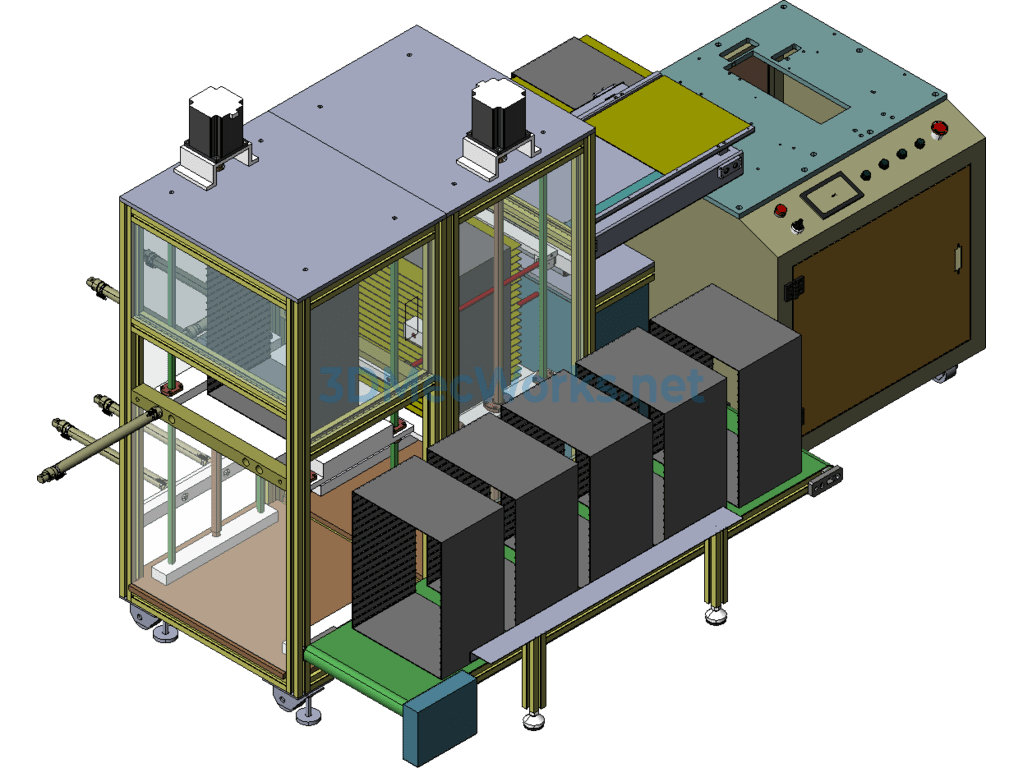

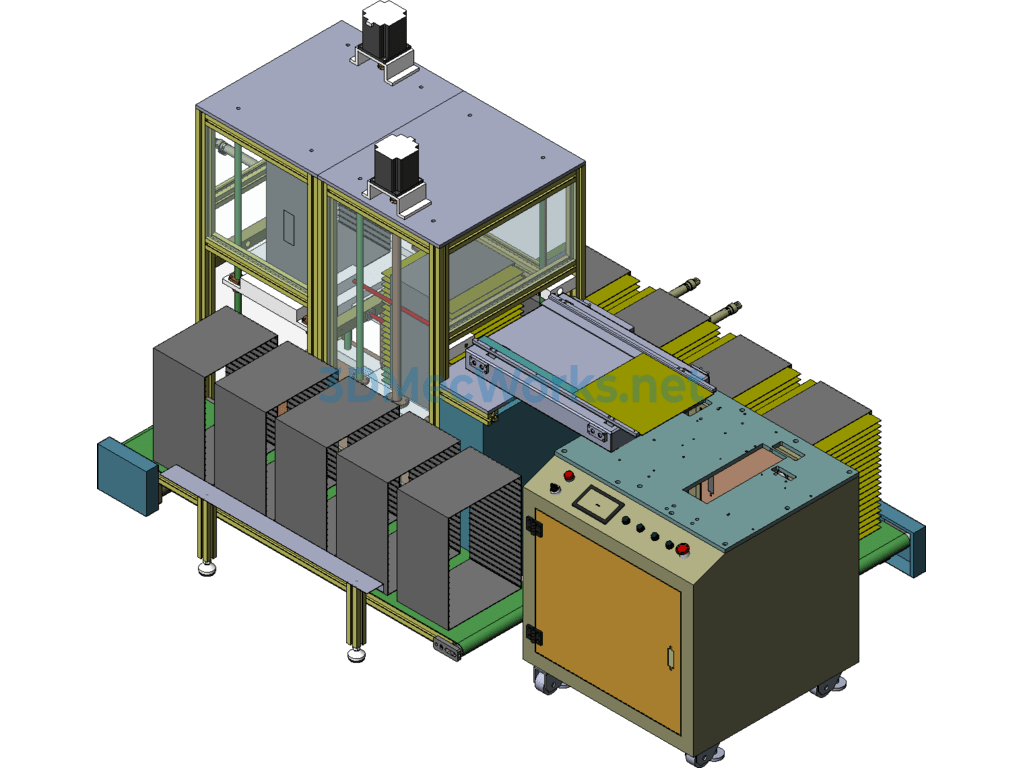

Material Loading and Board Separating Integrated Machine (Assembly – Board Separator B.SLDASM Model with some internal parts hidden, can display for completeness)_x000D_
1. Equipment dimensions: 3000*1783*1449_x000D_
(Length*Width*Height)_x000D_
_x000D_
2. Motion principle: The loading part uses PLC + touchscreen_x000D_
control, stepper motor drives the material lifting cylinder_x000D_
for board separation. The separating part uses PLC +_x000D_
touchscreen control, employing a deceleration motor for_x000D_
feeding, separating, discharging, servo motor + stepper_x000D_
motor rotate the material, vacuum suction of PCB board,_x000D_
high degree of automation, saving working time and_x000D_
improving work efficiency.
