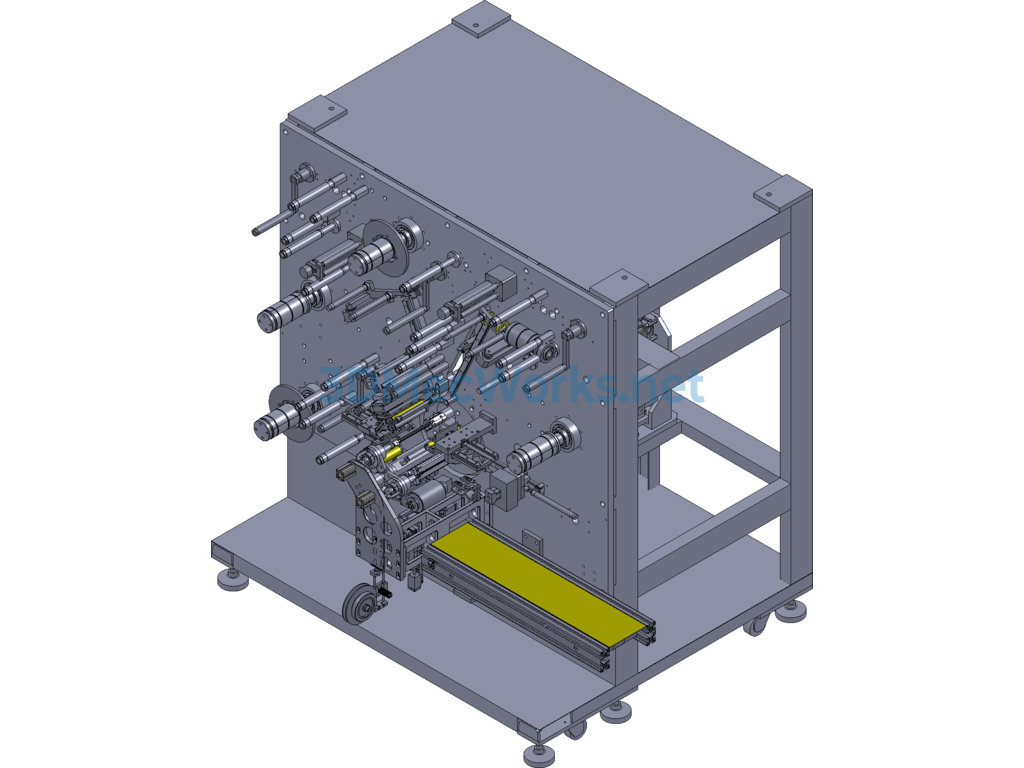

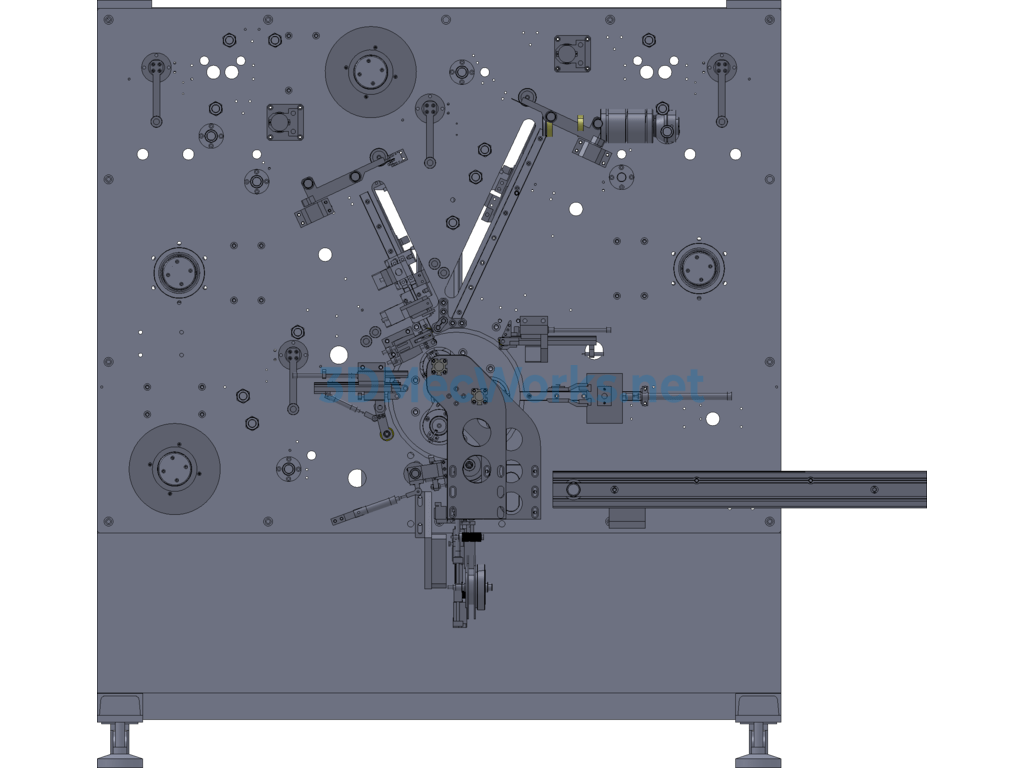

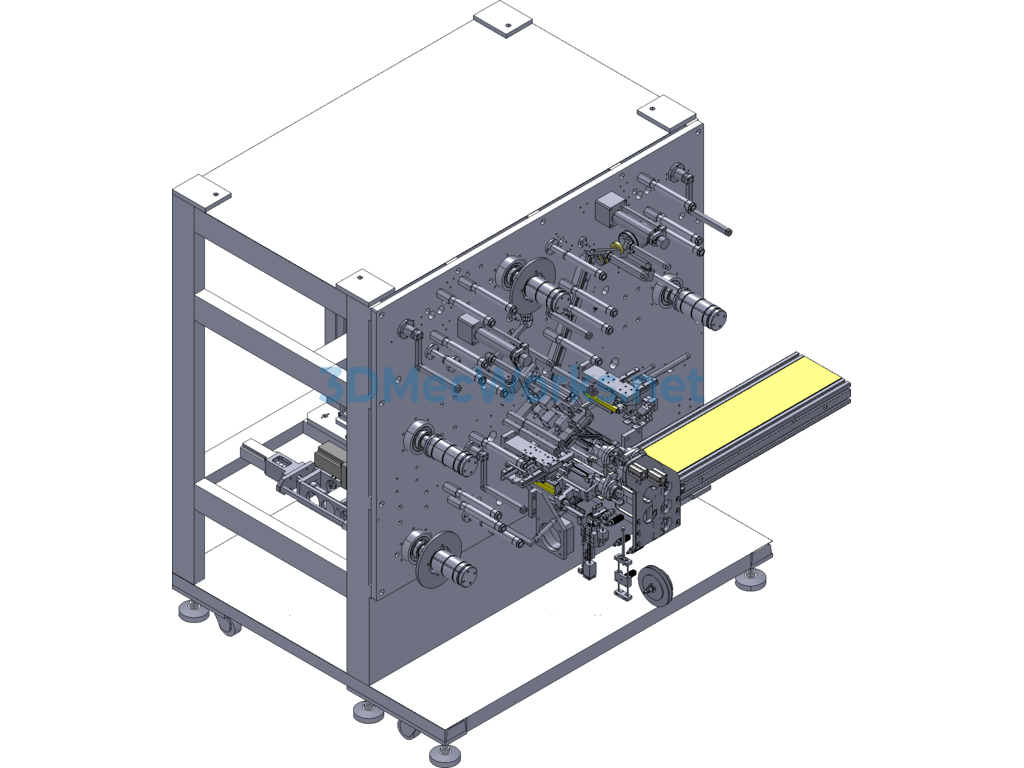

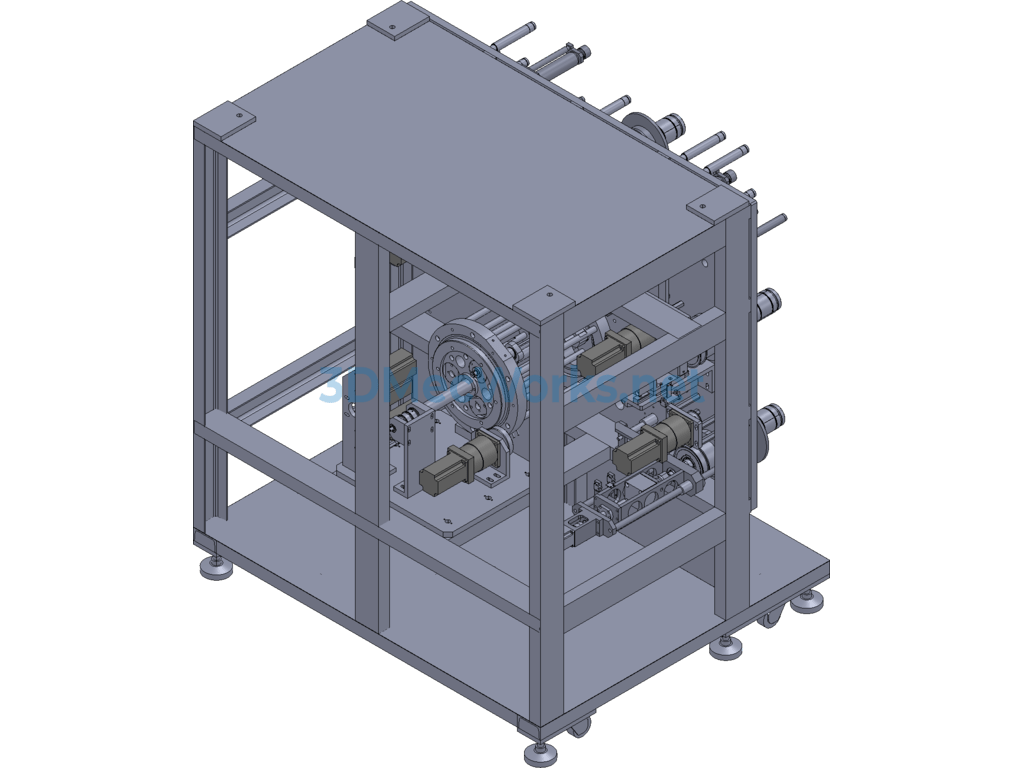

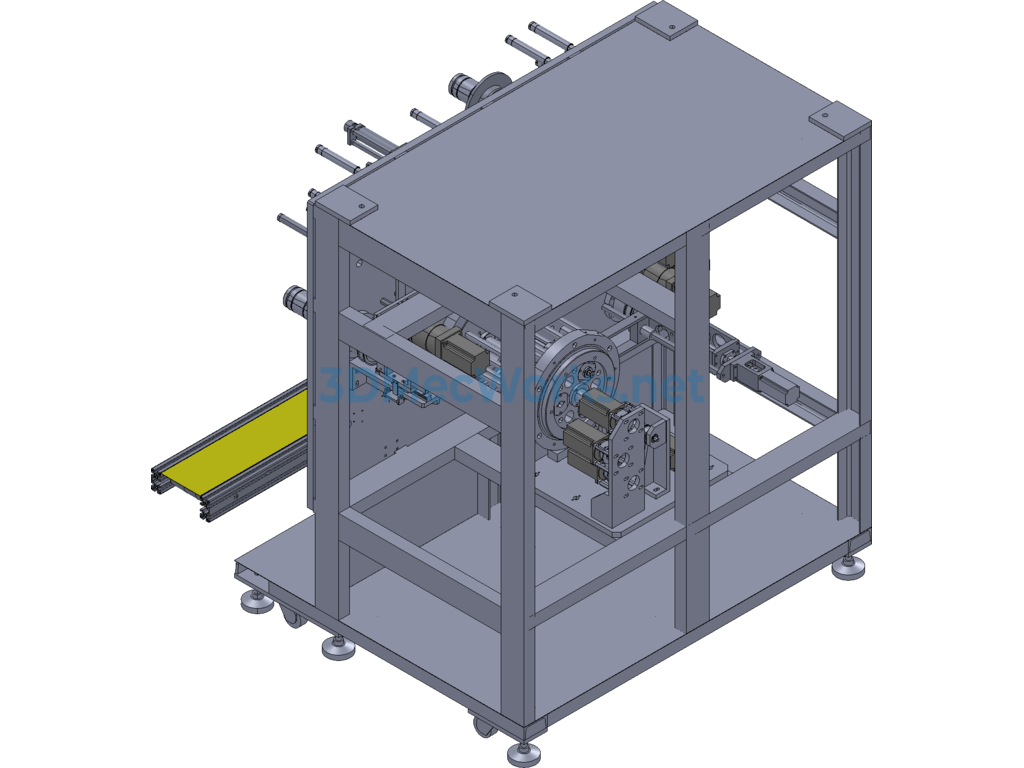

Lithium Battery Three-Head Square Fully Automatic Winding Machine

Lithium battery three-head rectangular fully automatic winding machine, designed with SolidWorks2014. This equipment is mainly used for the winding production of lithium battery rectangular cells. The main mechanisms include unwinding mechanism, tension mechanism, electrode sheet feeding mechanism, winding mechanism, adhesive application mechanism, and discharging mechanism. This document includes complete functional mechanisms, ingenious mechanism design, provides source files, editable and has high design reference value. Welcome to download and learn.
