Line Bending Straightening Machine

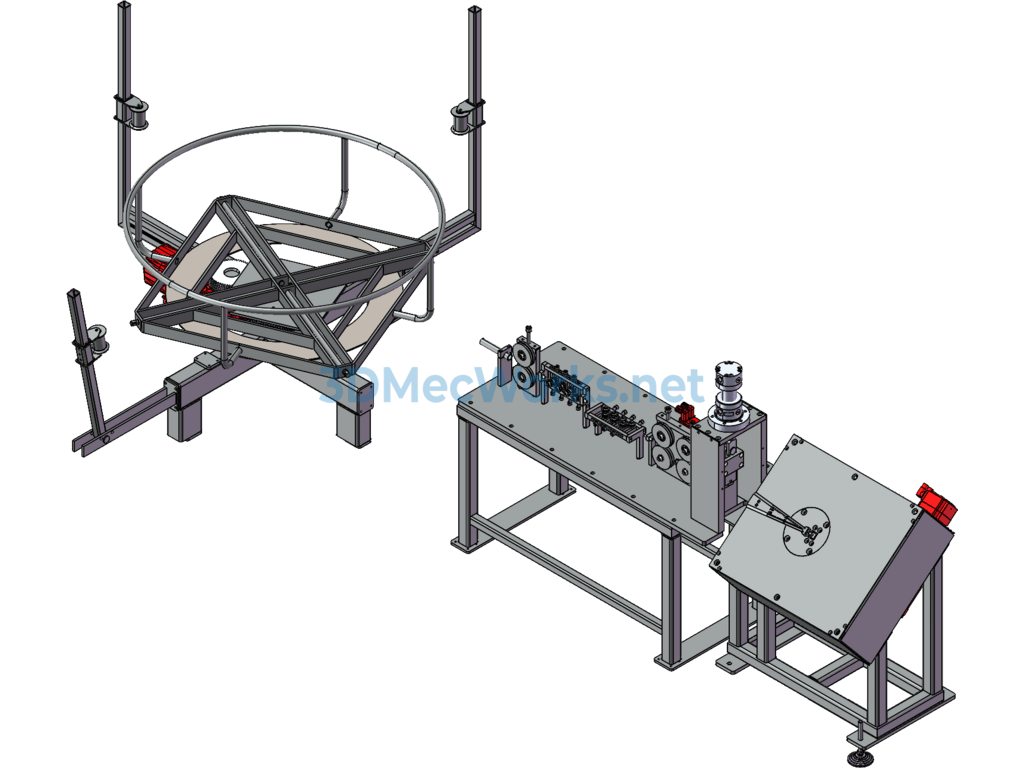

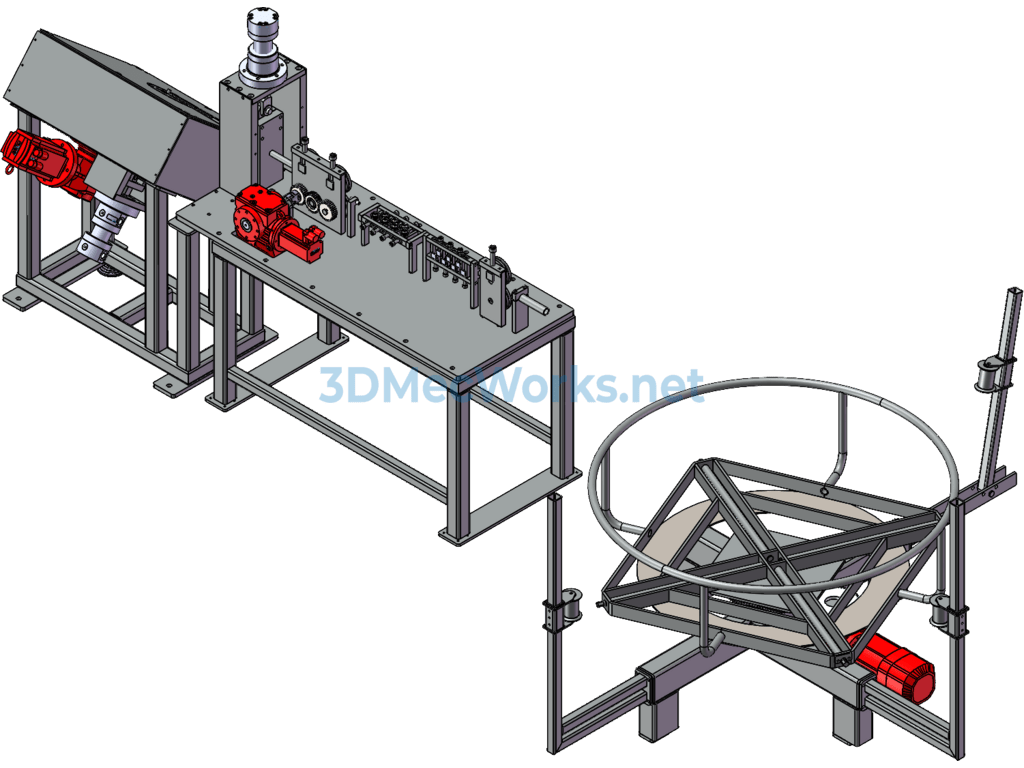

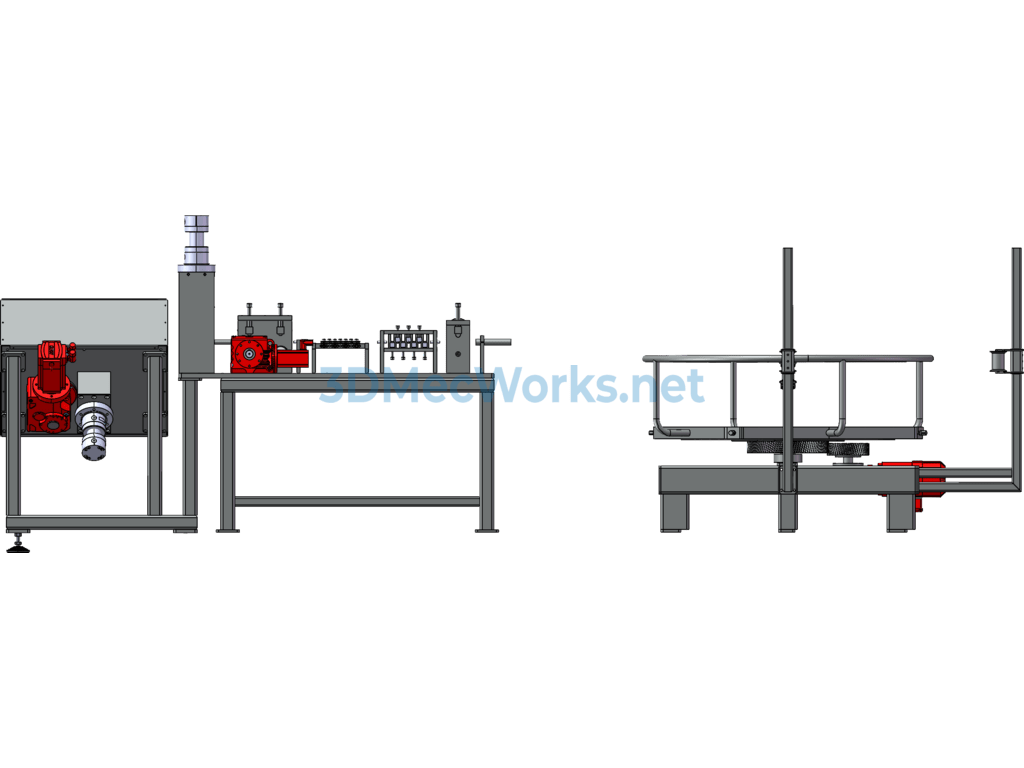

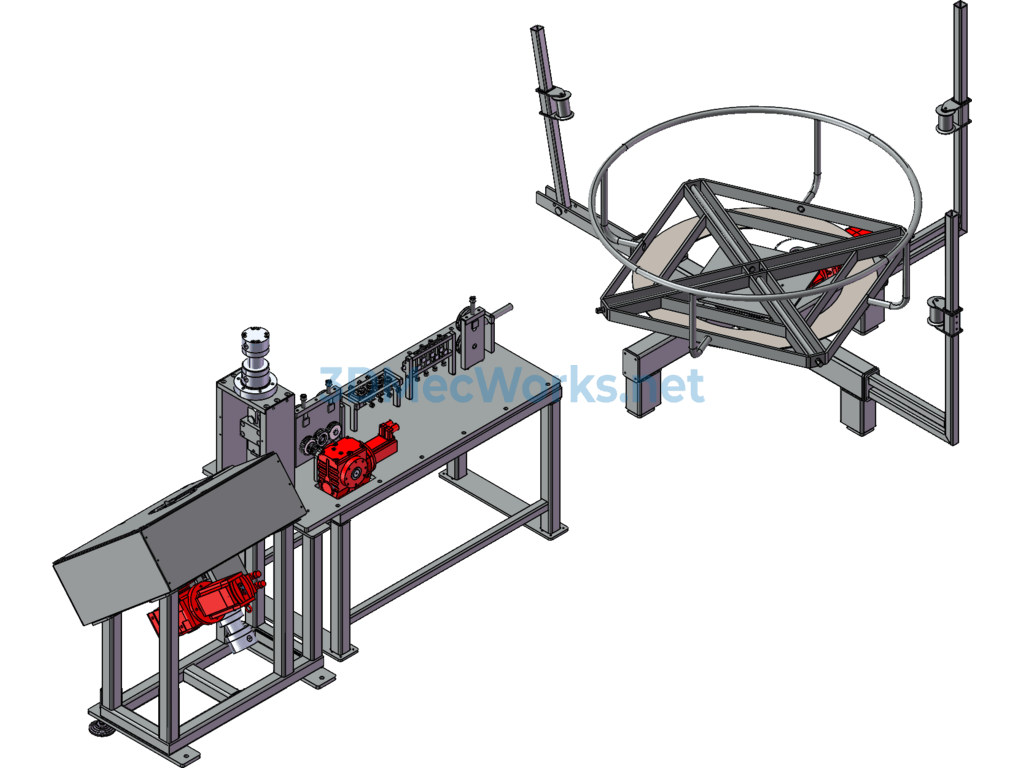

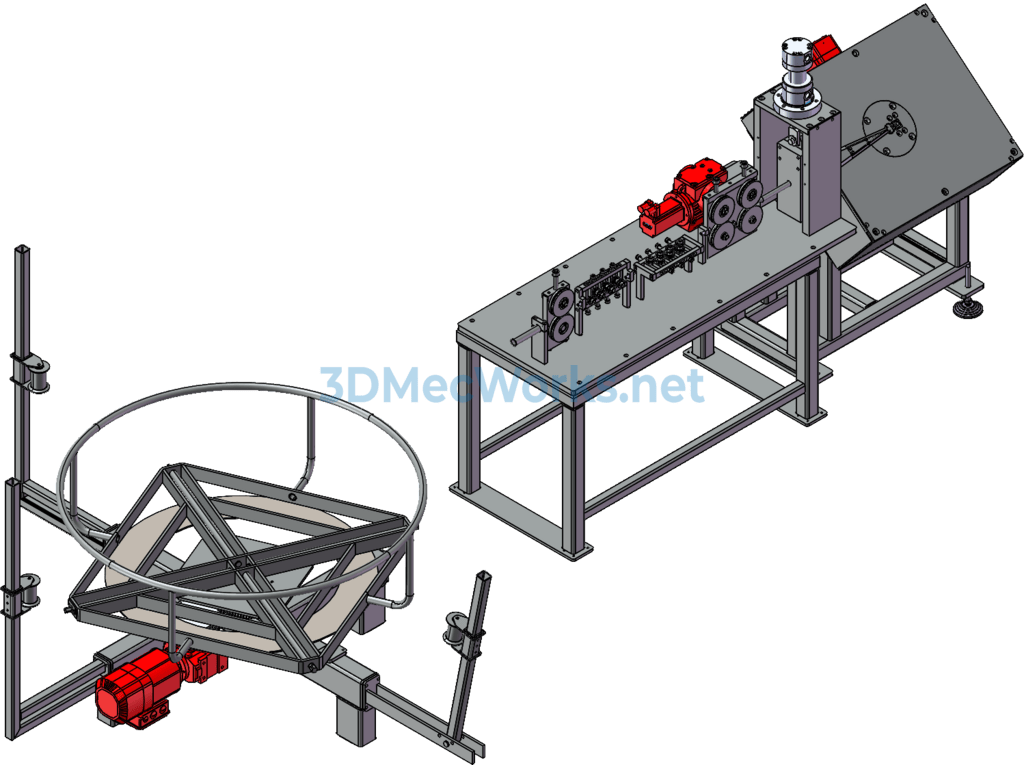

A model of a wire bending and straightening machine, with detailed structure, designed in 3D. Welcome to download.

This is a detailed structural design model of a wire bending and straightening machine, an automated equipment design model. The straightening machine is equipment used for straightening metal profiles, bars, tubes, wires, etc. It straightens by compressing bars and other materials using straightening rollers to alter their linearity. Typically, it features two rows of straightening rollers, with varying numbers of rollers. There are also two-roller straightening machines, which straighten materials of different diameters by adjusting the angle of two rollers (with a concave middle and hyperbolic rollers). The main types include pressure straightening machines, balance roll straightening machines, shoe roll straightening machines, rotating rebend straightening machines, and others. While the mechanical structure design is relatively complex, this model is very clearly drawn. You are welcome to download it for study, as it is very helpful for future learning and design.
