Led Component Packaging and Inspection All-In-One Machine

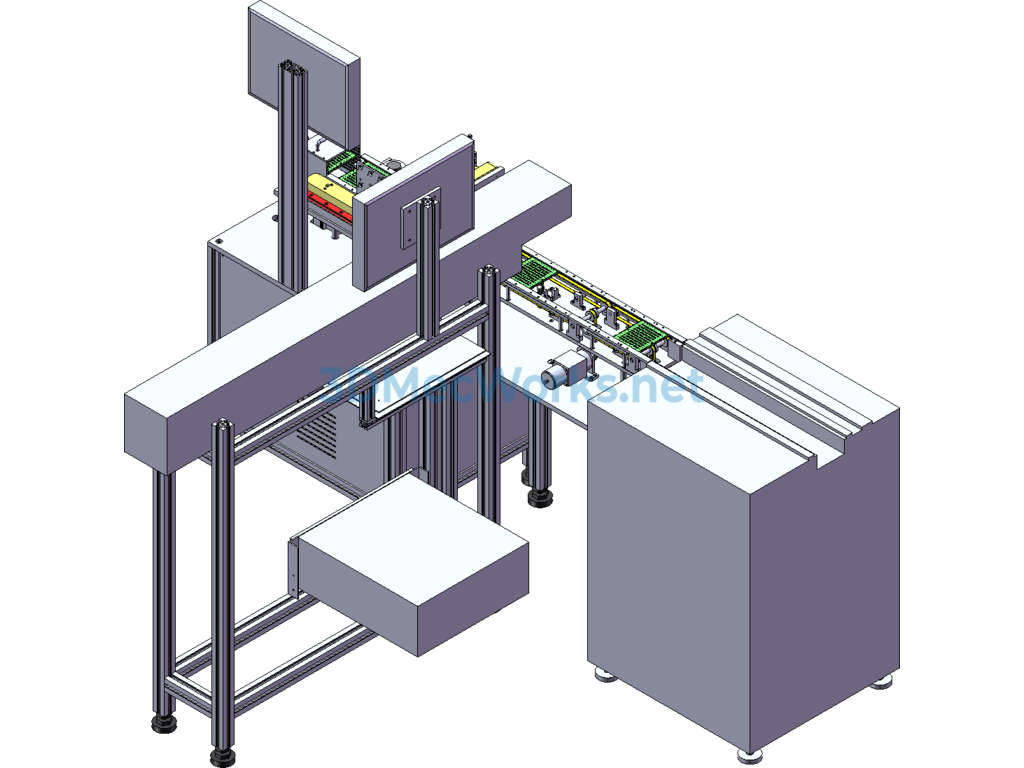

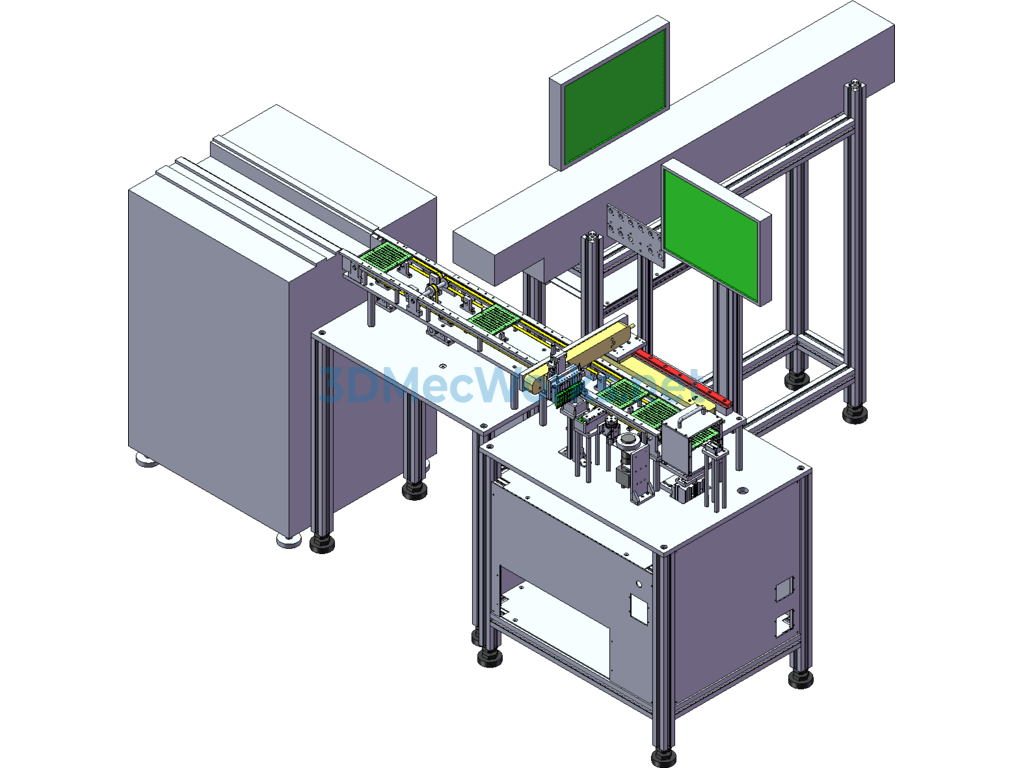

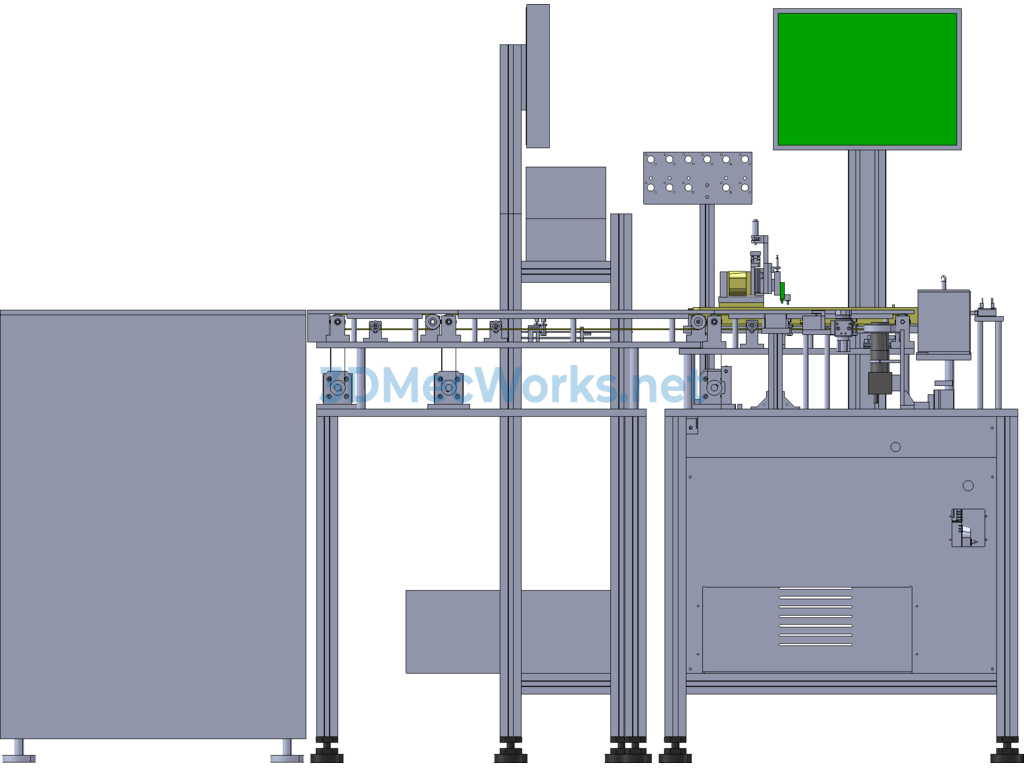

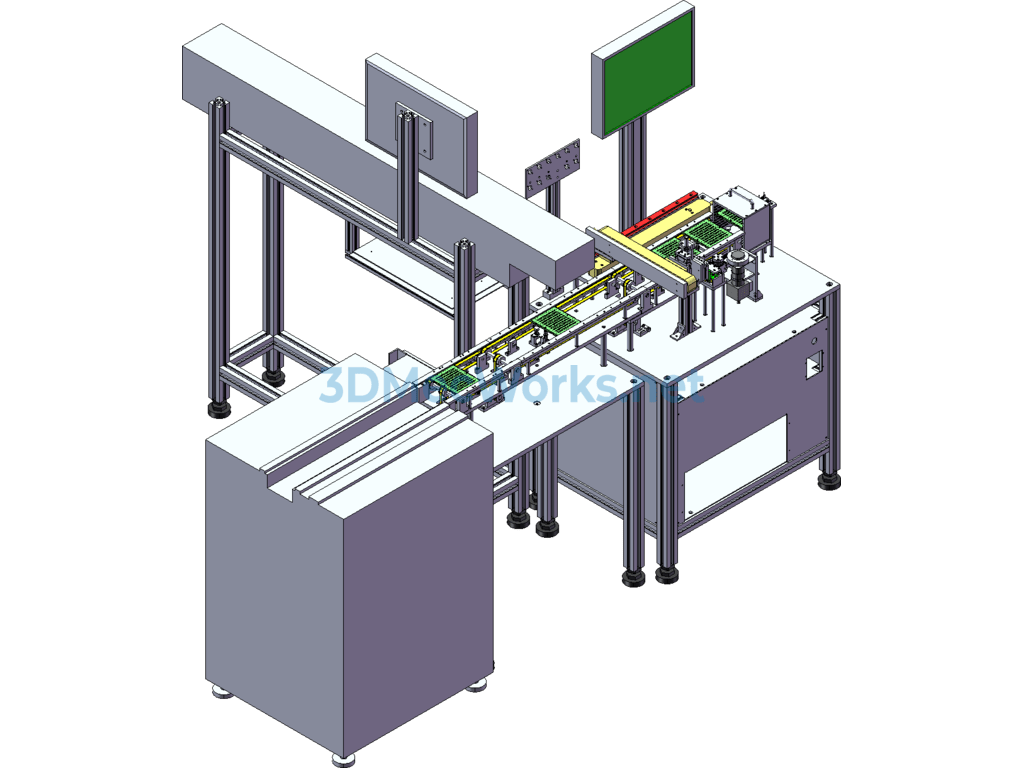

The LED component packaging and inspection all-in-one machine is a mature device in the electronics industry, and it employs an ascending basket-type automatic feeding system. The feeding uses a high-precision screw rod, ensuring high positioning accuracy. The cylinder retracts the feed tray. The conveyor belt transfers parts to the corresponding workstations. This equipment uses international standard parts, such as SMC cylinders, MISUMI belts, bearings, and lead screws. The SolidWorks modeling includes a total of 177 sldprt files, with the model being an assembly file.
