Laser Cutting Machine 3015

Laser Cutting Machine 3015 Fiber Cutting Machine (Rack and Pinion Drive)

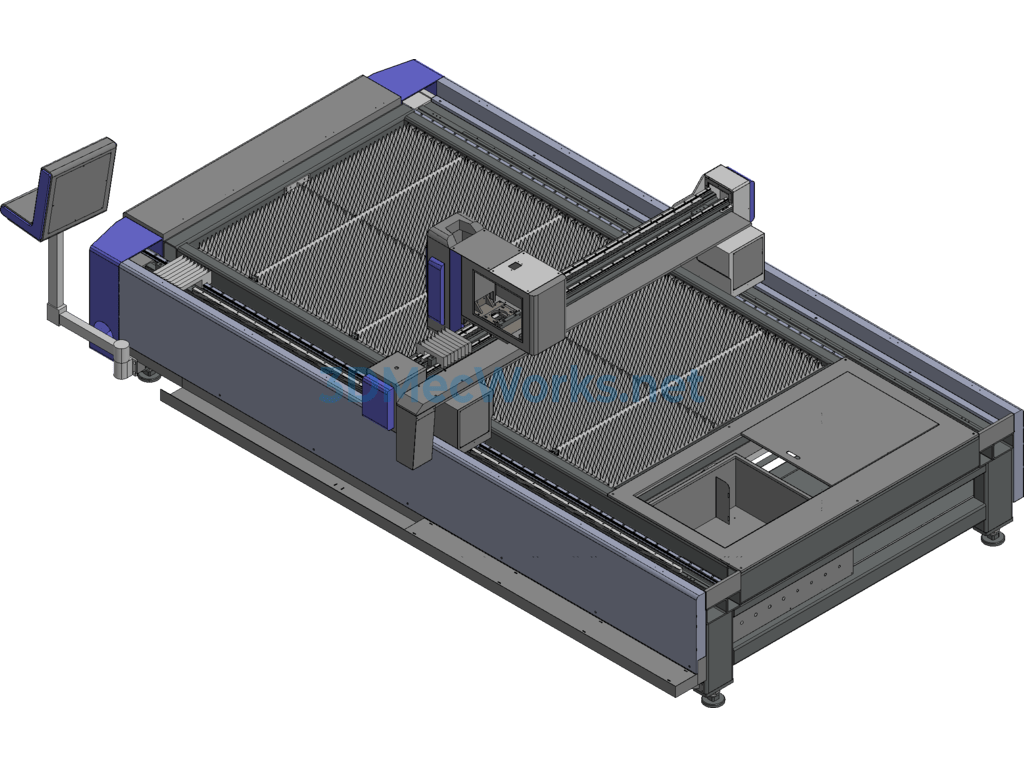

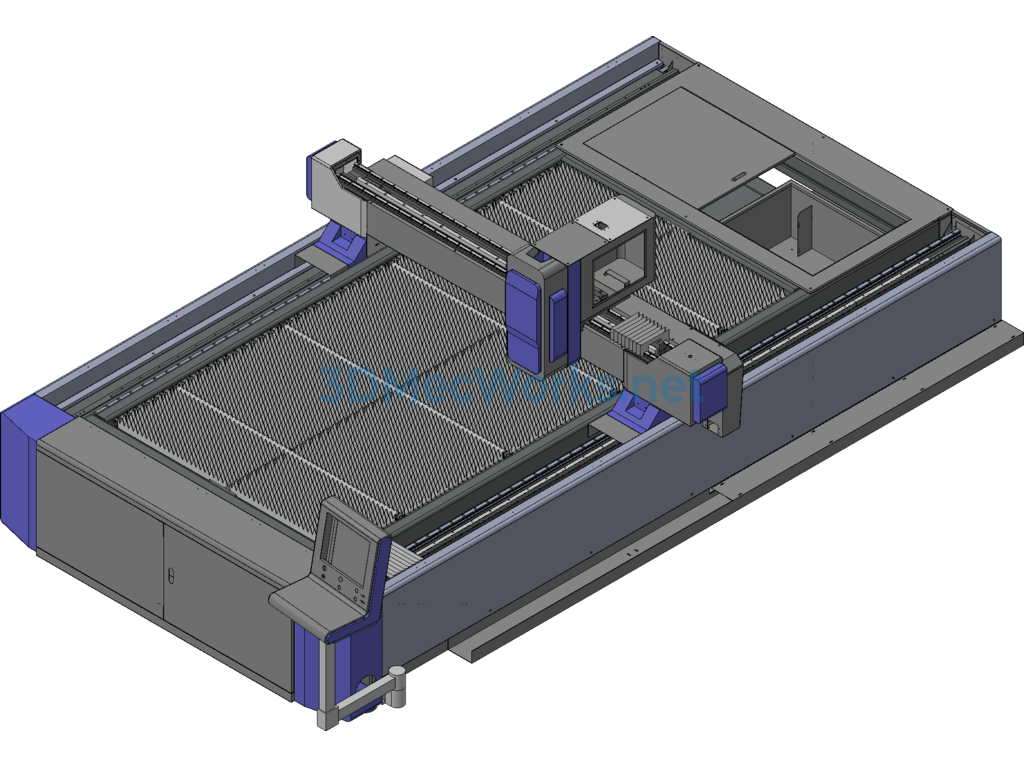

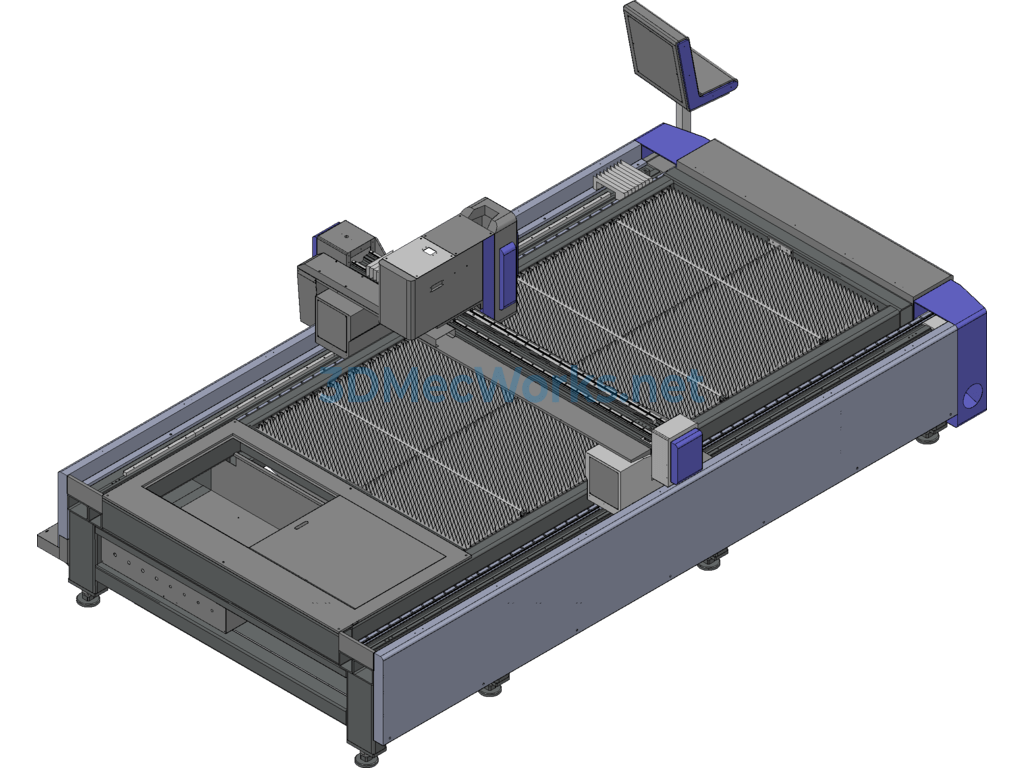

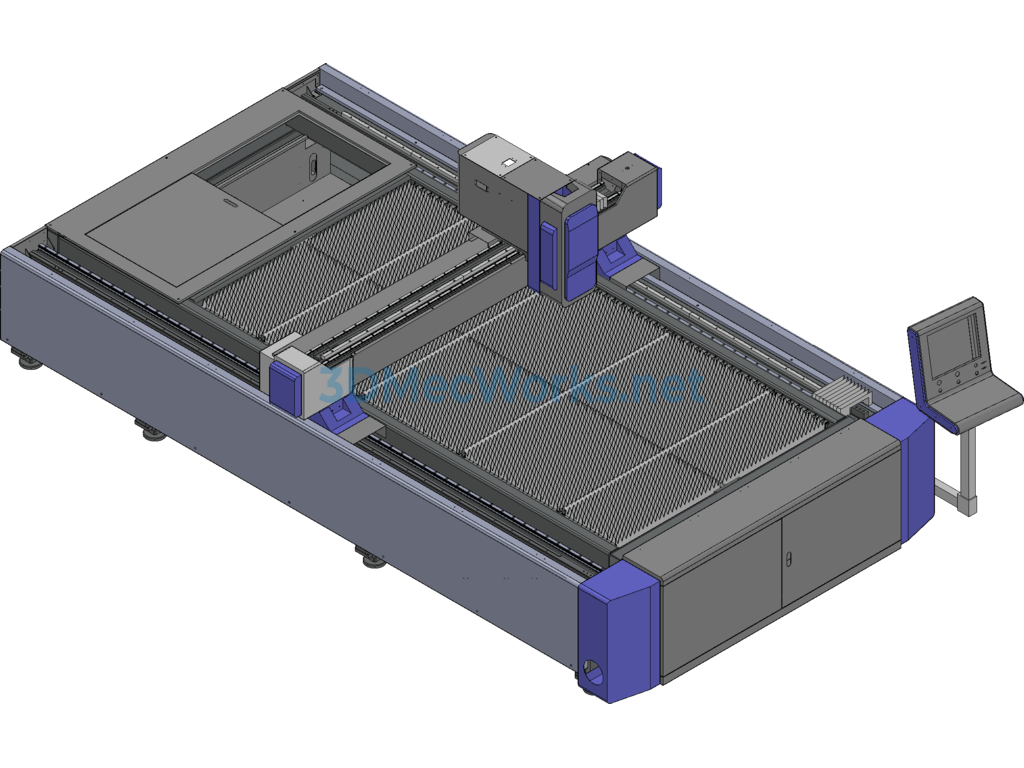

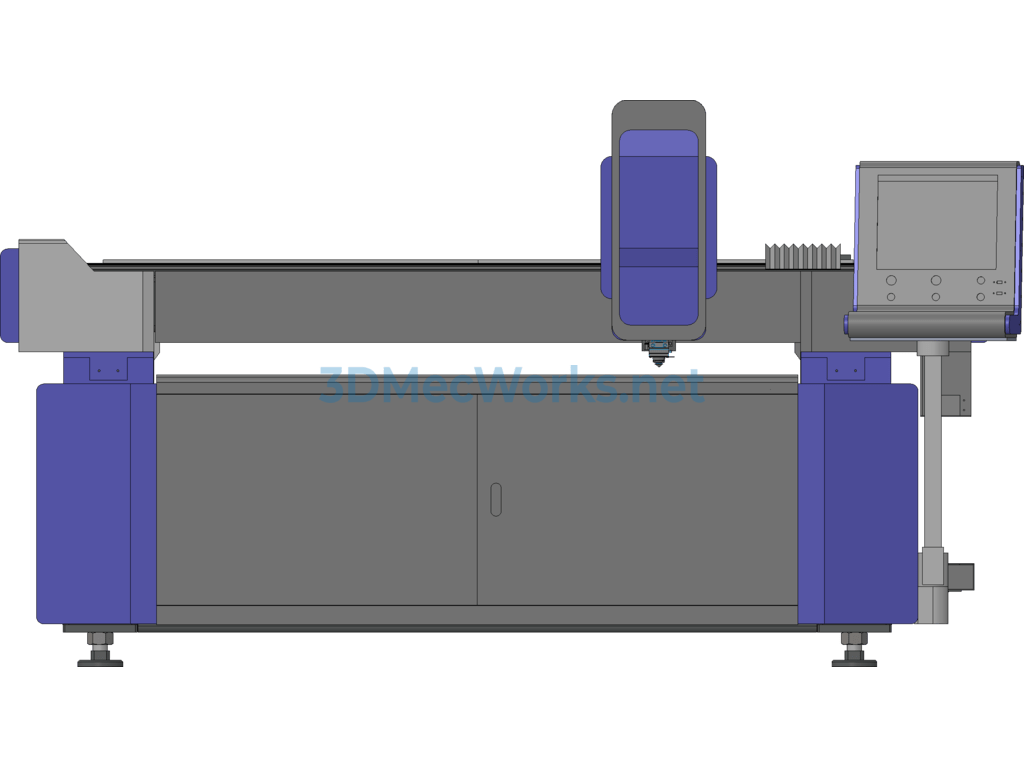

This is a 3D model drawing of a CNC laser cutting machine, and it is a relatively advanced domestic product. It includes the base frame structure, upper frame, exhaust system, sheet metal cover, material support frame, material retrieval box, etc. It is mainly suitable for cutting and blanking of some sheet metal parts. Contents include assembly drawings and all part drawings. Both X and Y axis transmissions use rack and pinion drive, with dual 850W servo motors for the X axis drive, and a single 850W servo motor for the Y axis drive. The machine positioning accuracy is 0.03mm. The drawings are detailed and do not include parameters, and can be modified.
