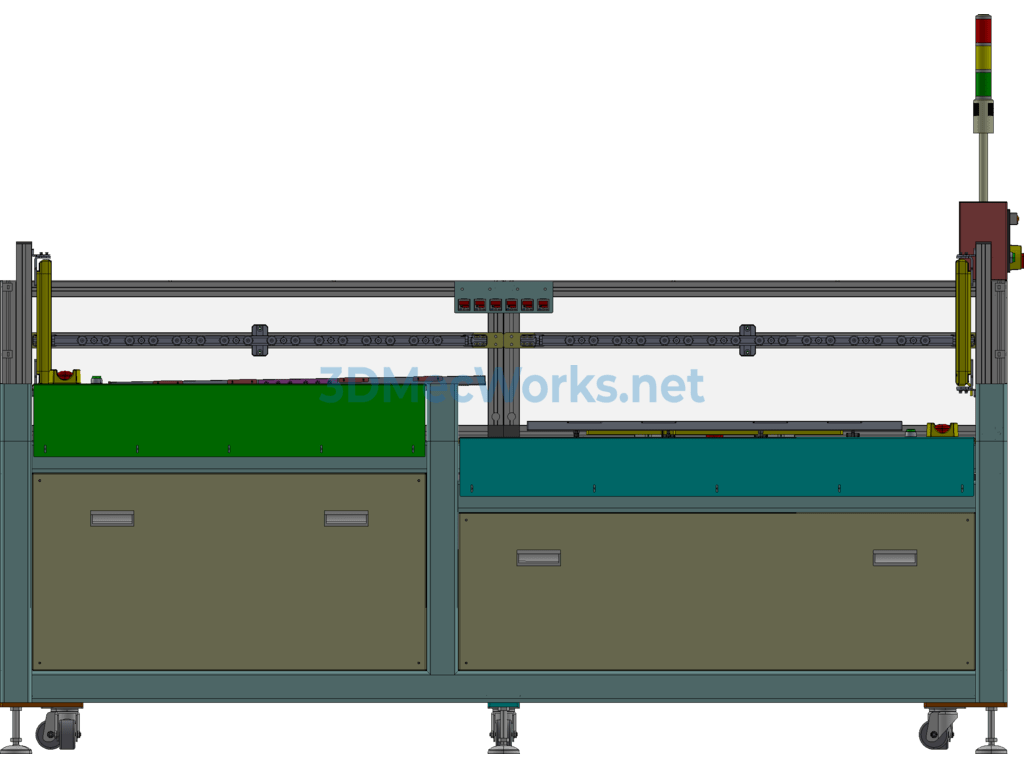

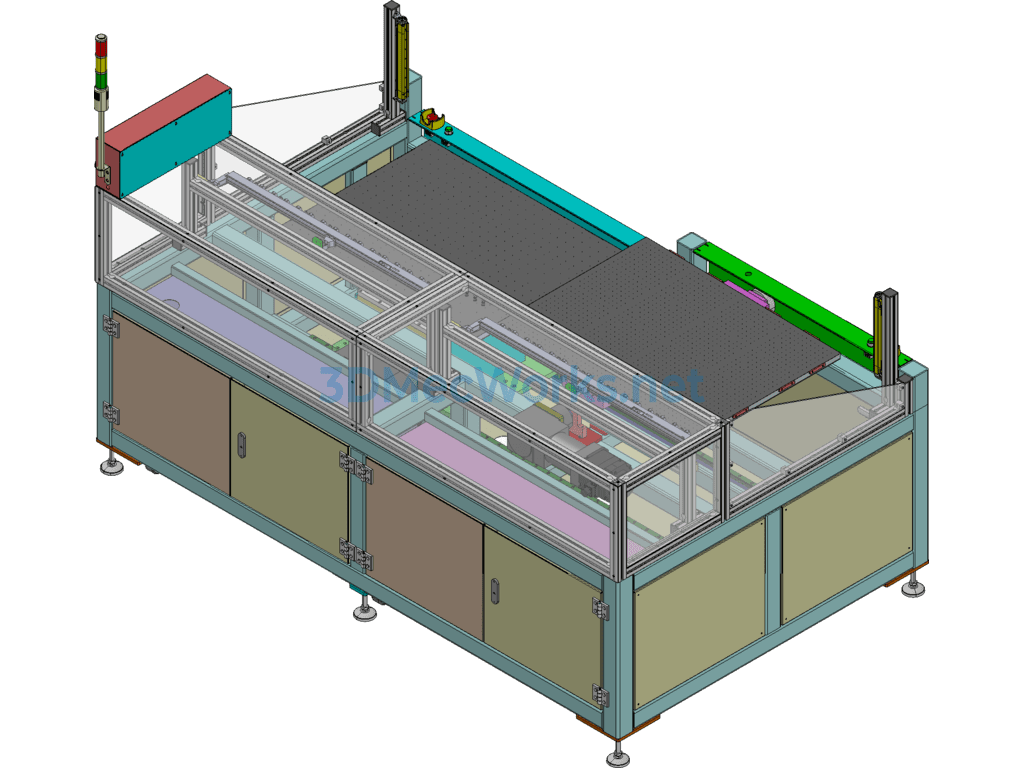

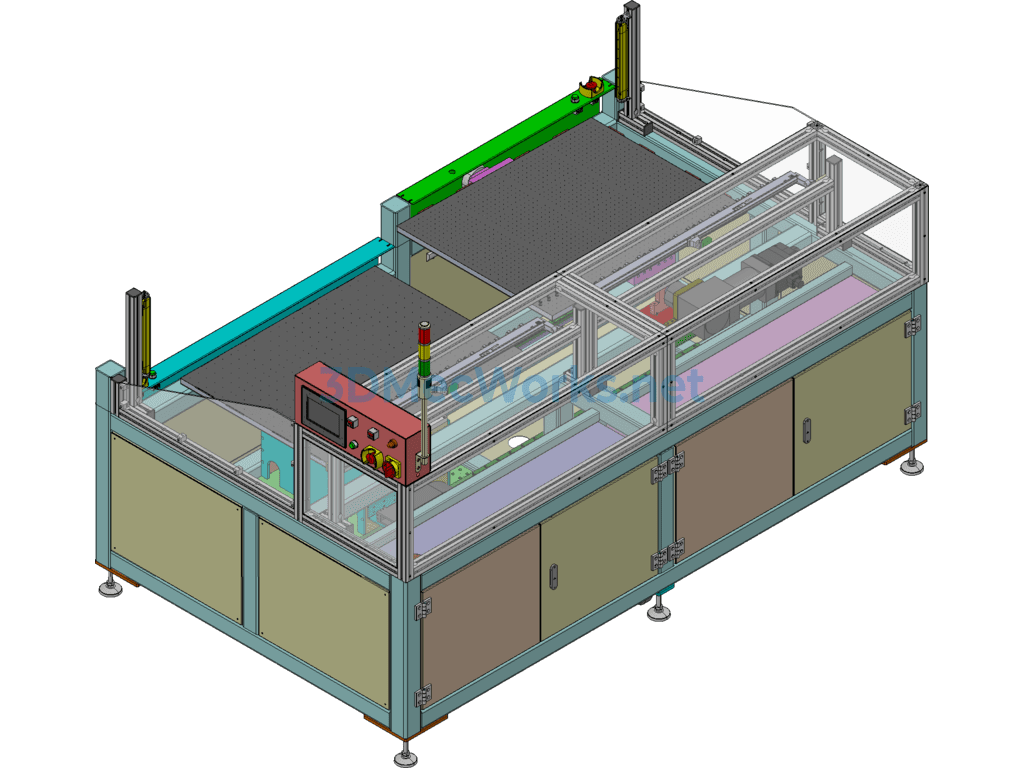

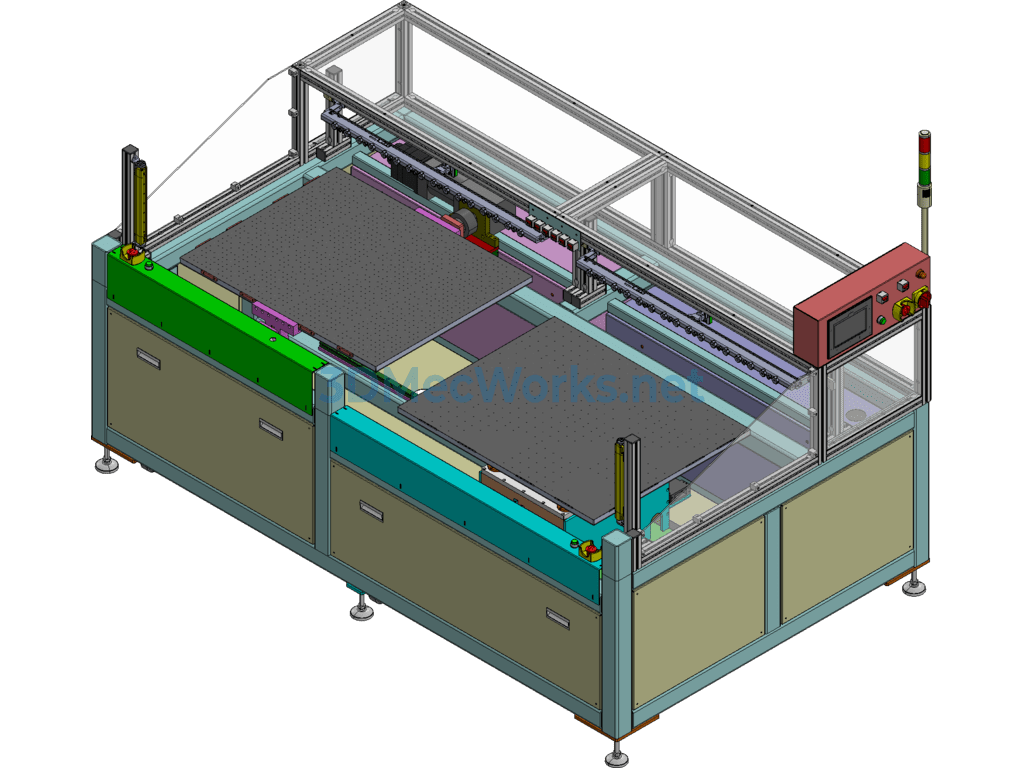

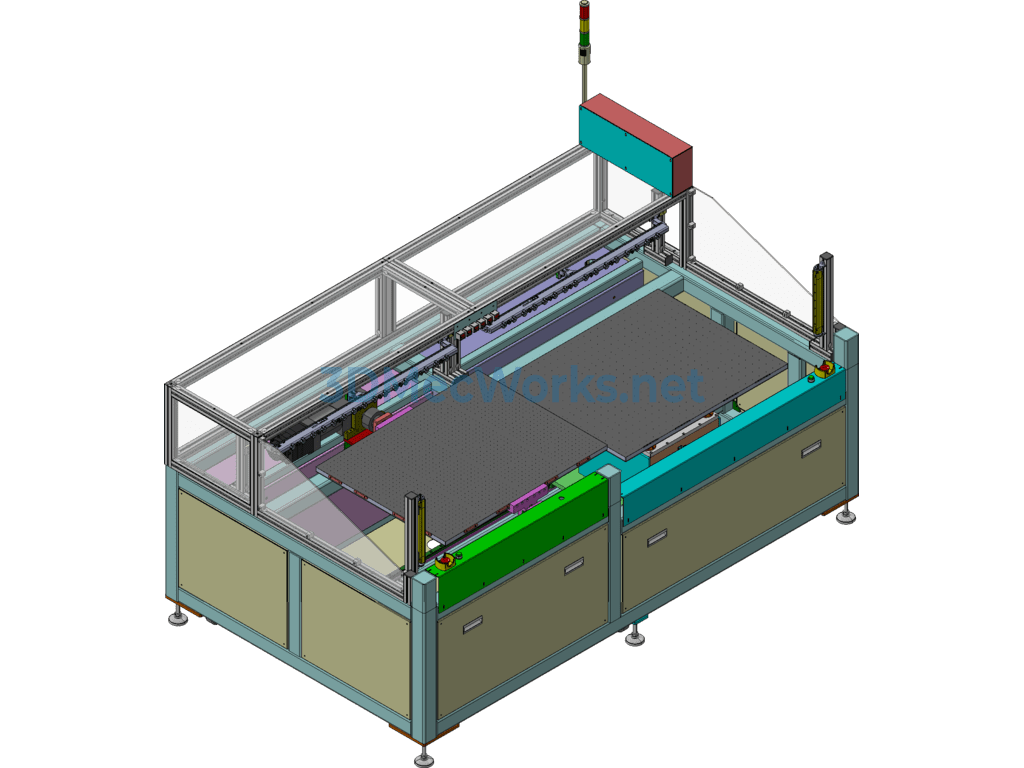

Large-Scale Glass Flipping Machine

Large size glass flipping machine: This lifting and flipping mechanical model is relatively complex in concept, highly practical, and structurally detailed. This design utilizes a top-down approach, conducted within the assembly interface. The challenge in this design is incorporating the process considerations during design, which involves methods for drawing solids and surfaces, among other aspects. Begin with choosing the profile before proceeding with the design. I hope this provides more material for your study and work.
