Large Elevator

0
Sold by
MrBlue
@ MrBlue
[mecworks-btn]

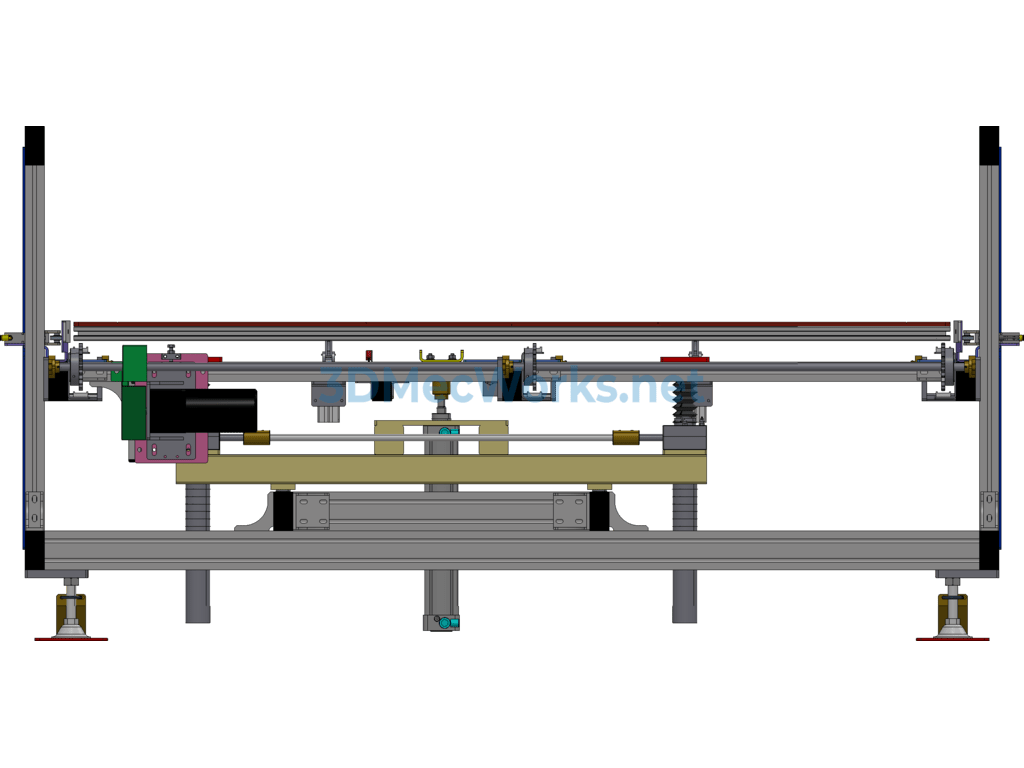

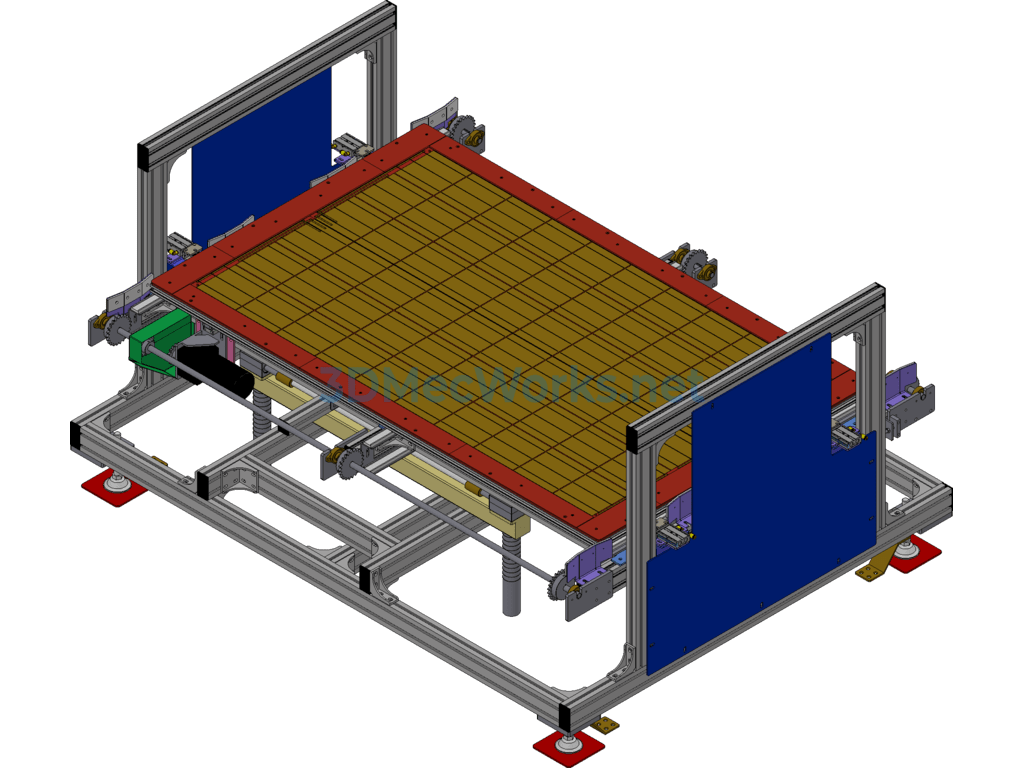

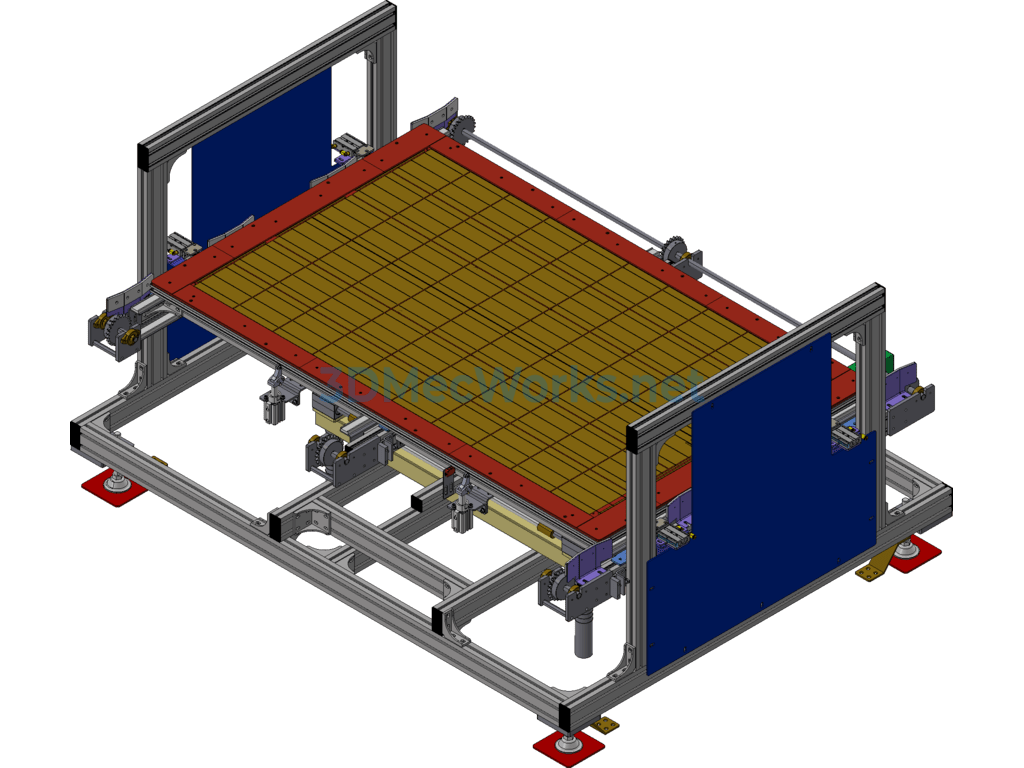

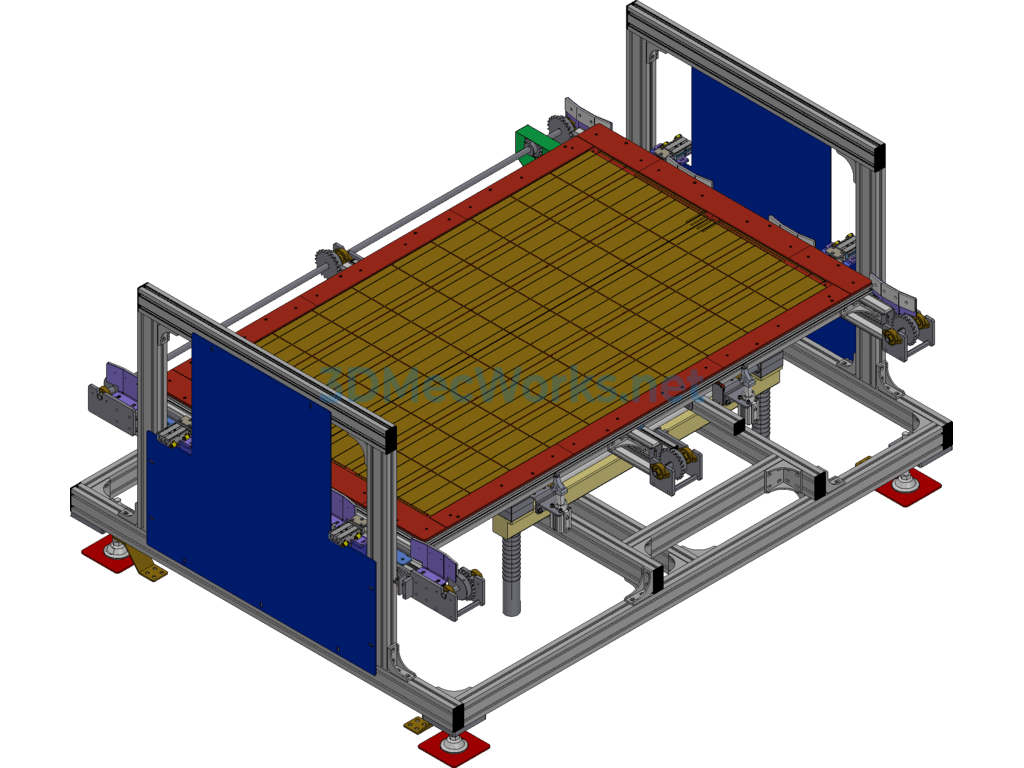

This equipment is a large elevator, used in some LCD screen production processes for the reflux of carriers. This elevator can lift large products, using a large cylinder diameter method for ascent, adding a supporting mechanism in the middle, and using bearings for guidance.

Specification: Large Elevator

Design Software

Editable

,

File Formats

Industry Application

Sharing Level

Version
