Large and Complex Six-Station Testing Machine

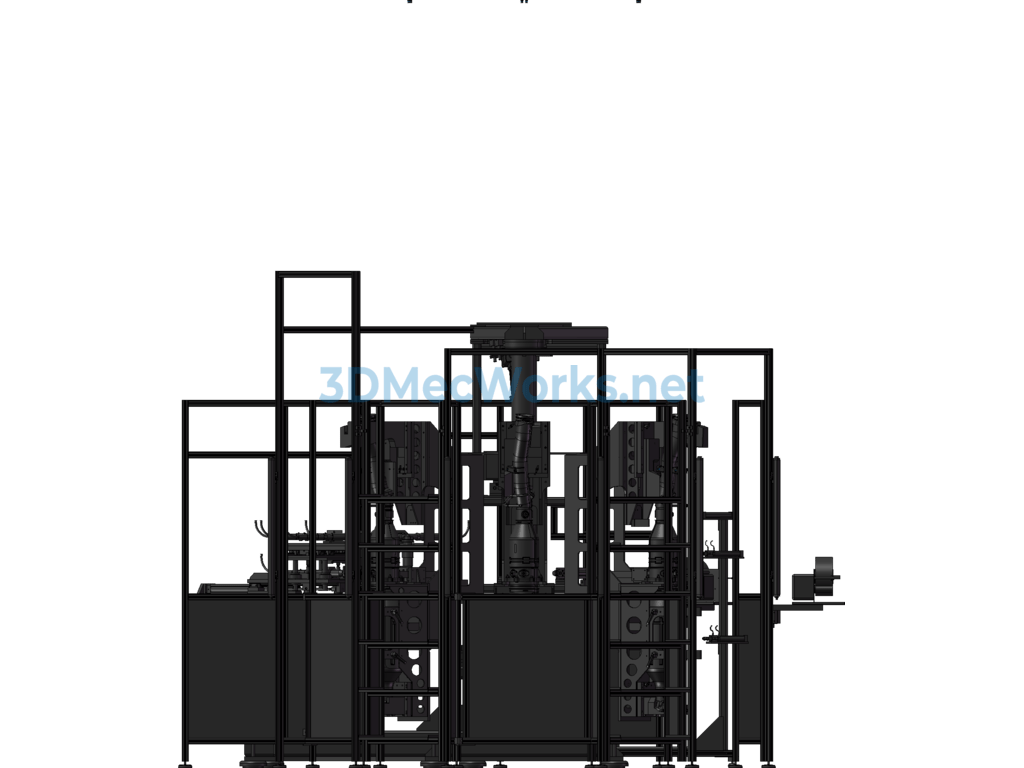

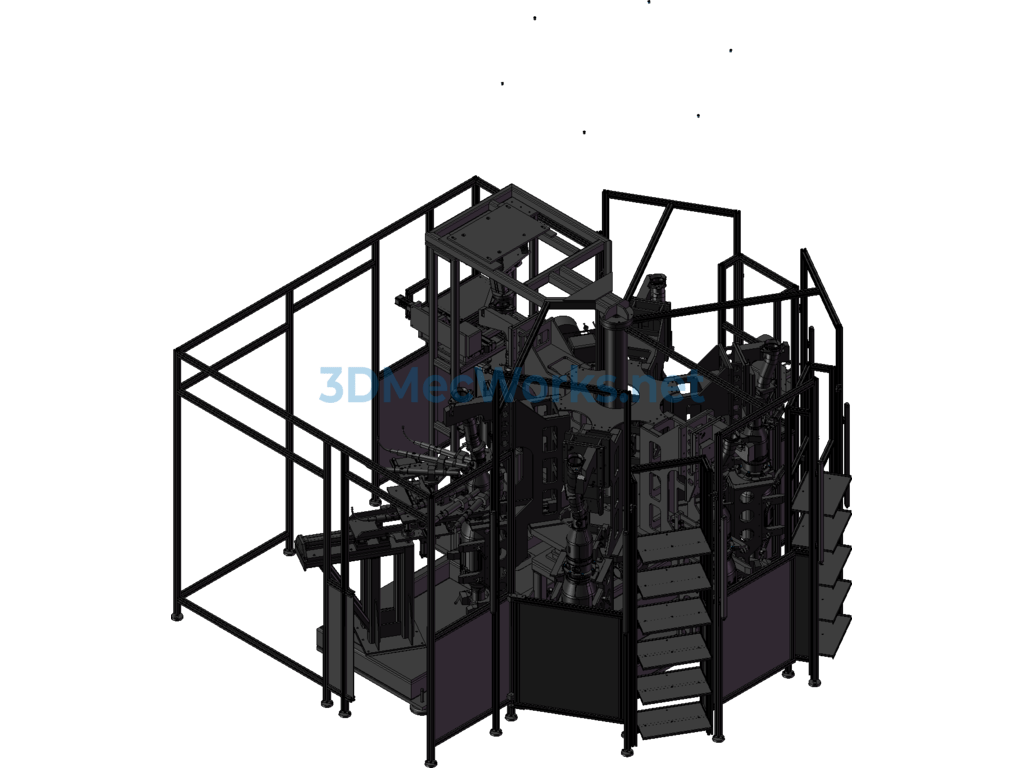

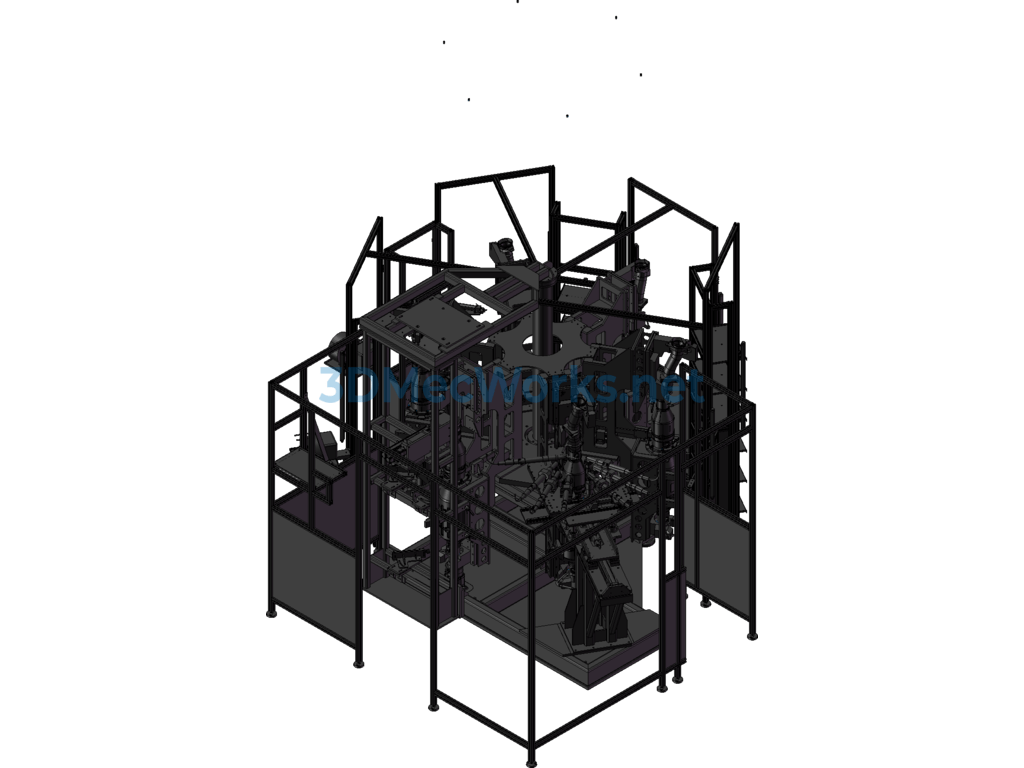

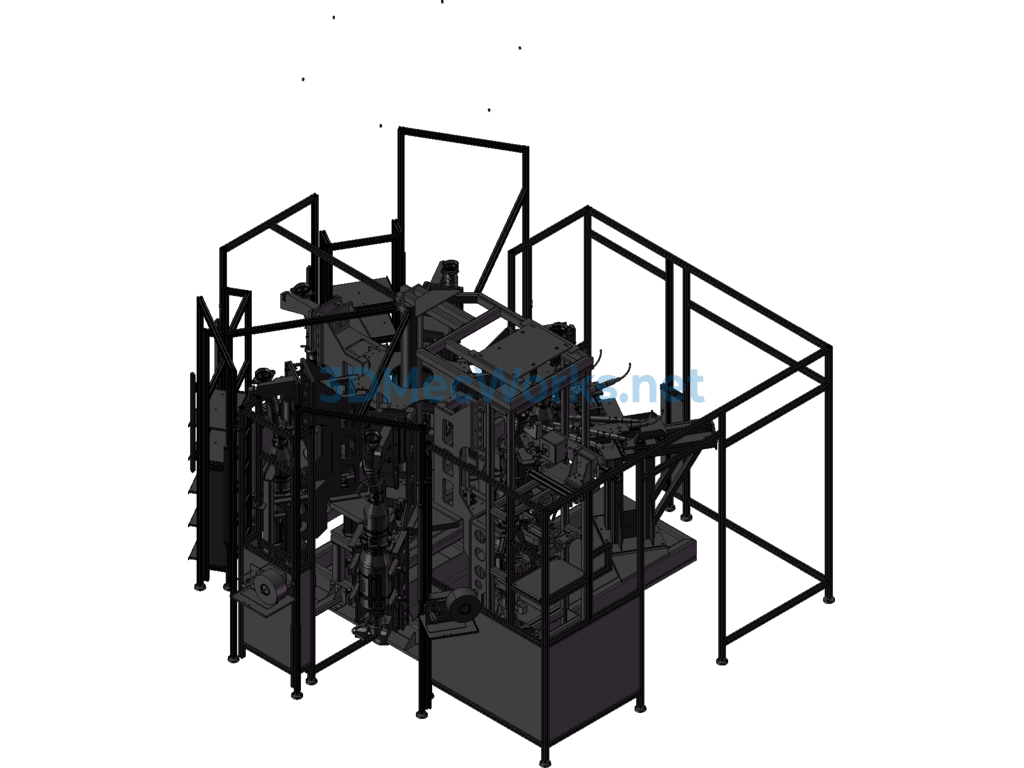

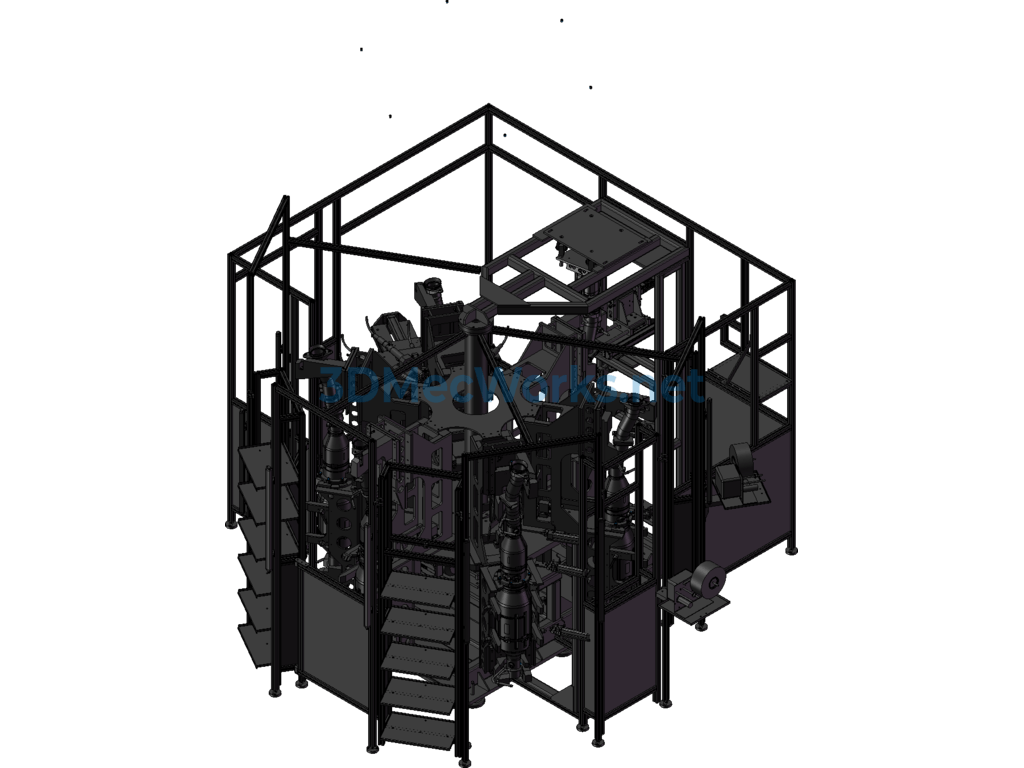

Large complex six-station test machine 3D model, this equipment is designed with SW2011, and its structure is very complex, consisting of a total of 596 parts and one STP format file, with 10 assemblies. This device is a classic foreign model specifically for detecting leaks in automotive torque components. The equipment features a turret structure with 6 indexing positions, utilizing a high-precision, high-torque indexer for positioning, an automatic feed mechanism, and mechanical parts gripping to place and locate parts on the rotary table stations. It performs leak detection on parts. The equipment involves a large number of mechanisms. The design is well-reasoned. It’s very instructive for learning about multi-station detection and multi-station assembly equipment.
