Lancaster Bomber Model 3D Drawings SW Design

Name: Lancaster Bomber Model 3D Drawings
Size: 121MB (compressed package)
Format: SolidWorks design, includes assembly and part drawings, with STEP format provided.

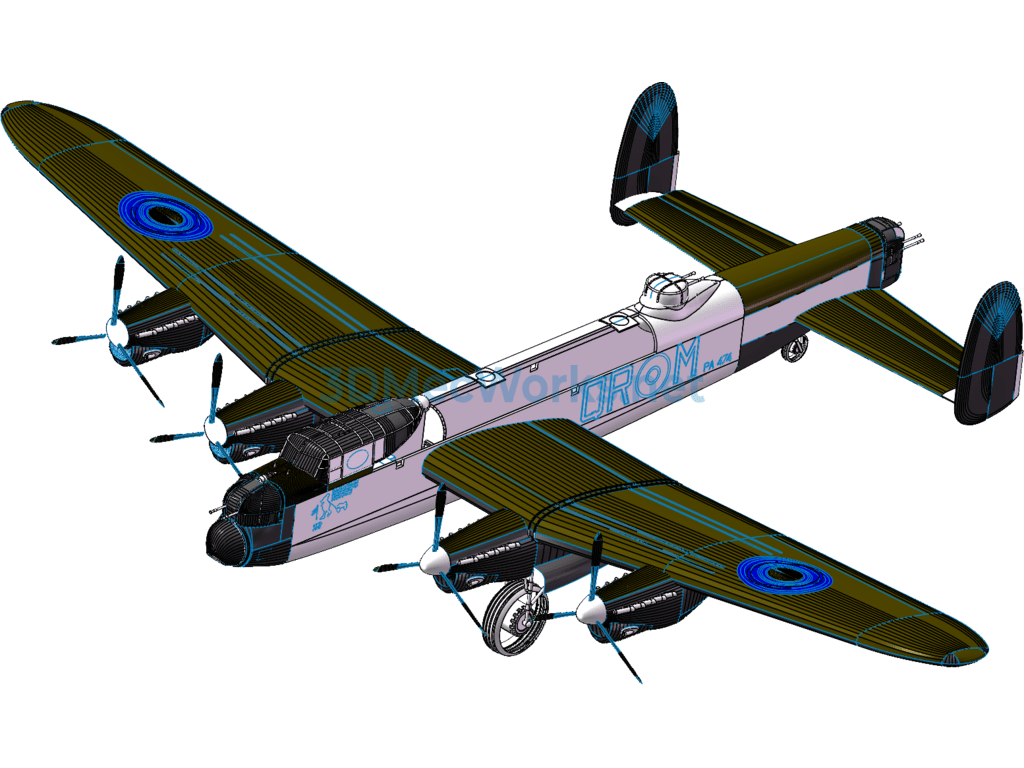

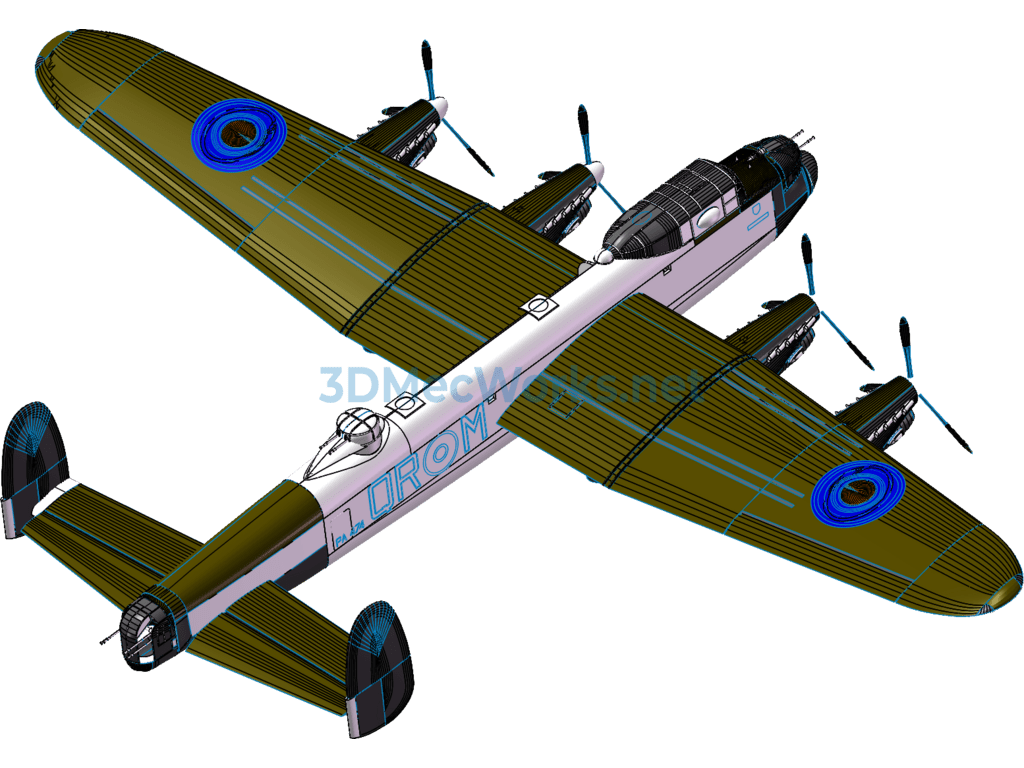

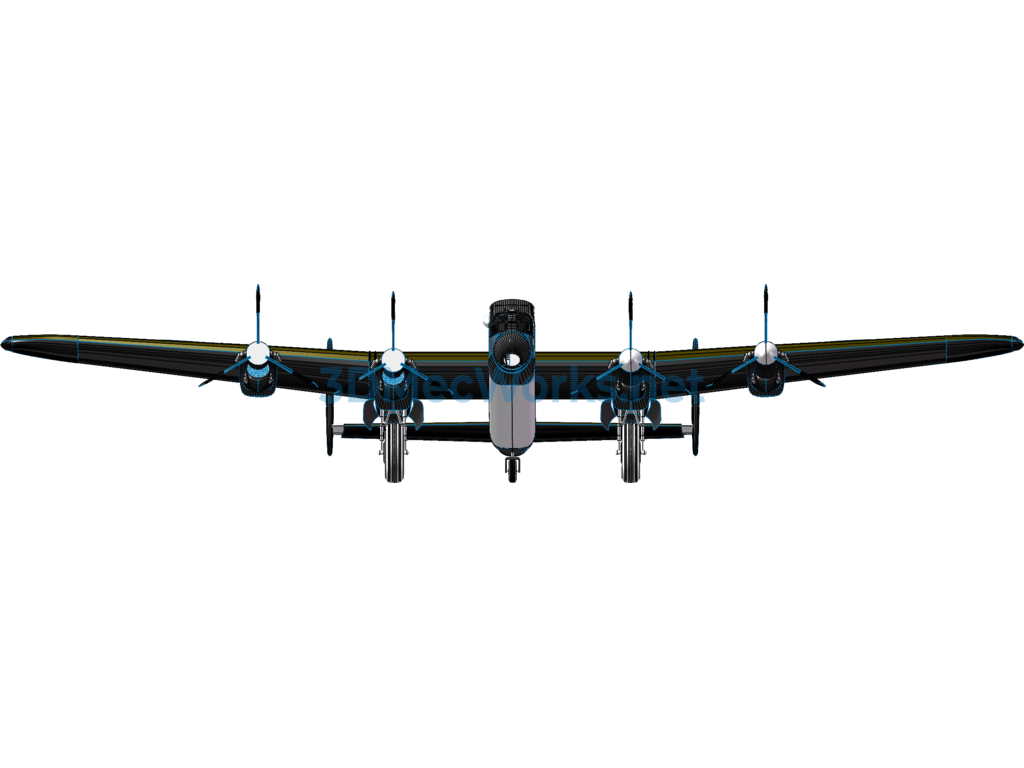

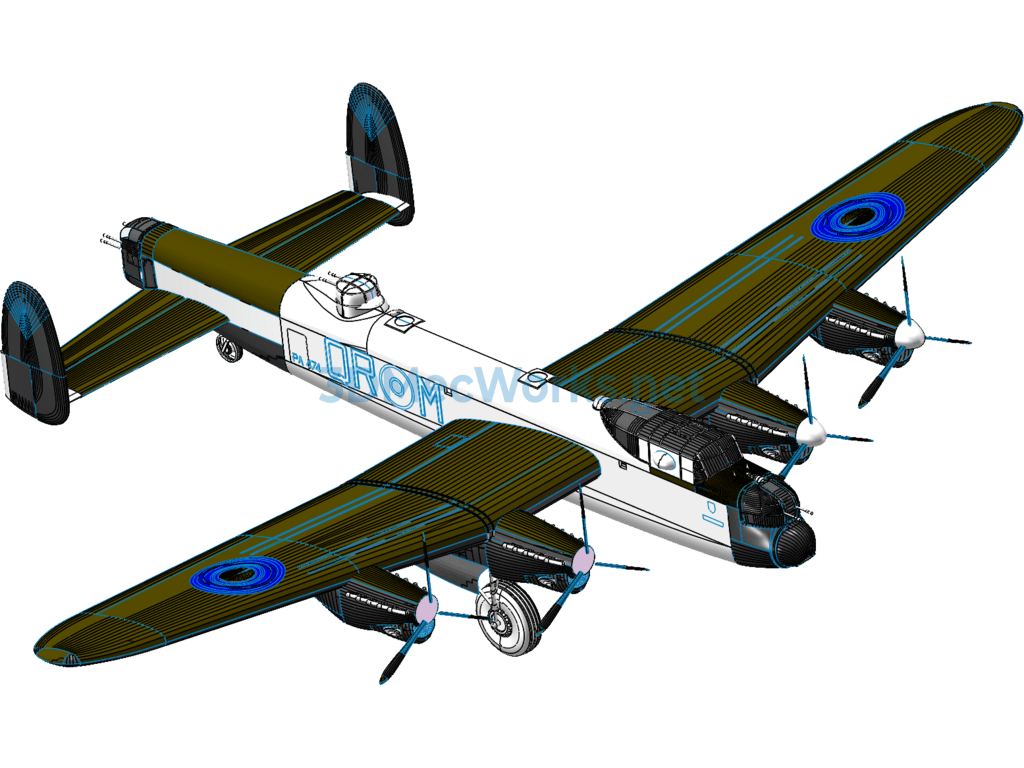

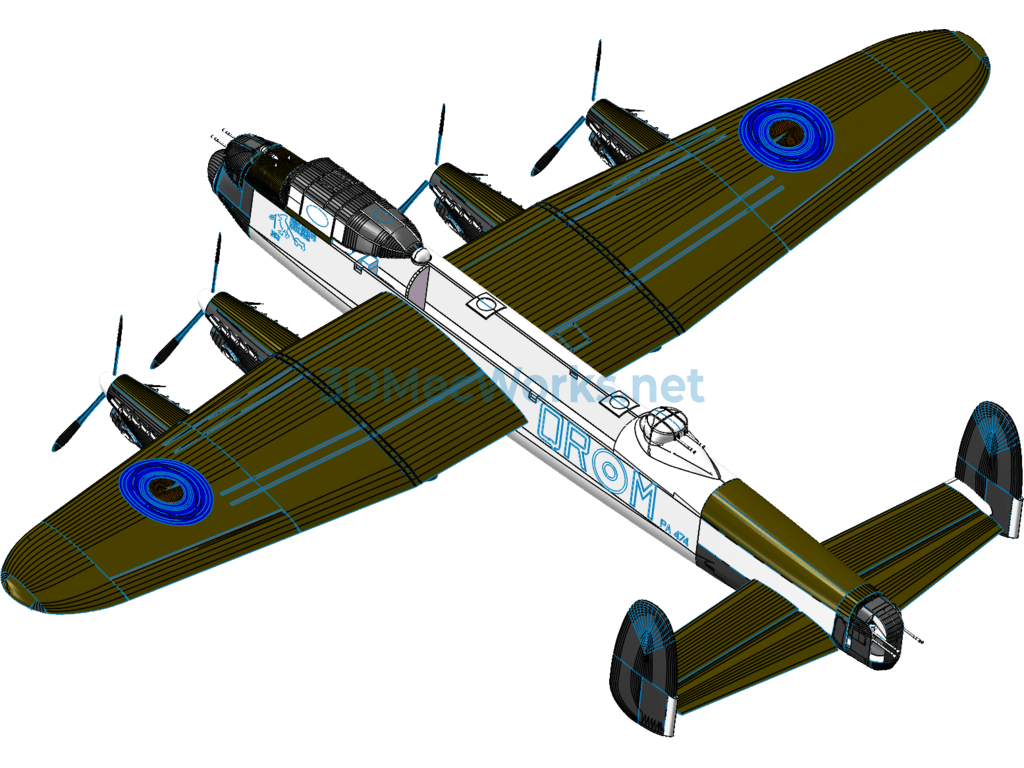

The model represents a Lancaster bomber, with a total length of 69 feet and a height of 20 feet, powered by four Rolls-Royce Merlin 20, 22, and 24 engines as the drive core. The upper part of the fuselage has been reinforced with skin. Defensive gun turrets are installed on the nose, tail, and upper rear fuselage. The twin vertical tail fins are mounted on the ends of the lower horizontal tail. The main landing gear can retract into the rear part of the inner engine nacelle. The model is designed using an assembly method without parameters and includes an STP format file. Download is welcome!
