Laboratory Motor Comprehensive Test Bench

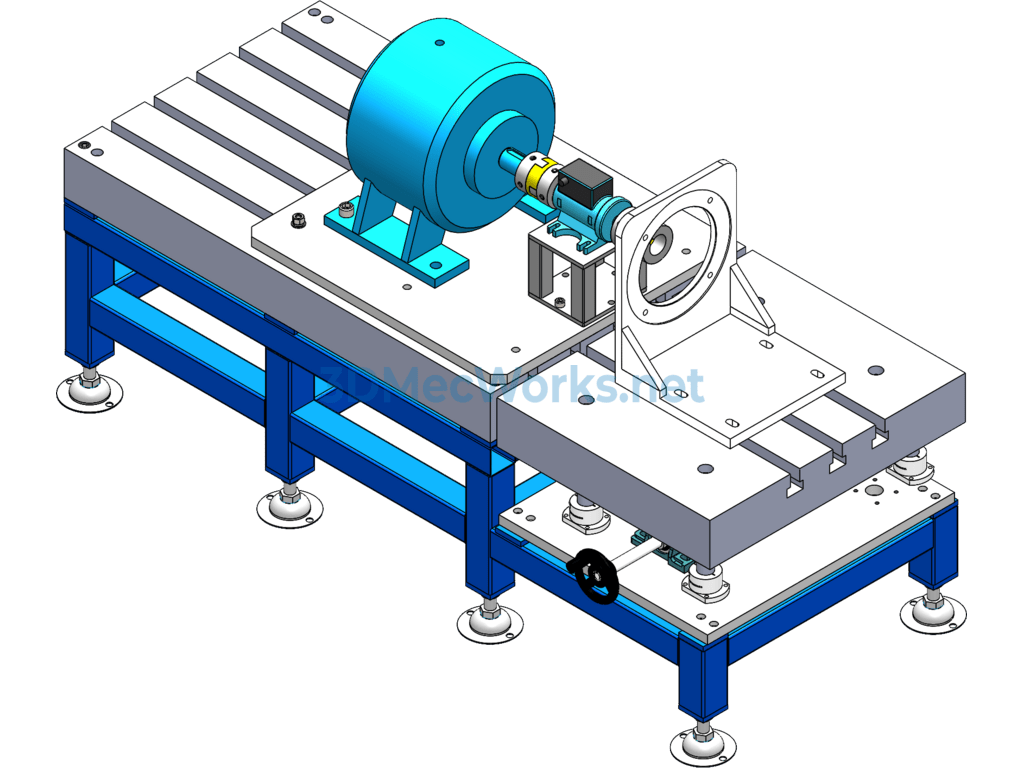

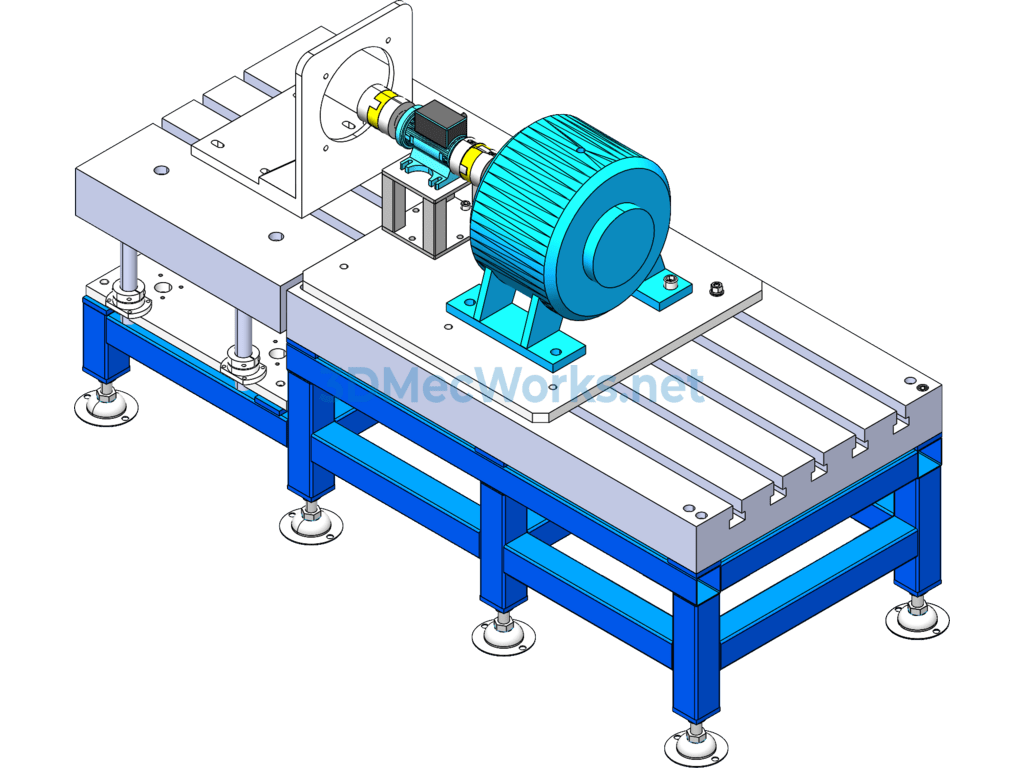

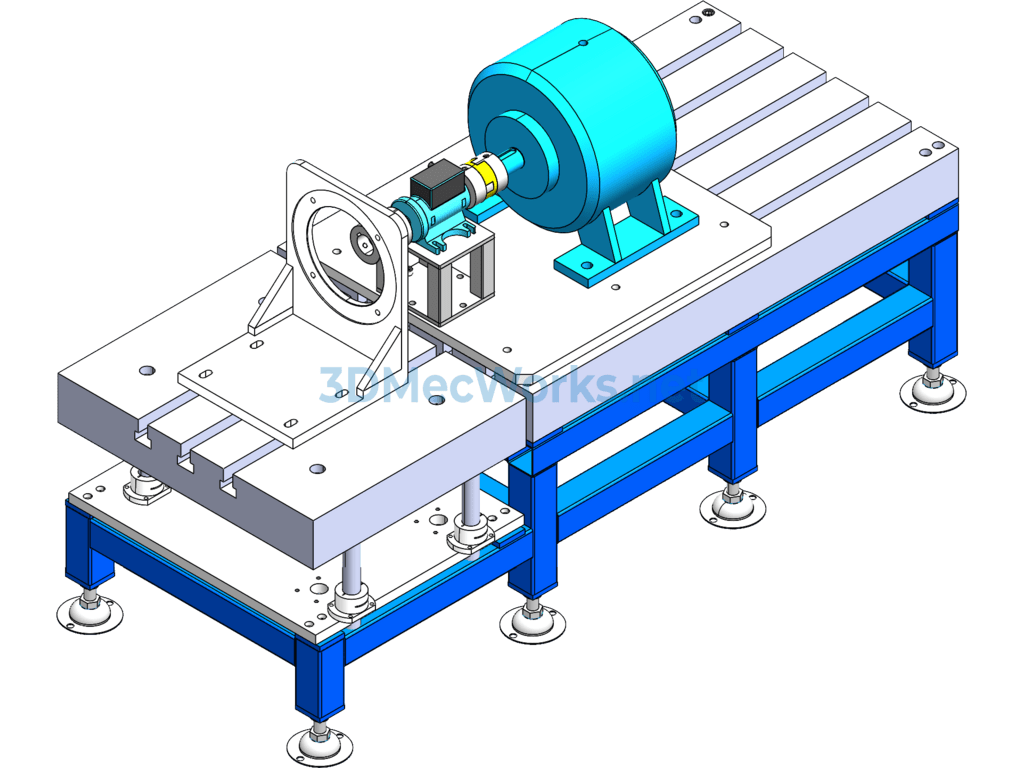

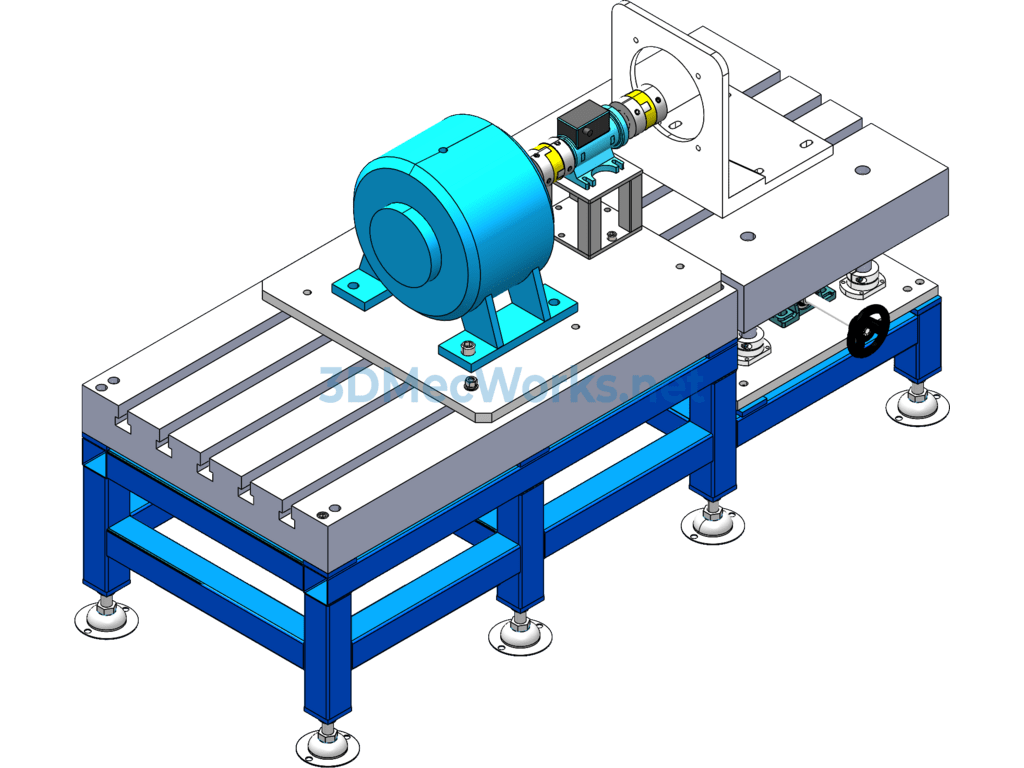

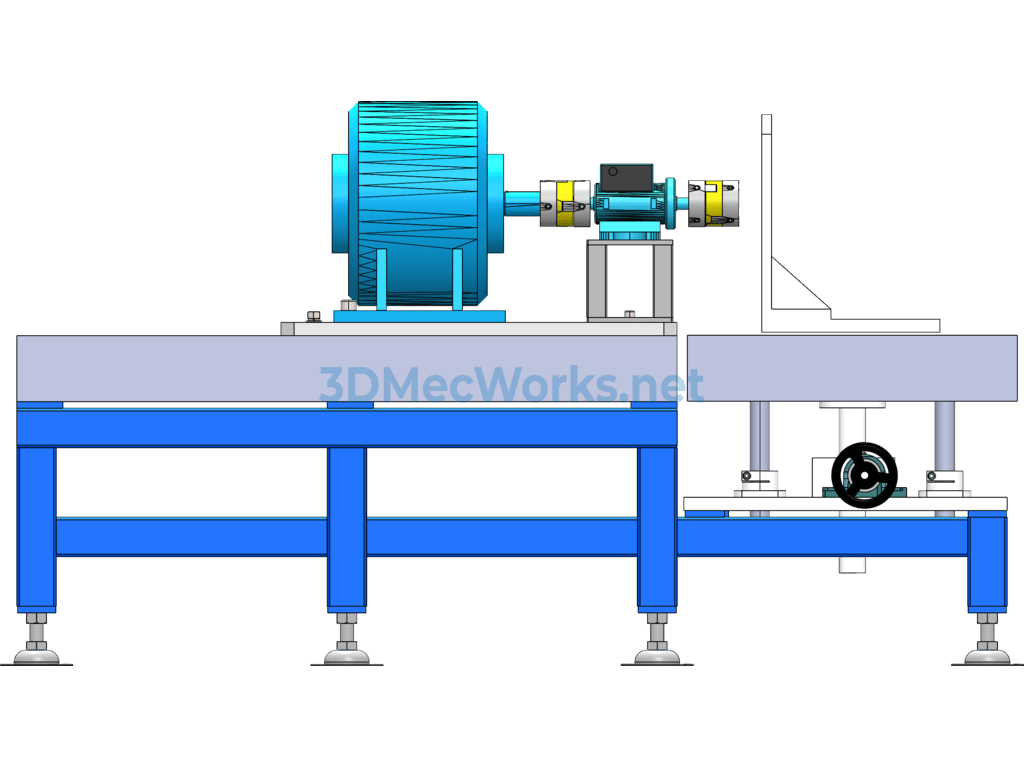

The following drawings depict a comprehensive motor testing bench (laboratory). It is used in motor testing laboratories. The structure is composed of:

1) Welded support frame
2) Fixed platform plate
3) Testing brake and torque sensor, etc.
4) Lifting platform plate
5) Motor mounting plate

The main testing components used are from the domestic Lanling brand, such as the eddy current brake CW50B, torque speed sensor ZJ-100A, torque acquisition instrument TS-300, load controller SC-1D, torque display cabinet, and others.
