Labeling Machine

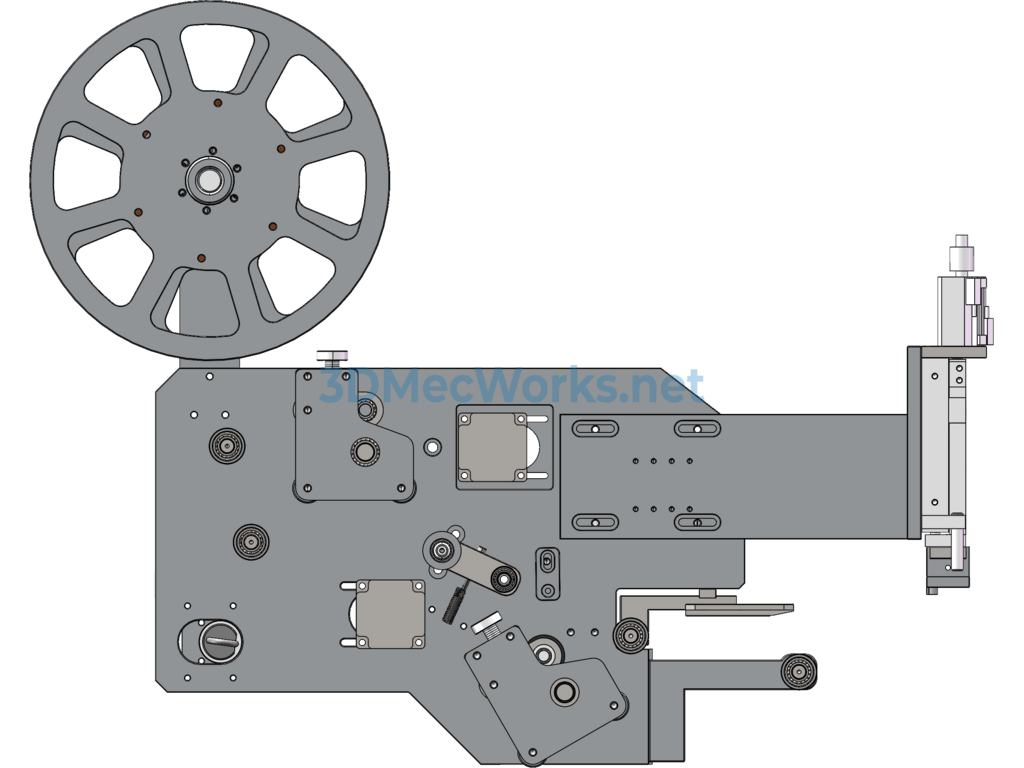

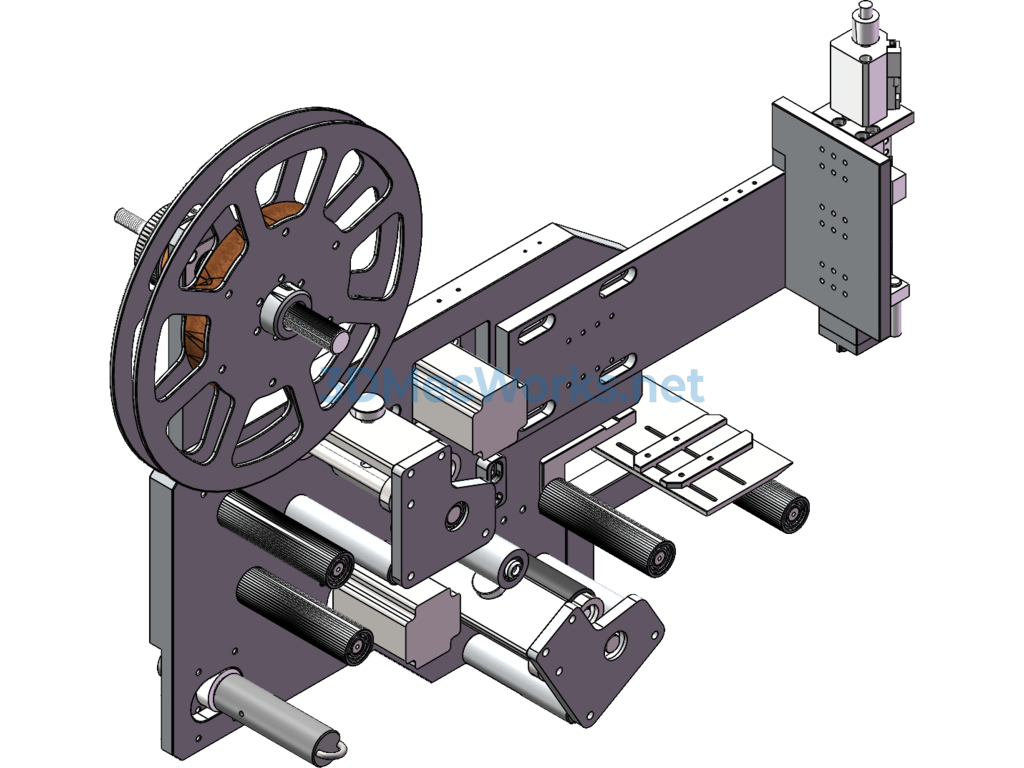

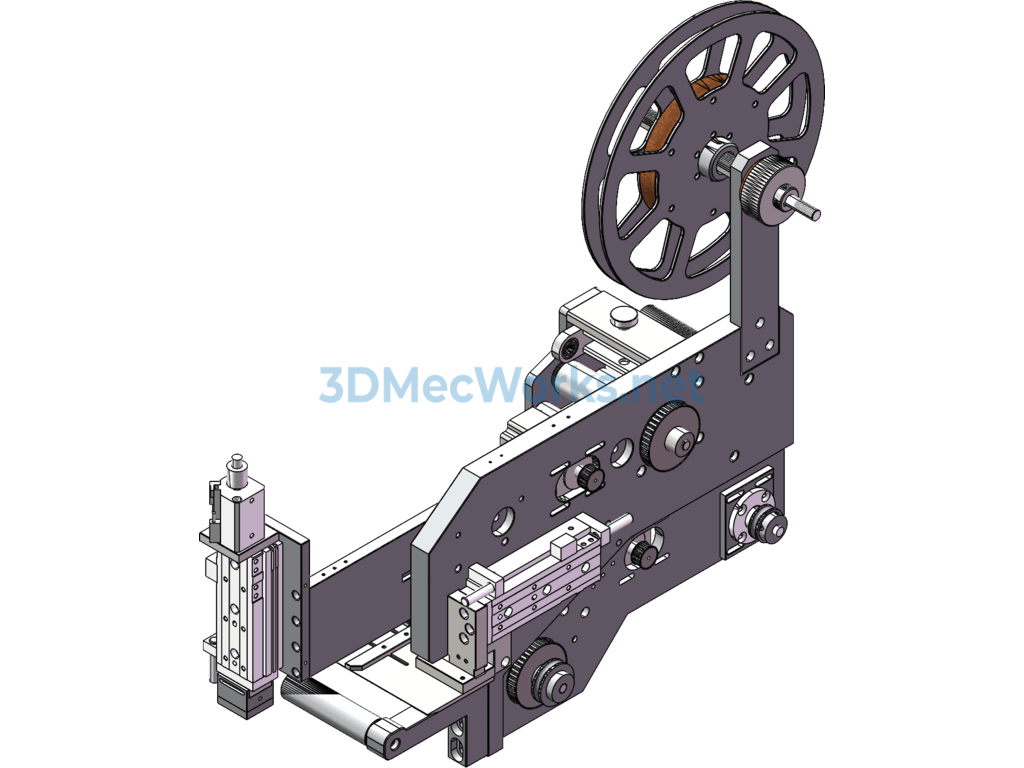

Labeling Machine Feeder Assembly
Main Specifications of the Labeling Machine

Voltage: 380V 50Hz
Air Pressure: 0.4-0.6 Mpa
Air Consumption: ~100L/min
Cycle Time (Total): ≤ 8 seconds/piece
Conveyor Type: Single Circuit Board, Bakelite
Conveyor Processing Accuracy: ±0.05mm
Workstation Repositioning Accuracy: ±0.1mm
Incoming Material & Clamping Accuracy: ±0.08mm
Overall Equipment Installation Accuracy: ±0.2mm (Normal accuracy, higher precision requires additional detection and precise positioning)
Logistics Speed: 10 to 1000mm/s (Adjustable average speed, recommended 300mm/s)
Required Manual Loading Time: ≤ 7.0 seconds/piece (Loading & Confirming Loading)
Required Manual Quality Inspection and Product Collection Time: ≤ 6.0 seconds/piece (Quality Inspection & Product Collection & Conveyor Flow Confirmation)
Operational Daylight Brightness: ≥ 800 candela
Operational Environment Temperature: -10℃ to 45℃, relative humidity 30% to 95%, no condensation allowed
