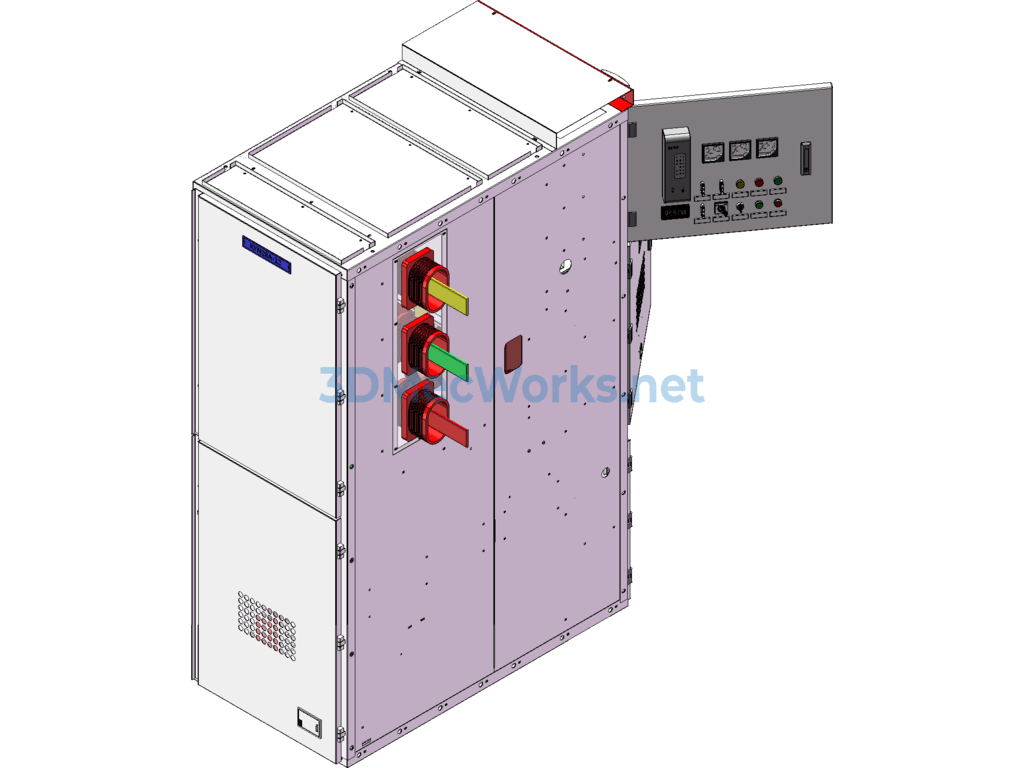

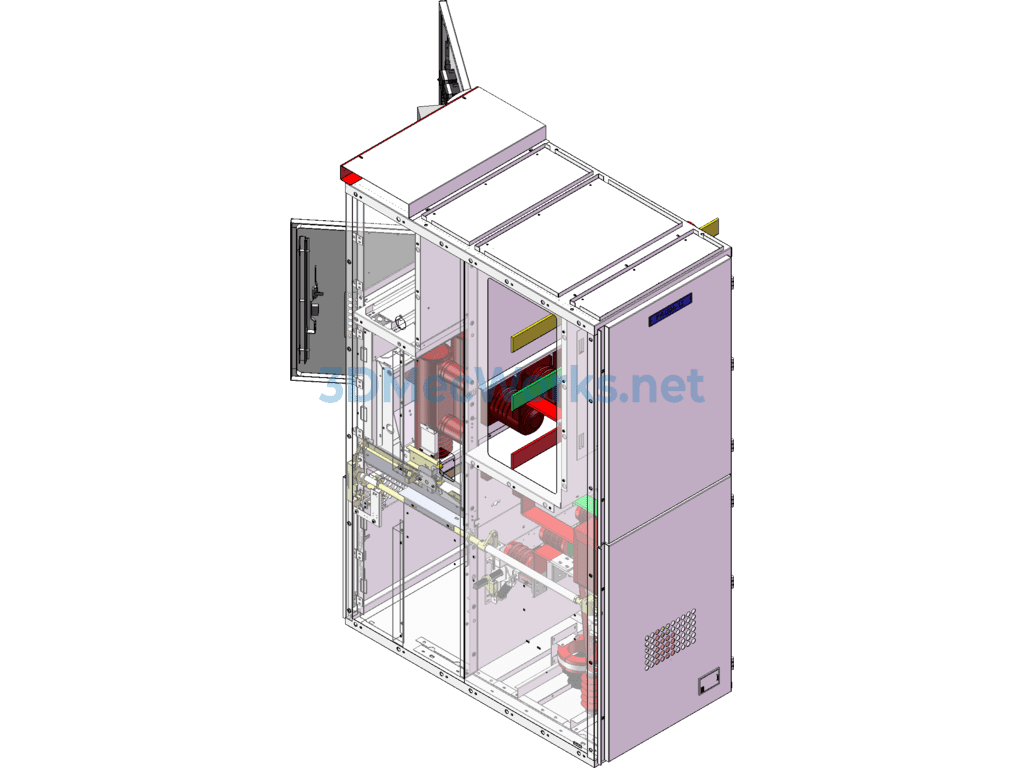

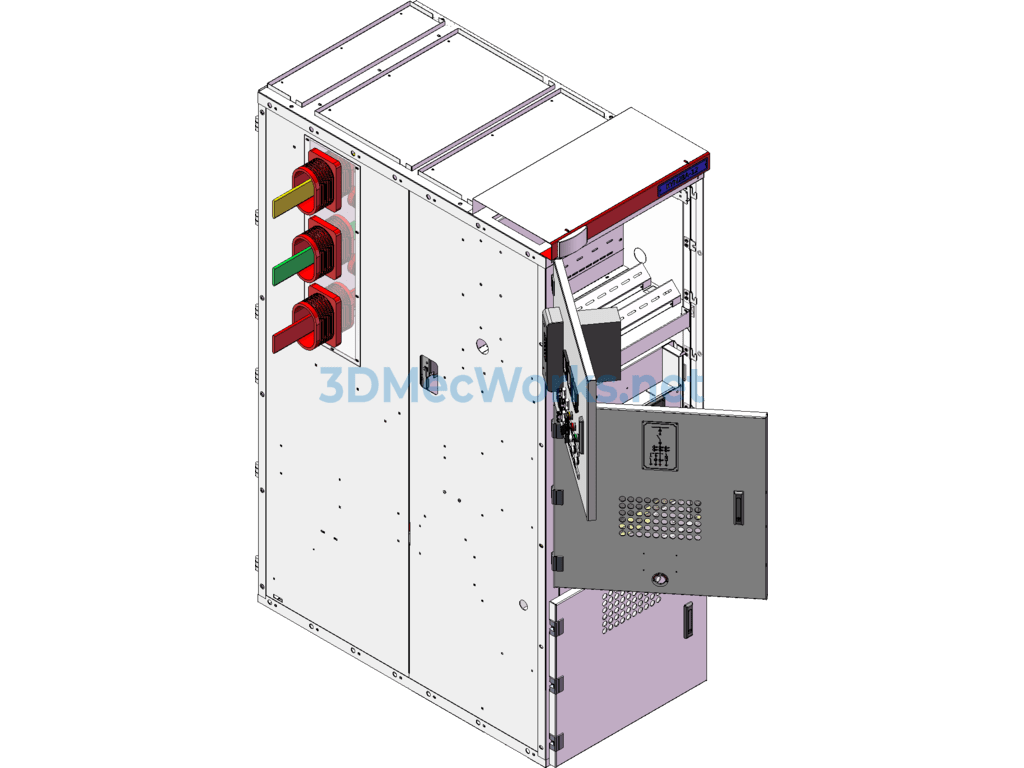

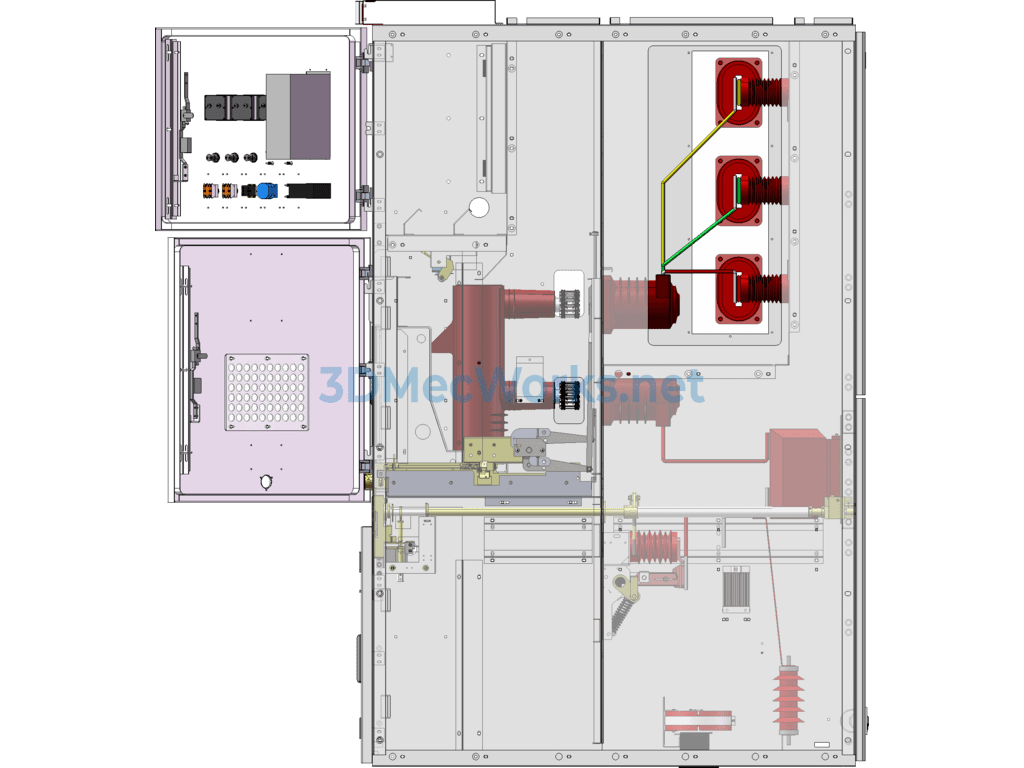

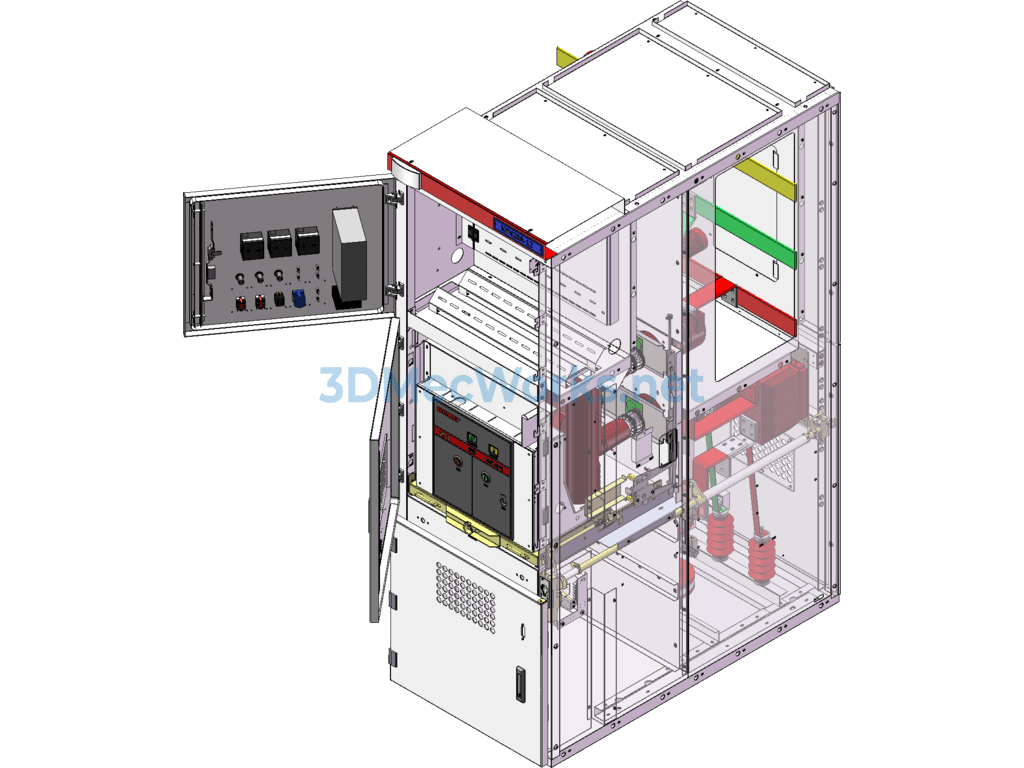

This drawing is recommended to open this product with solidworks2016 and includes a general 3D model format file in x_t format. This product is a KYN28 high-voltage outgoing cabinet, including 3D drawings, sheet metal enclosure drawings, copper busbar, and component drawings. The KYN28 outgoing cabinet is a new type of product independently designed and developed on the basis of introducing the advanced design and manufacturing technology of ABB company, which can replace various old armored metal enclosed switchgear. This product has the following obvious features: 1. The shell of the product is made of aluminum-zinc coated steel plates, formed by CNC machine tools, and assembled with bolts, which provides high mechanical strength and effectively ensures the appearance’s beauty. The cabinet door is coated with electrophoretic paint and then glazed and baked into porcelain, which offers a high impact resistance and corrosion resistance. The product has an IPX4 protection level externally.
