Internal Combustion Engine (sw Model With Clear Internal Structure of the Engine)

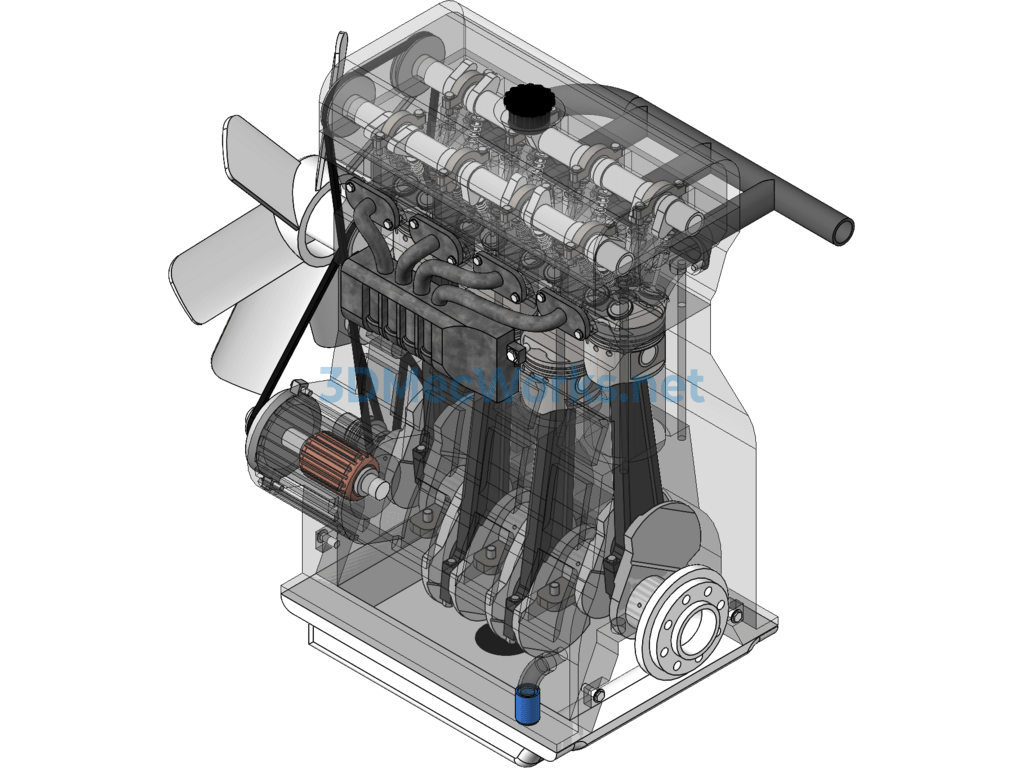

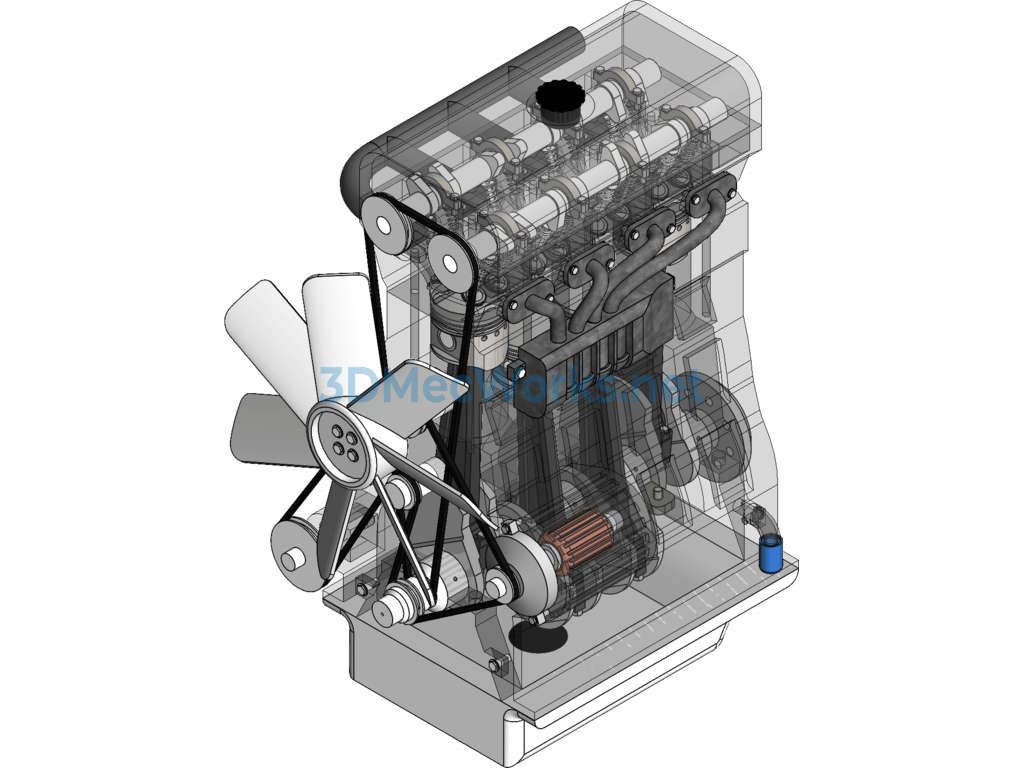

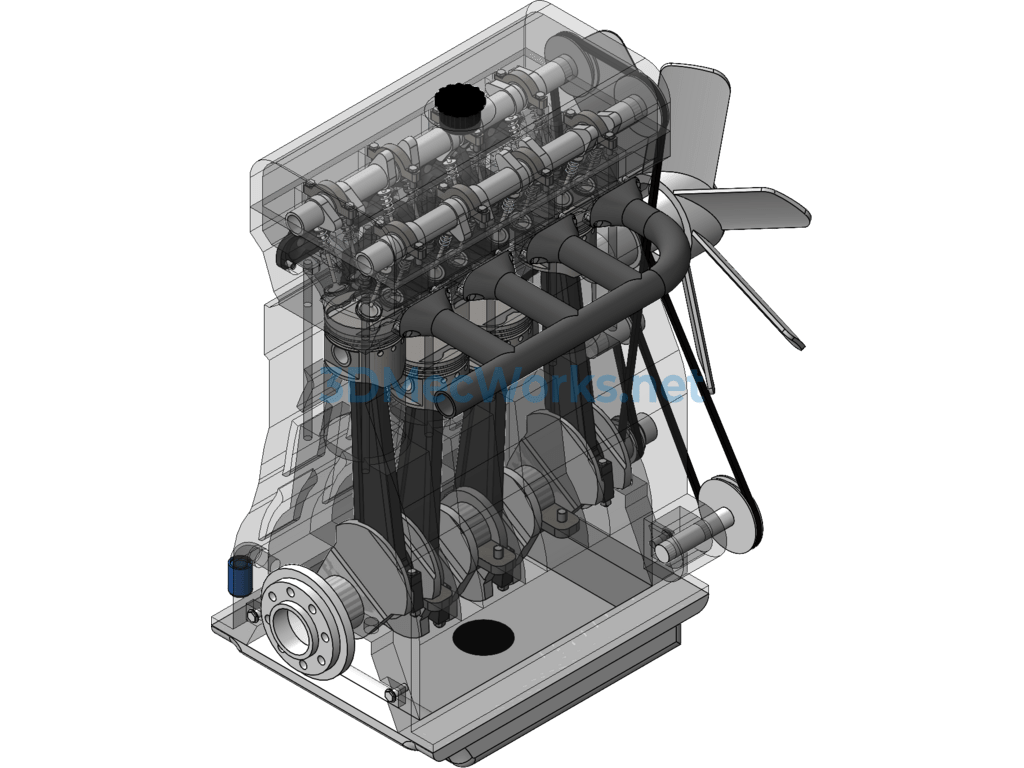

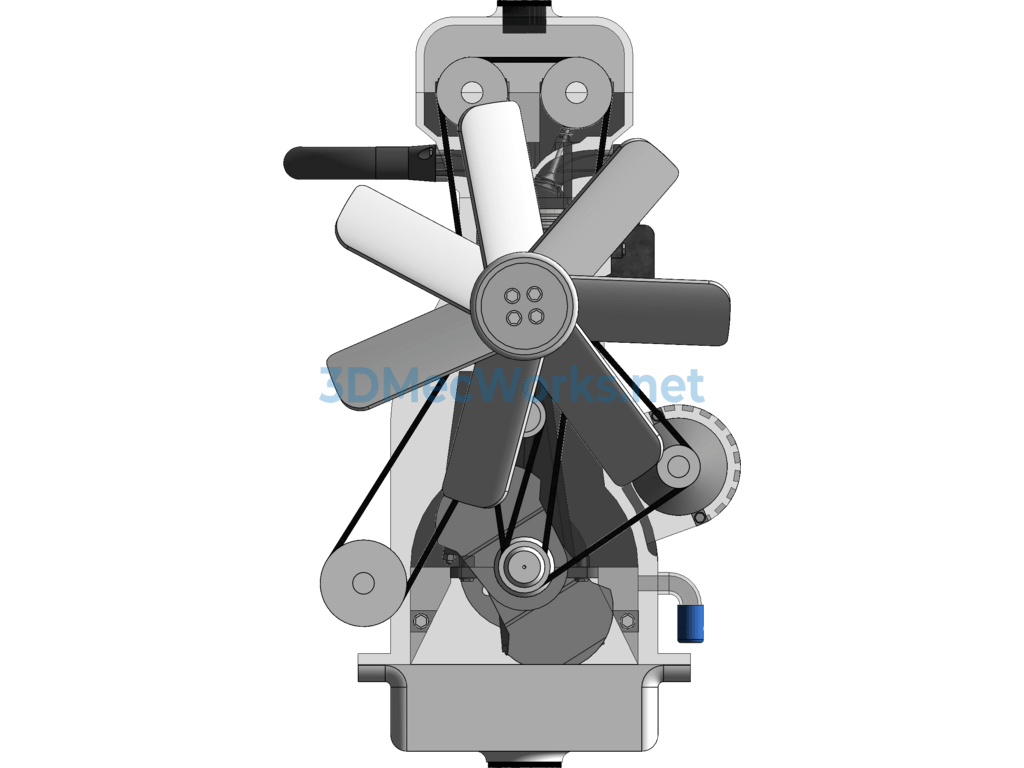

A 3D model of an internal combustion engine designed using SolidWorks 2012

The internal structure is clear and the design is reasonable, suitable for engineers in the industry and also serves as a reference for university internal combustion engine instructors. Welcome to download! Each part drawing of the internal combustion engine SolidWorks model includes relevant parameters for easy editing.

The piston internal combustion engine originated from Dutch physicist Huygens’ research on using gunpowder explosions for power. However, it was unsuccessful due to the difficulty of controlling gunpowder combustion. In 1794, British engineer Street proposed obtaining power from the combustion of fuel and, for the first time, introduced the concept of mixing fuel with air. In 1833, British engineer Wright proposed a design that directly utilized the combustion pressure to drive the piston for work.
