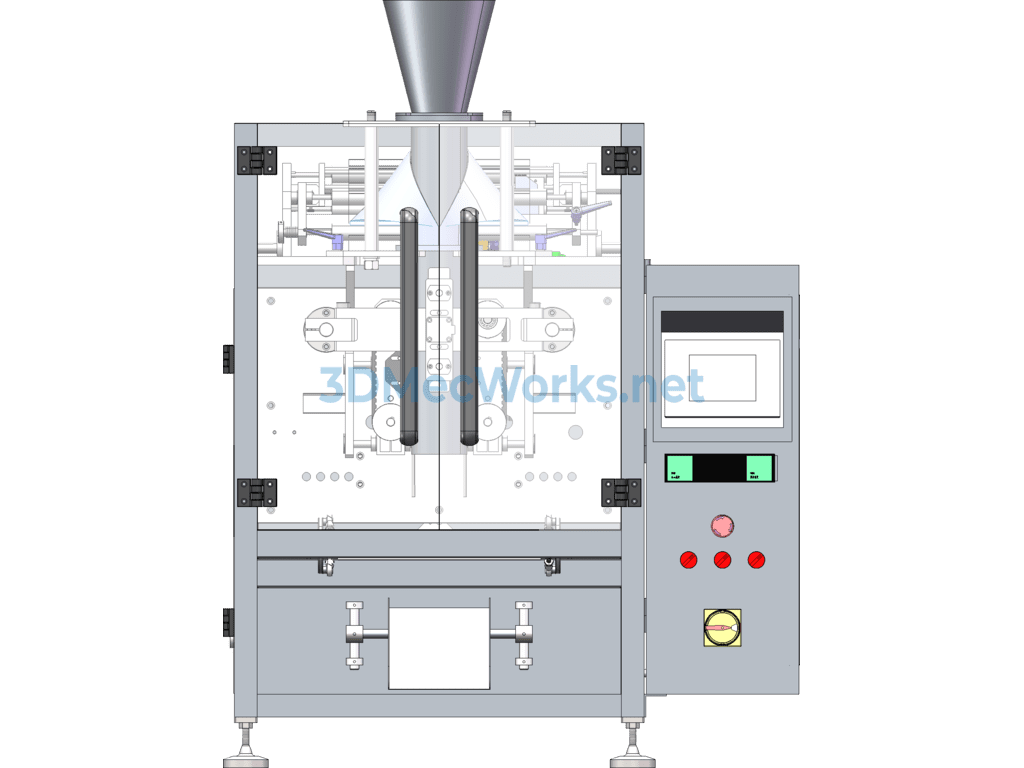

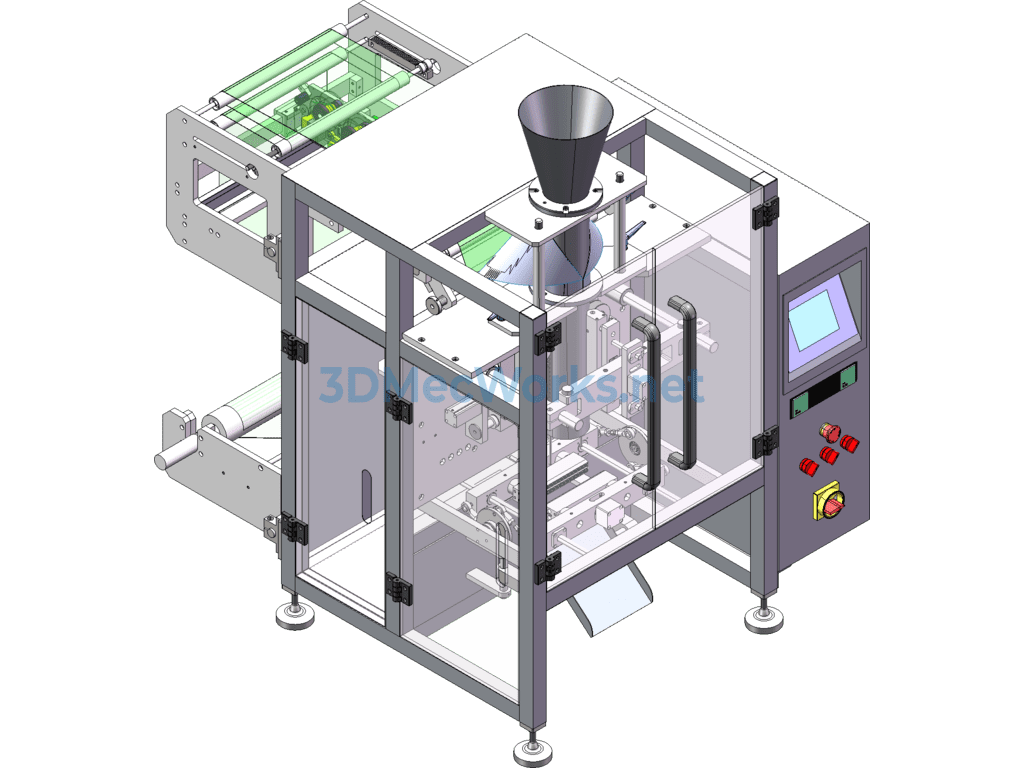

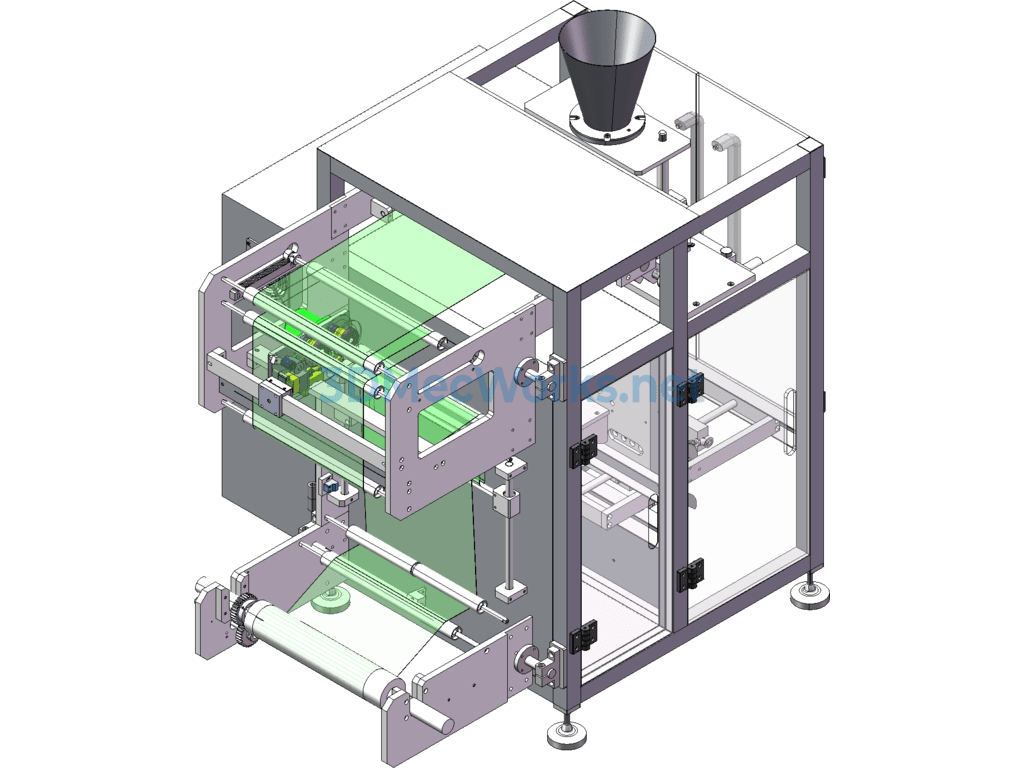

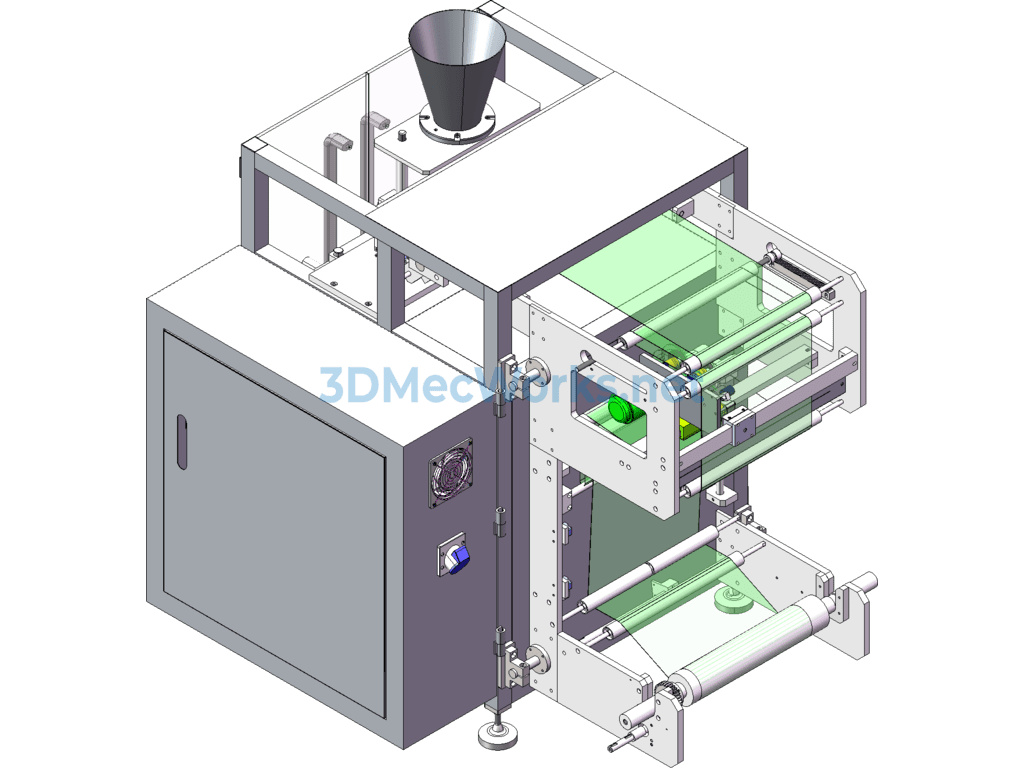

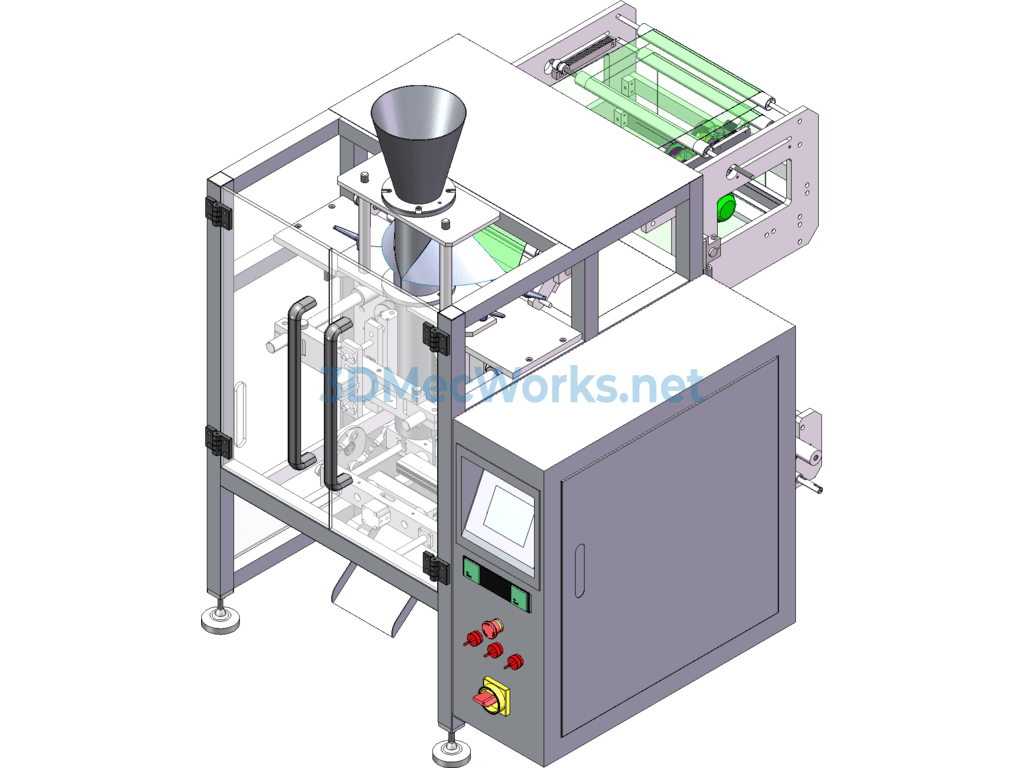

Intelligent Dual Operation Film Vertical and Horizontal Sealing Packaging Machine

Dual-drive film vertical and horizontal sealing packaging machine, this equipment consists of a frame, film feeding section, forming section, vertical sealing section, horizontal sealing section, film transporting section, and discharge section, forming an intelligent packaging machine. The frame includes an electrical cabinet, equipped with a display screen, temperature controller, switches, and cooling fan; the film feeding section is equipped with a pneumatic coder for handling simulated packaging film, and the film transporting section is driven by a servo motor. The whole machine is a high-precision automated device integrating optics, pneumatics, mechanics, and electronics, with each section equipped with appropriate sensors as needed to meet operational requirements. This equipment can package various materials such as OPP/CPP, OPP/CE, PET/PE, and NILO/PE, with a maximum bag length of 200mm and a maximum film width of 320mm; both horizontal sealing and film transport speeds are adjustable, with a maximum speed of up to 60 packages/min.
