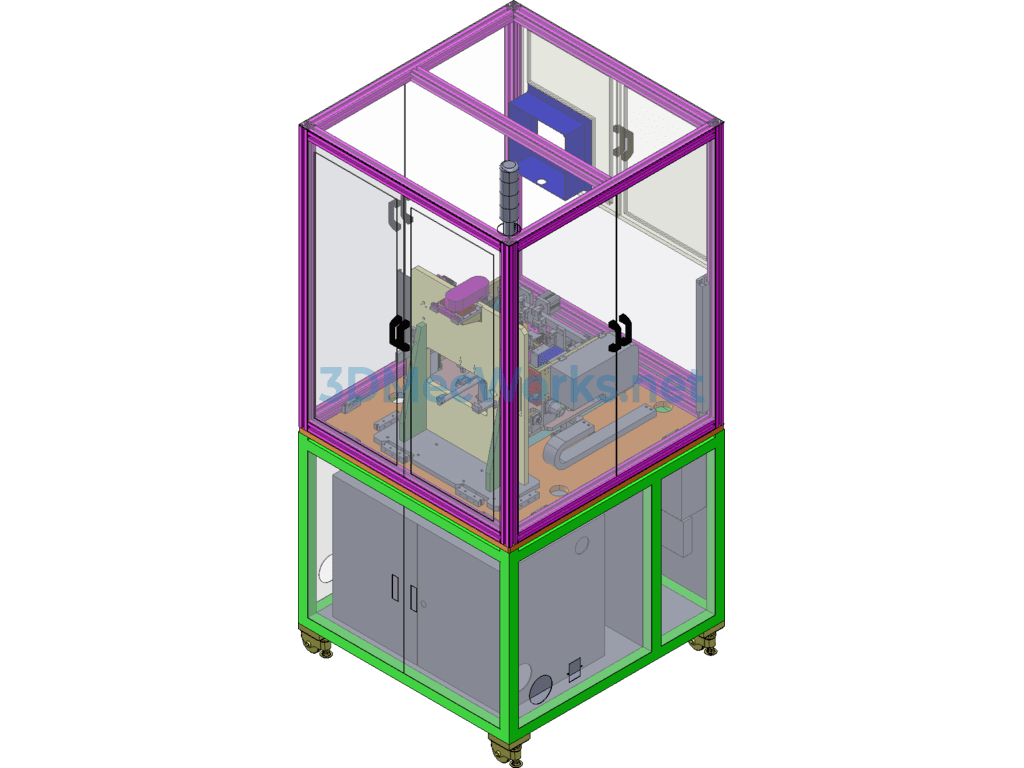

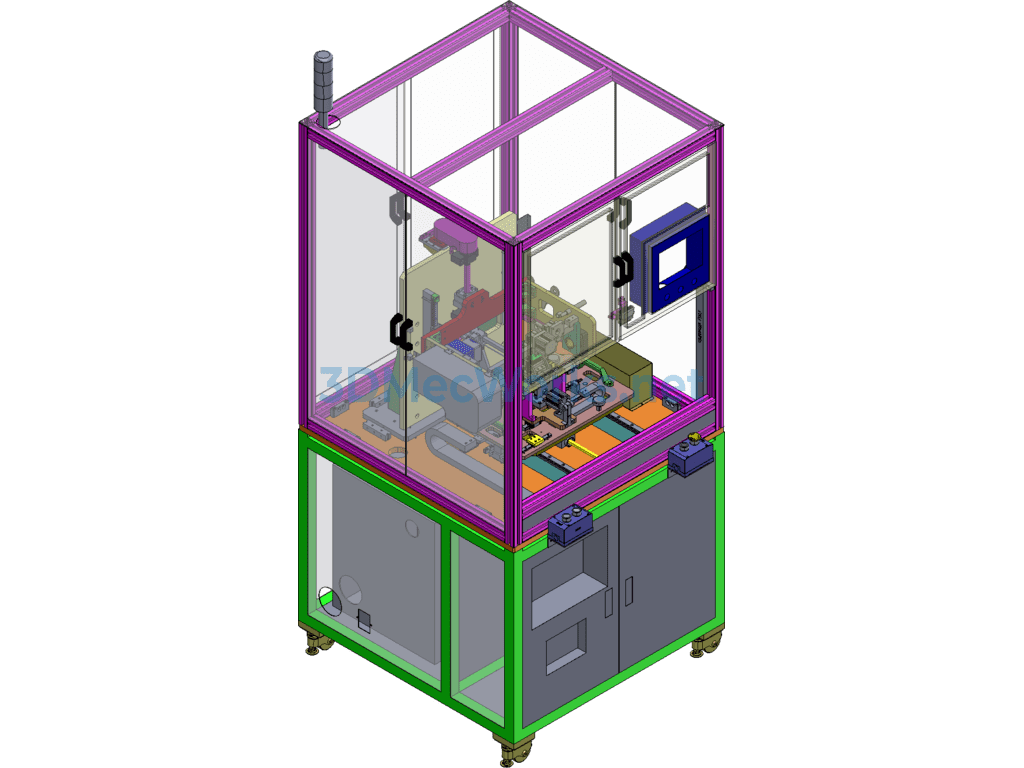

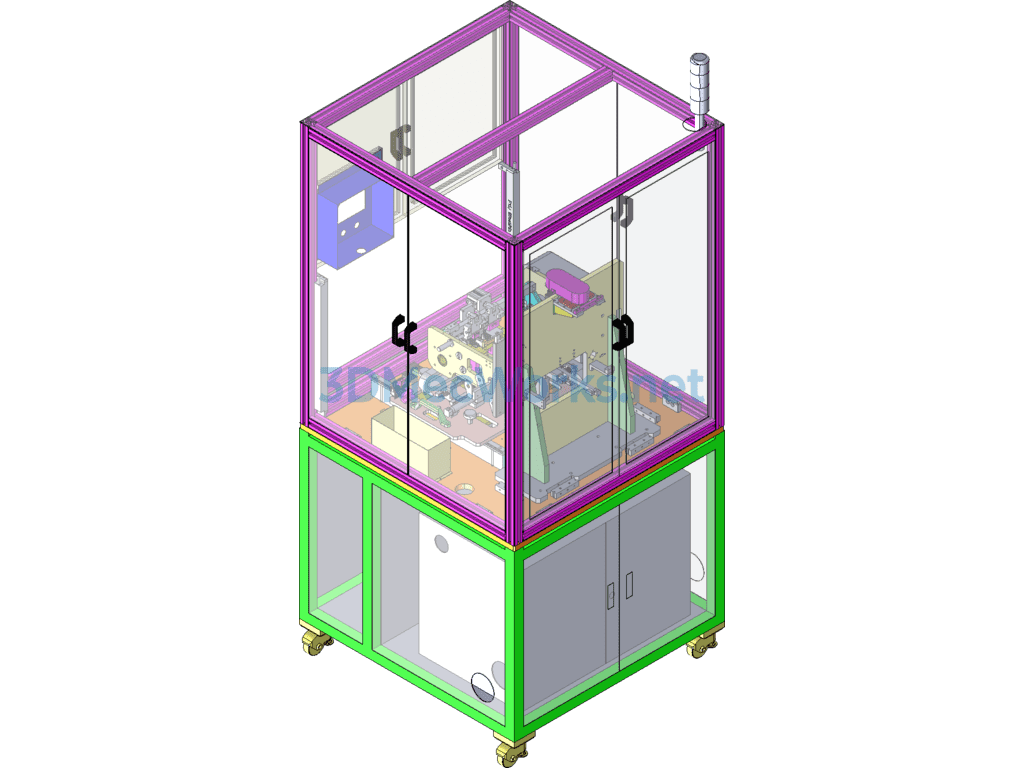

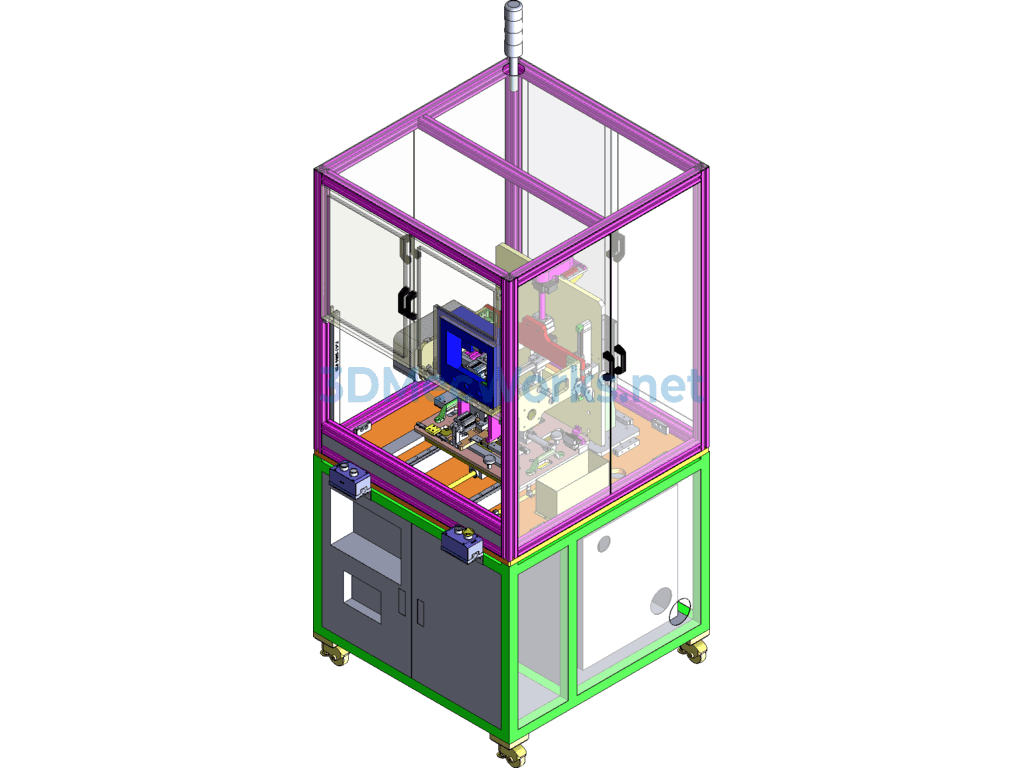

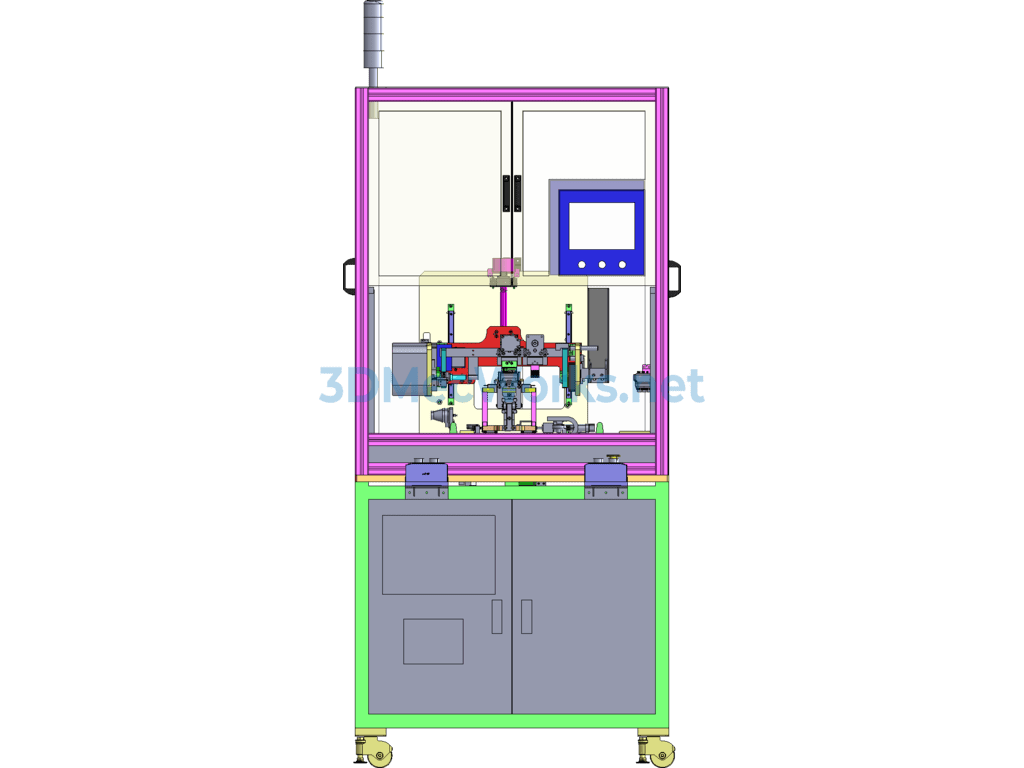

Industrial Automotive Connector Terminal Servo Bending Machine
A servo bending device for automotive connectors, industrial automotive connector terminal servo bending machine.
Solidworks12 Model Download
This model is designed according to relevant standards for designers to use as a reference for design.
Servo Bending Machine.
For specific design principles, you can view the model and gain your own understanding.
This is a very complete piece of equipment.
Design Principle: Manually place the product to be bent into the seat, upon detection, the servo moves back and forth. Once in position, the upper and lower die bases move up and down with the bending tool, the clamping mechanism tightens the terminal, and the rotating shaft rotates to the degree of bend you need.
