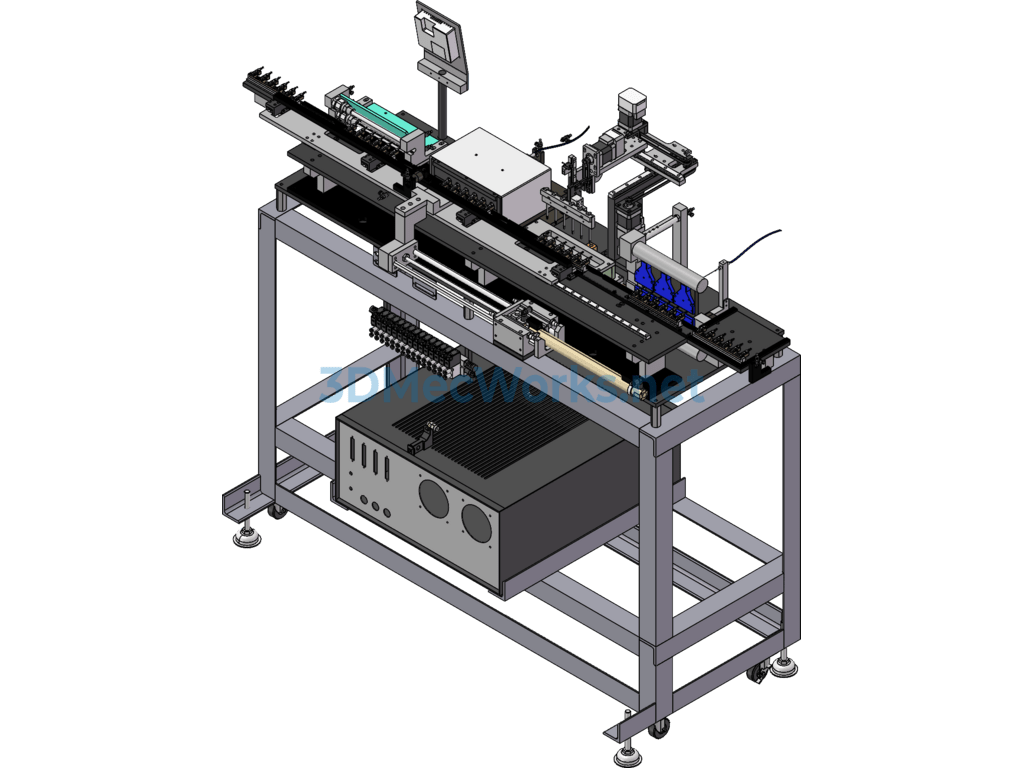

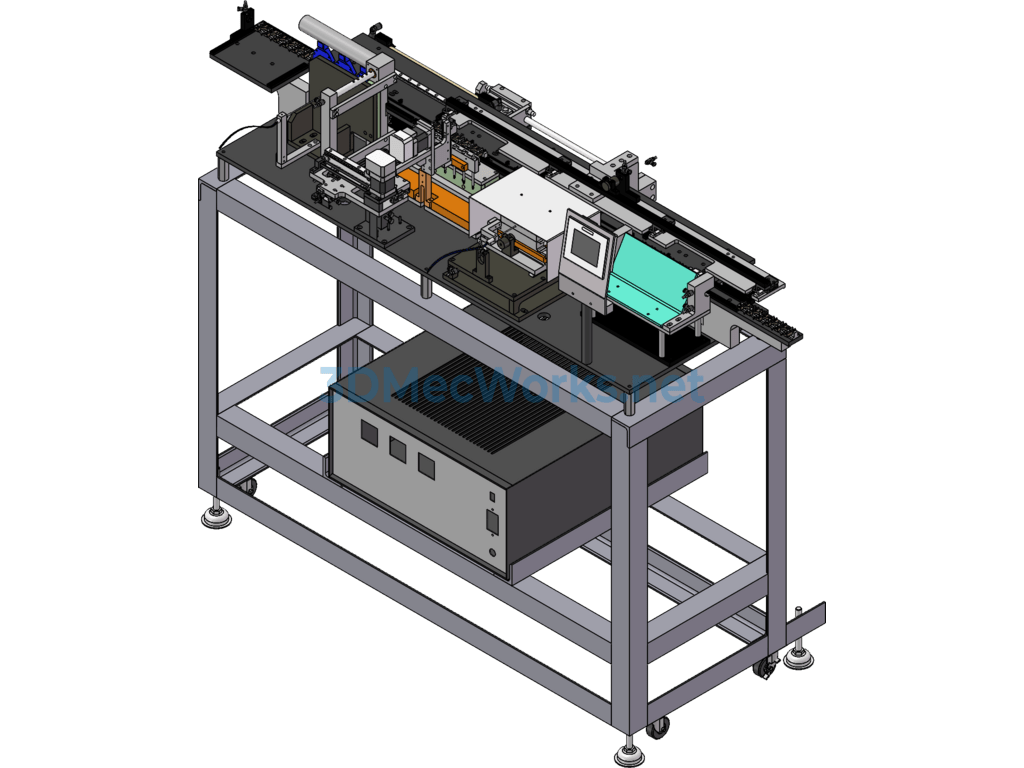

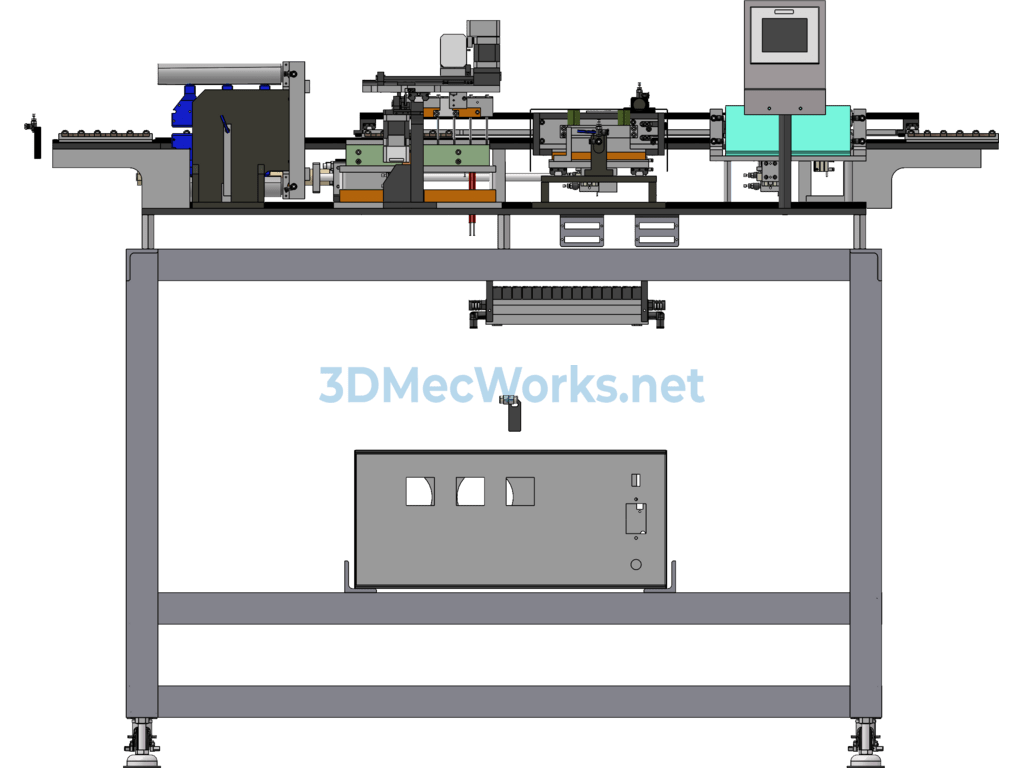

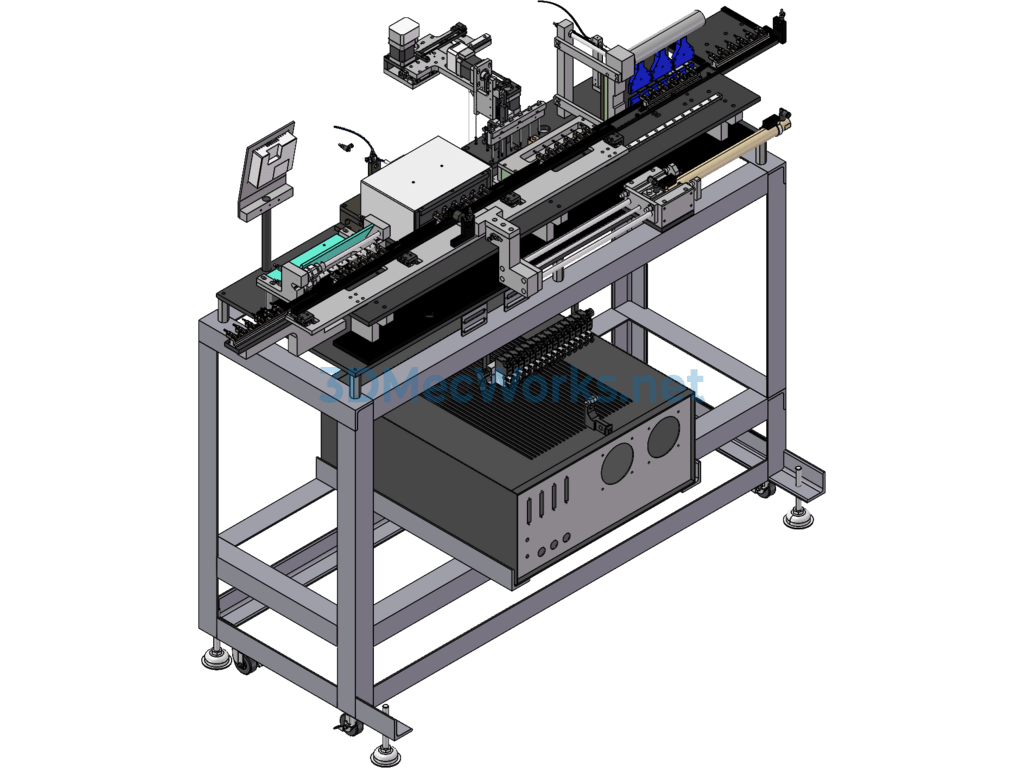

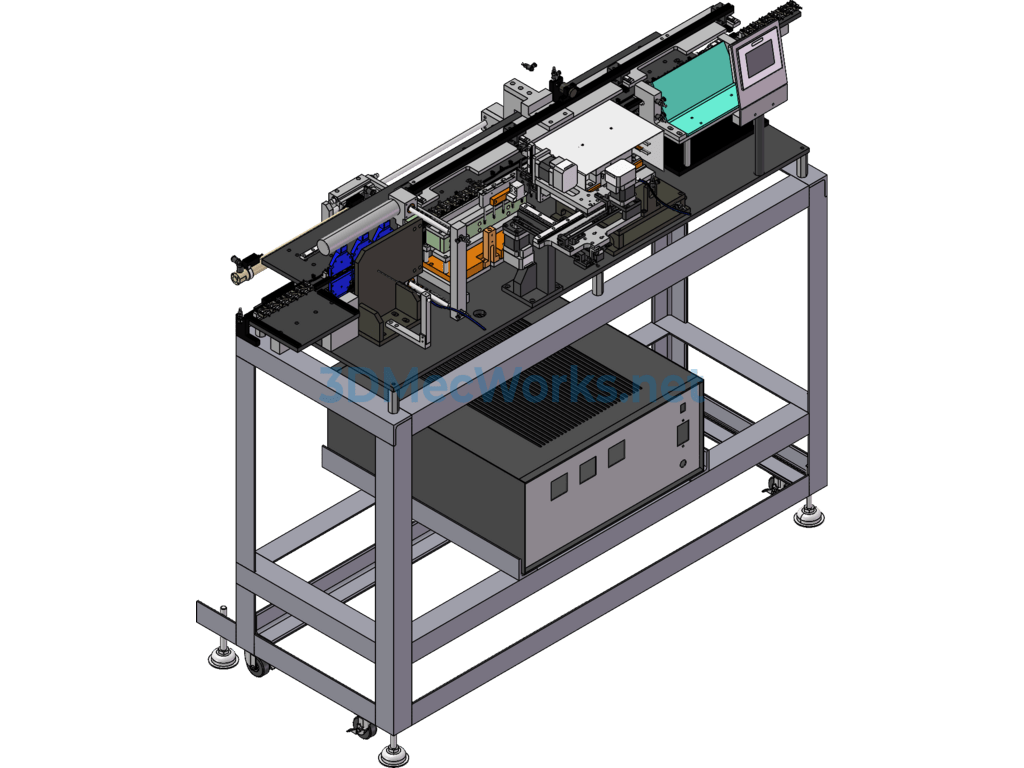

This equipment is designed with SW2011 and is a classic, mature, and stable device in the electronics industry. It is used for the automatic soldering and electrical performance testing of inductor components. The equipment employs a tray-type automatic feeding system, with a mechanical arm transport mechanism for material handling and a linear layout for the overall structure. The mechanical arm picks up inductor components and places them in the soldering slot for soldering, followed by the next station for electrical performance testing. After the testing is completed, the transport mechanical arm discharges the components. Controlled by an industrial control system microcontroller, the equipment offers high automation efficiency. The model contains 228 part drawings and 21 assemblies. The model does not include relevant parameters, but you are welcome to download it for overall reference!
