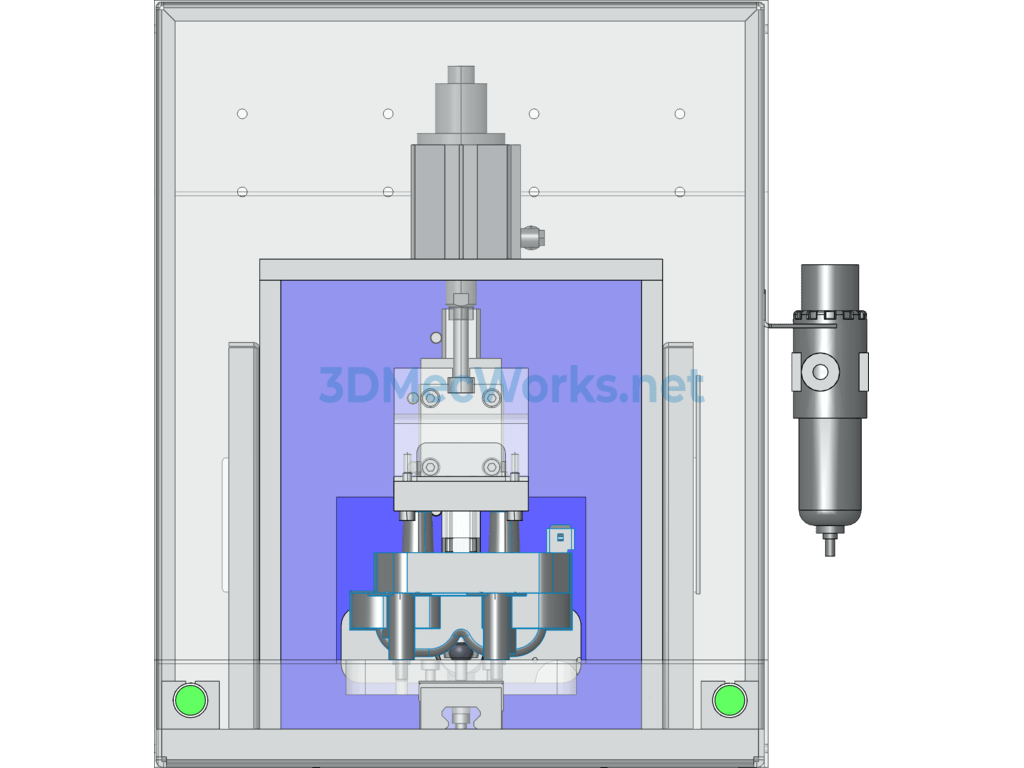

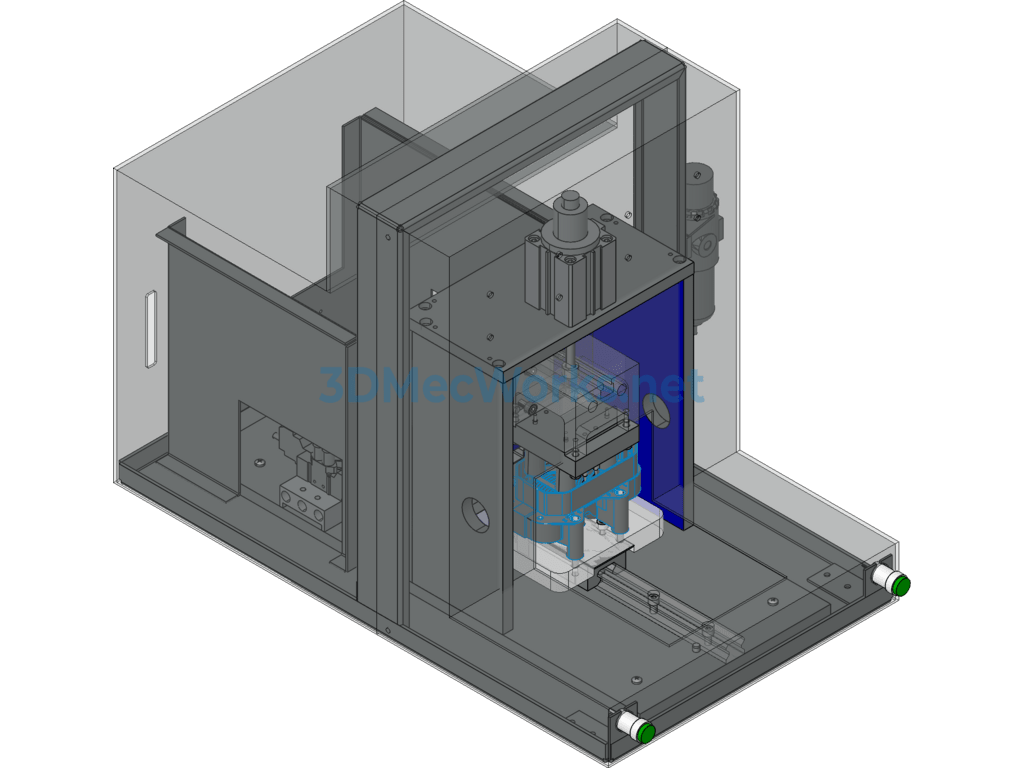

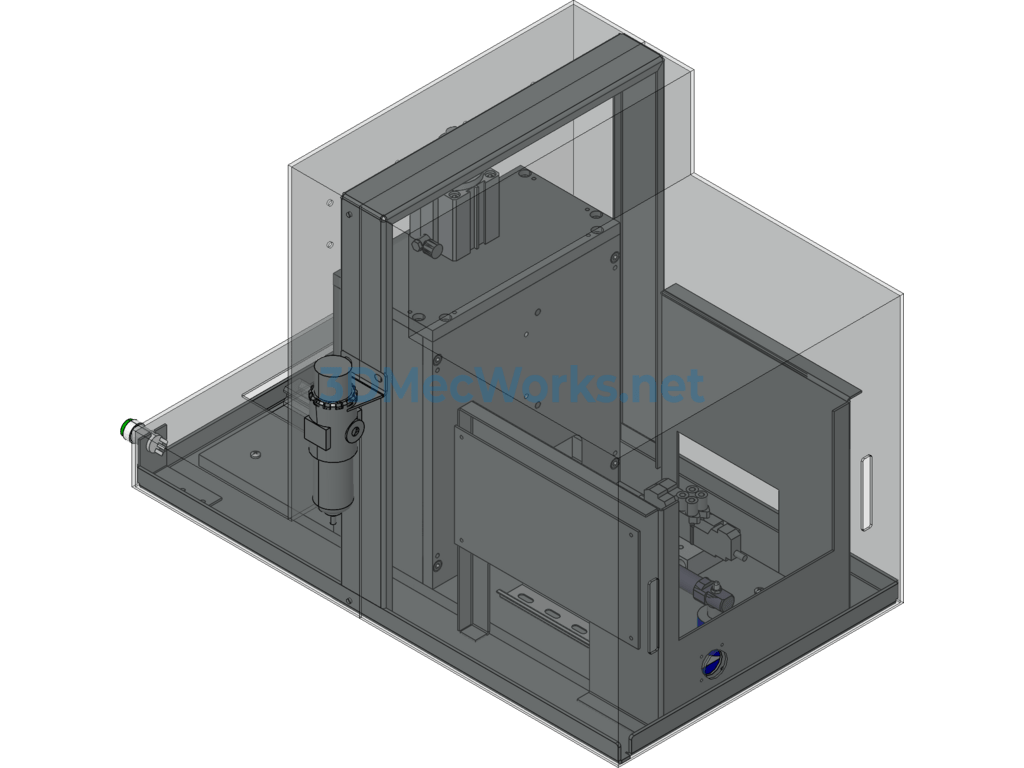

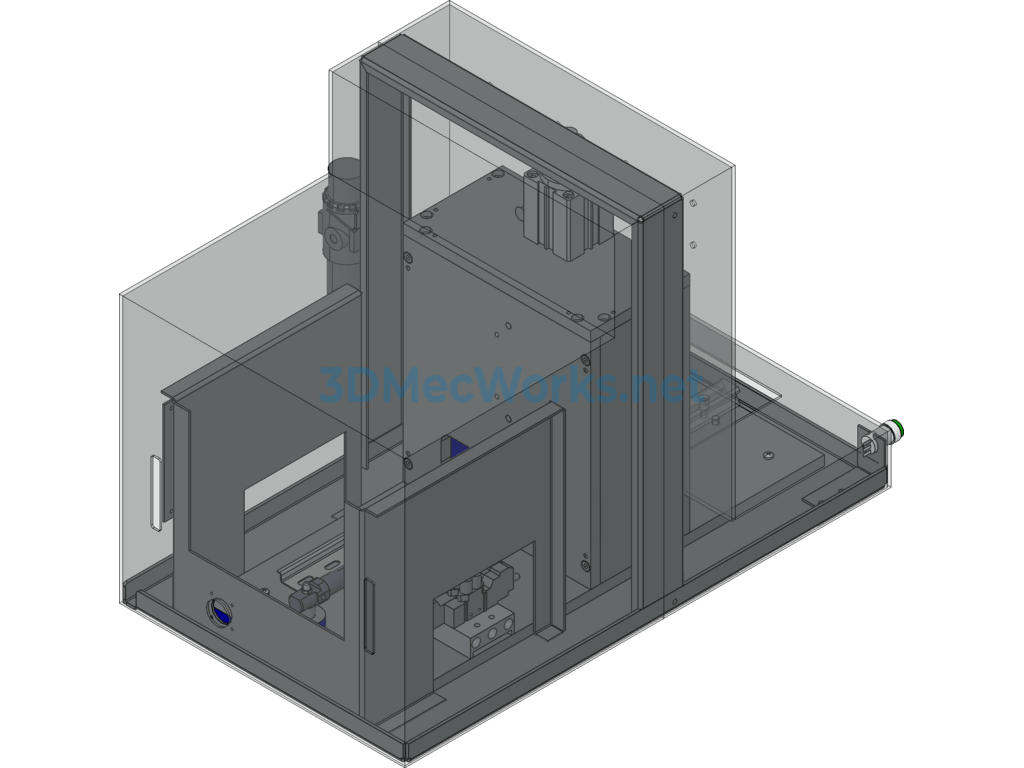

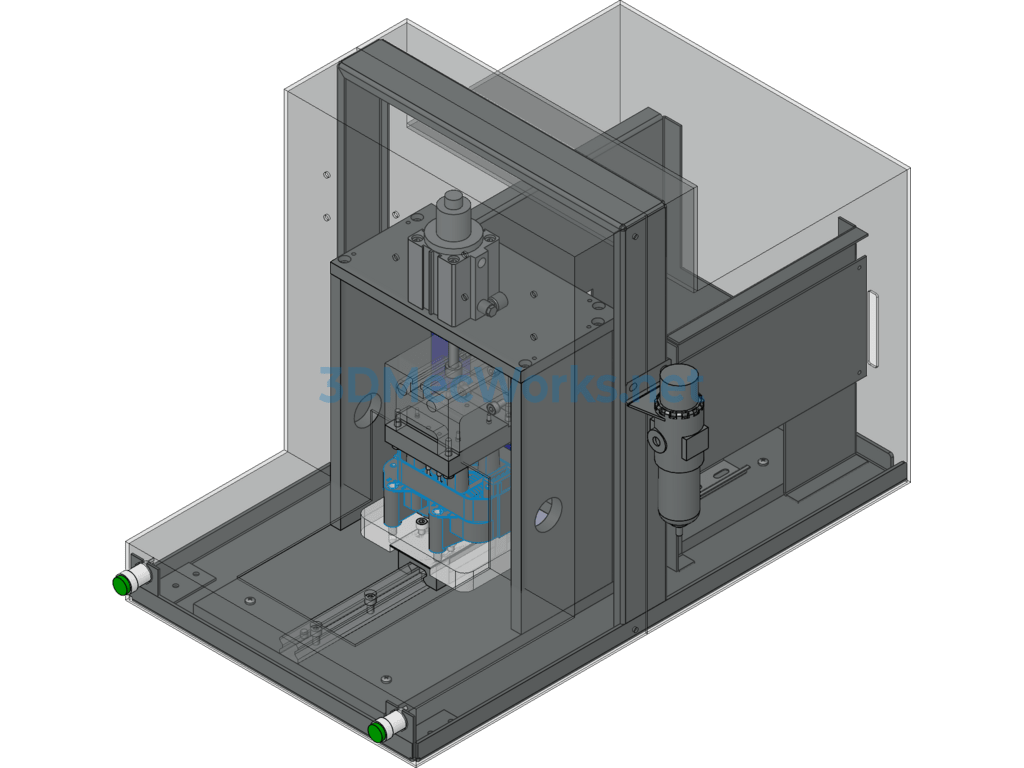

DL1107 Inductance Tester 3D Model SW2010 Design and Engineering Drawings Share
All 2D drawings are available for download.
The inductance tester features a simple and practical sorting function. The parameter settings for this function are easy to configure, and results are displayed intuitively. It can meet the needs for incoming inspection at user units and the rapid sorting and measurement requirements of inductor production lines.
This inductance tester uses a bridge circuit structure, with a standard inductor and the inductor under test serving as the two arms of the bridge circuit. When measuring the inductance value of an inductor, the test voltage is simultaneously applied to both the standard inductor and the inductor under test. The processor collects the current signals flowing through both via sensors, processes the data, and thereby obtains the inductance value of the inductor under test.
Specification: Inductance Tester
|
