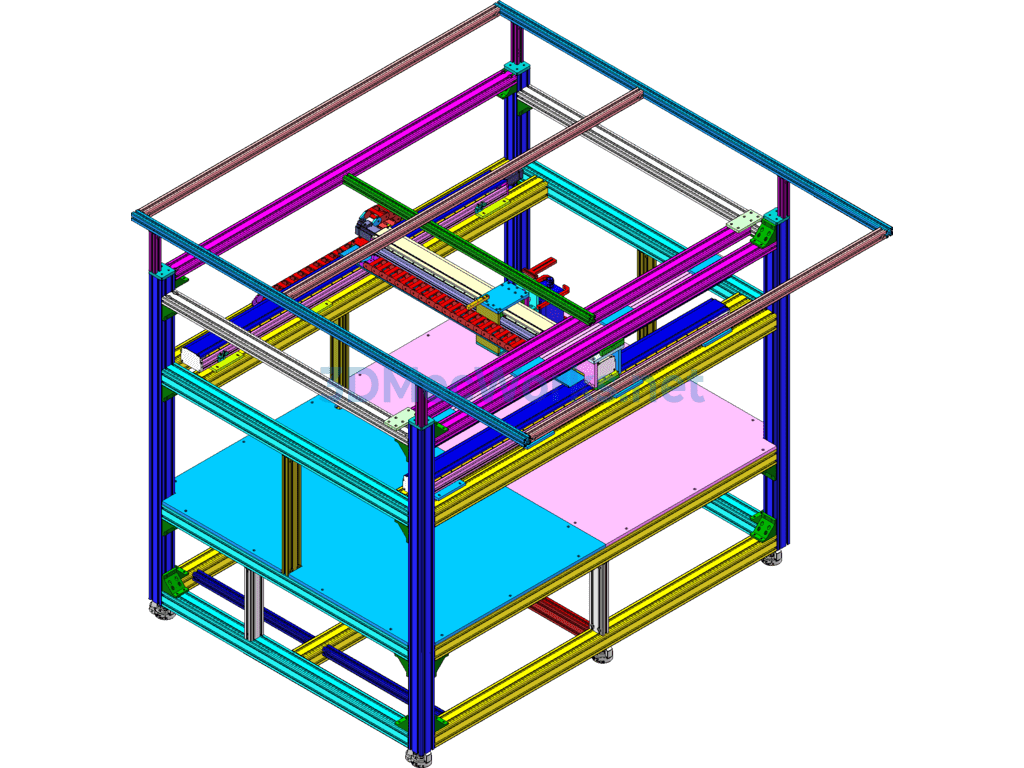

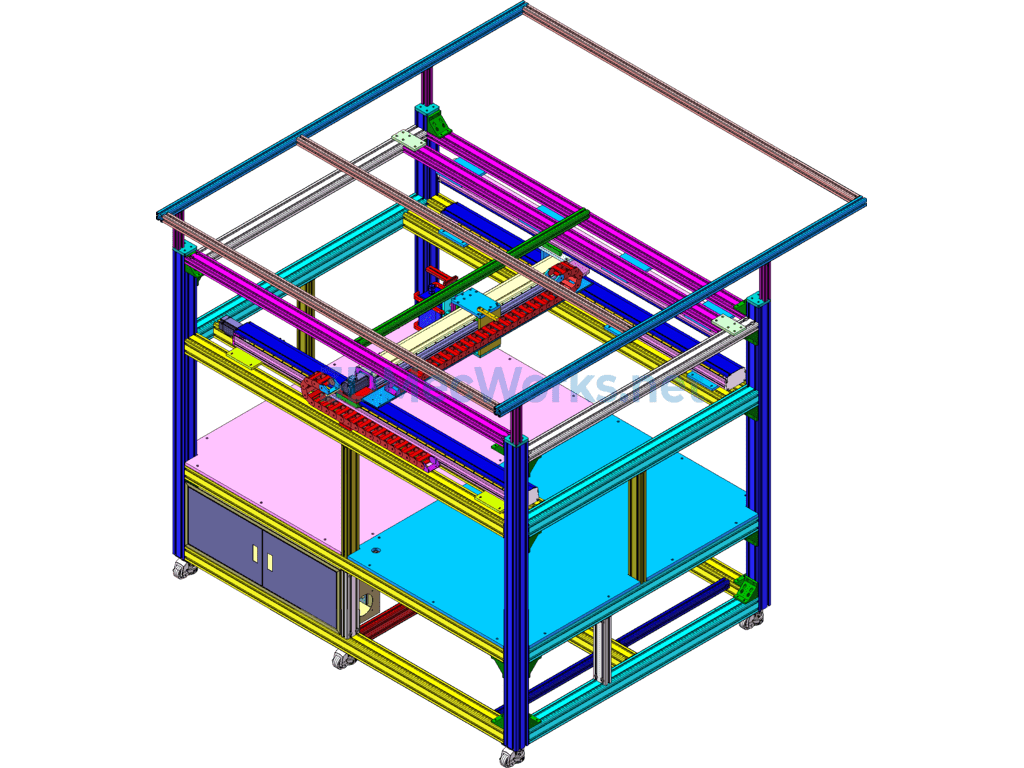

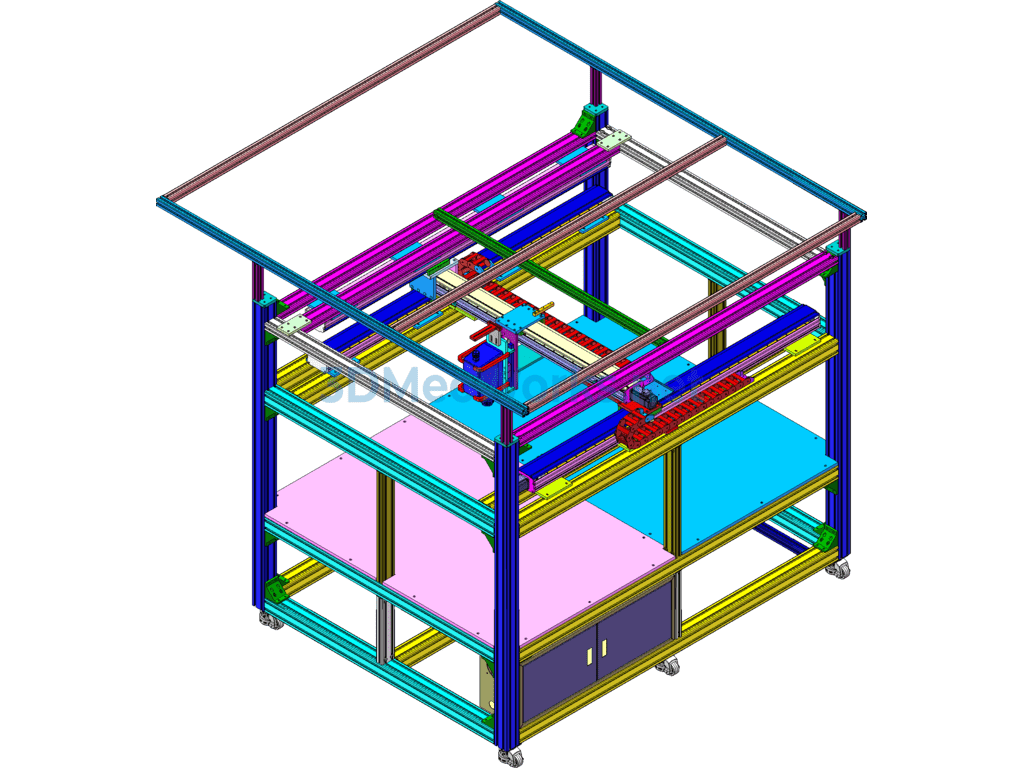

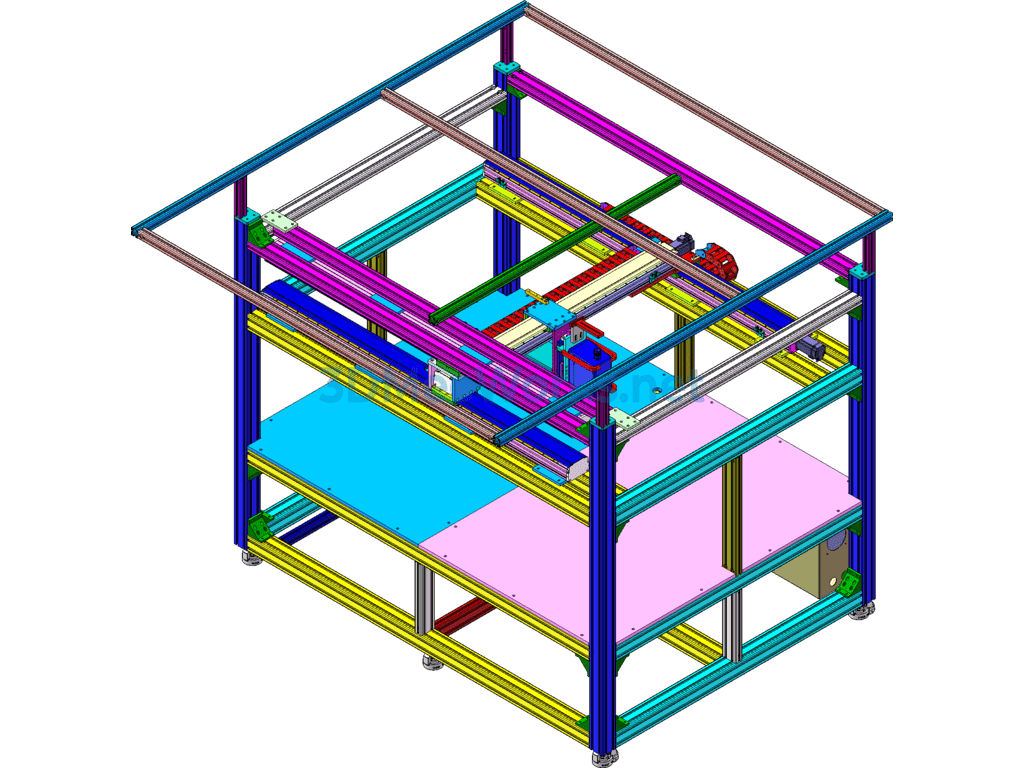

Imaging Vision Inspection Platform With Engineering Drawings + Bom

The imaging vision inspection platform is an equipment designed for inspecting the appearance and dimensions of products or parts, using imaging instruments to take photos and record images of the products. Software is used to save the data and internally process the calculation of relative contour dimensional deviations. The equipment utilizes a servo motor + lead screw motion to achieve control.
The entire machine uses PLC control to reduce frequent manual operations and save costs. The file includes the x-t universal format, and mechanical designers are welcome to download and share.
