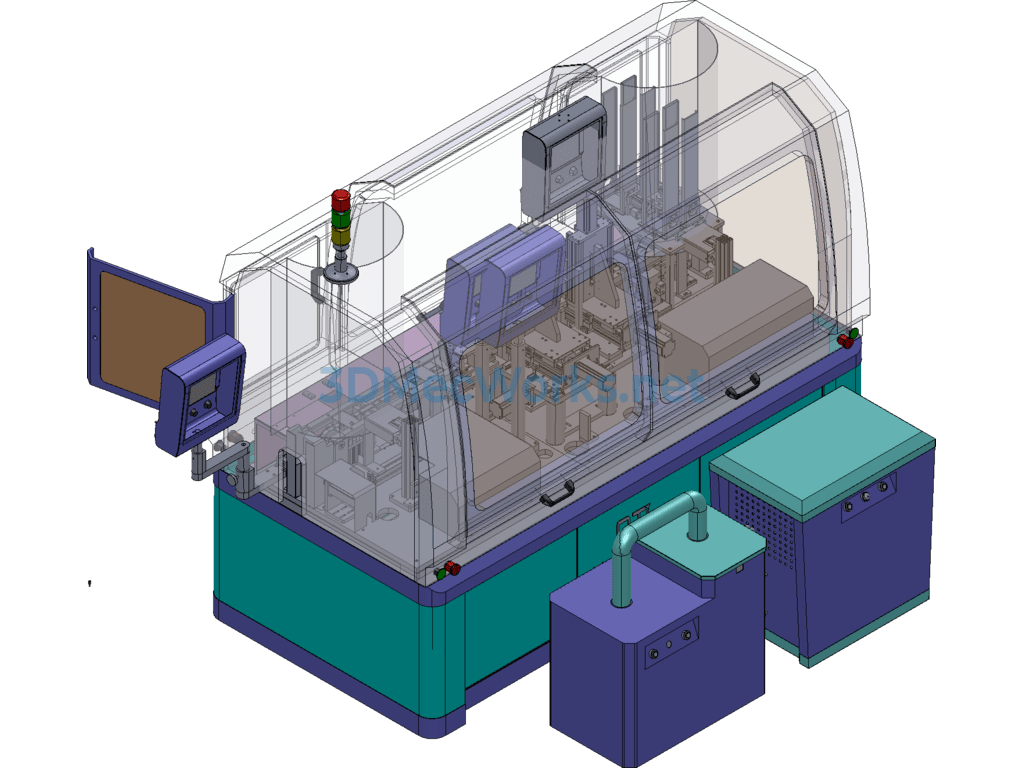

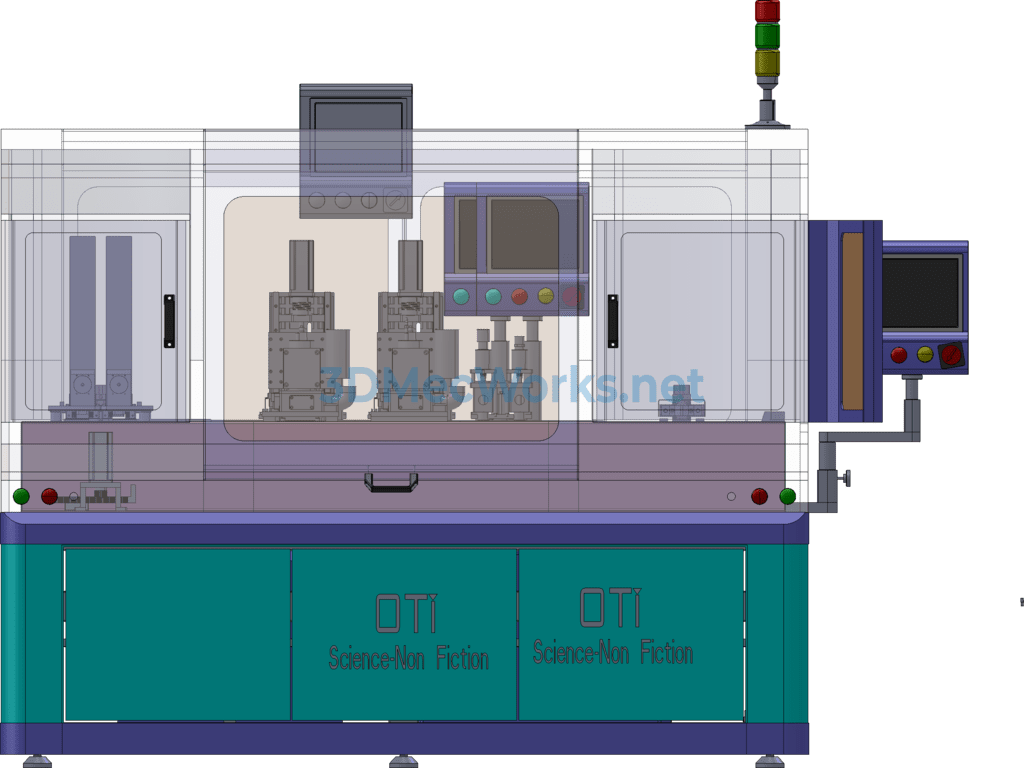

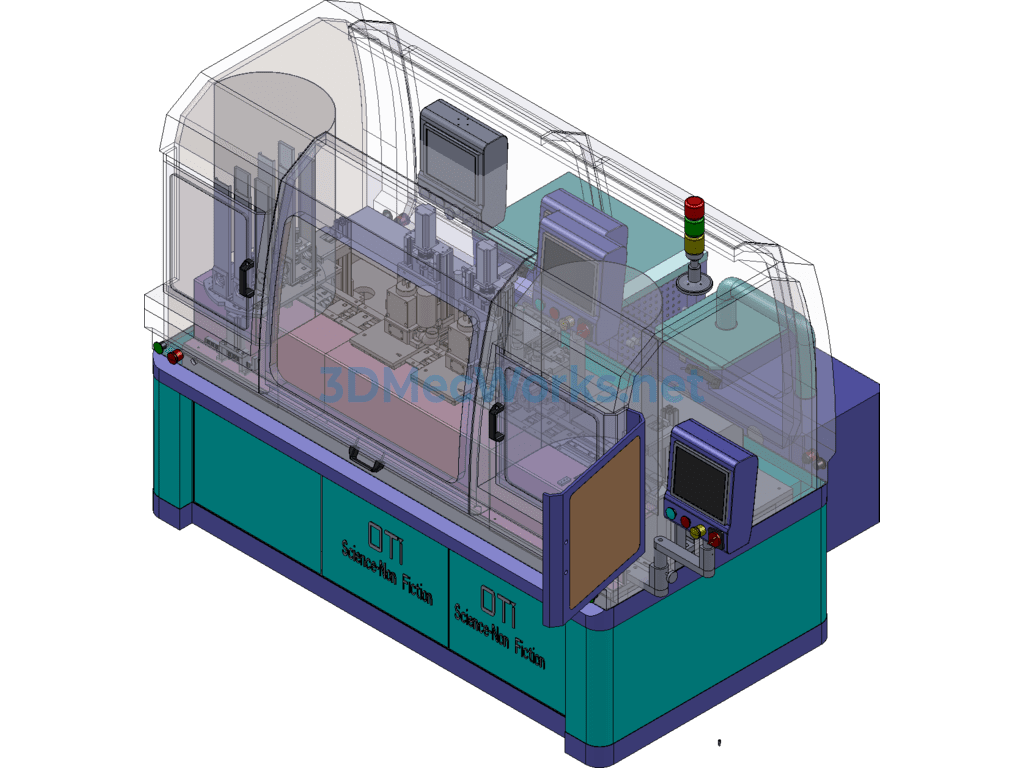

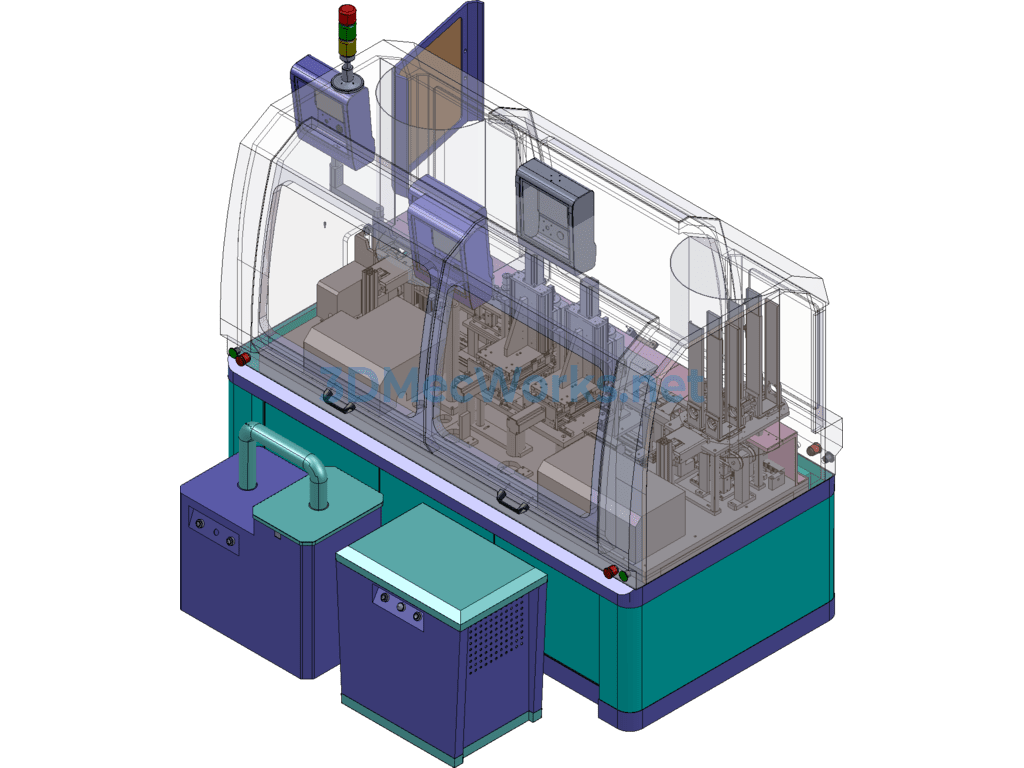

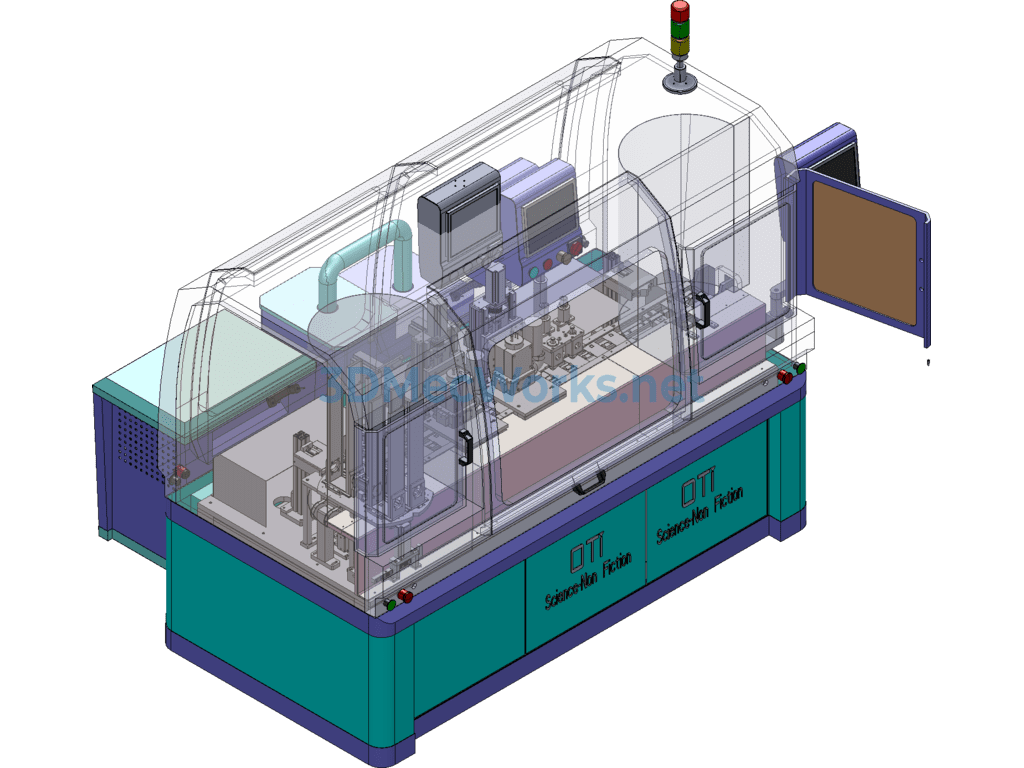

A 3D model of an IC smart card slot milling machine is provided in SW design sldasm and sldprt source files. The IC slot milling for smart card mobile phone SIM cards is a highly complex device.
Device usage: Select single card/dual card on the touch screen; it is used to mill slots on standard single-chip and dual-chip cards with different requirements. 1. Integrates card transportation, slot milling, cleaning, and waste collection in one. 2. Belt structure for card feeding, faster speed, and more stable transportation. 3. Professional slot milling fixture design ensures slot milling precision is not affected by card size and thickness tolerances, resulting in higher slot milling accuracy. 4. An independent three-axis positioning control system drives the high-speed spindle motor for slot milling; each axis parameter is adjustable separately, ensuring slot milling size accuracy is not affected by milling cutter diameter tolerances. It can achieve single-layer or double-layer milling in one pass, with more flexible slot milling styles.
