Hydraulic Steel Pipe Fatigue Testing Machine

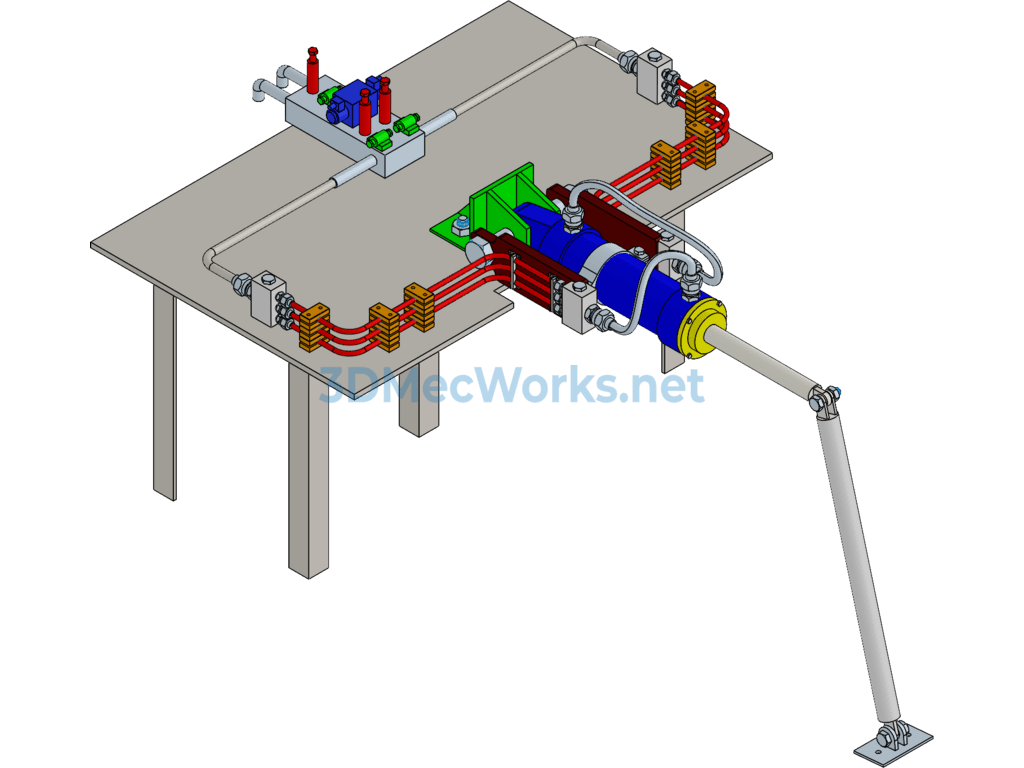

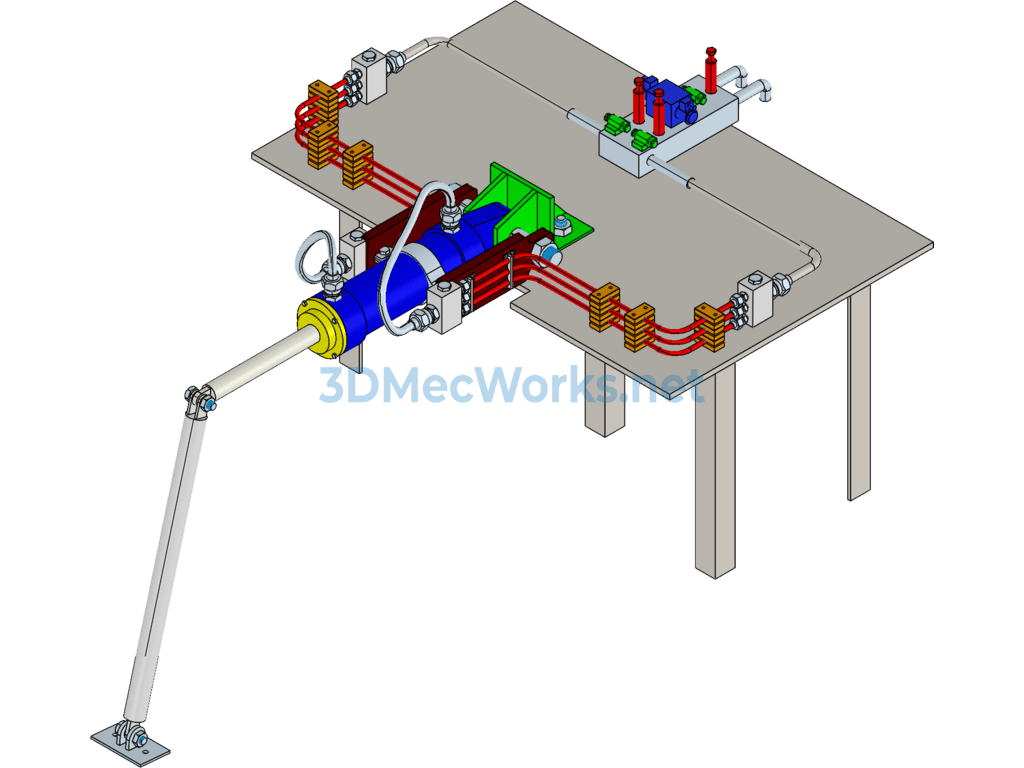

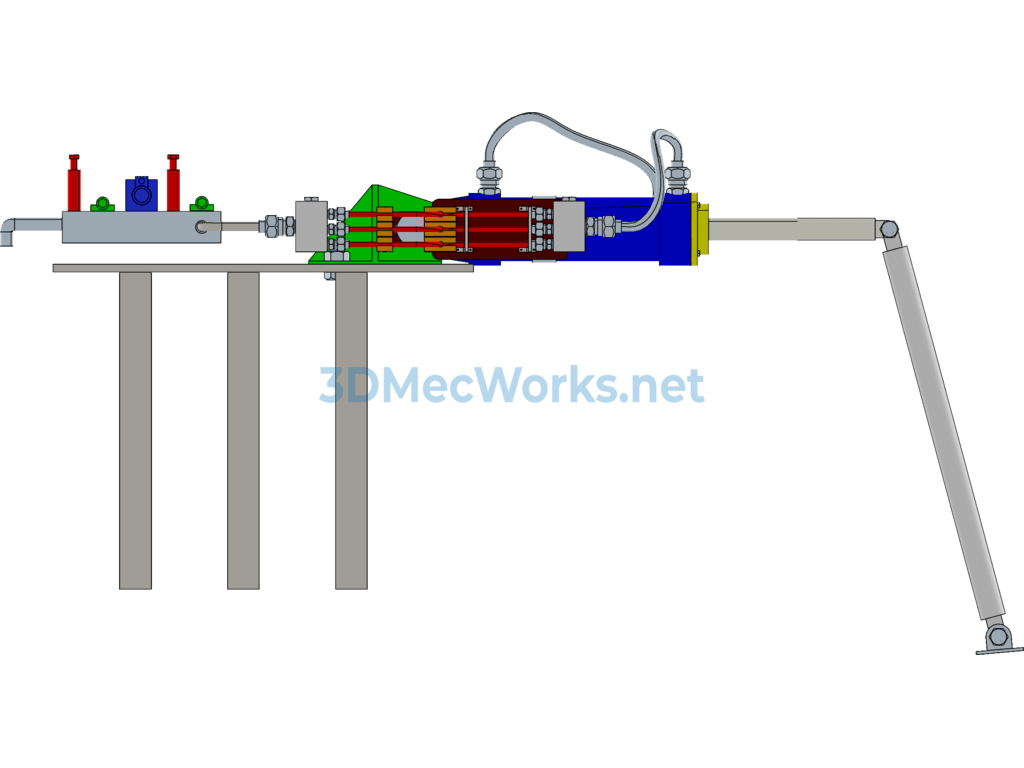

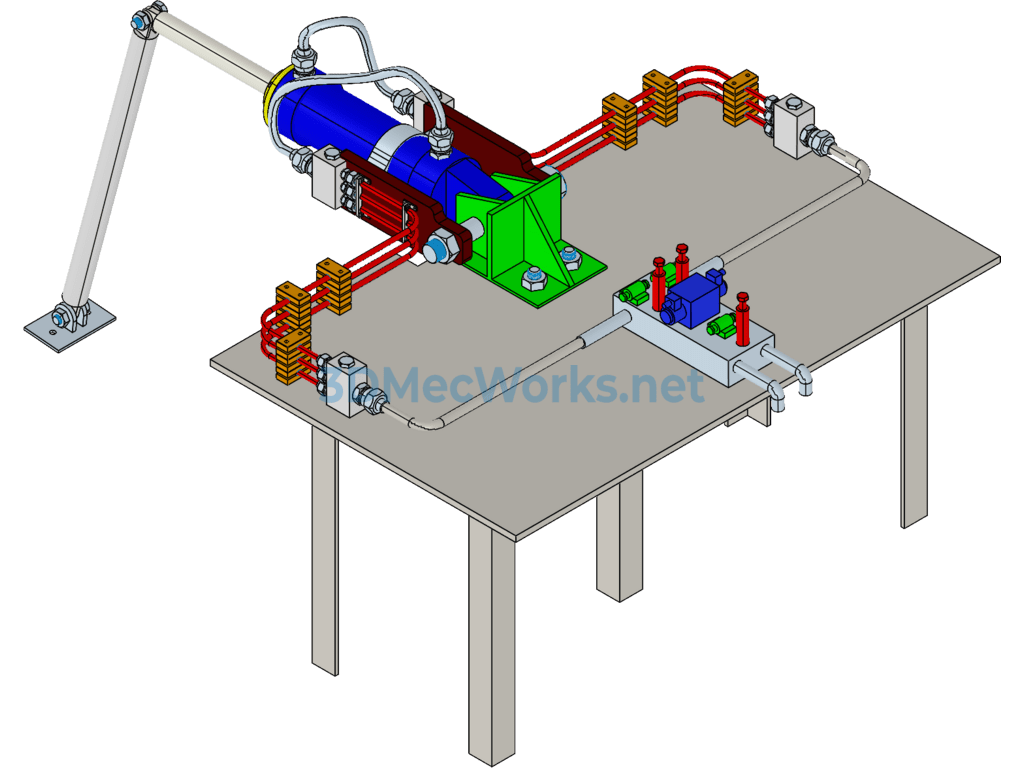

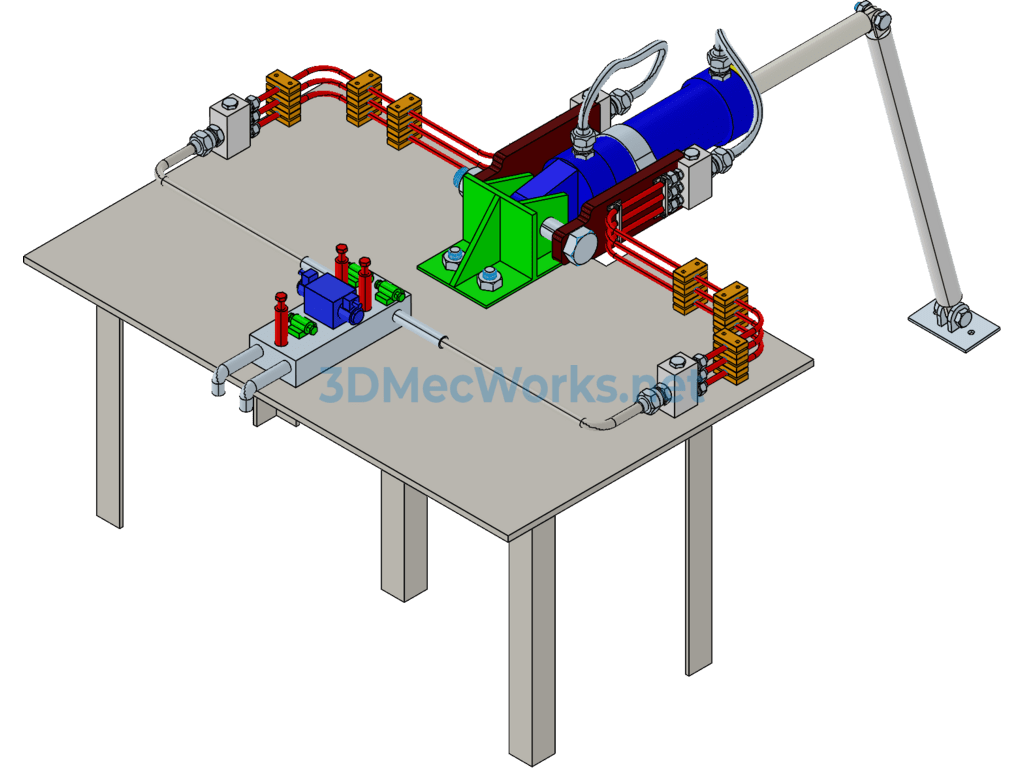

This document is the complete machine design drawing for a hydraulic steel tube fatigue testing machine, used to test the torsional fatigue strength of hydraulic steel tubes. It can simultaneously test six hydraulic steel tubes. This design was made as my graduation project, and currently, there are no similar products on the market. The model was designed using PROE 5.0 software, with Asm and Prt source files available for sharing. It is parametric and editable. Welcome to download!
