Hydraulic Clamp Body Diagram

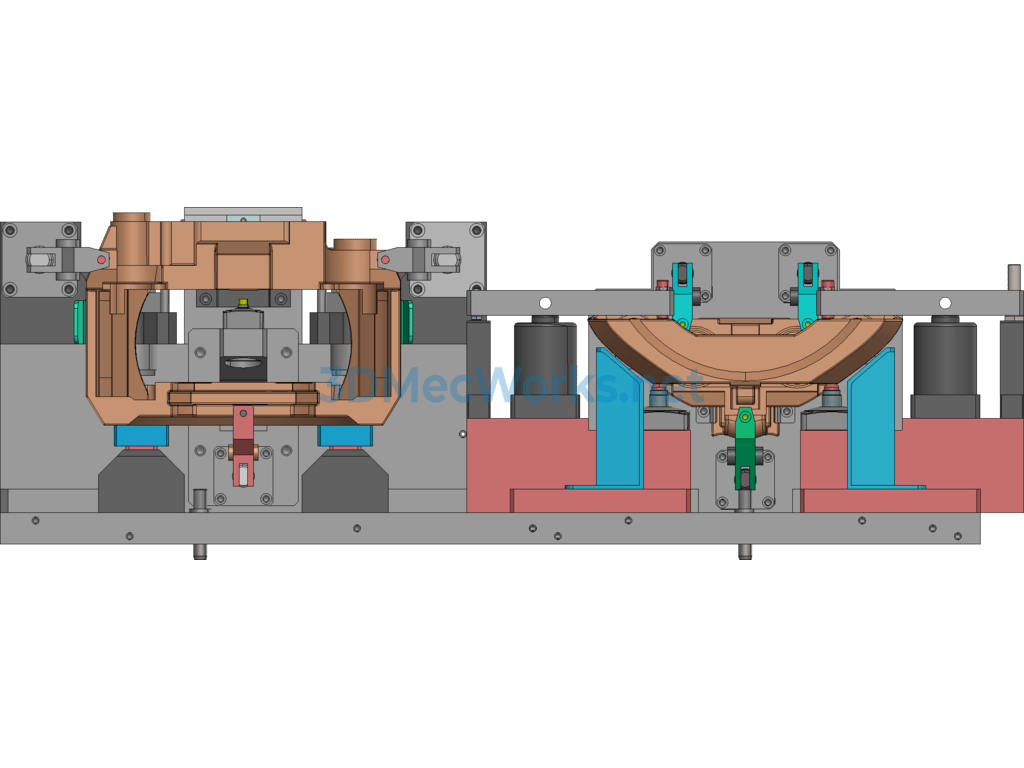

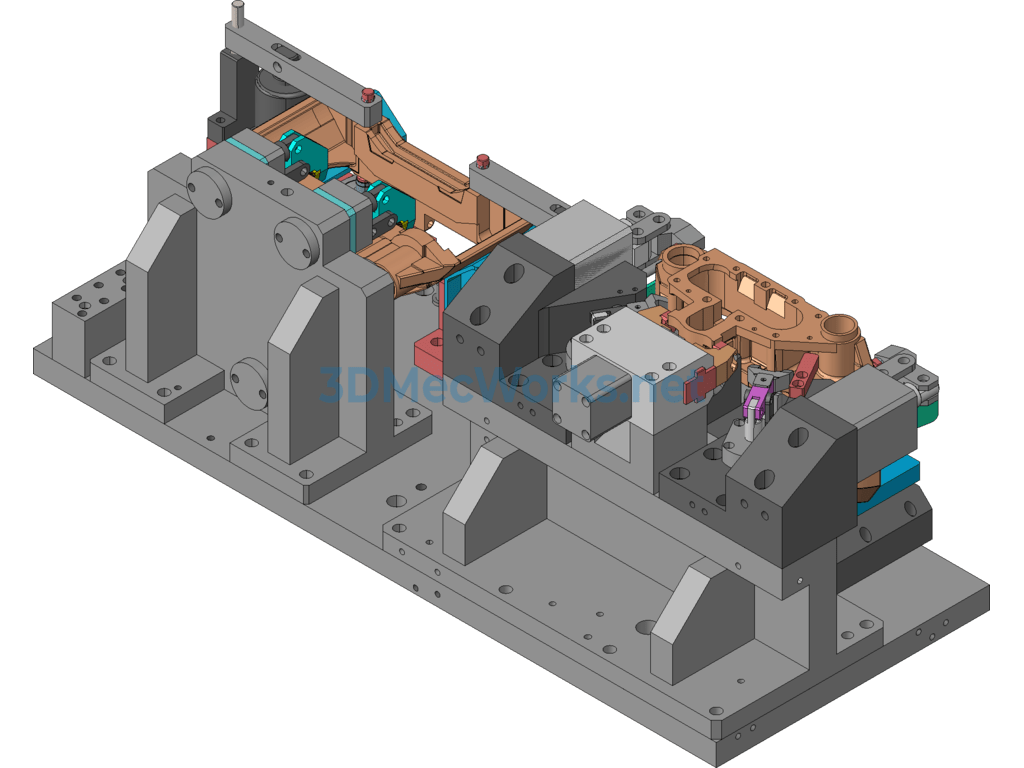

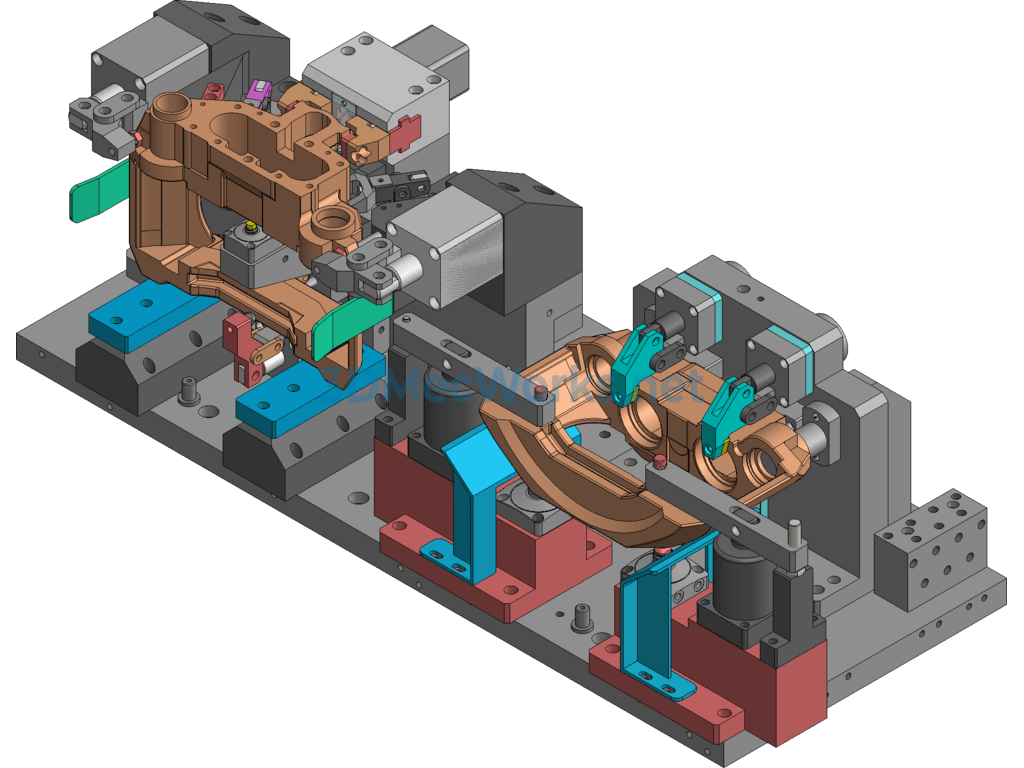

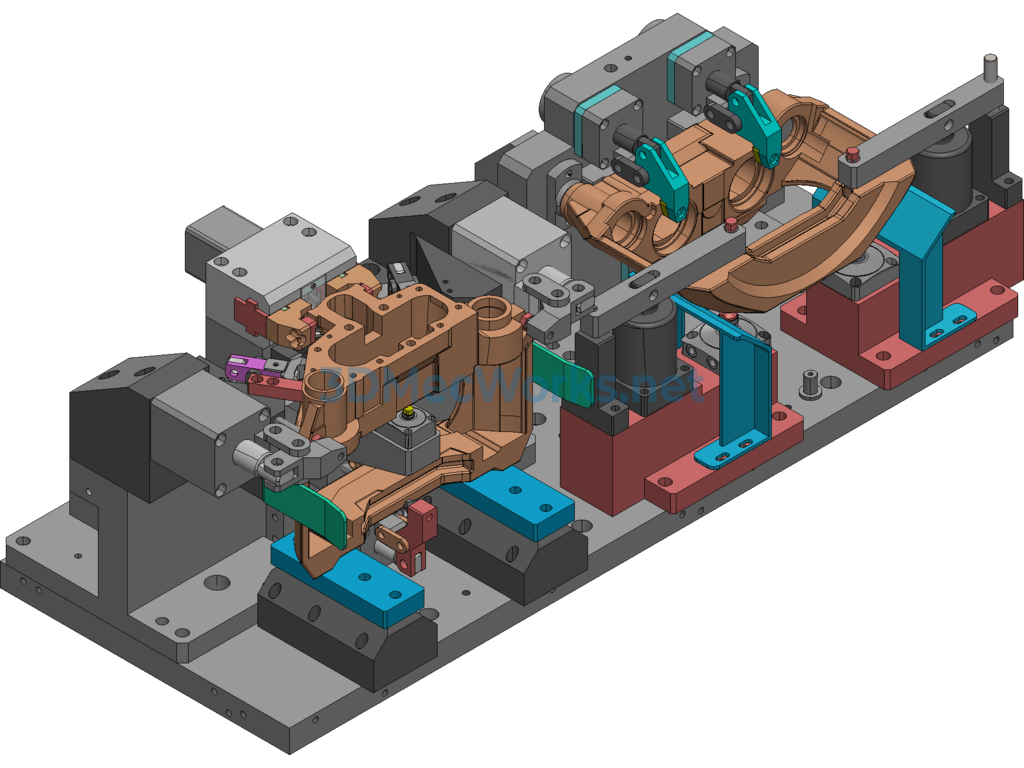

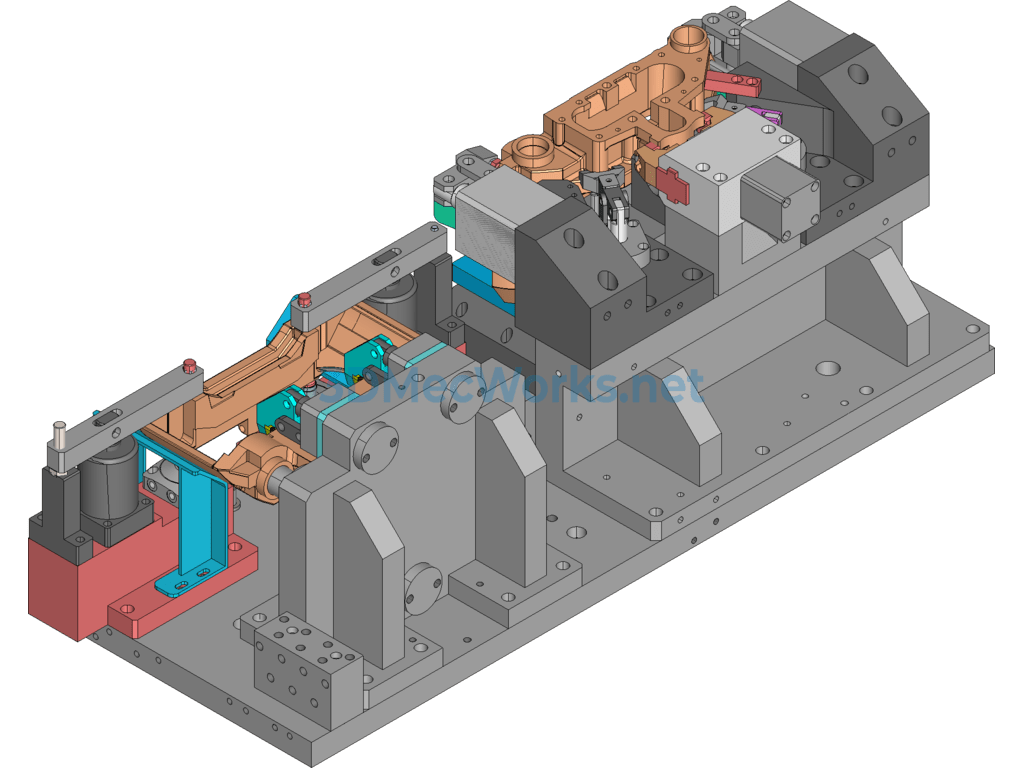

This diagram is of a hydraulic clamp body fixture, designed to work with the CMV-1100A machine tool, with a table size of 1100×500. This fixture uses external shape positioning for OP10 and one-face with two-pin positioning for OP20. (OP10 oil circuit: 4 inlet, 3 outlet; OP20 oil circuit: 3 inlet, 2 outlet;) Oil circuit combination: 4 inlet, 3 outlet; The weight of the fixture is approximately 620KG;
Specification: Hydraulic Clamp Body Diagram
|
