Hot Press Machine In-Feed Cart

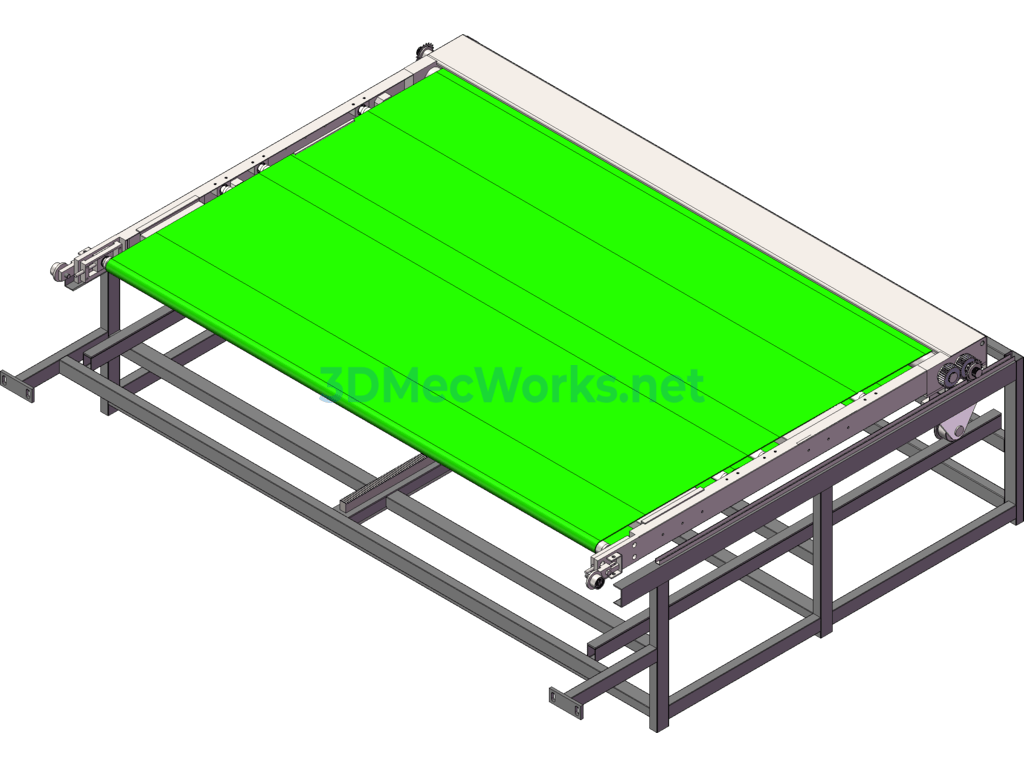

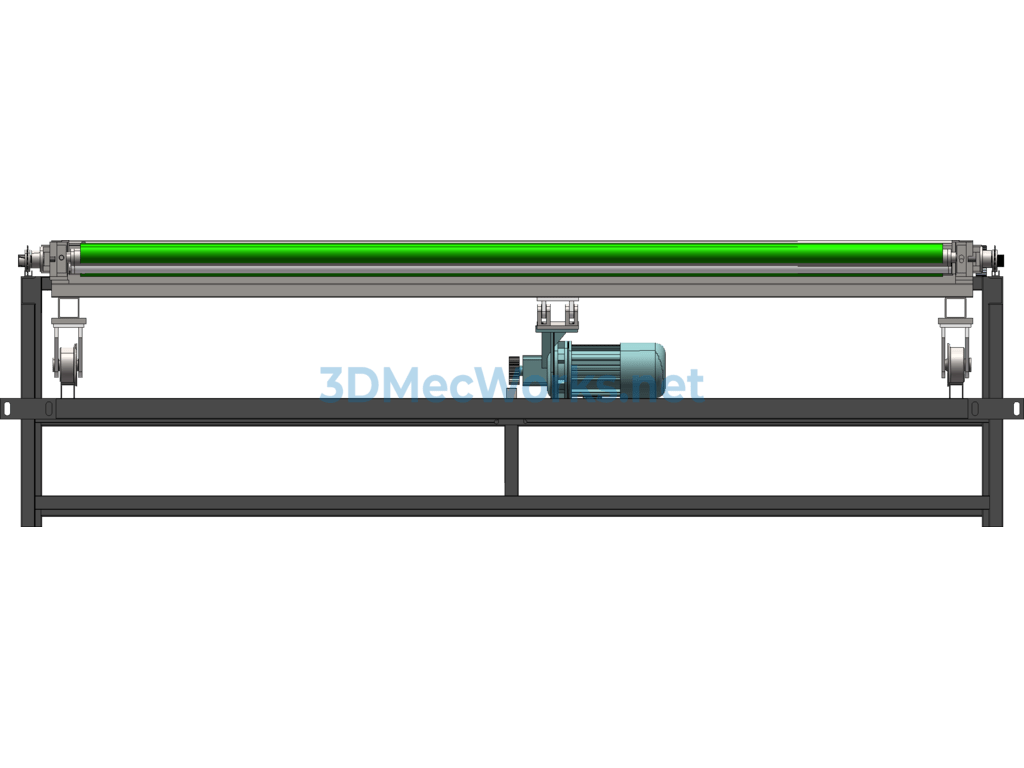

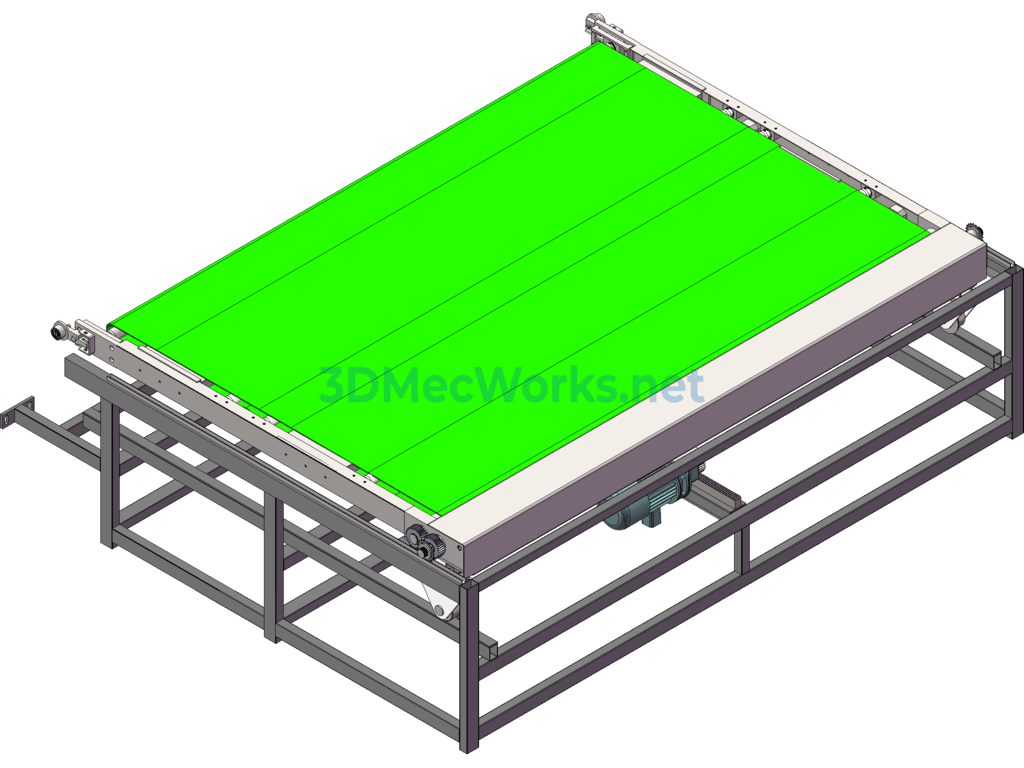

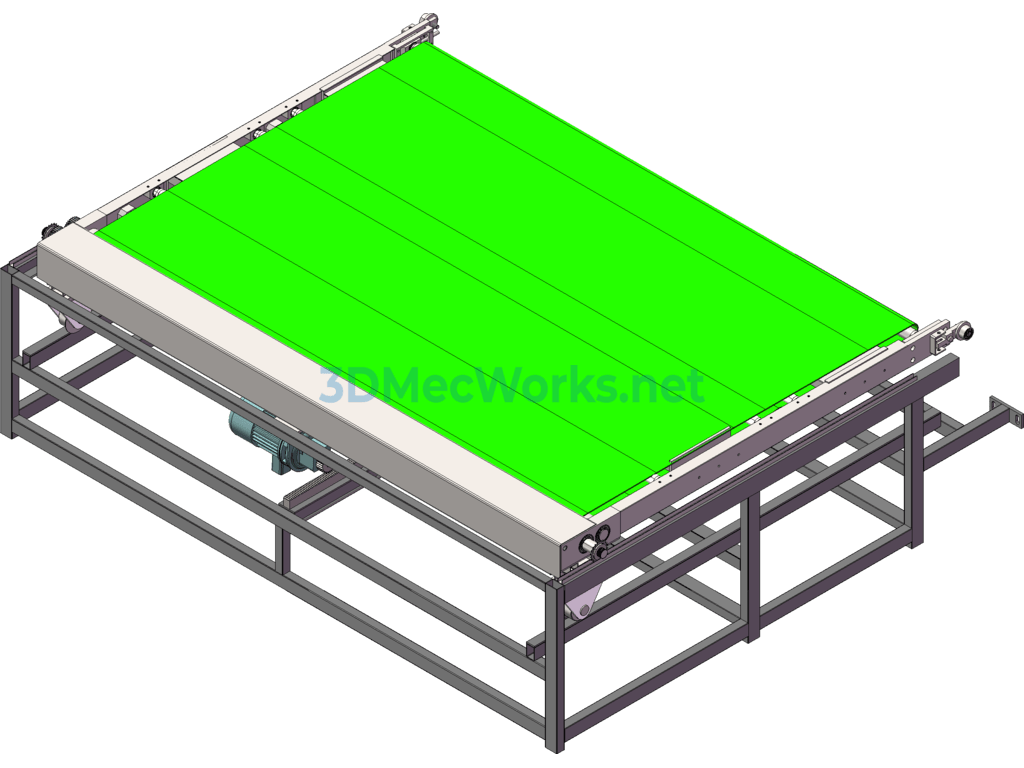

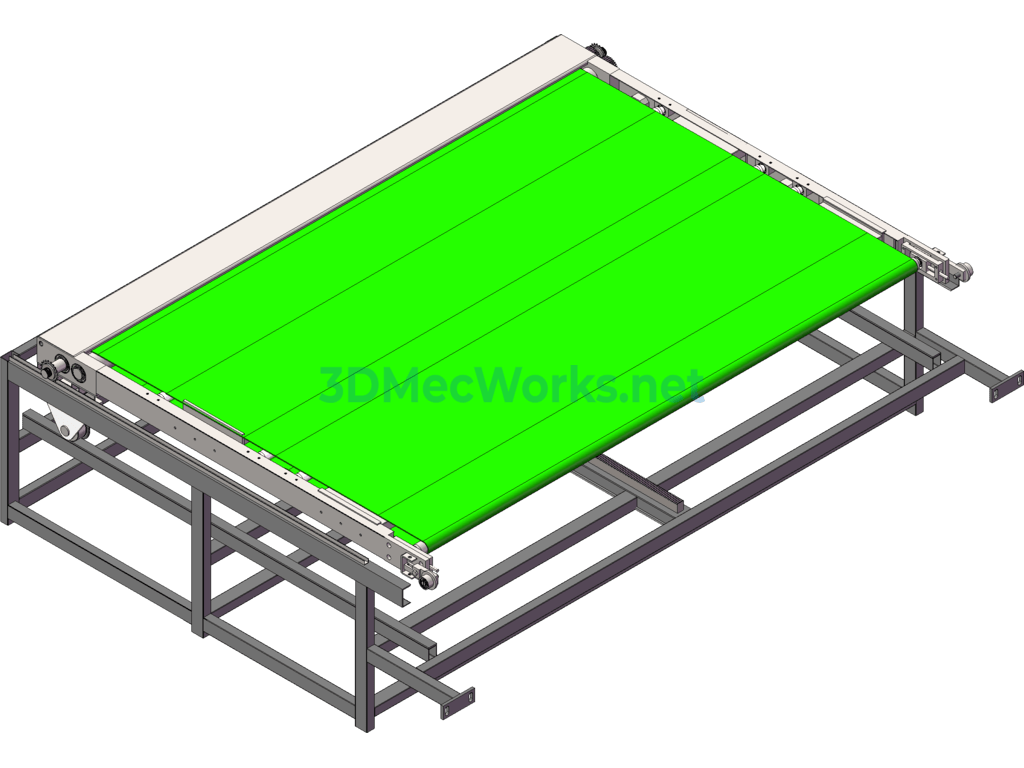

600×1400 Lateral Veneer Loading Cart, this equipment is used in conjunction with a hydraulic veneer press, for loading panels onto the press. When loading, the motor operates, driving the upper roller table and belt (the belt does not move at this time) into the press. Once in position, the motor drives the roller table in reverse to exit the press, at which point the belt moves in the opposite direction to the roller table at the same speed. This ensures that the veneer panel is not taken out by the cart. This drawing includes an assembly drawing and all part drawings (including the panel exit rack). Members interested are welcome to download it for study.
