Horizontal Prestressed Pipe Pile Automatic Tensioning Machine

Brief Introduction of Working Principle

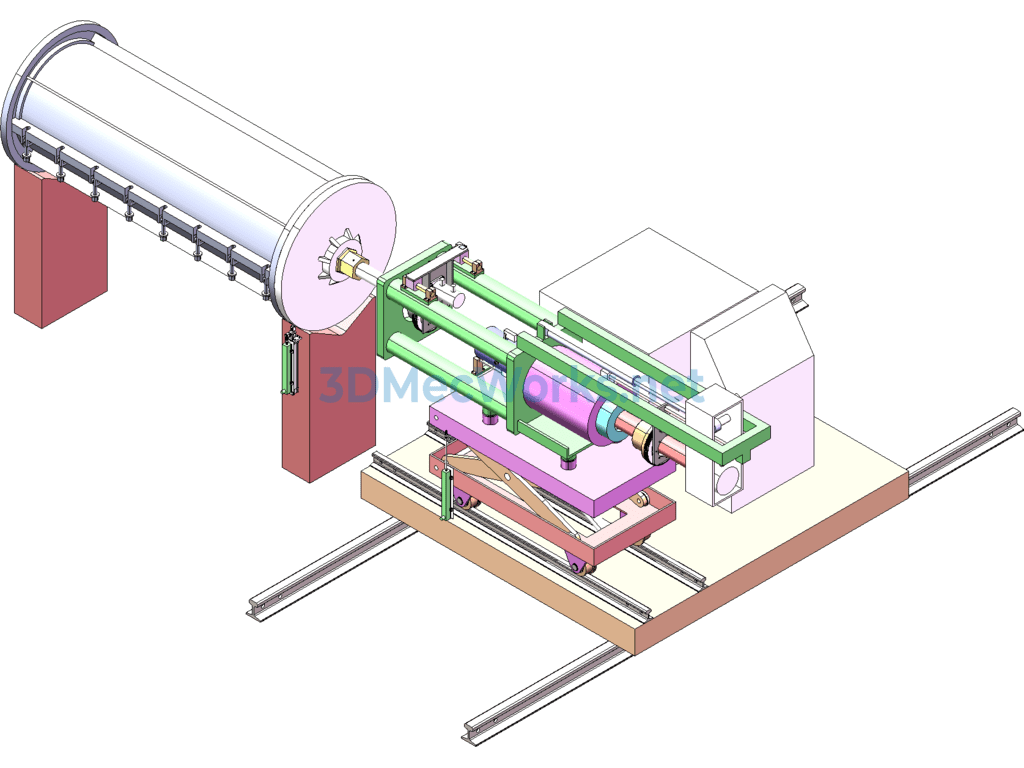

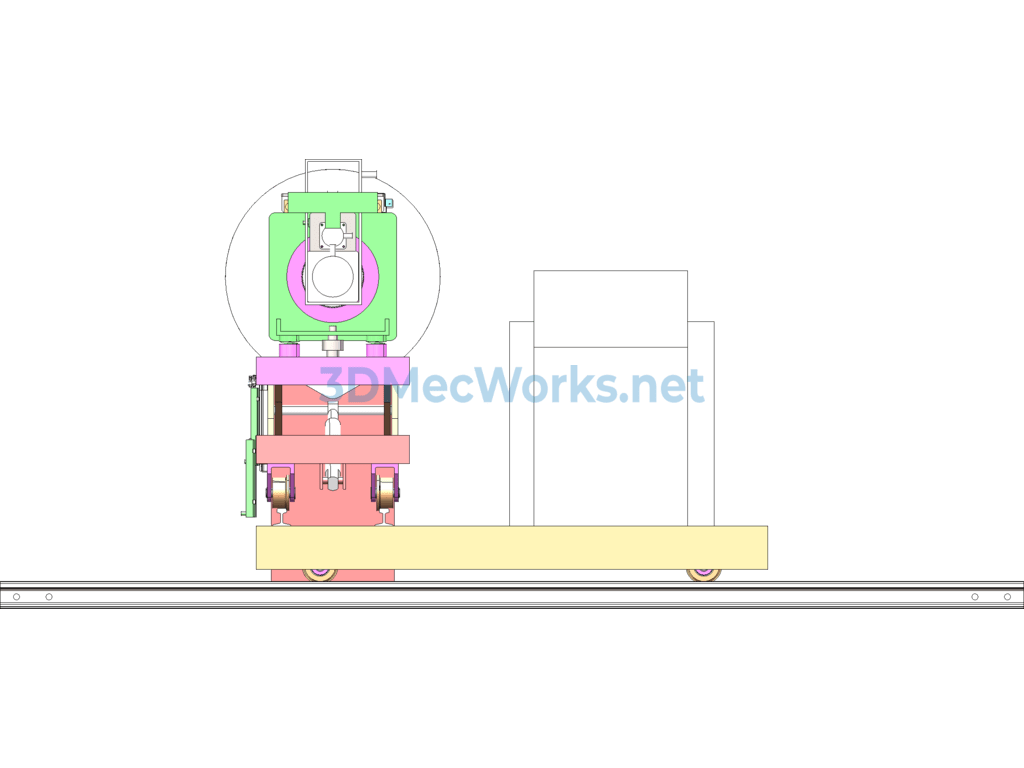

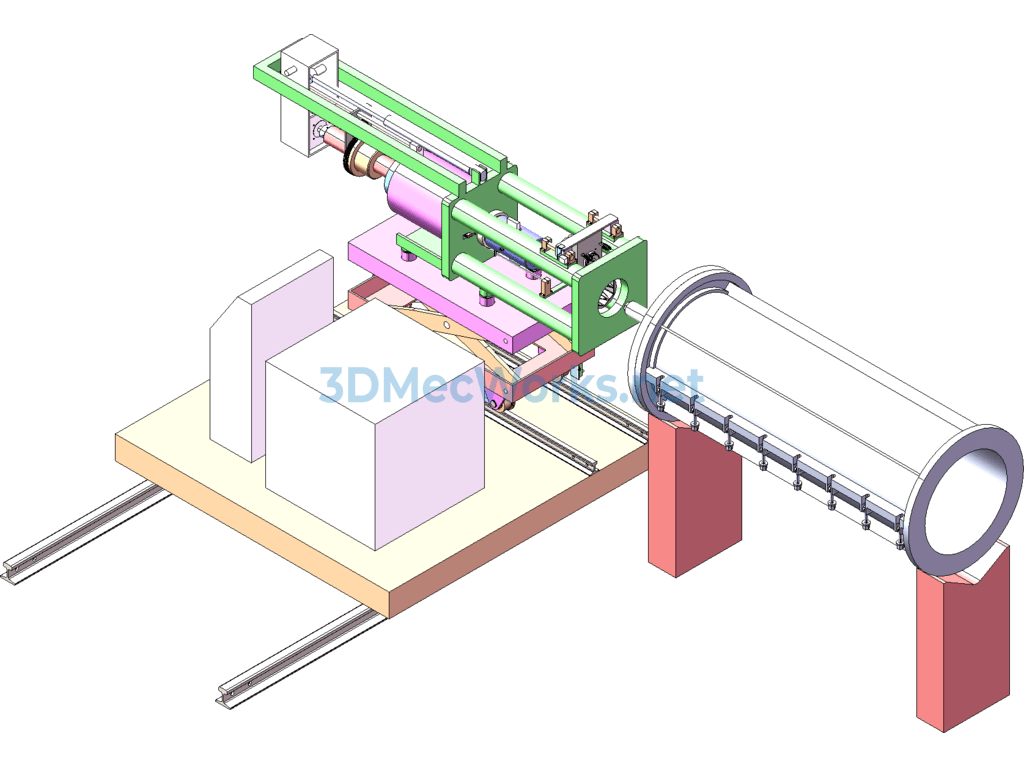

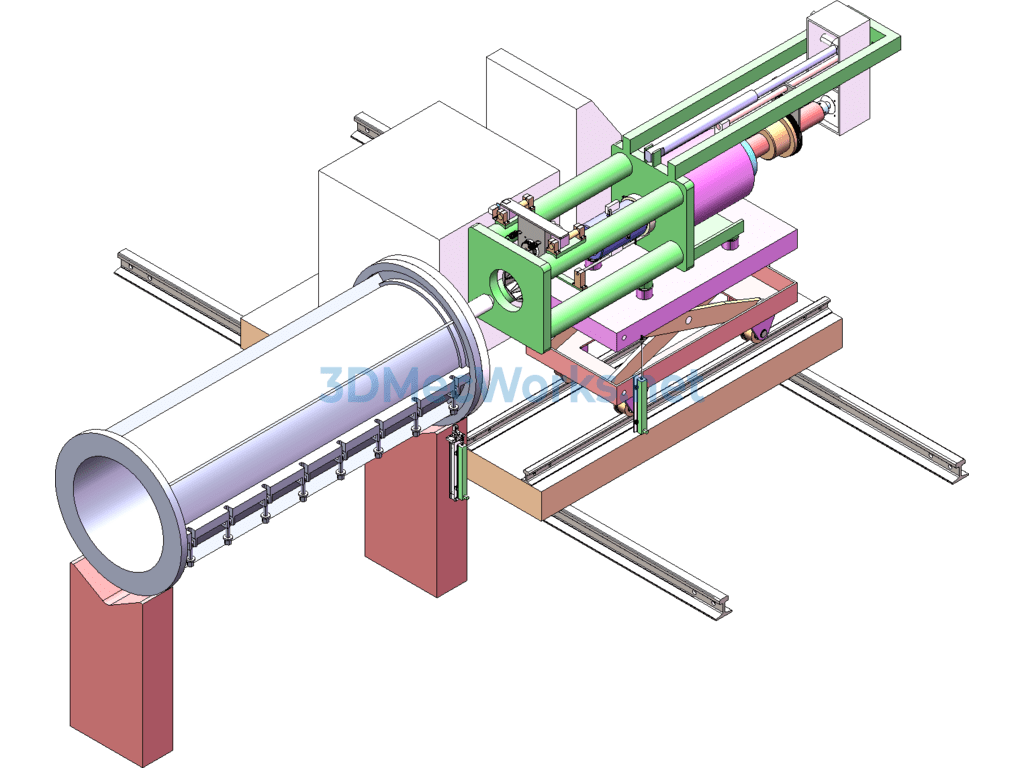

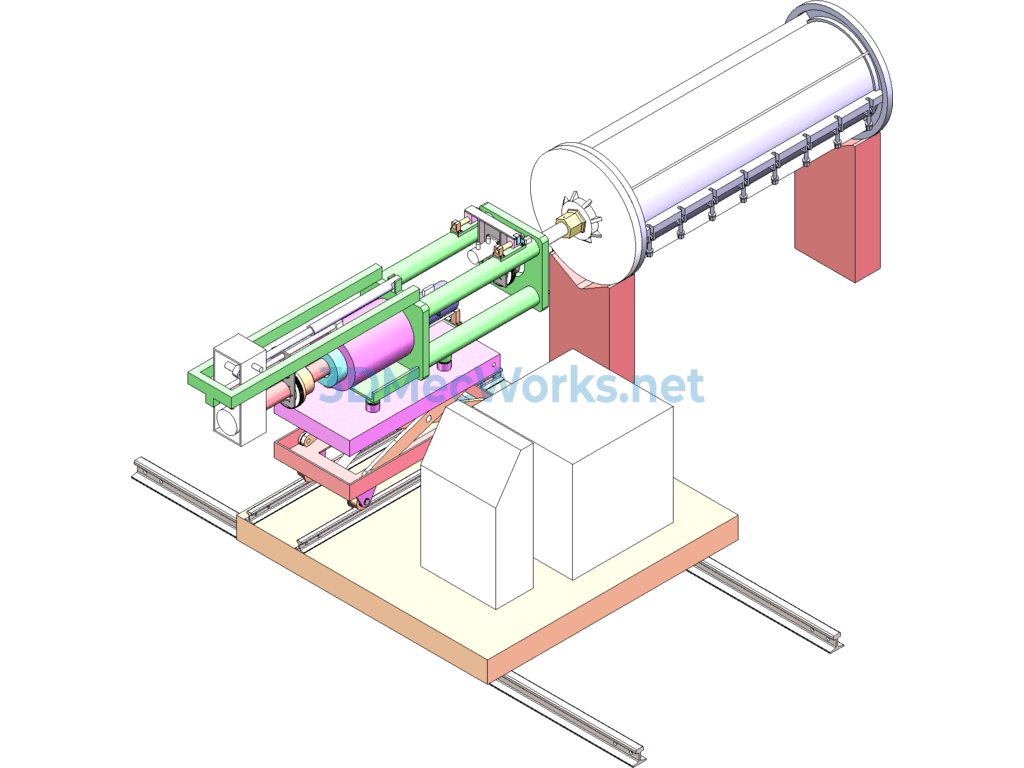

The horizontal prestressed pipe pile automatic tensioning machine includes a pipe pile mold assembly, tensioning device, and three-dimensional moving platform, as well as a pipe diameter detection device and a displacement sensor device. The tensioning device includes a docking locking device, tightening locking device, jack hydraulic cylinder, and nut locking device. The three-dimensional moving platform adjusts the alignment of the tensioning device and the pipe pile mold assembly by moving in the X, Y, and Z directions. The docking locking device interfaces with the pipe pile mold head plate tension rod, the tightening nut device interfaces with the hydraulic cylinder body for tightening, the tensioning device achieves mold tensioning and the nut locking device achieves nut locking, the pipe diameter detection device measures the pipe pile mold diameter, and the displacement sensor device detects the elevation values of the three-dimensional moving platform.
1-Pipe Pile Mold Assembly, 101-Pipe Pile Mold, 102-Head Plate, 103-Locking Nut, 104-Head Plate Tension Rod, 105-Transport Support, 2-Tensioning Device, 201-Docking Locking Device, 20101-Docking Nut, 20102-Limit Switch, 20103-Docking Nut Stop Rod, 20104-Docking Motor, 20105-Docking Bracket, 20106-Docking Guide Rail, 20107-Tie Rod Auxiliary Hydraulic Cylinder, 20108-Tightening Nut Limit Guide Rod, 20109-Tail Rod Bracket, 20110-Bare Rod Guide Rail, 20111-Bare Rod Guide Rail Support, 20112-Slip Ring, 20113-Slip Ring Bracket, 20114-Displacement Sensor, 20115-Coupling, 20116-Travel Switch, 20117-Travel Switch Bracket, 202-Tightening Locking Device, 20201-Tightening Motor, 20202-Tightening Support Disc, 20203-Drive Gear, 20204-Turntable Bearing, 20205-Tightening Nut, 20206-Driven Gear, 203-Jack Hydraulic Cylinder, 20301-Jack Tie Rod, 20302-Piston Rod, 20303-Cylinder Body, 204-Nut Locking Device, 20401-Turntable Bearing, 20402-Locking Head, 20403-Cone Toothed Line, 20404-Drive Gear, 20405-Passive Tension Spring, 20406-Locking Base, 20407-Locking Switch Bracket, 20408-Locking Switch, 20409-Locking Switch Block, 20410-Cylindrical Guide Rail Support, 20411-Cylindrical Guide Rail, 20412-Linear Cylindrical Slider, 20413-Locking Motor, 20414-Driven Gear, 205-Tensioning Bracket, 2051-Front Plate, 2052-Rear Plate, 2053-Support Rod, 3-Three-Dimensional Moving Platform, 301-Control Console, 302-Hydraulic Station, 303-Elevating Trolley, 304-Mobile Base Slide Rail, 305-Mobile Base, 306-Ground Slide Rail, 30301-Steel Wheel, 30302-Steel Wheel Support, 30303-Elevating Trolley Base, 30304-Cross Bracket, 30305-Elevating Hydraulic Cylinder, 30306-Central Support Shaft, 30307-Elevating Trolley Top Plate, 30308-Buffer Spring, 30309-Bracket, 4-Pipe Diameter Detection Device, 401-Top Pulley, 402-Displacement Sensor Touch Rod, 403-Pipe Diameter Detection Sleeve, 404-Displacement Sensor, 405-Sensor Fixing Clip, 406-Slide Rod, 5-Linear Displacement Sensor.
