Horizontal Conveyor Belt

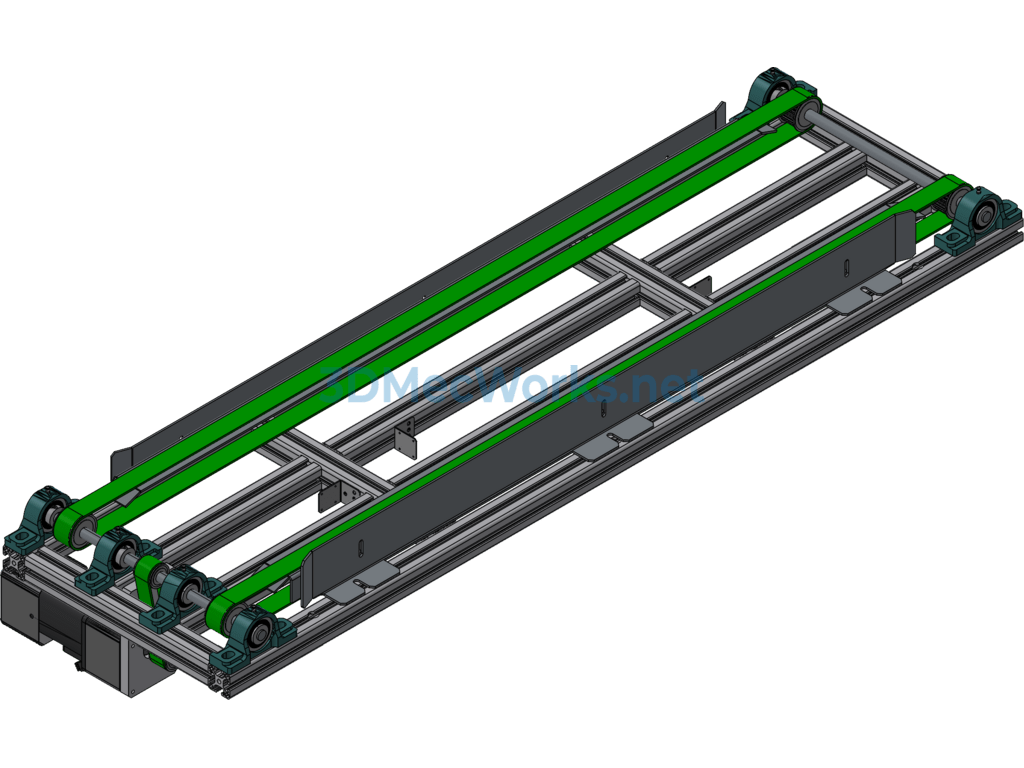

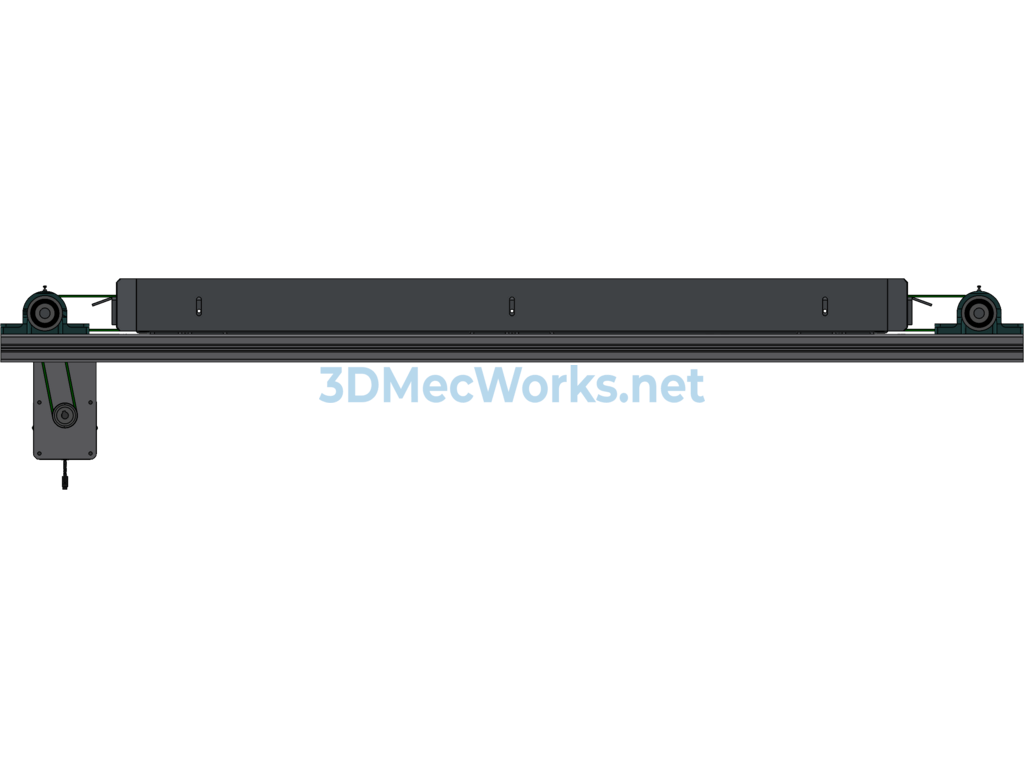

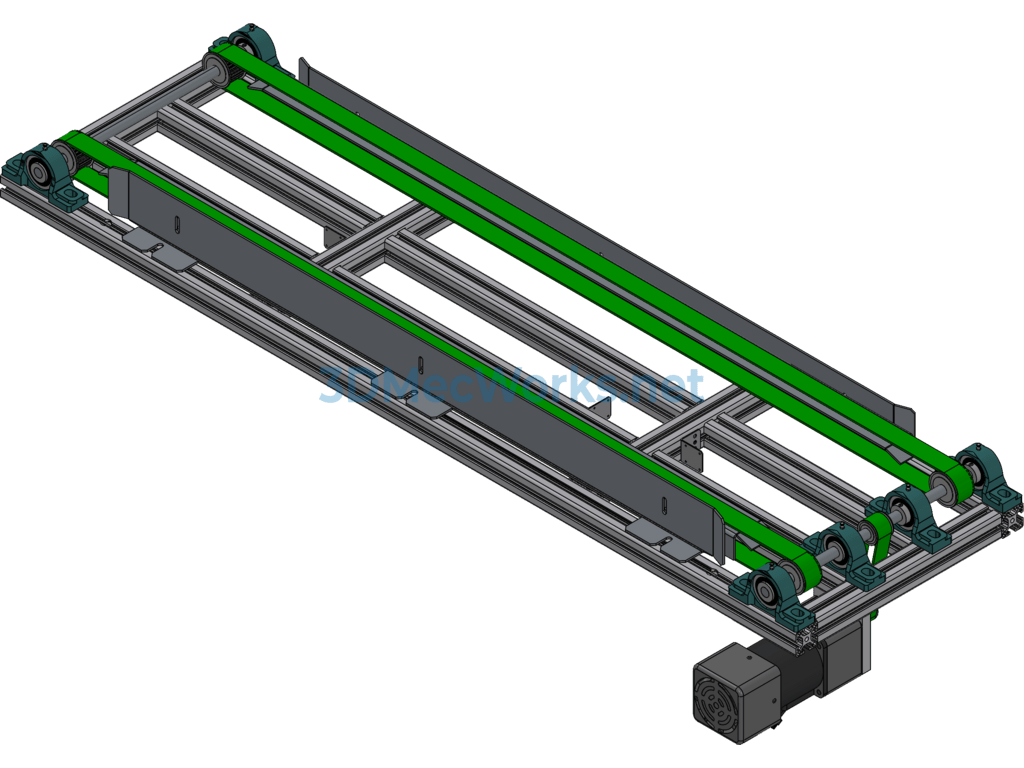

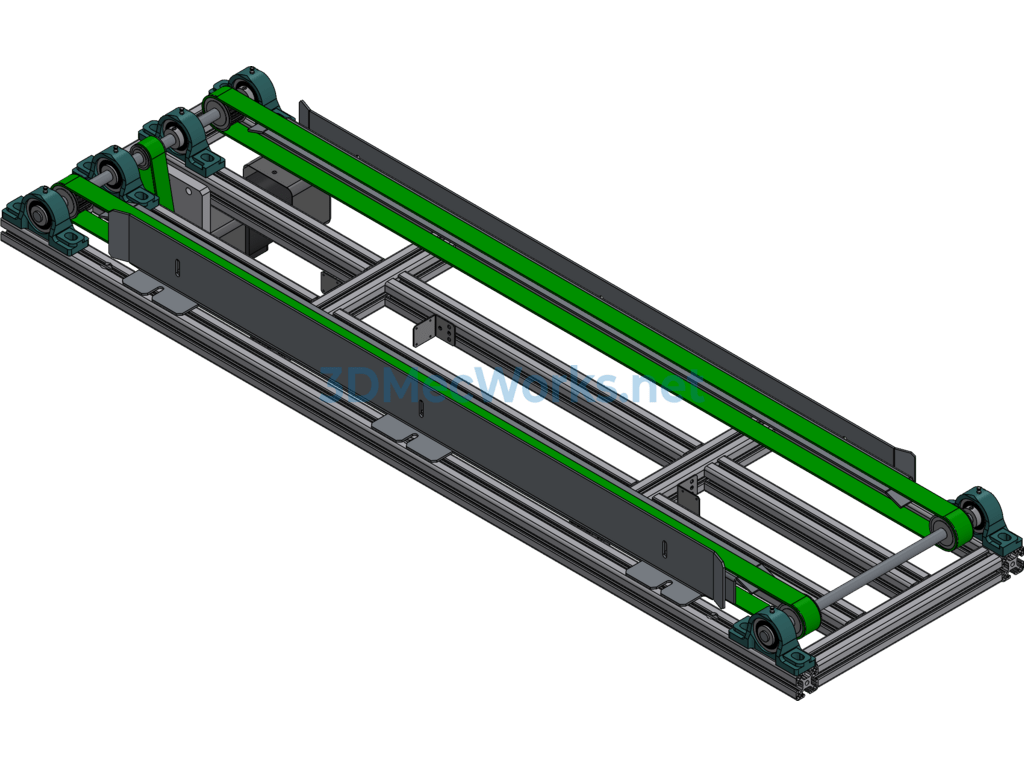

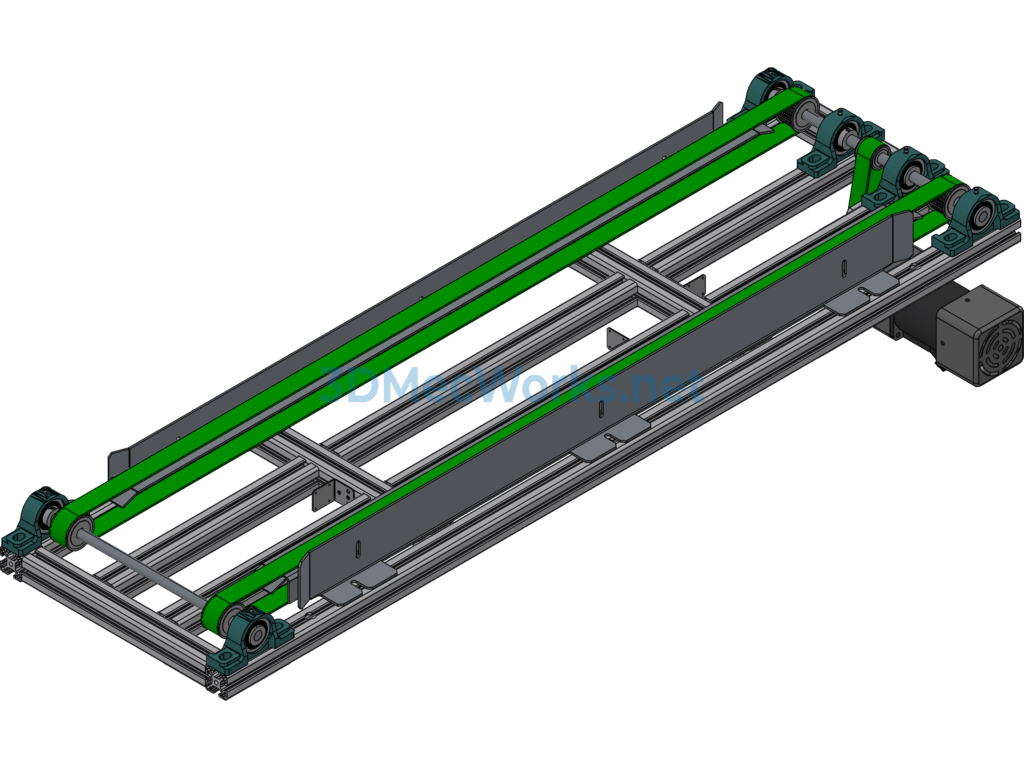

This drawing is for a SolidWorks part and can be used for design schemes. The structure is simple. The main body uses two conveyor belts as the main theme, with square tubes as the supporting frame. The sides employ a bent plate design, which is simple and reliable. It is commonly used for transporting tooling plates and other objects of fixed dimensions, with a wide range of applications.
Specification: Horizontal Conveyor Belt
|
