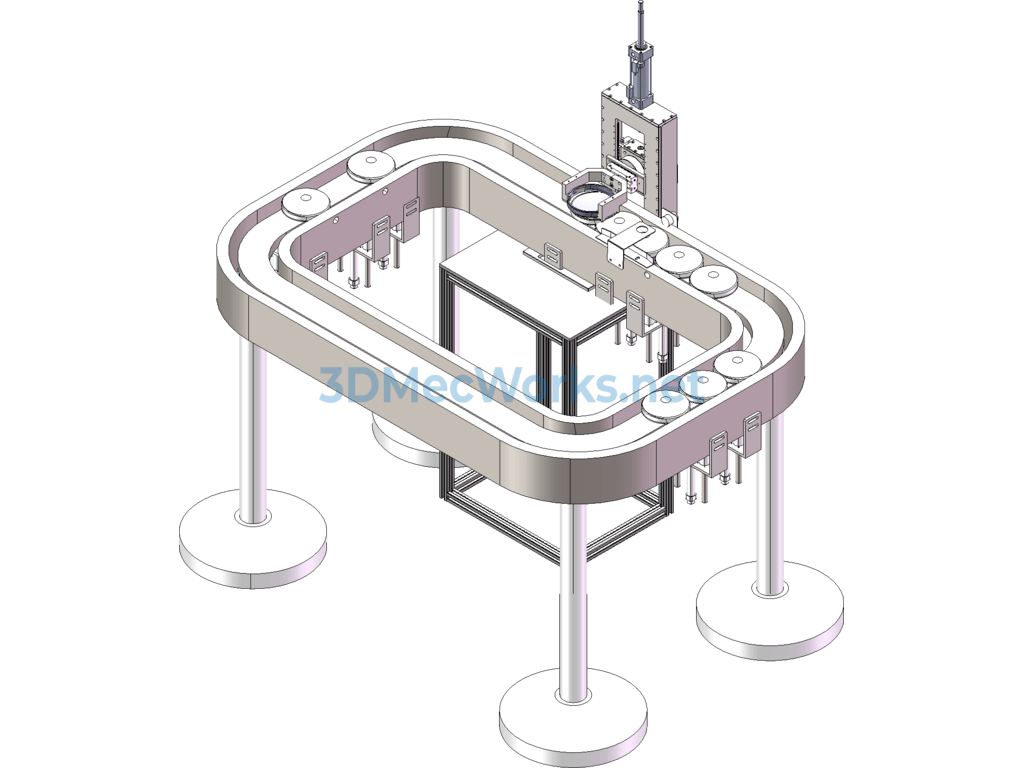

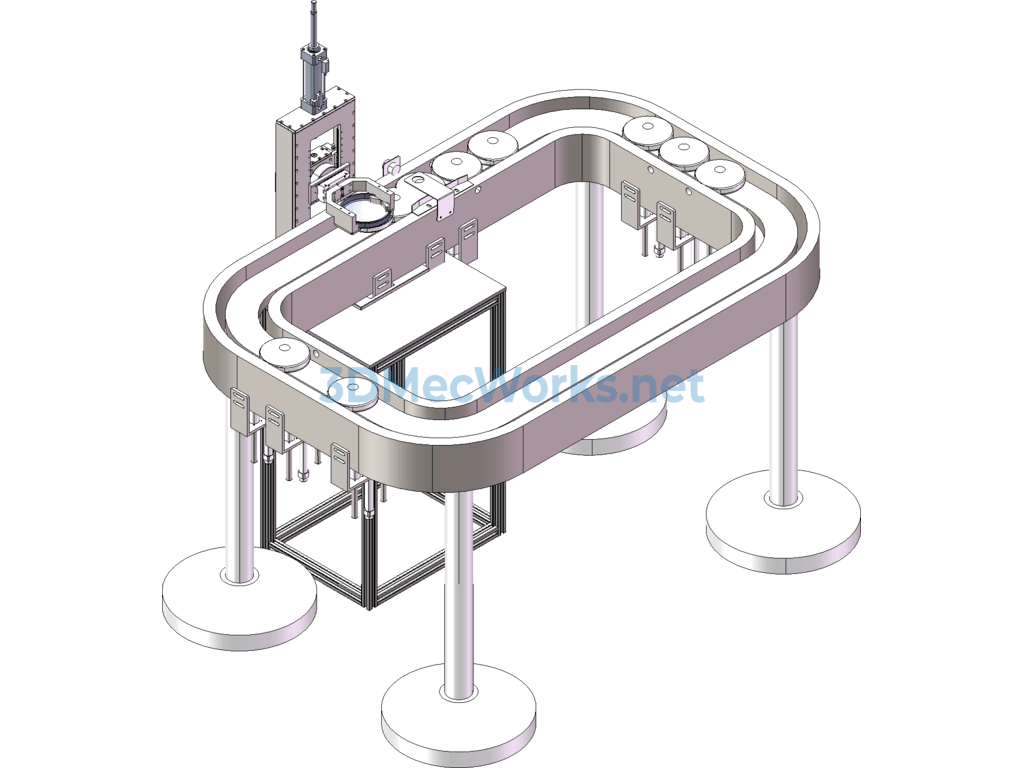

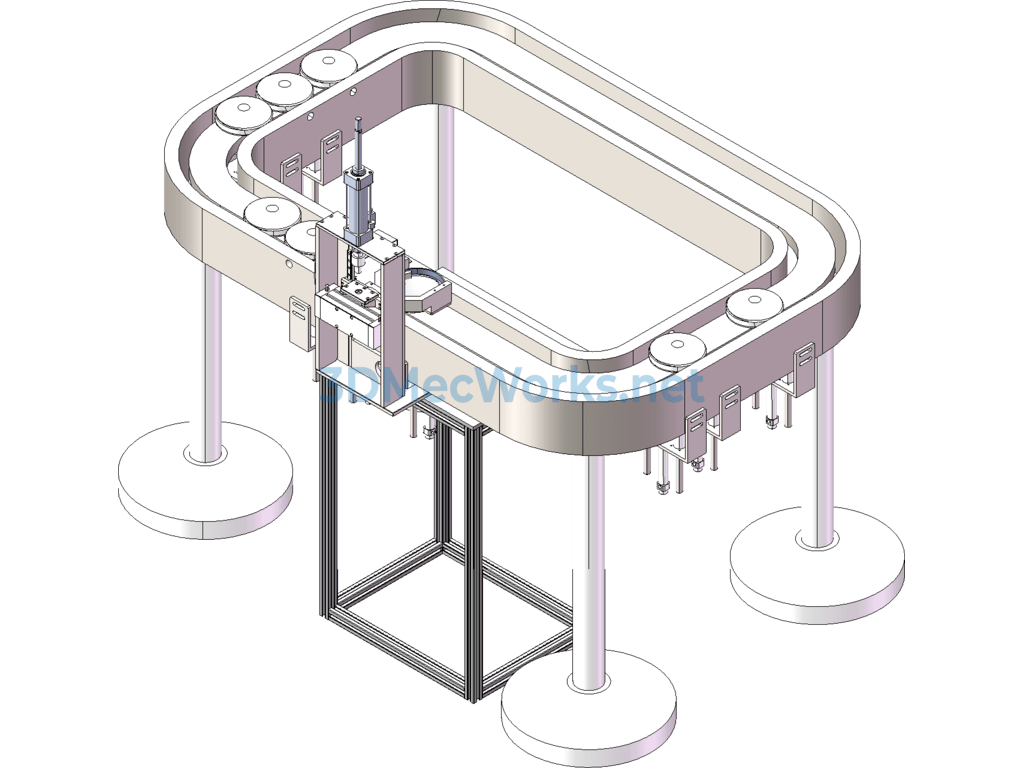

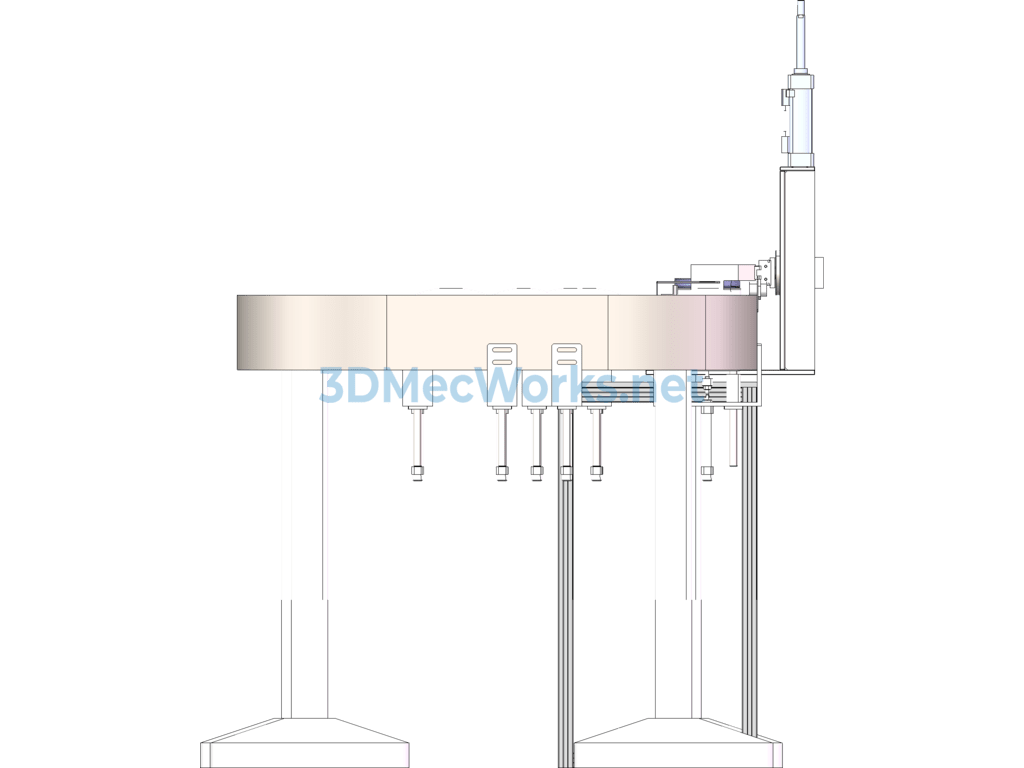

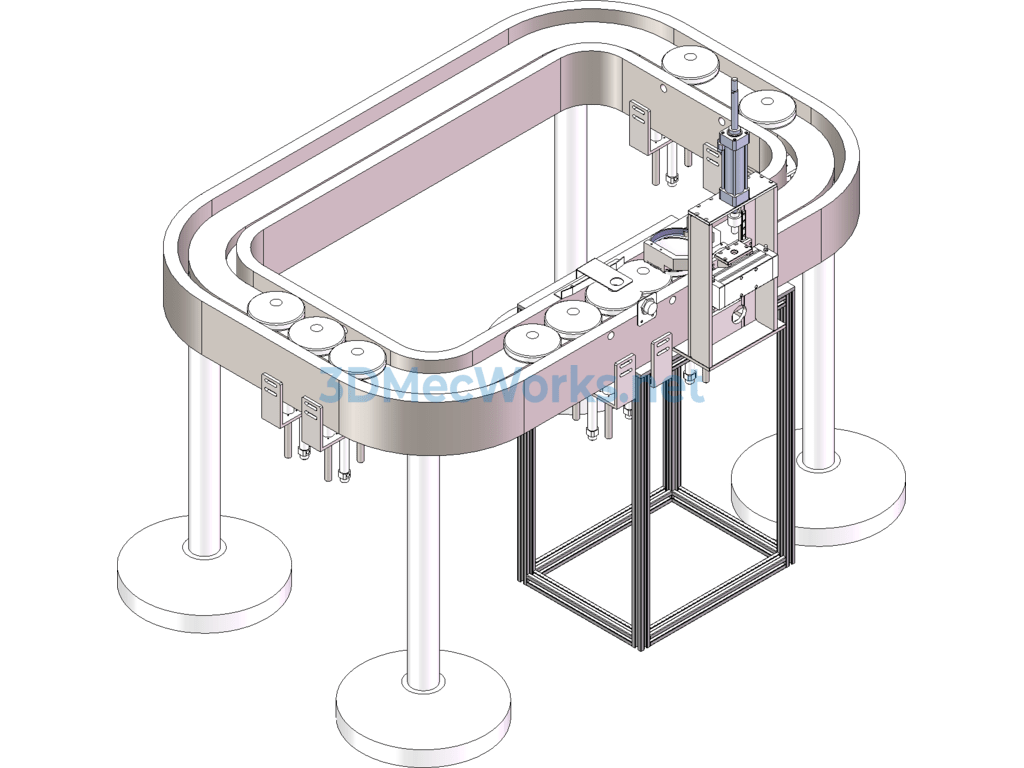

Hitachi Circular Line , Sifang Circular Conveyor Line , 3D+CAD

Hitachi Circular Line, Sifang Circular Conveyor Line 3D+CAD+Stainless Steel Plate Chain Electrical Component List+Hitachi Circular Line Standard Parts Purchase List+Shanghai Hitachi Circular Line Standard Parts Purchase List 2+Cyclic Chain Plating Machine CAD Drawings+Design Manual+150331XT001 Detailed Manufacturing Drawing of Cyclic Chain Plating Line, etc. materials

I. Equipment Features: Sifang Circular Conveyor Line, Small Turning Radius, Variable Frequency Speed Regulation

II. Functional Features: This equipment is suitable for various assembly line operations, the power system adopts a speed regulation system, with stable performance, safety and reliability, and simple operation.

III. Line Material and Manufacturing Instructions:
1. Power: Adopts Taiwan TAI CHUANG 0.37KW, 380V Reducer Motor, equipped with TAI-AN Inverter 220V.
2. Machine Body: Made with four-legged bracket round tube. The side plates are made of 2.0 steel plate. (Machine body material can be customized according to customer requirements).
3. Chain Plate: Uses stainless steel chain plate.

IV. Control Process:
The line is divided into six stations:
1. Detect workpiece presence and blocking stop station.
2. Detect the workpiece orientation and flip the workpiece station.
3. Blocking stop station.
4. Manipulator grabbing station.
5. Buffer zone blocking station.
6. Buffer zone release station.
