The working principle of a fishing machine is essentially a boost frequency-inverter, which, when in operation, relies on high-frequency and high-voltage electricity to stun fish, thereby allowing for fishing.

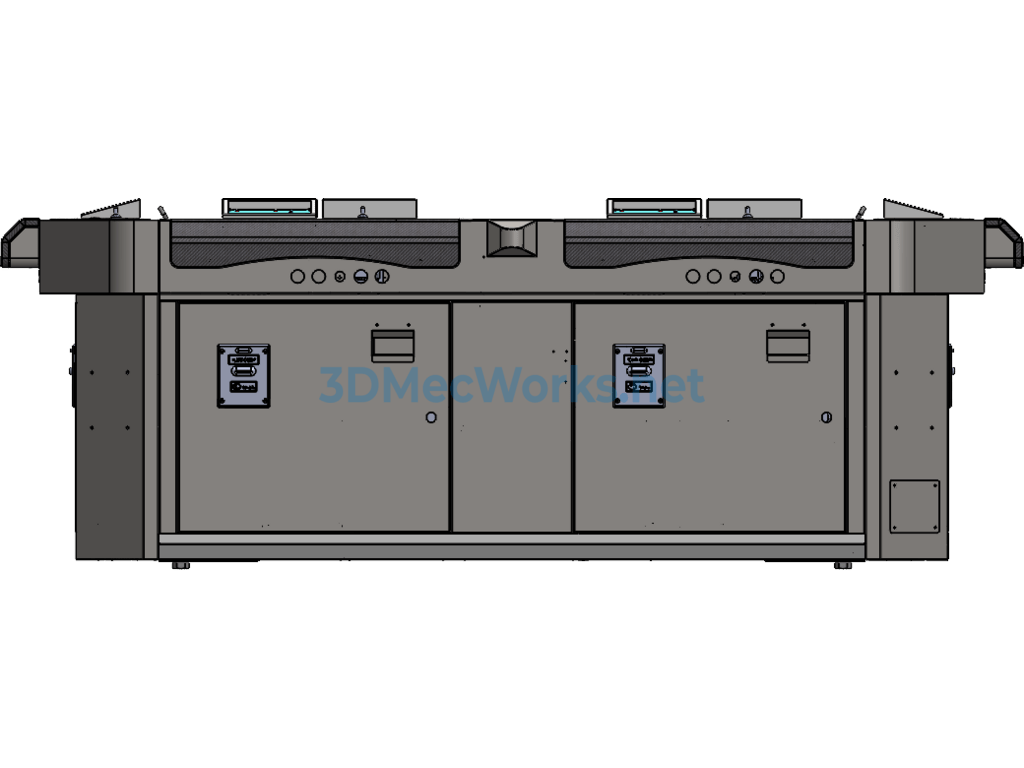

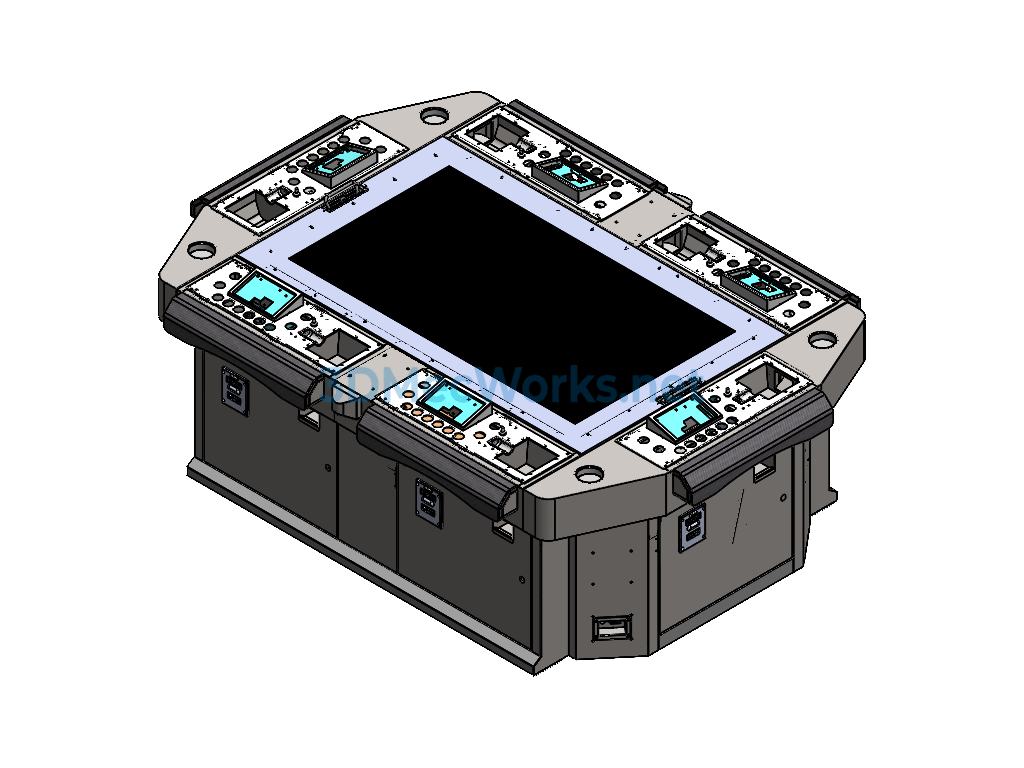

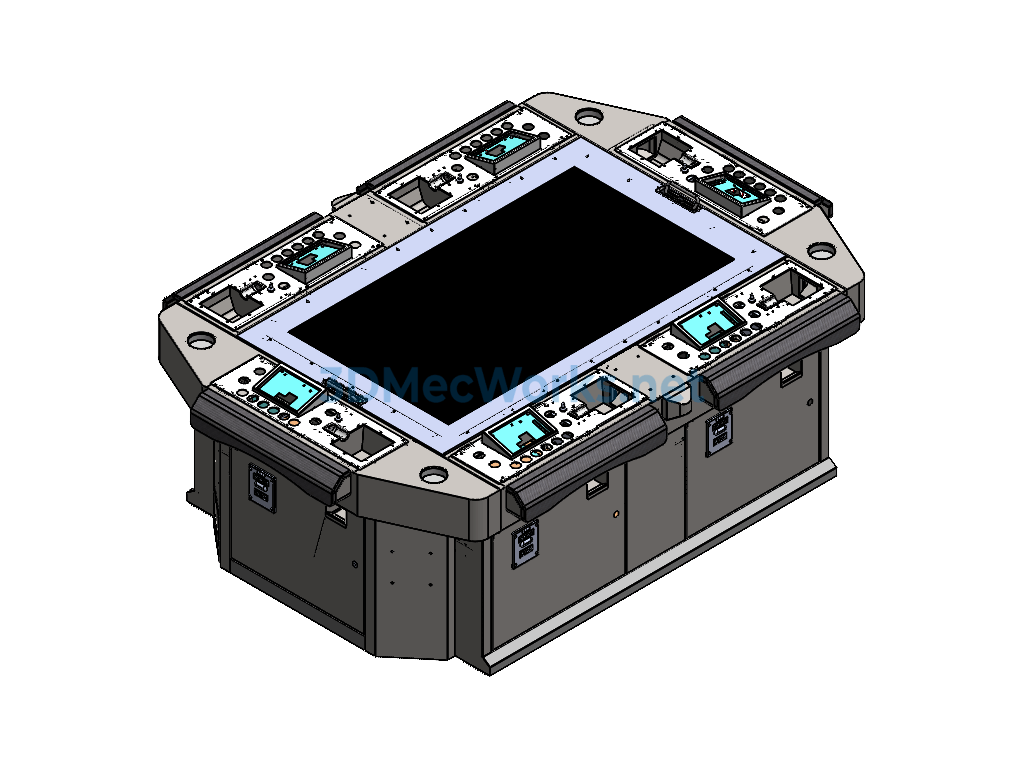

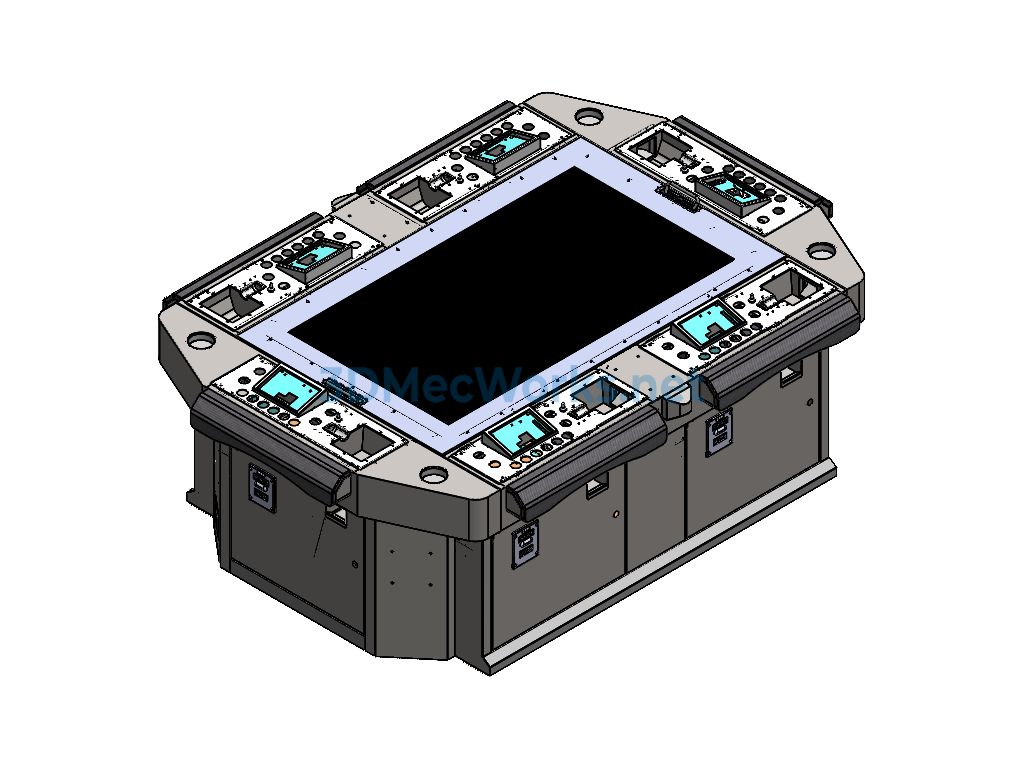

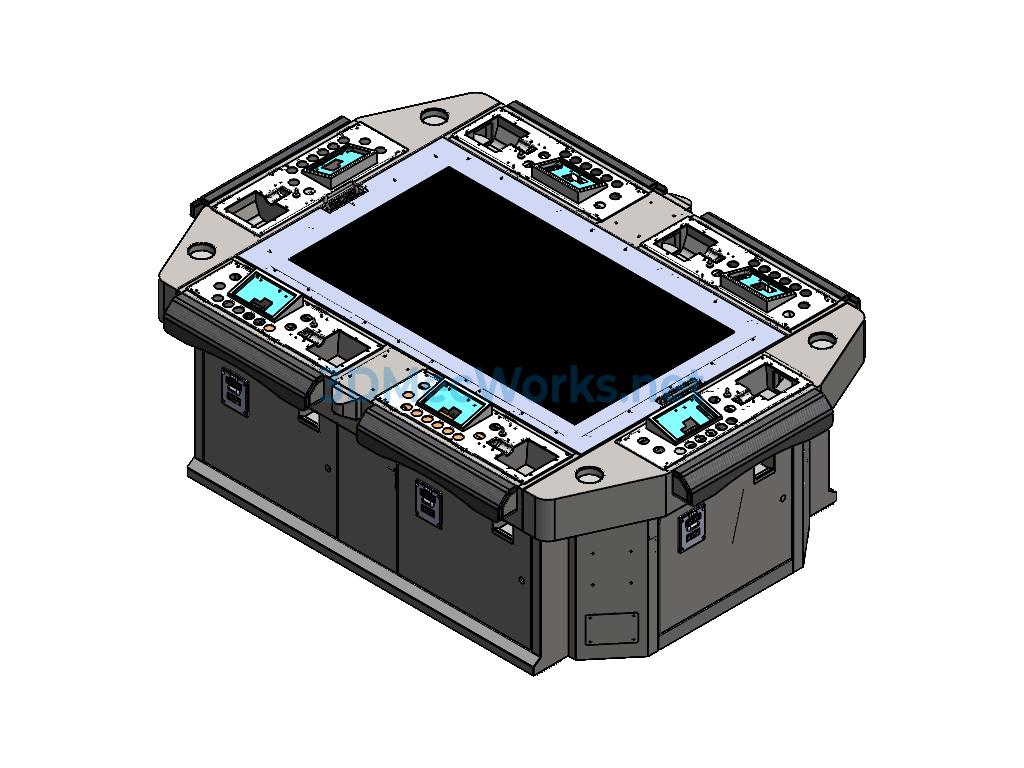

A model of the fishing machine (pure sheet metal) drawn using SolidWorks software (including assembly drawings and part drawings) has dimensions of Length*Width*Height 1938*1400*485. This model has been mass-produced, and its structure is very clear (as can be seen from the model tree in the pictures). Various internal components (such as motors and coin acceptors) have been assembled into it. Additionally, this model adopts a pure sheet metal design, with all sheet metal unfolding parameters set up and ready for direct drawing and unfolding. It is recommended that you open the model using a version of SolidWorks 2013 or later.
