High-Speed Led Component Placement Machine

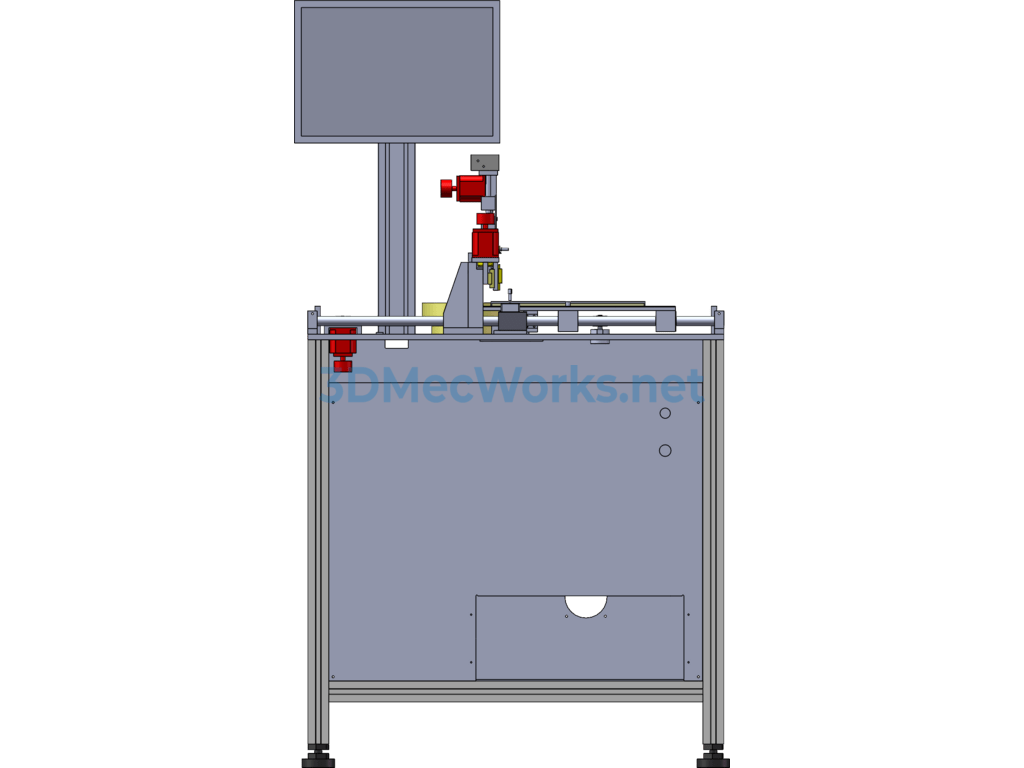

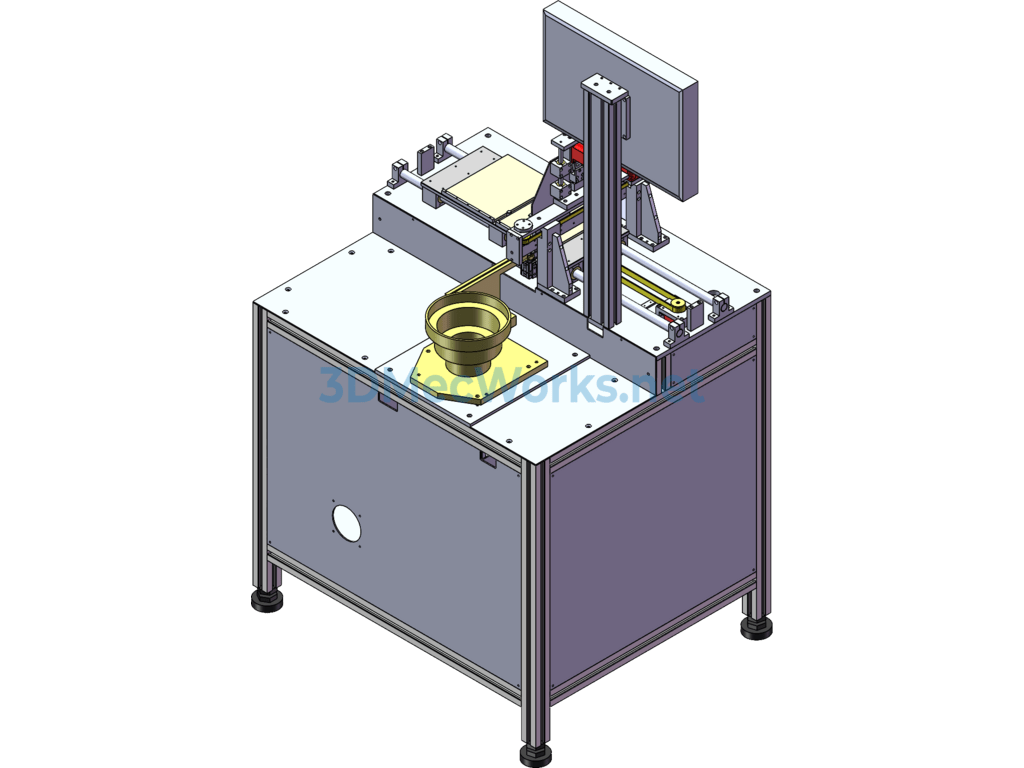

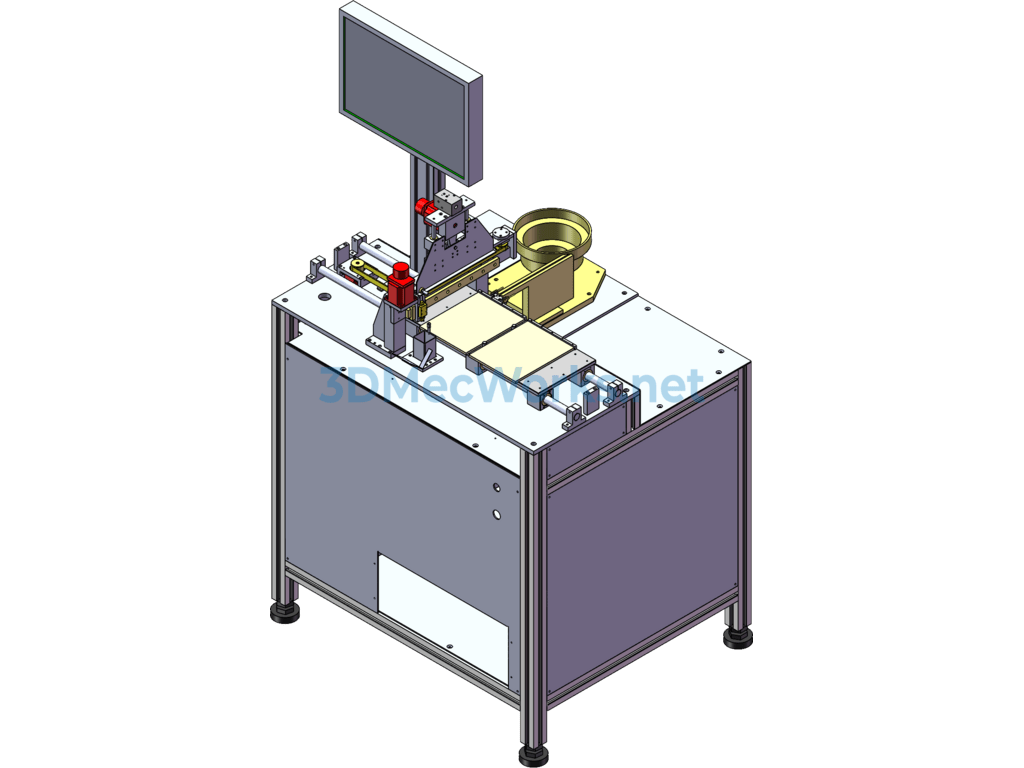

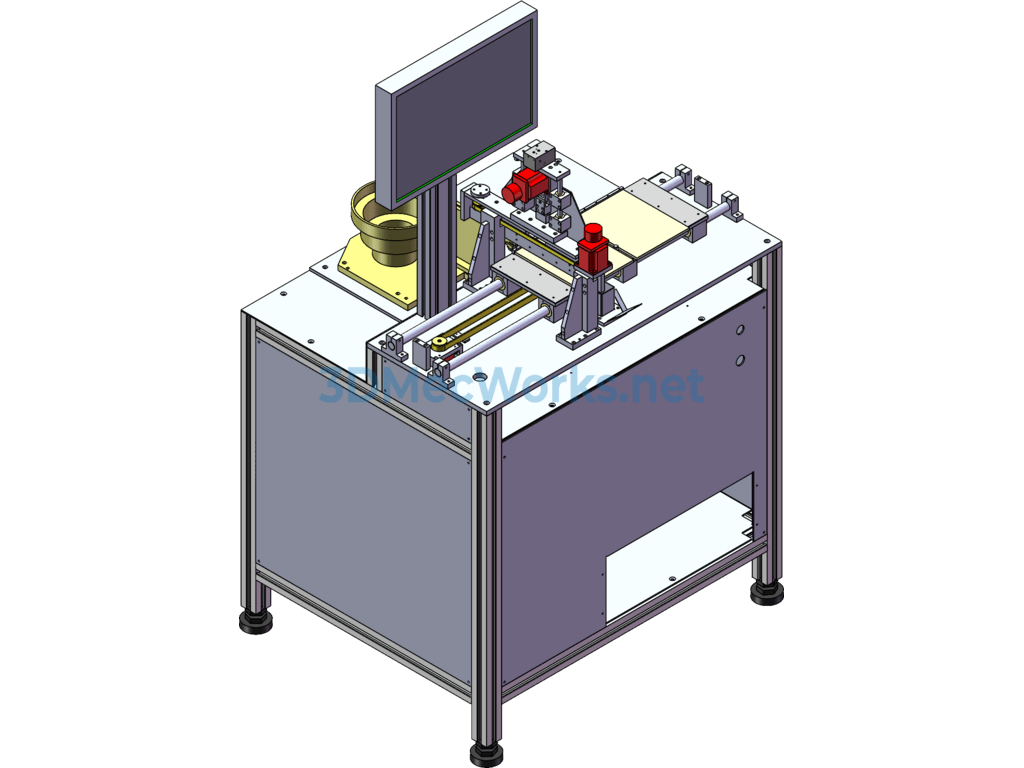

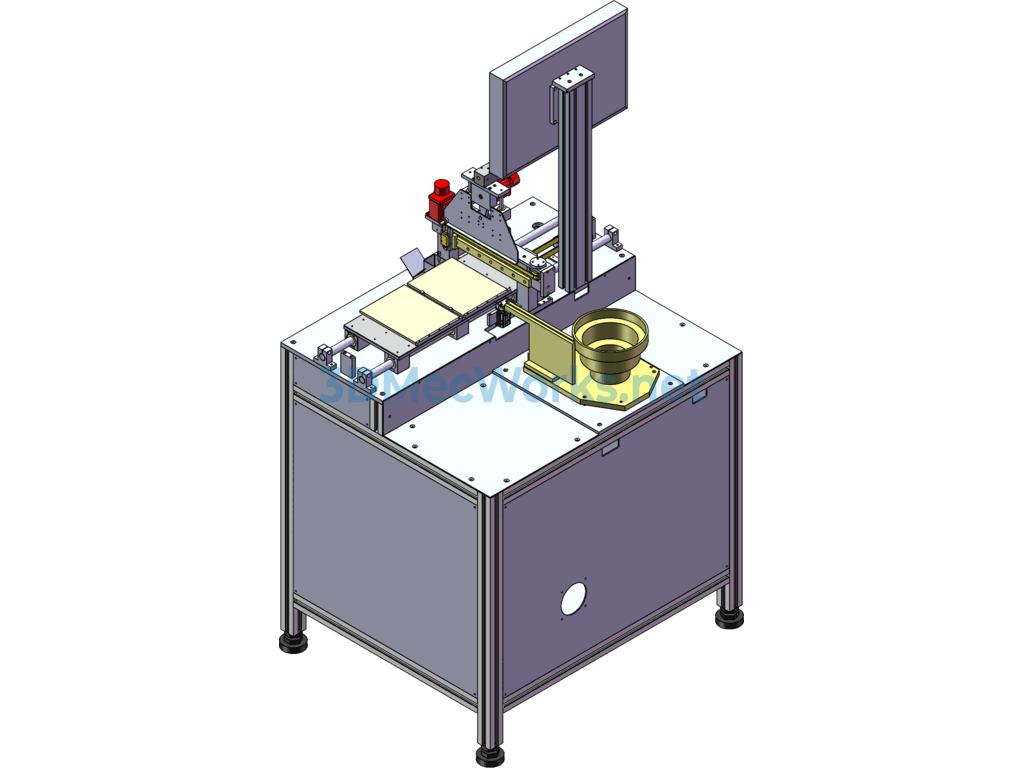

High-speed LED component placement machine is a classic original device with editable parameters. This equipment utilizes a three-axis structural layout and uses a vibratory bowl for bulk feeding. The Z-axis pick-up mechanism employs a high-speed eccentric wheel mechanism, which is stable, reliable, and highly precise. The X-axis high-speed moving tray uses a cam for placing components on the disc. The equipment features an aesthetically pleasing design. The system is controlled by an industrial control system microcontroller. This is highly referential for friends in mechanical design.
