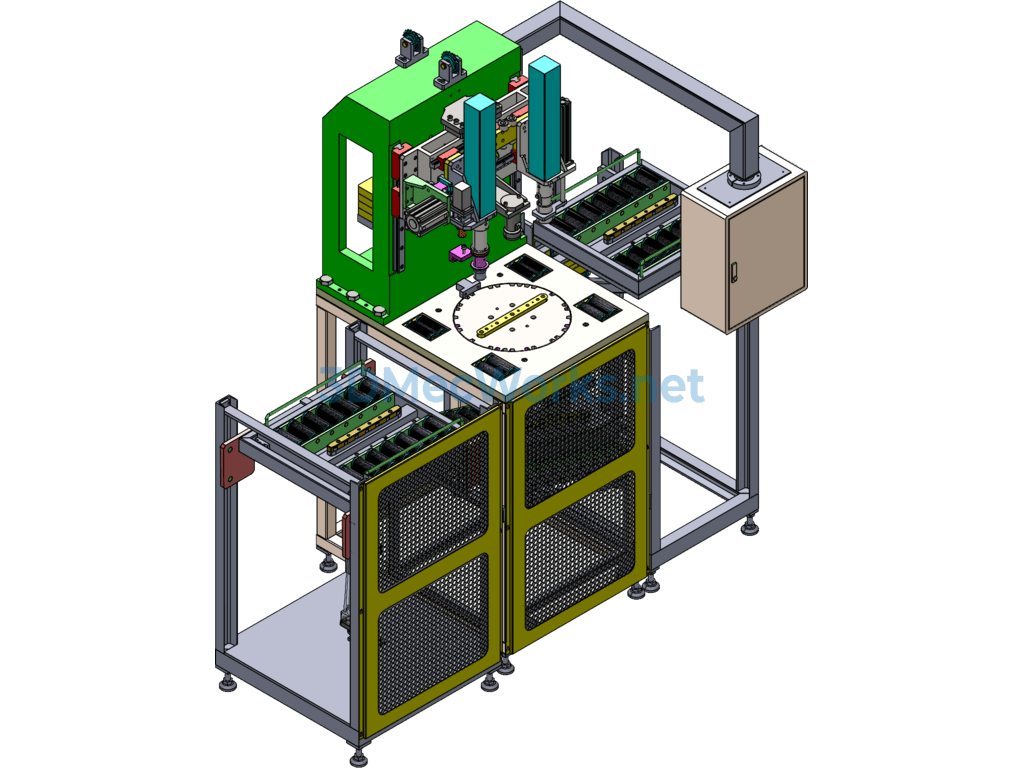

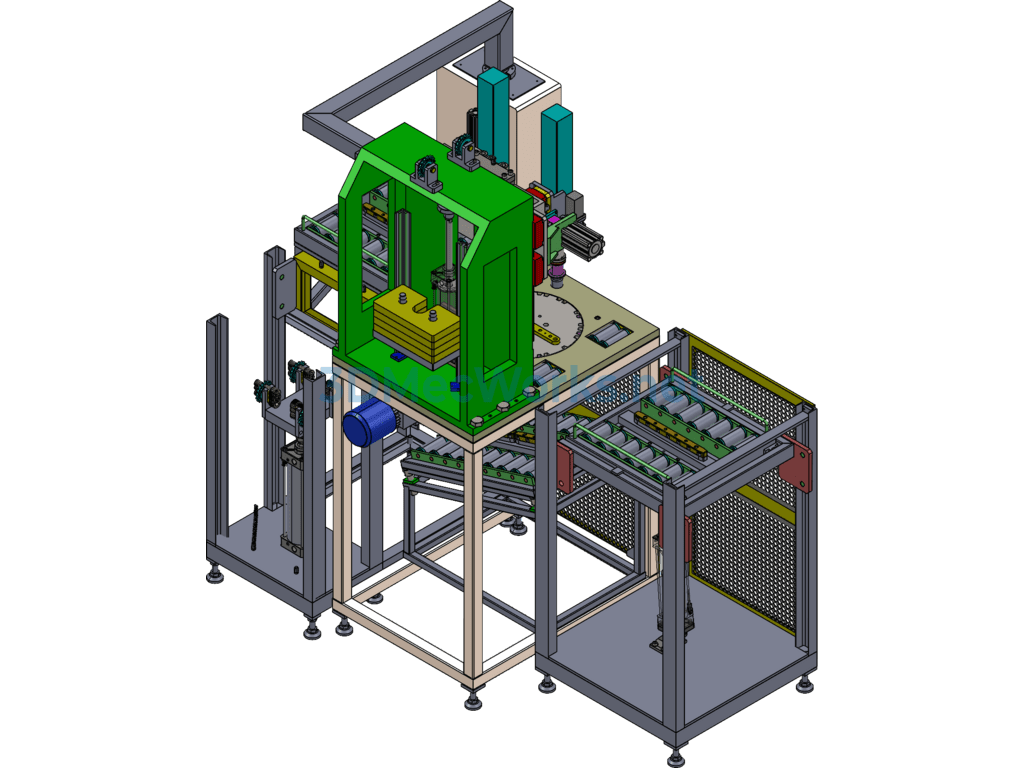

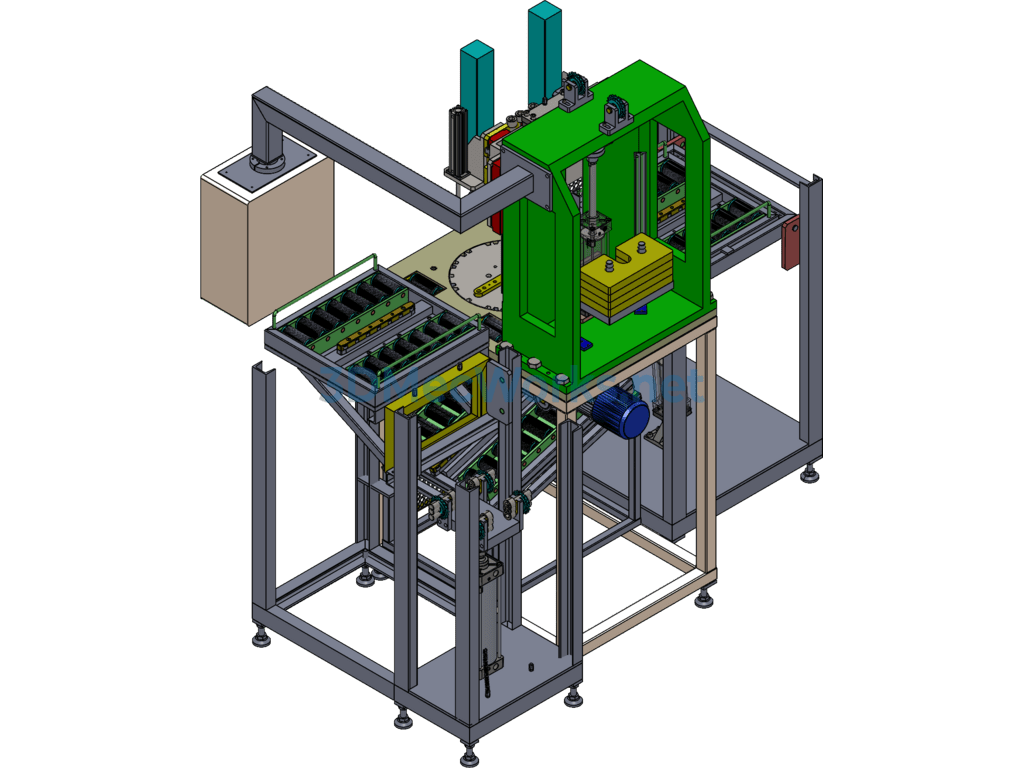

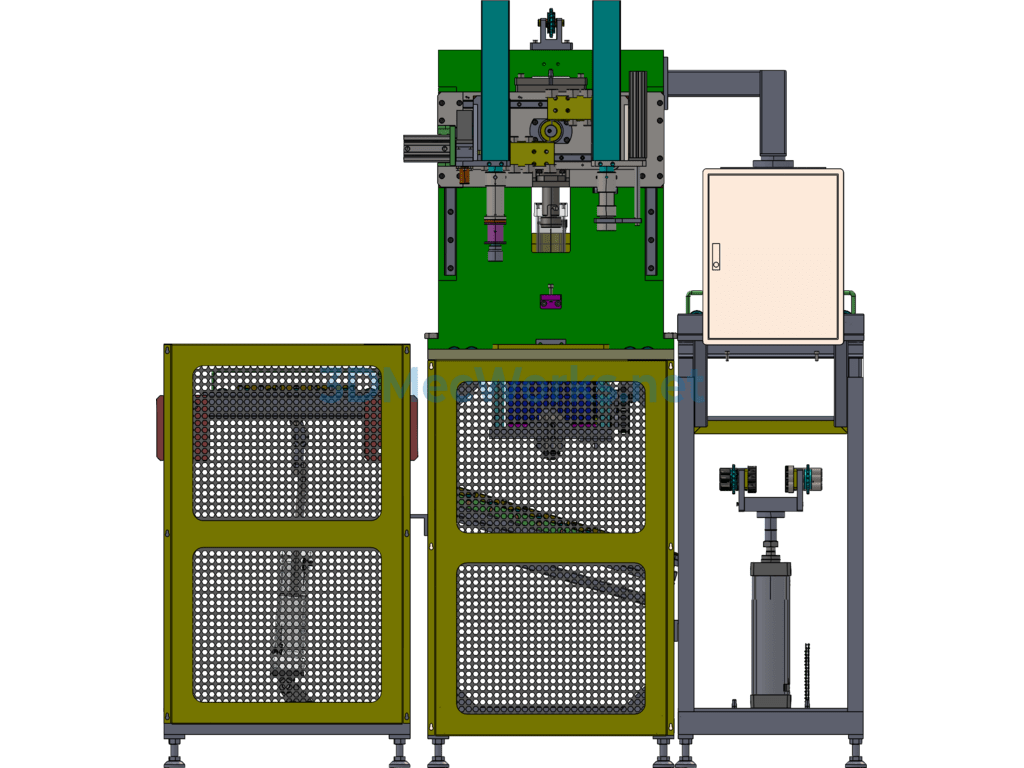

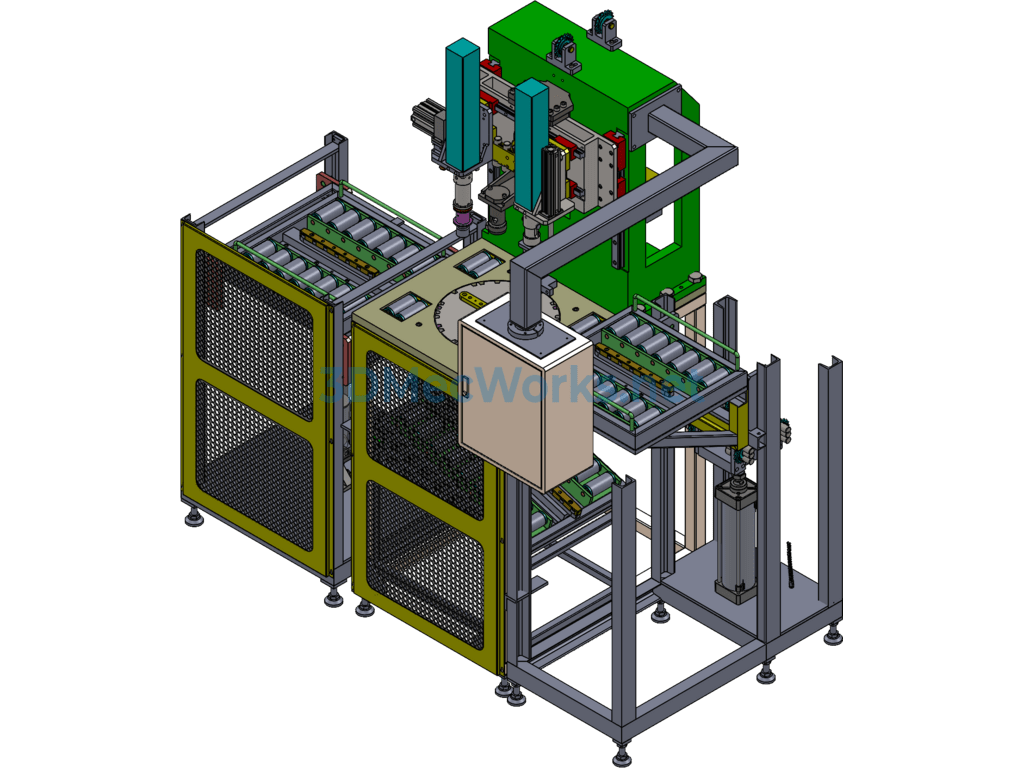

A 3D model of an automatic nut tightening machine with SW2014 design source files is available for sharing. This hexagonal nut tightening machine is a non-standard automated tightening machine. The equipment description is as follows:
1. The equipment features manual loading and automatic tightening.
2. The equipment uses an Astec torque wrench (8-80Nm) with an accuracy of ±5%.
3. The workpiece clamping mechanism adopts a bidirectional clamping with left and right V-shaped blocks.
4. It is suitable for connecting rod lengths of 200mm-500mm and nut/bolt specifications of M6-M12.
The equipment model lacks some small parts, but the main components are complete, which does not impact its usefulness as a reference. It has considerable reference value, and you are welcome to download it.
Specification: Hexagon Nut Tightening Machine, Non-Standard Automation Tightening Machine
|
