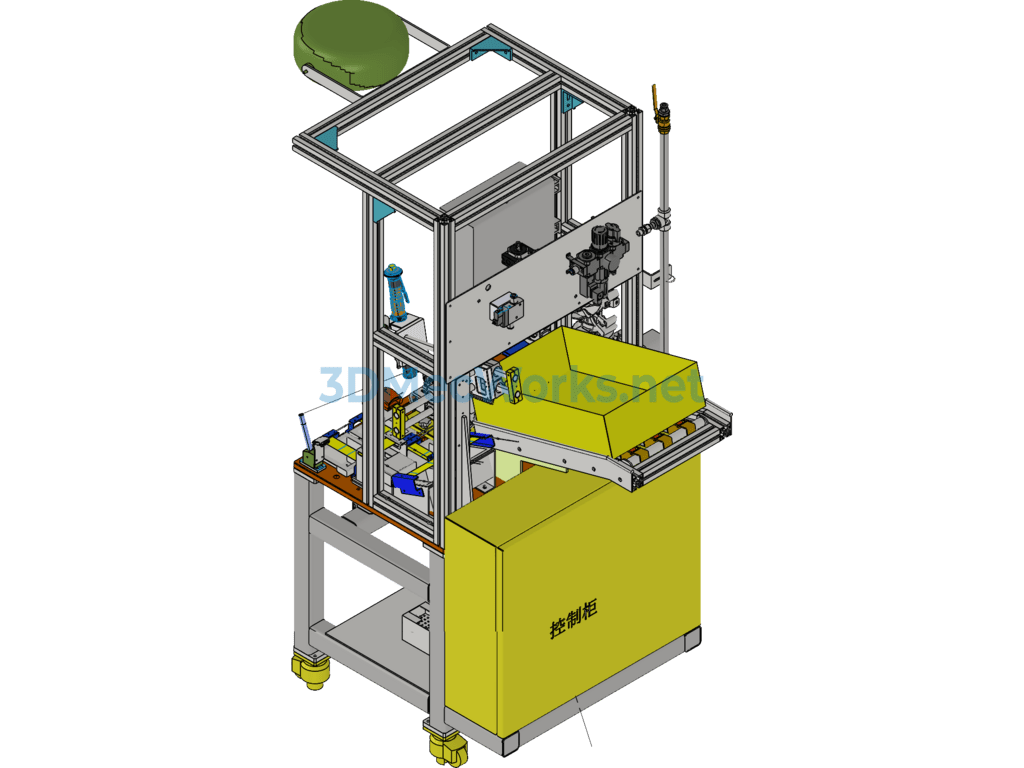

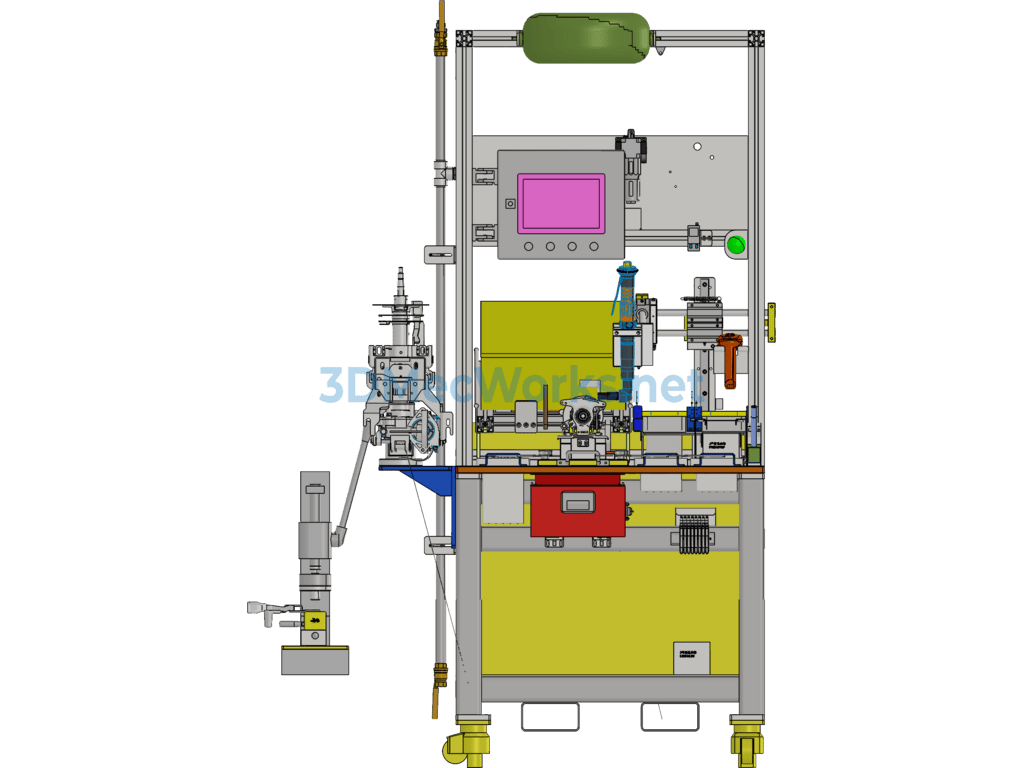

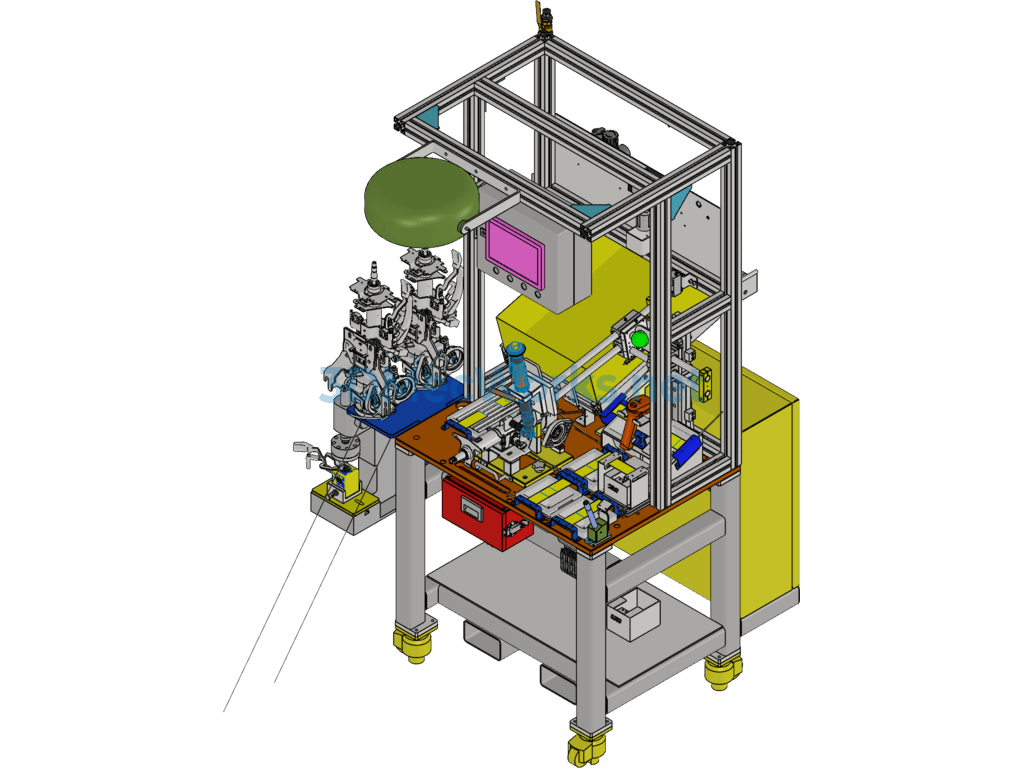

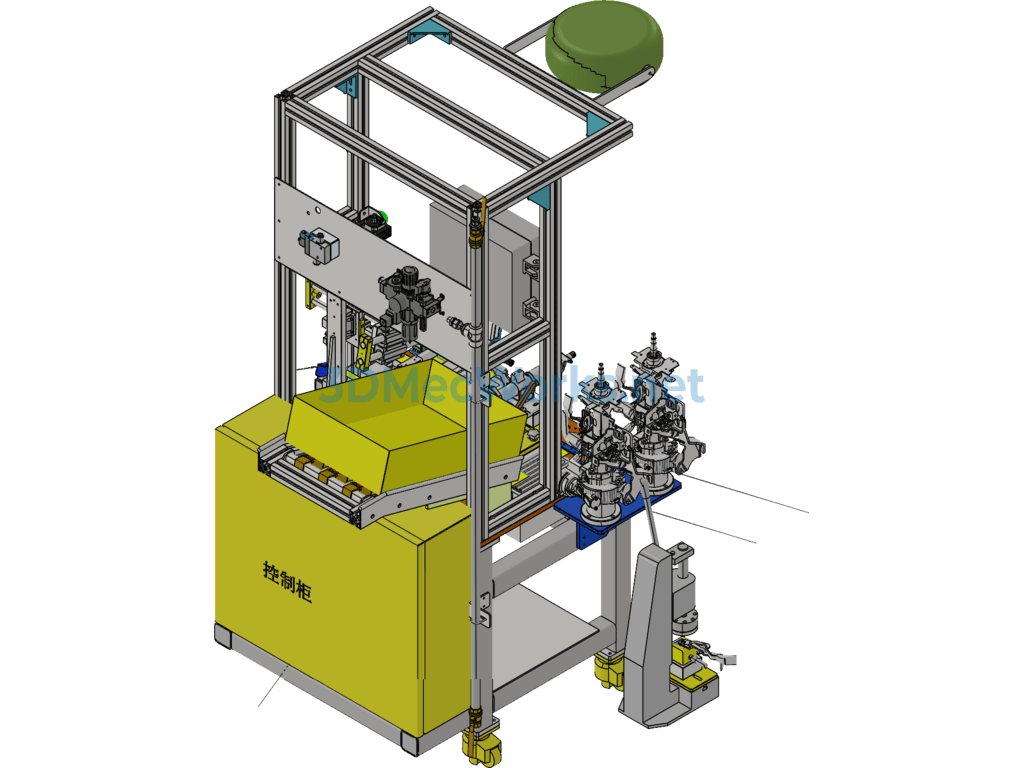

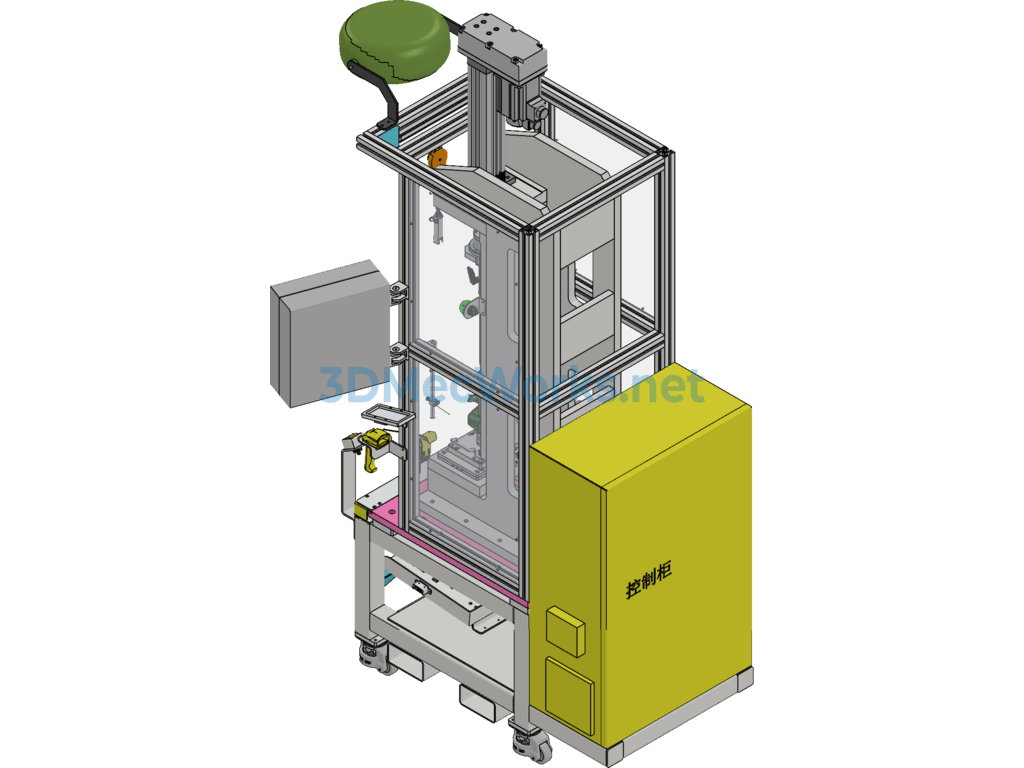

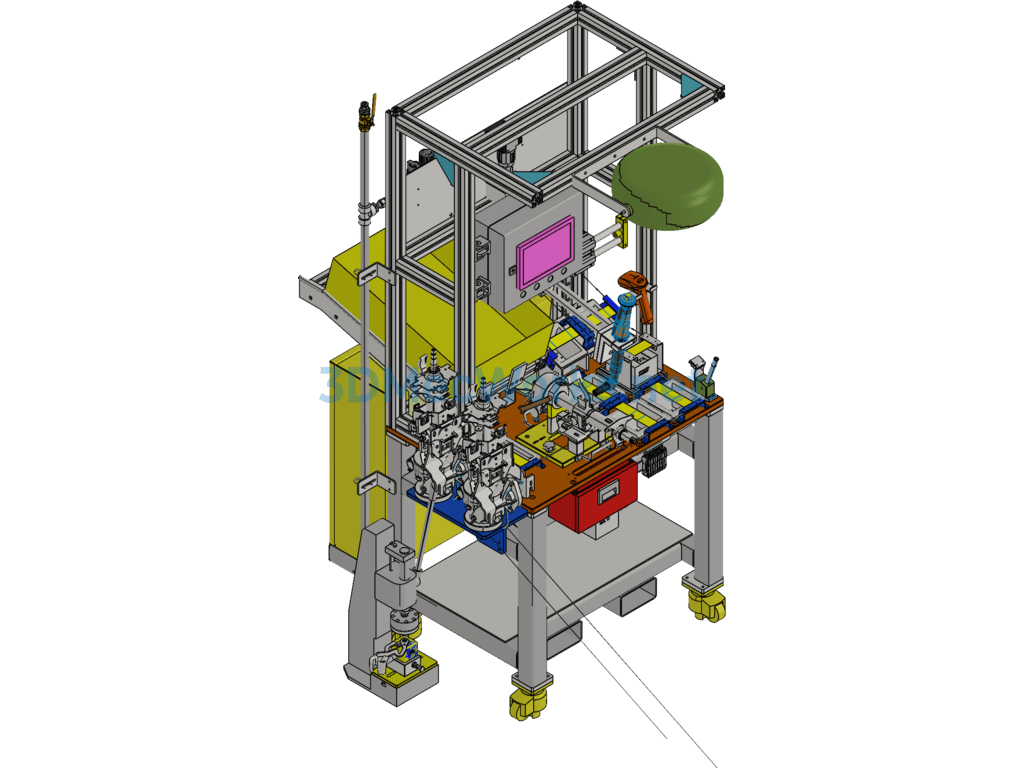

Handle Press-Fit and Screw Locking:_x000D_
1. Manually press-fit the handle using a press machine;_x000D_
2. Use an electric screwdriver to lock the handle screws._x000D_
3. Compatible products: ES6U, ES8D, ES8F, ES8H, ES8N, ES8L2

Specification: Handle Press-Fitting And Screw Locking - Inventor - Free Download

Design Software	Inventor
Editable	Editable, With parameters
File Formats	step(stp)~\|~ipj~\|~ipt~\|~iam
Industry Application	Mechanical Equipment
Sharing Level	Diamond
Version	2016
