Gz70 (45) Series Diaphragm Compressor

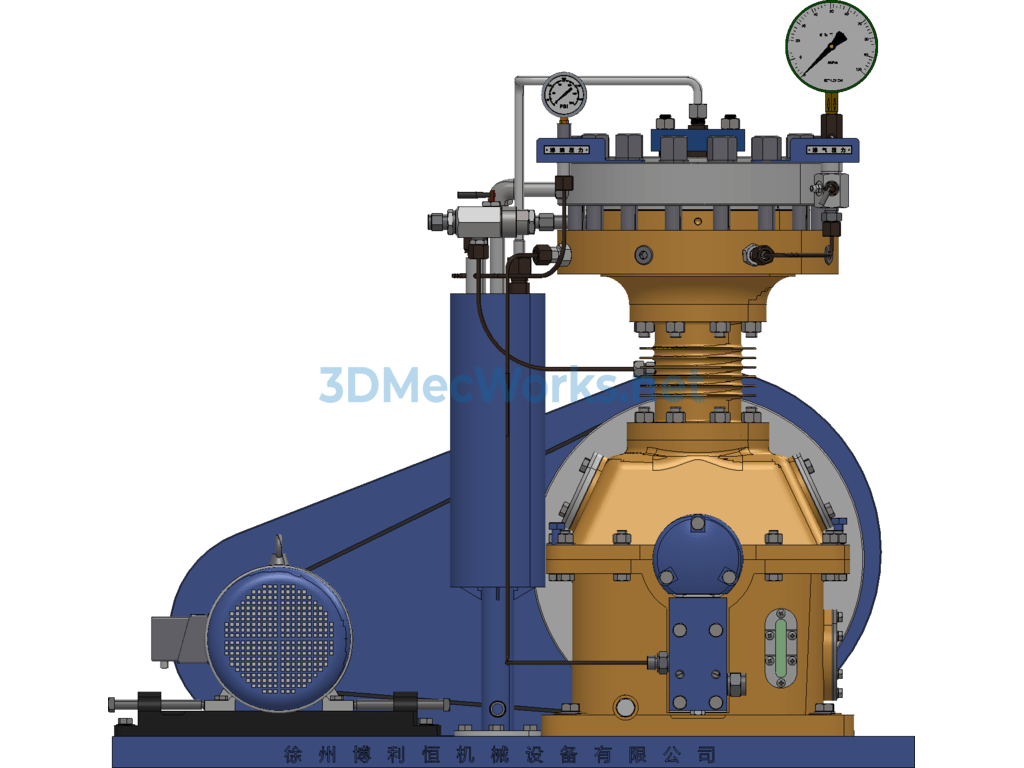

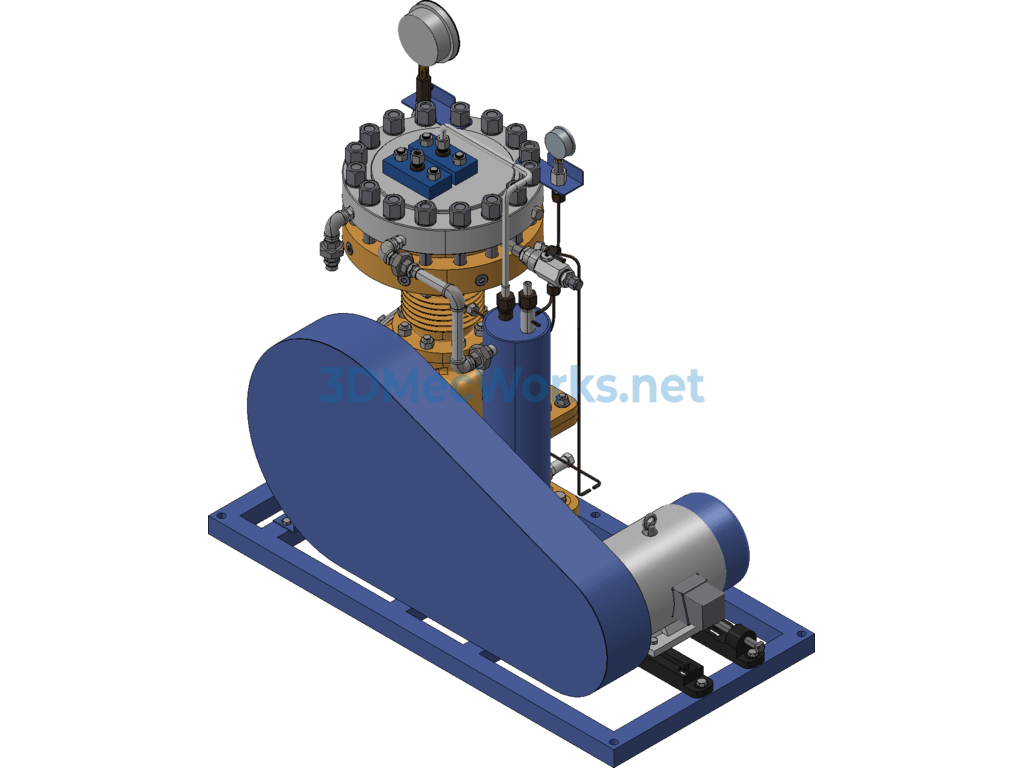

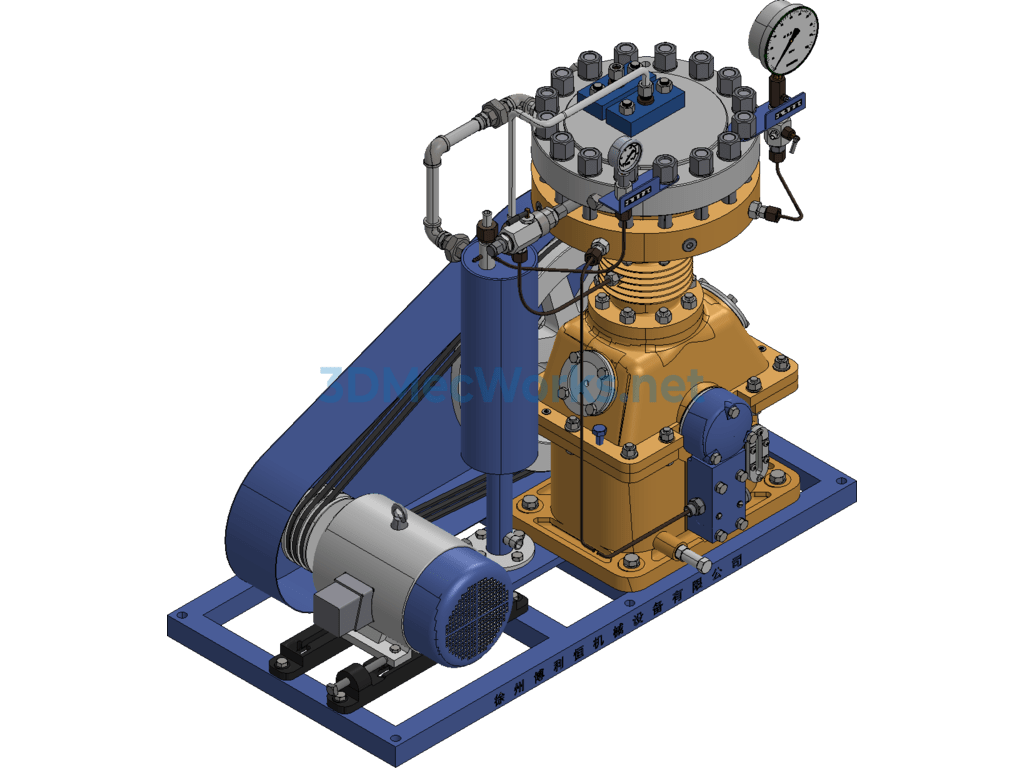

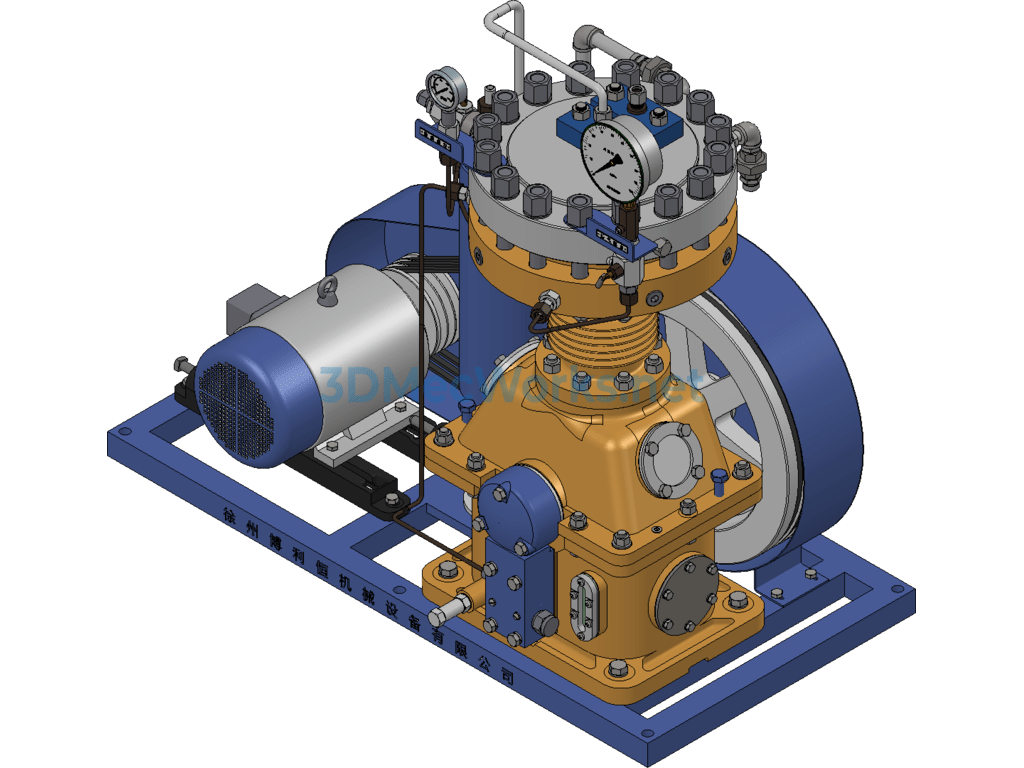

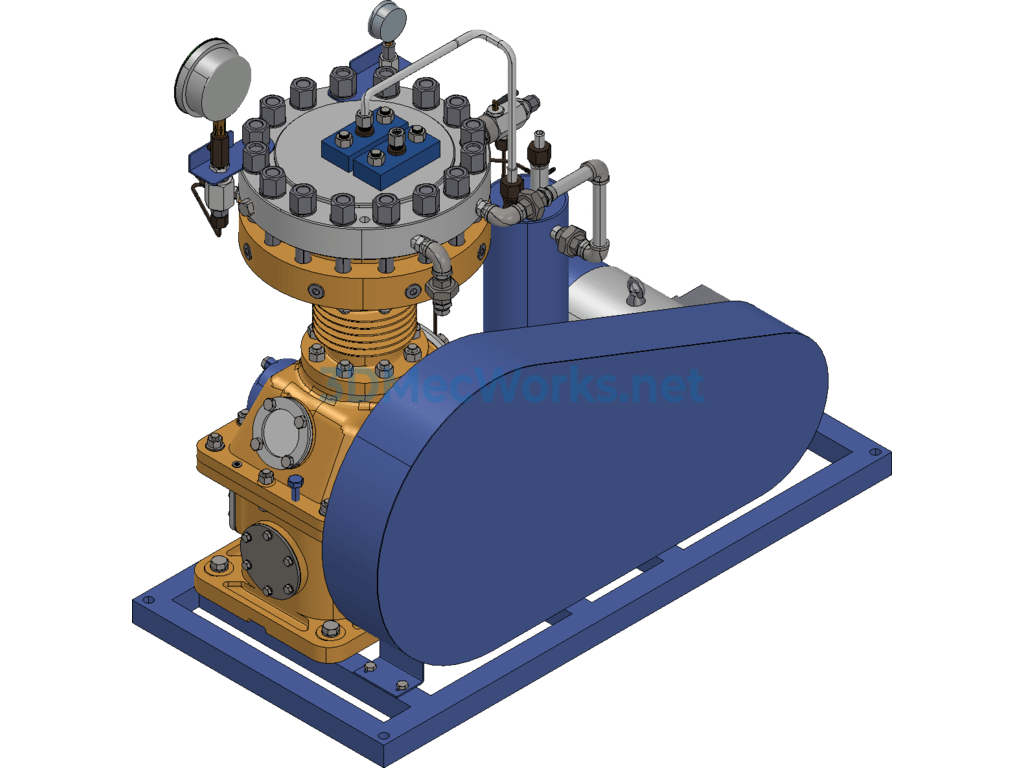

GZ70(45) Series Diaphragm Compressor 3D Model Sharing
Includes detailed component drawings and assembly drawings
The ratio of the cylinder working surface area to the cylinder volume of the diaphragm compressor is much larger than that of the reciprocating piston compressor. The gas compression is closer to an isothermal process, so the pressure ratio per stage can reach up to 25. Diaphragm compressors are a special structural type of volumetric compressor, characterized by a high compression ratio, good sealing performance, and the compressed gas is not contaminated by lubricating oil and other solid impurities. Therefore, they are suitable for compressing high-purity, rare and valuable, flammable and explosive, toxic and harmful, corrosive, and high-pressure gases.
