Gypsum Board Roll Forming Machine (gypsum Board Rolling Machine)

The paper gypsum board roll forming machine is an automatic rolling machine for gypsum boards, which are used in the construction industry. This equipment can automatically roll and shape the required forms. The equipment has a large and mature structure with a clear internal layout, providing extremely high reference value. SW design documents are available in sldasm and sldprt formats.

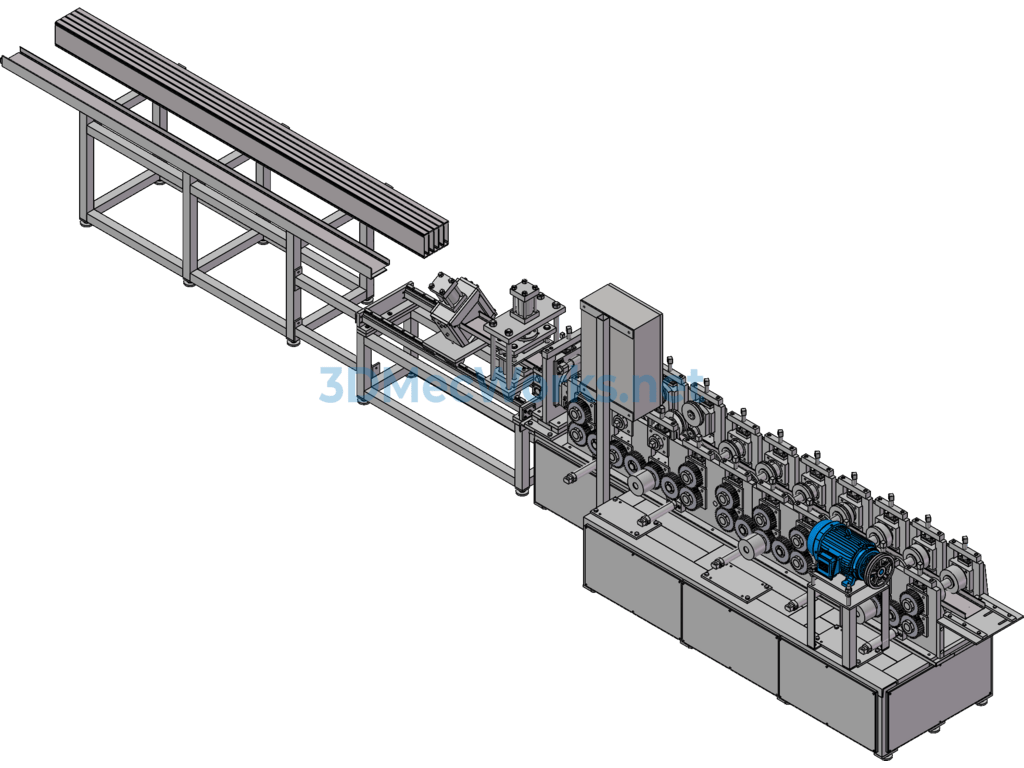

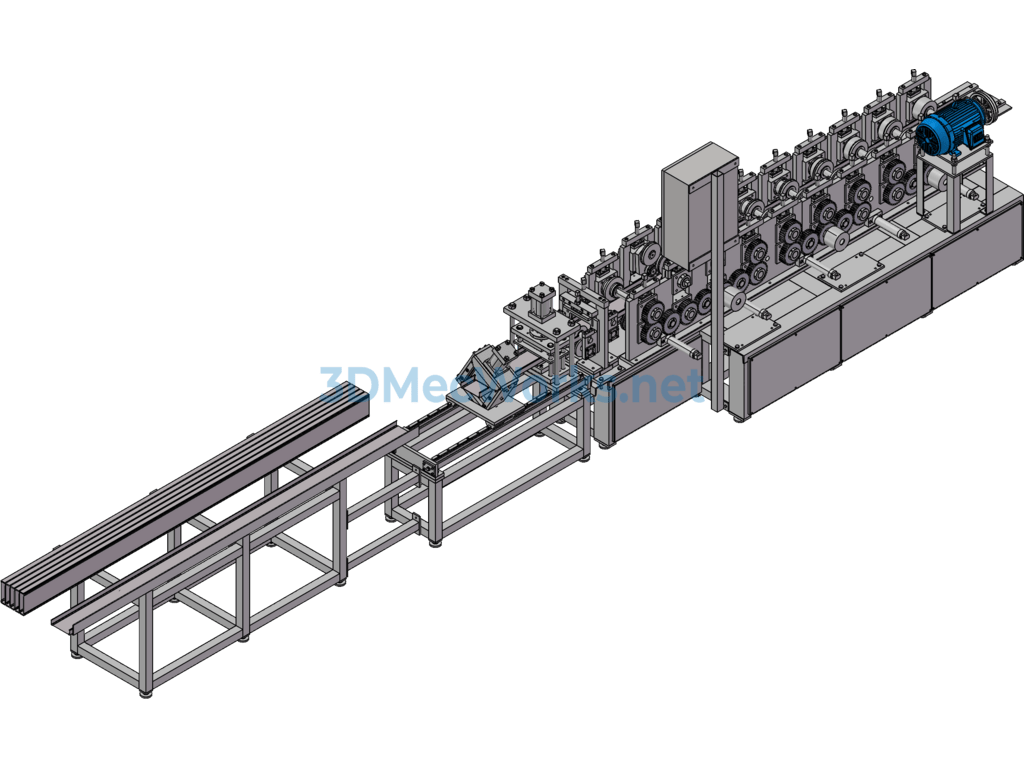

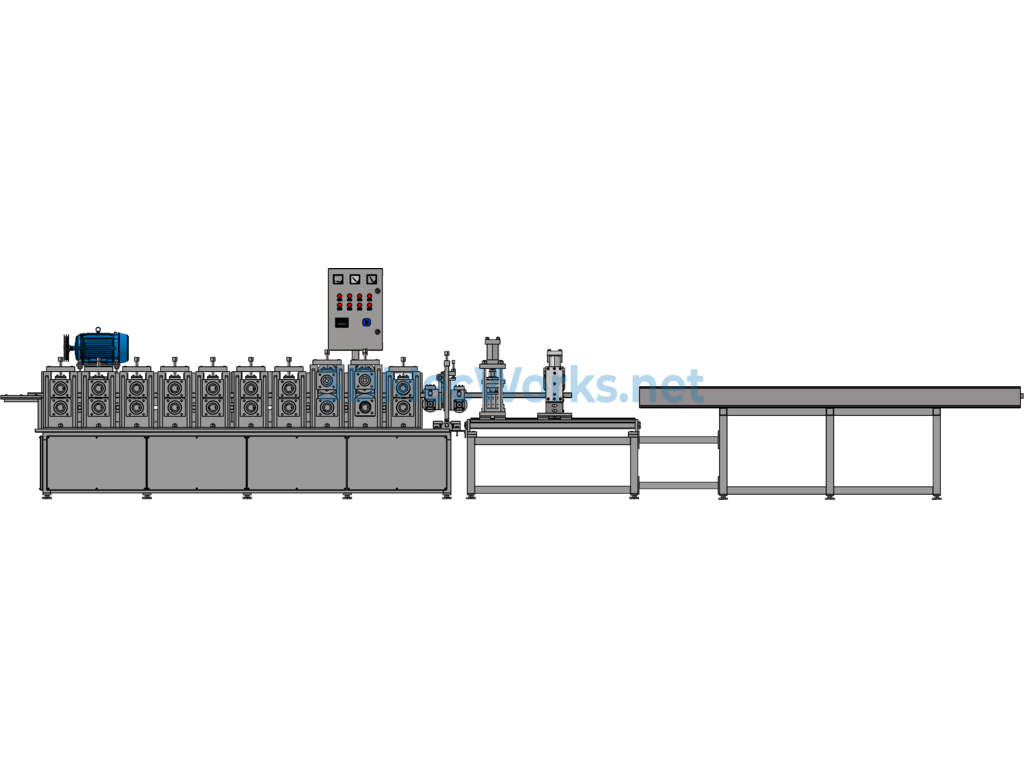

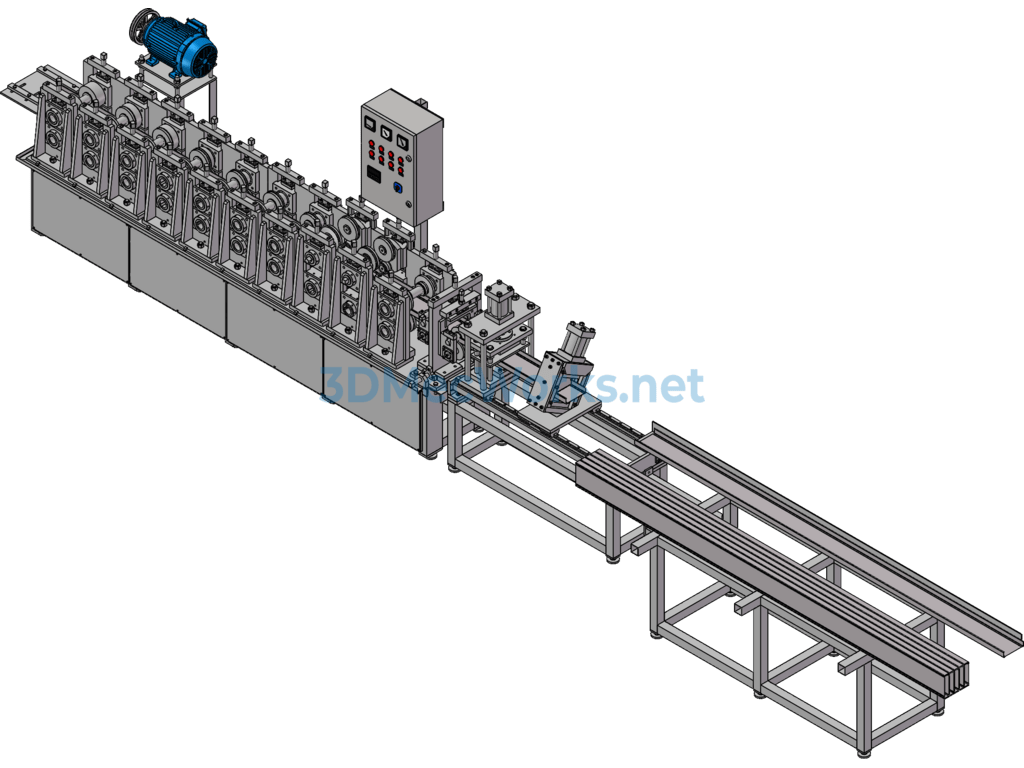

The equipment has a massive structure measuring nearly over 7 meters in length. It is an engineering device for the construction industry, but it also holds significant learning value for many organizations in other sectors. The equipment uses an automatic chain feed system where gypsum boards are placed and sequentially fed to corresponding stations for forming operations. It is controlled by a variable frequency drive motor, ensuring stable operation. The exterior design is very aesthetically pleasing, and the structure is compact, incorporating many roller mechanisms, offering significant reference value for engineers working on conveyor system design.
