Gl100 Series Diaphragm Compressor

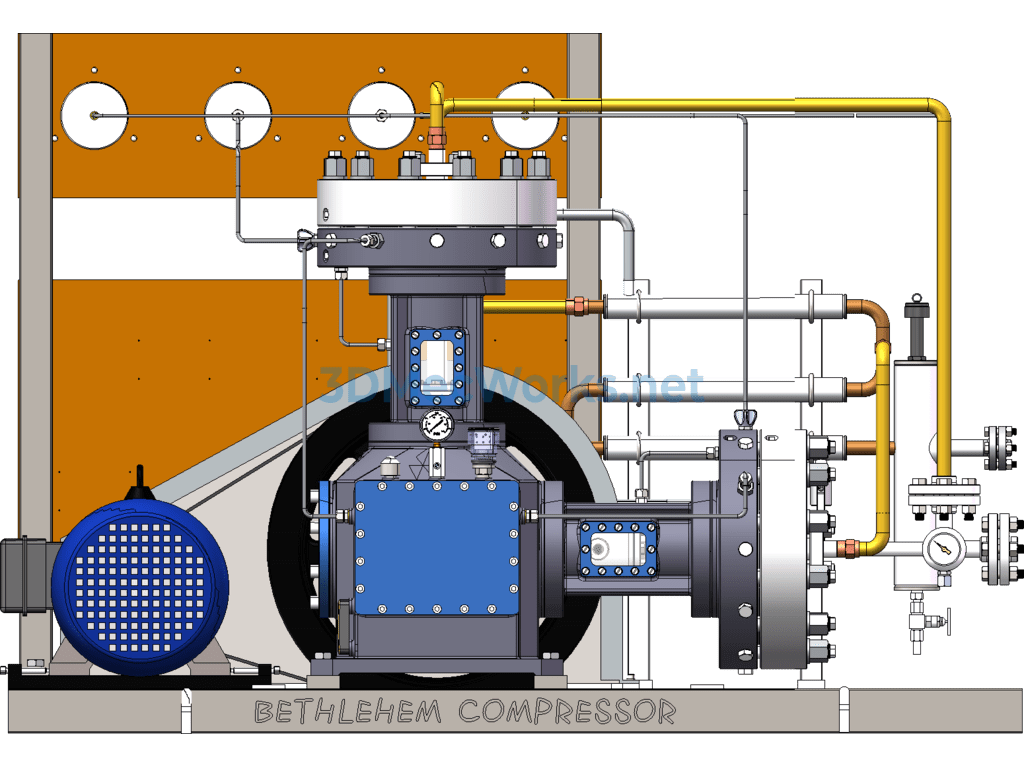

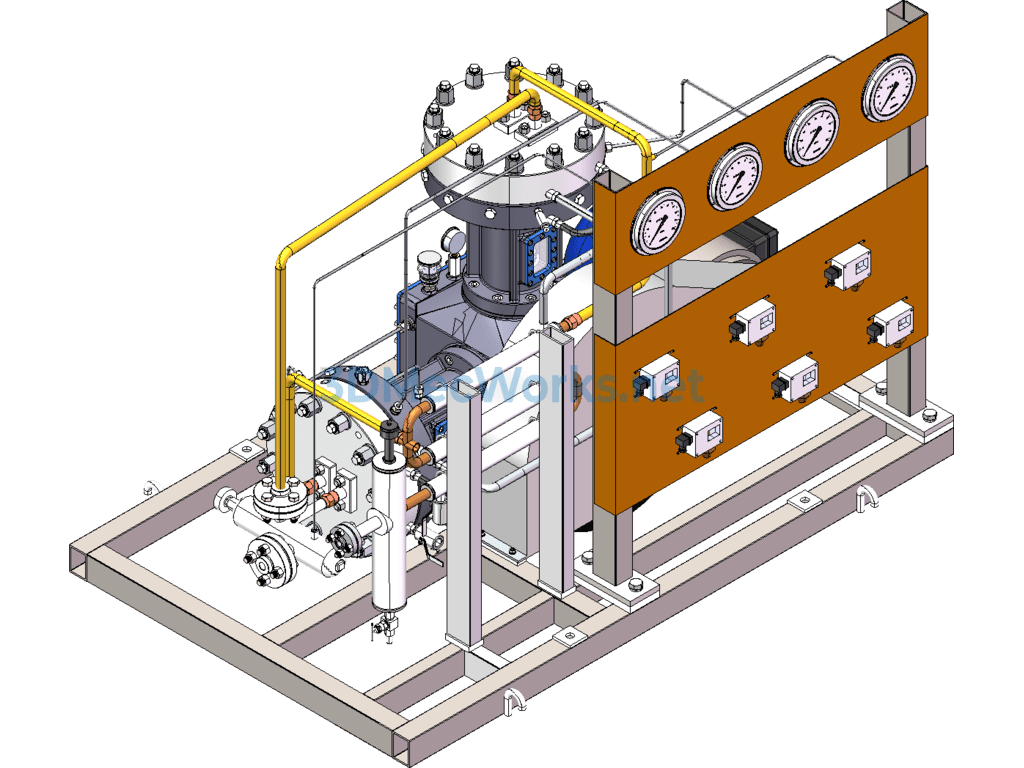

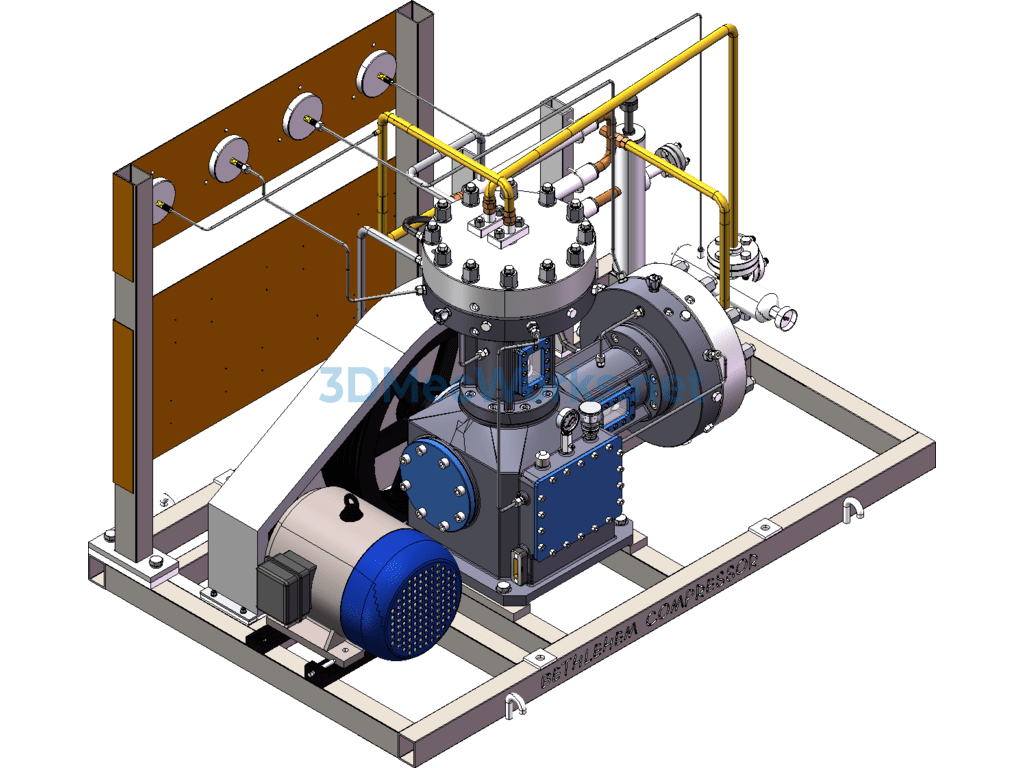

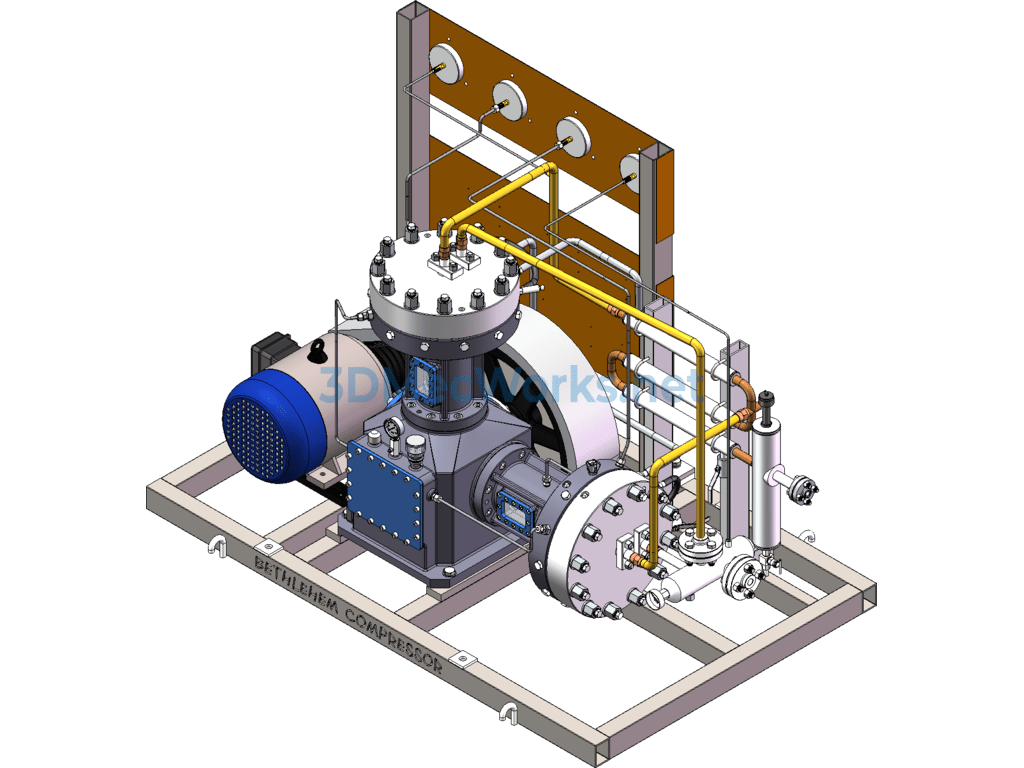

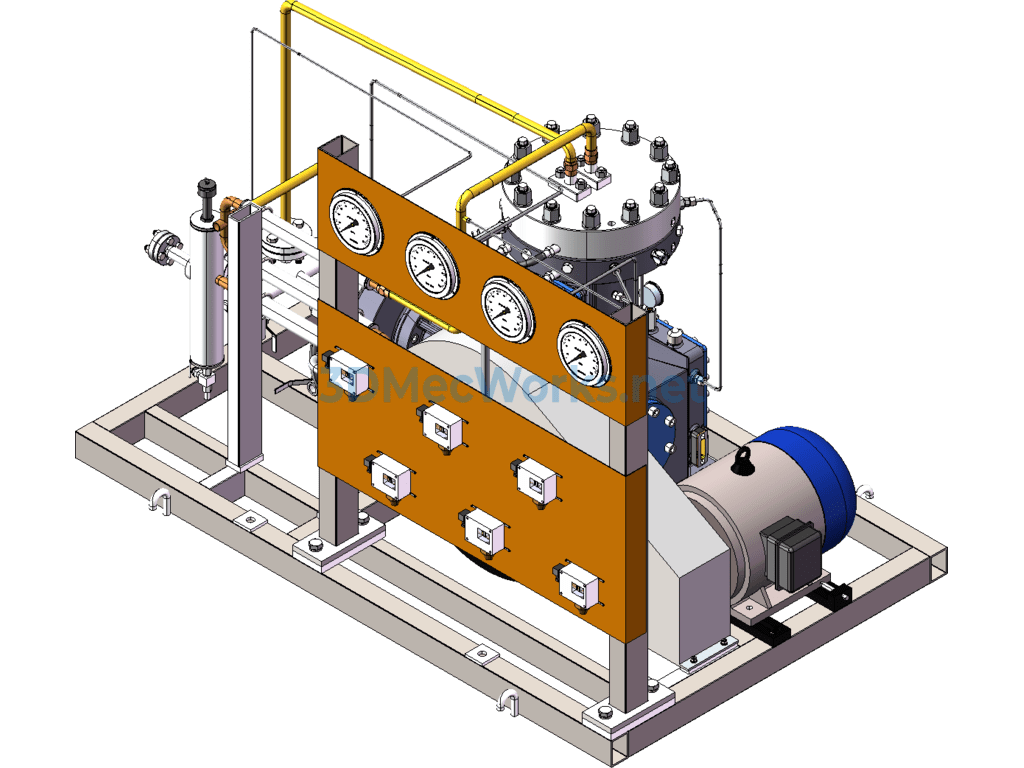

GL100 series diaphragm compressor, SW2012 design, includes 245 part drawings, 23 assembly drawings, 1 general assembly drawing, with complete part features editable with parameters (including table parameters), for learning and reference use only!
GL100 series diaphragm compressor parameters: Intake pressure 15Mpa (G); Exhaust pressure 20Mpa (G); Exhaust volume 340Nm3/h; Motor power 11~15KW; Weight 2000KG, Dimensions 1850*1325*1276.
Specification: Gl100 Series Diaphragm Compressor
|
