Generator Small Motor Coil Assembly Magnetizing Machine (complete 3d Model + 2d Engineering Drawings)

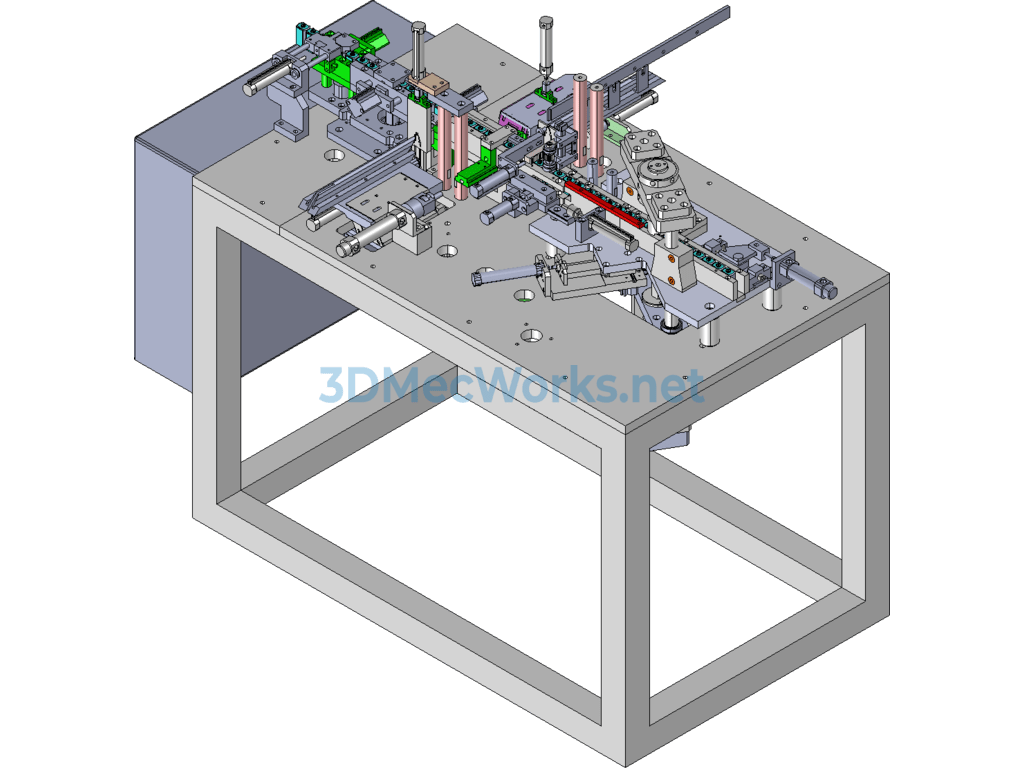

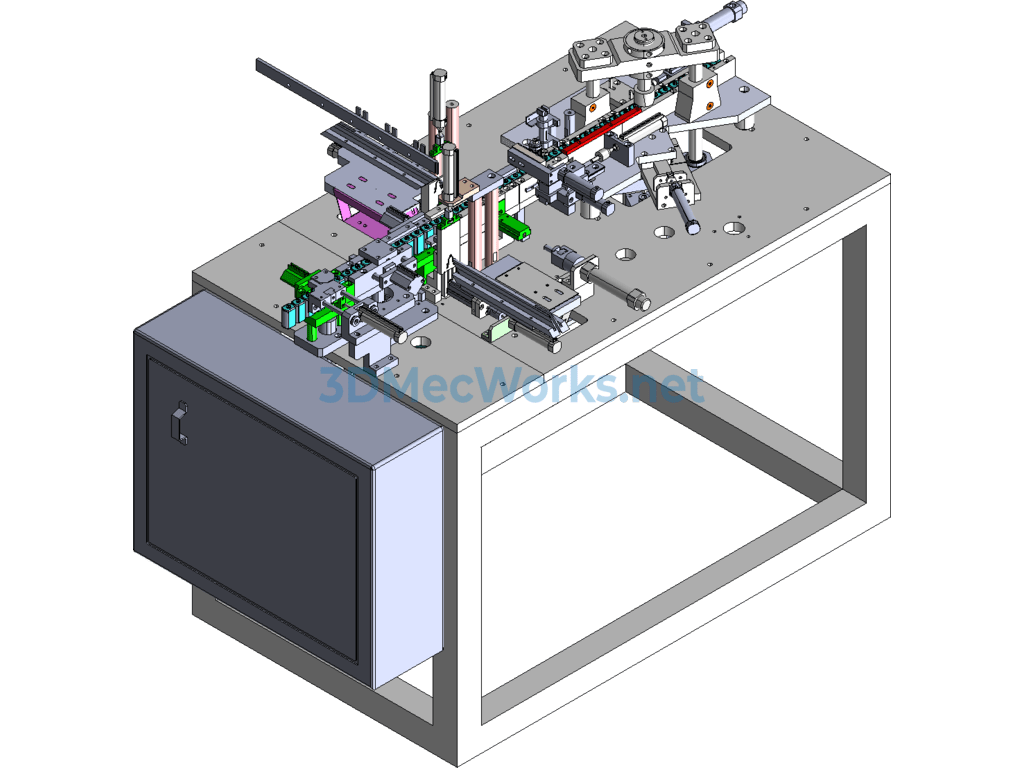

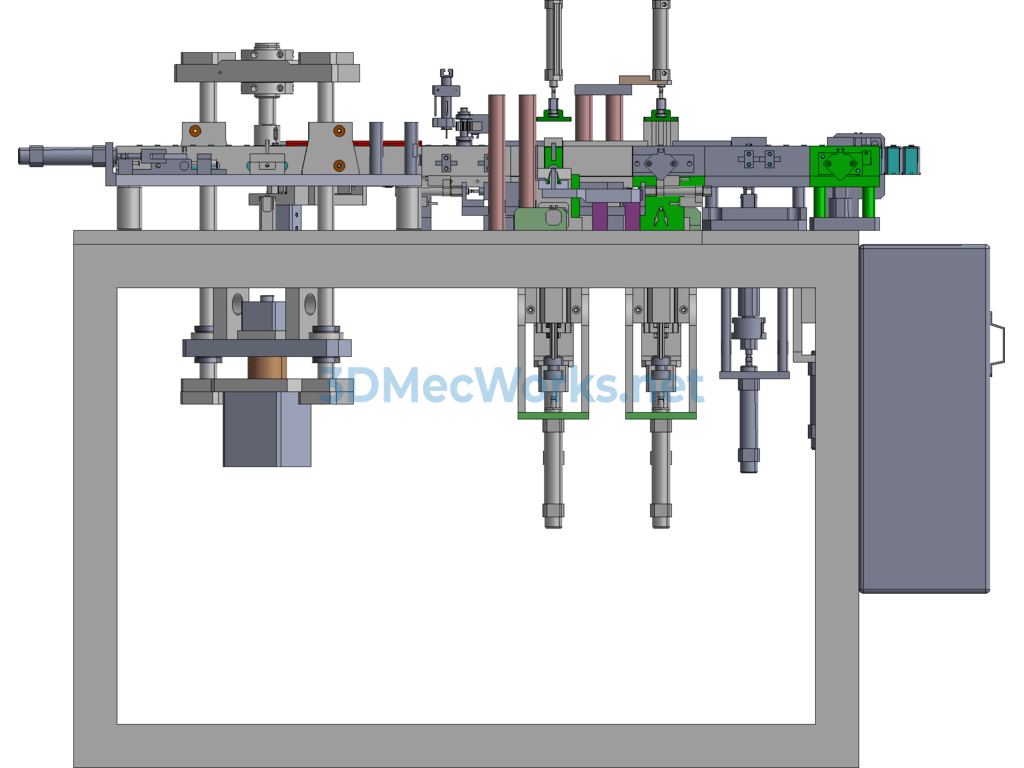

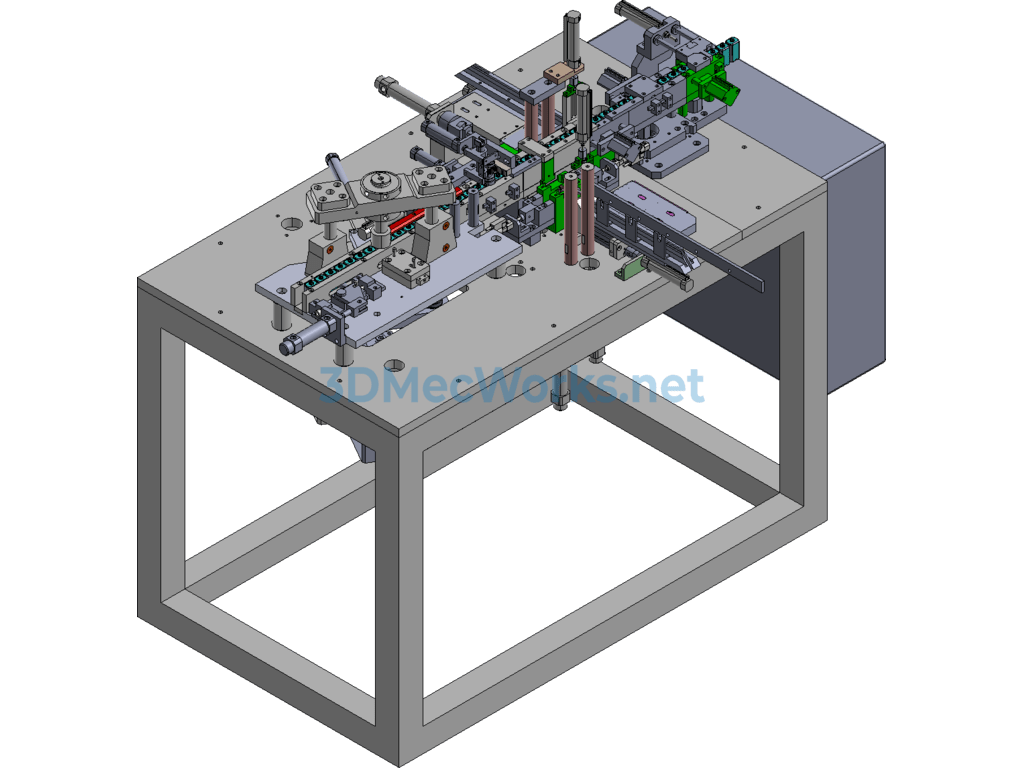

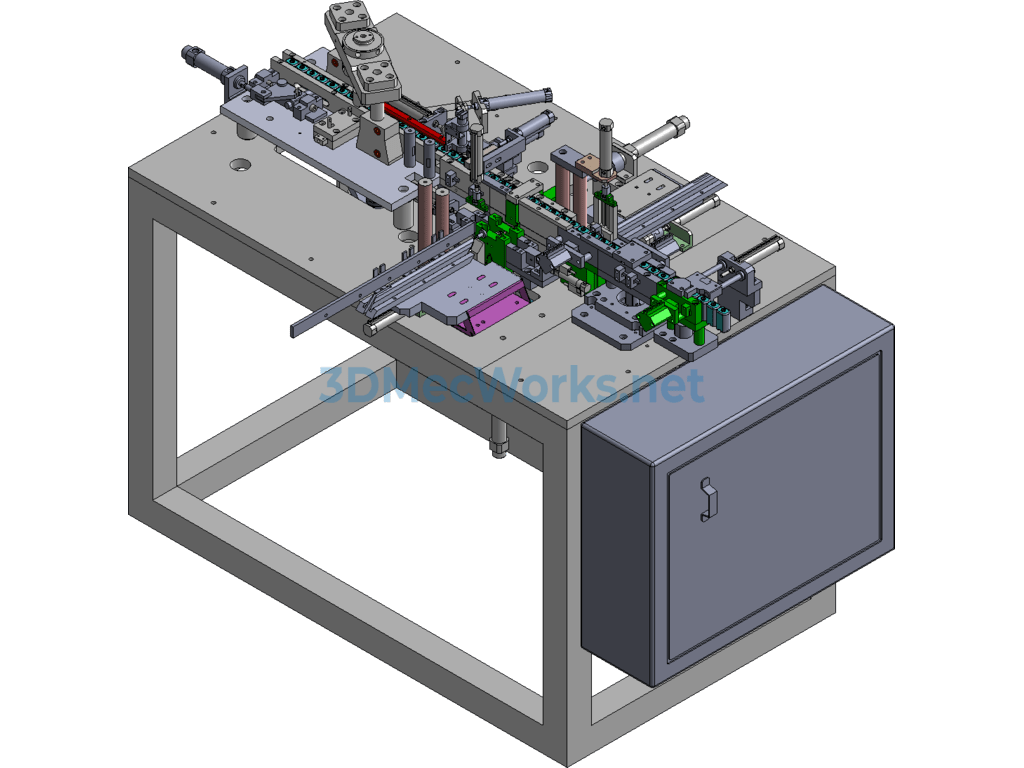

Micro Motor 180 Small Motor Coil Magnetization Machine – Wind Contains 2D Engineering Drawings and Parts Processing List, Very Complete, Magnetizing and Charging, Some Parts Assembly and Magnetizing Functions of the Above Micro Motor Can Be Completed on This Machine, From the Picture You Can See Many Ingenious Structures with Cylinders for Linkage and Propulsion, Friends Doing Automation in Assembly Can Learn a Lot from This Machine. A Set of 180 Magnetization Machine Drawings, This Complete Original Drawing Is For Motor Equipment in the Micro Motor Industry, It Is Designed Using SW2011 with Complete Drawing Files Including 3D and 2D Engineering Drawings, Now Uploading the Drawings for Everyone to Download, The Magnetizing Machine Mainly Performs Final Assembly of the Small Motor Semi-Finished Product and Magnetizing Treatment to Make the Motor Coil Produce Magnetism. The Assembly Mainly Includes the Following Parts: 1. Install Slingshot 2. Magnetizing Slingshot, 3. Magnetizing Pad Assembly 4. Second Slingshot Entry 5. Magnet Slingshot Detection 6. 180 Bush Assembly, 7. Magnetizing and Charging, Some Parts Assembly and Magnetizing Functions of the Above Micro Motor Can Be Completed on This Machine, From the Picture You Can See Many Ingenious Structures with Cylinders for Linkage and Propulsion, Friends Doing Automation in Assembly Can Learn a Lot from This Machine.
