General-Purpose Fixed-Length Cutting Tool Fixture

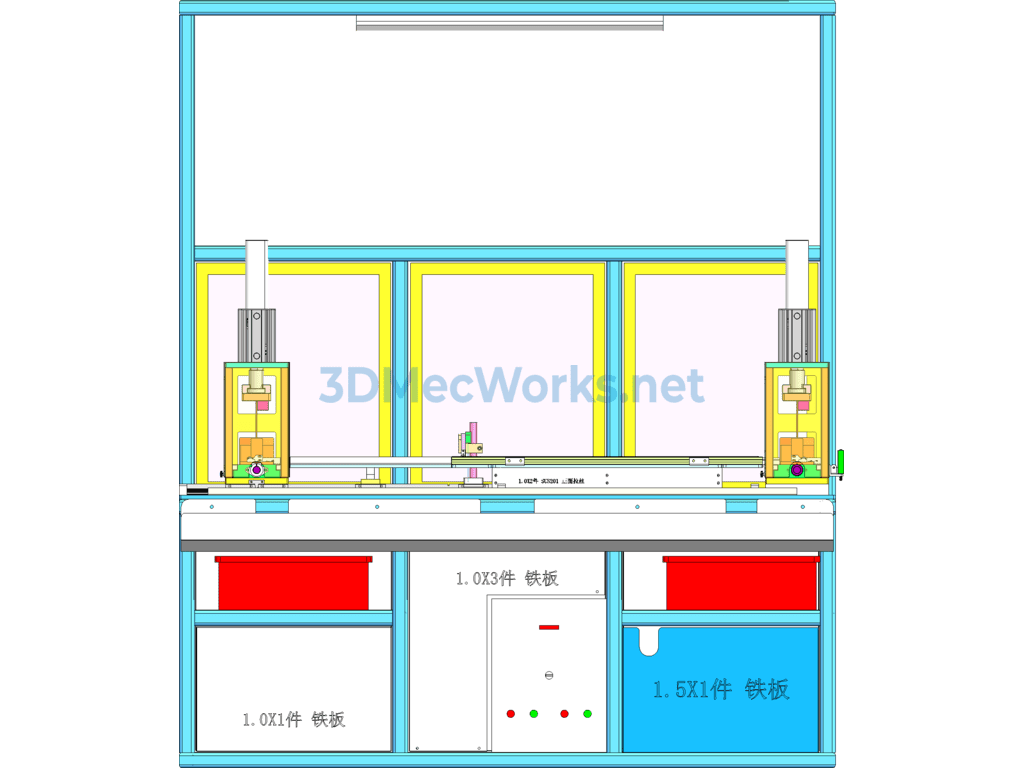

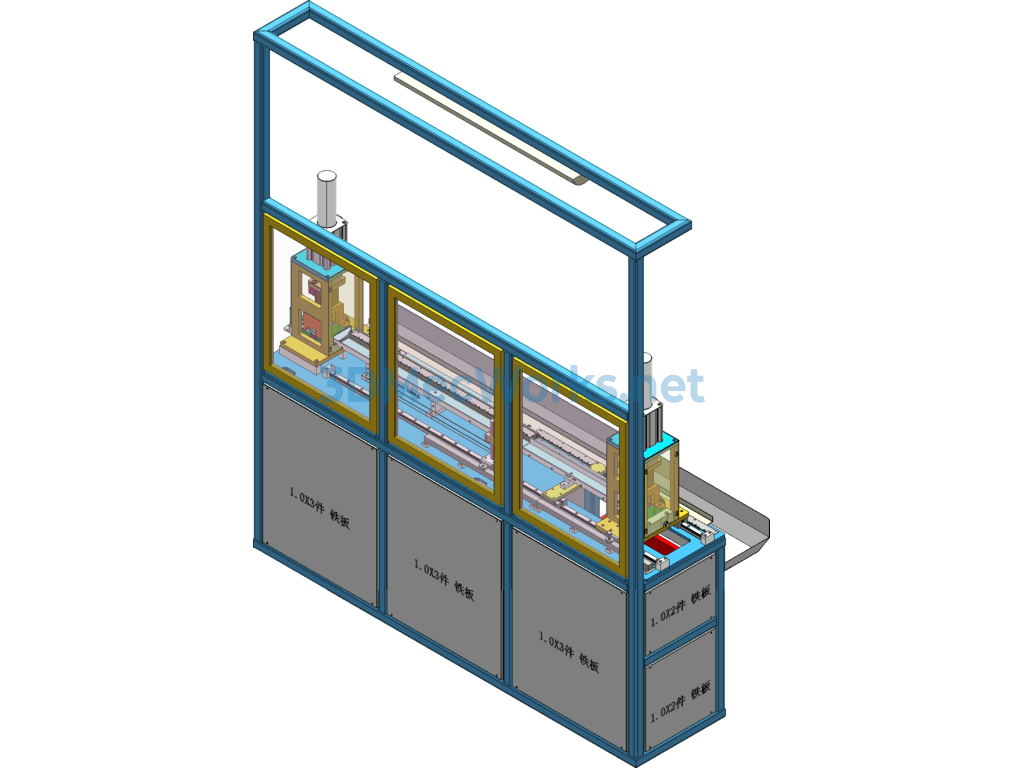

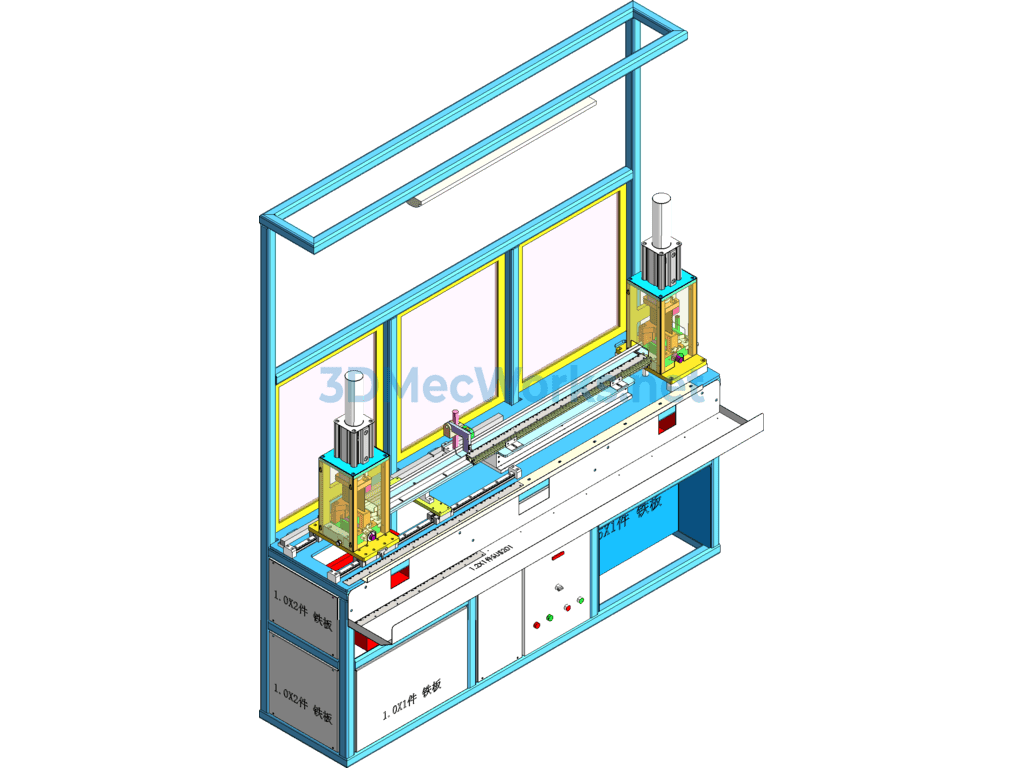

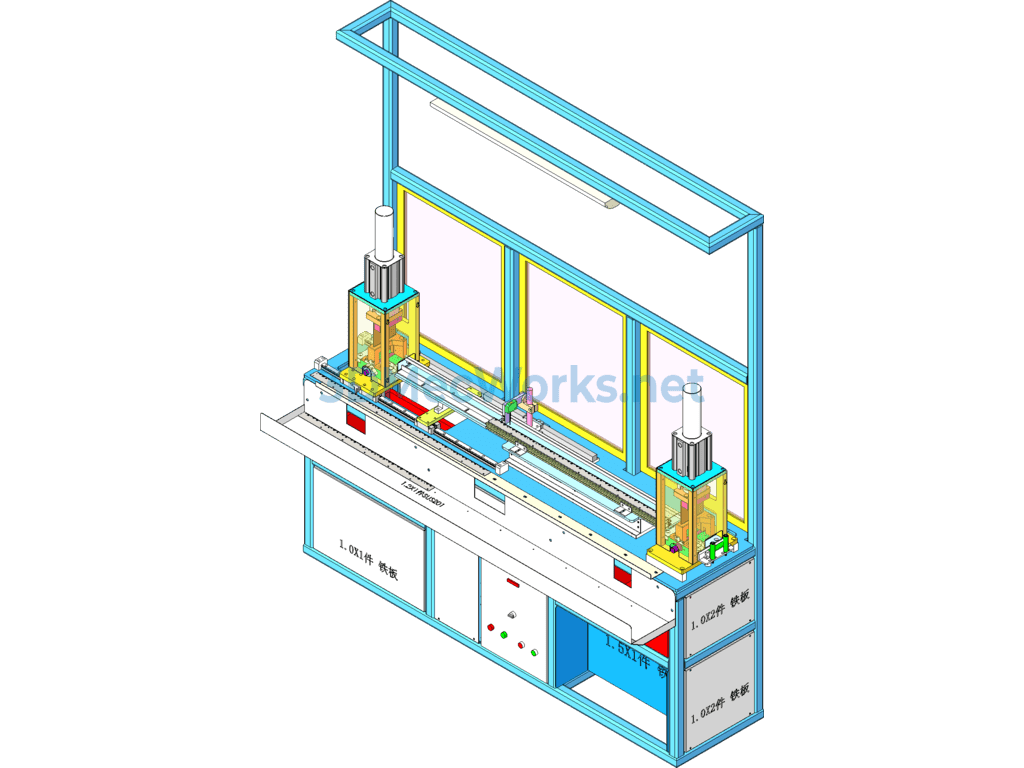

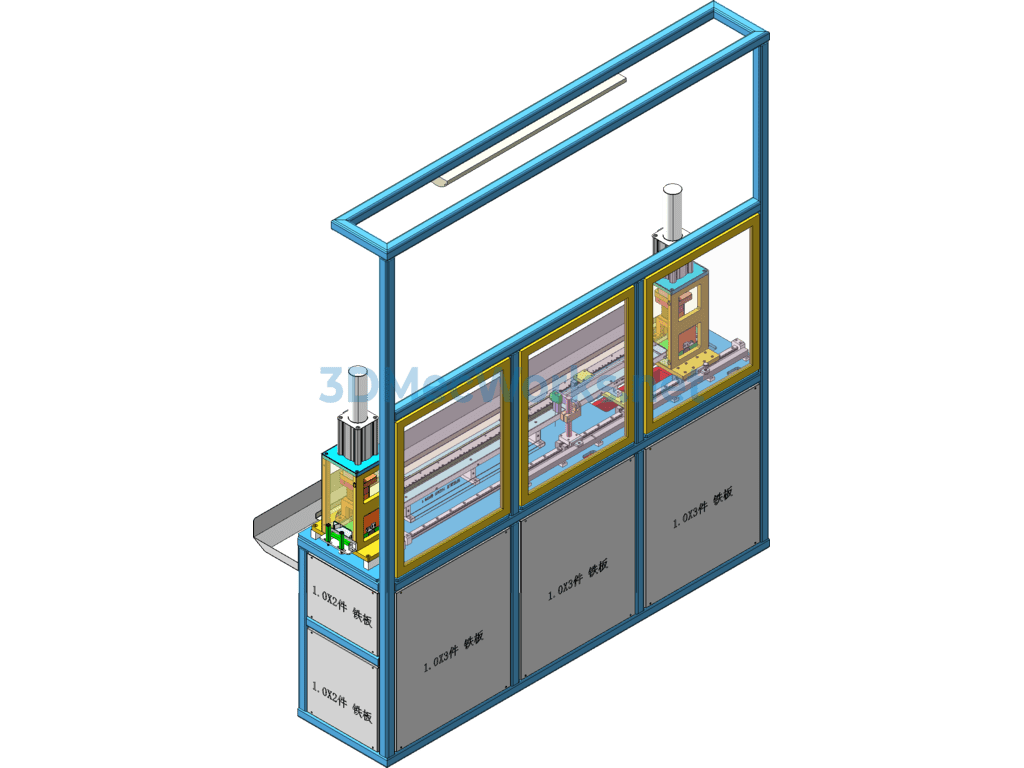

This is a complete set of general-purpose fixed-length cutting tooling, with a wide range of applications and strong practicality, suitable for various industries. The tooling structure is relatively simple and the manufacturing cost is low. Structural principle: The tooling uses cutting at both ends to produce products that meet the required dimensions. The right end cutting tooling is fixed, while the left end cutting tooling is mounted on a guide rail and can be adjusted. There is a positioning plate and sensor in the middle, with a reference scale ruler. The drawing format is SolidWorks 2018. Welcome everyone to download.
