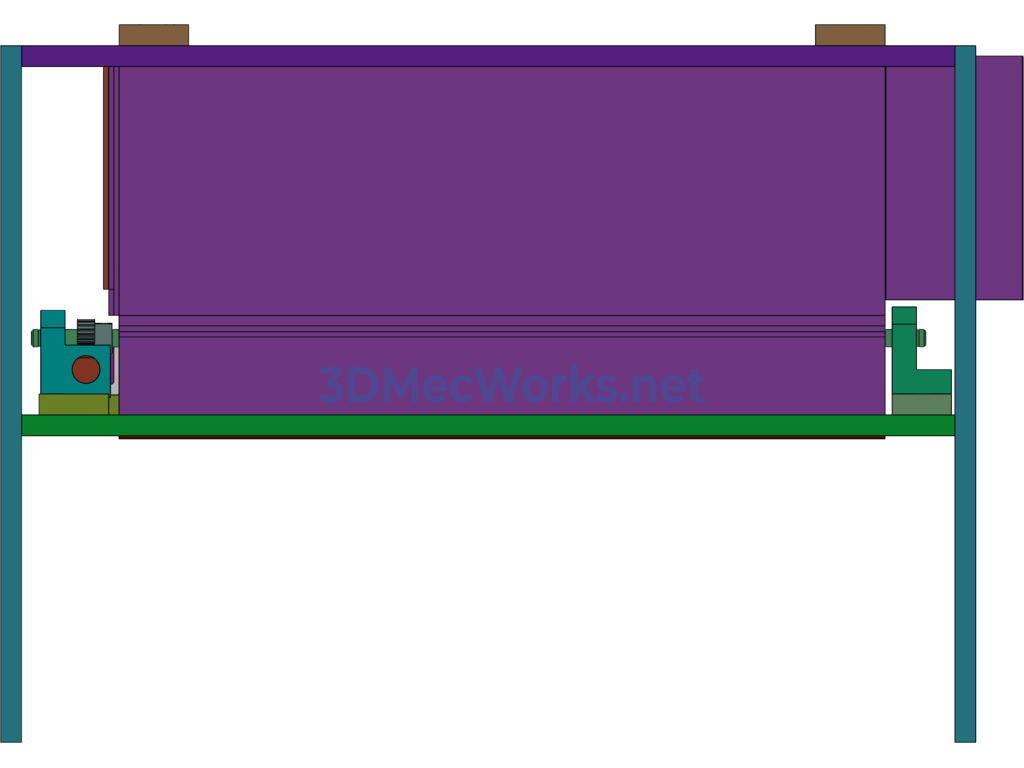

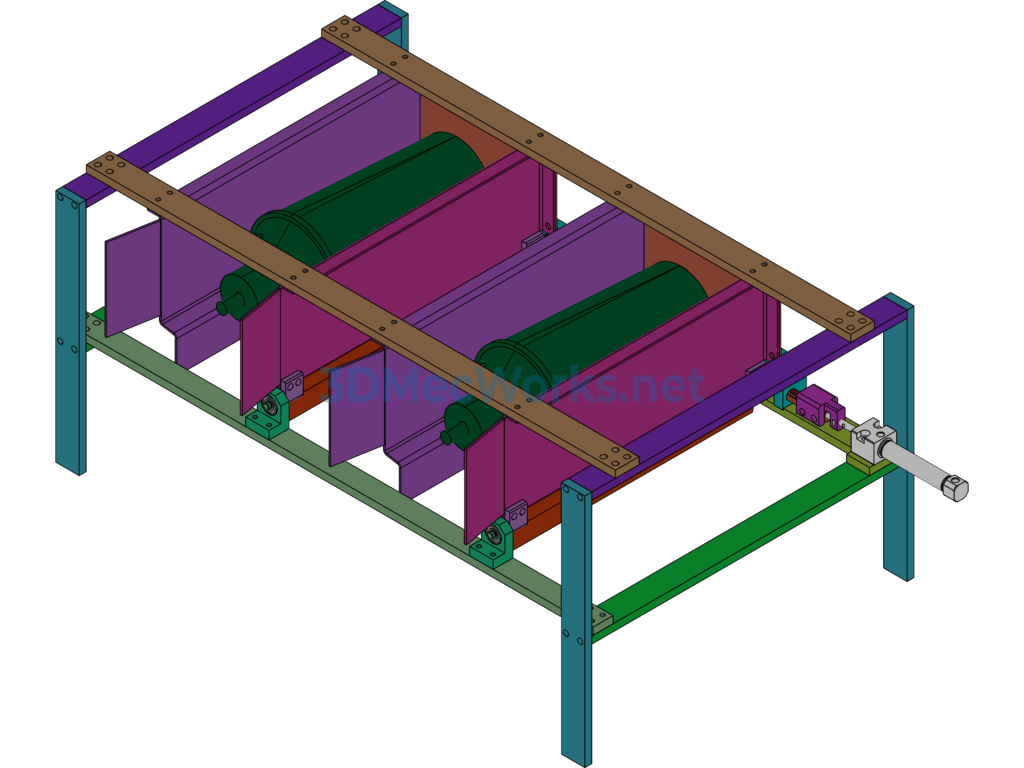

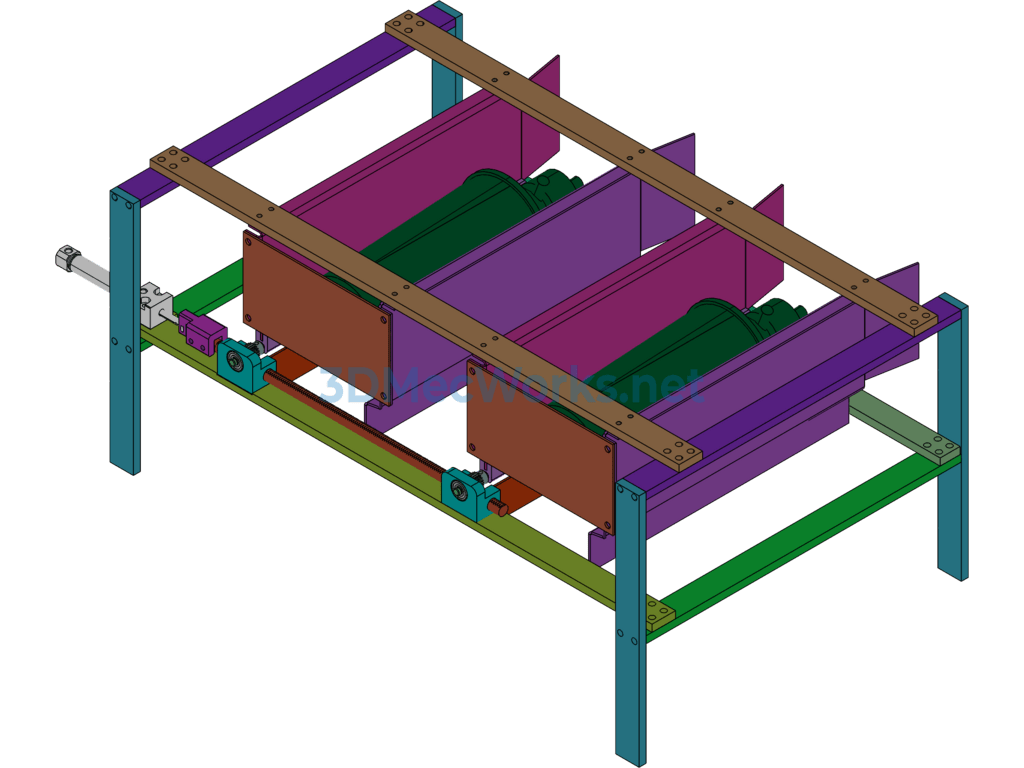

The linear motion of the cylinder is converted into rotational motion of the shaft through the transmission of gears and racks, thereby enabling the opening and closing of the material port. The model is designed for dual work positions but can be modified for a single work position. The drawings are in SolidWorks 2017 version and can be edited and modified. They include STEP and IGS formats.
Specification: Gear Rack Opening and Closing Mechanism
|
