Gear Fixture Drawing

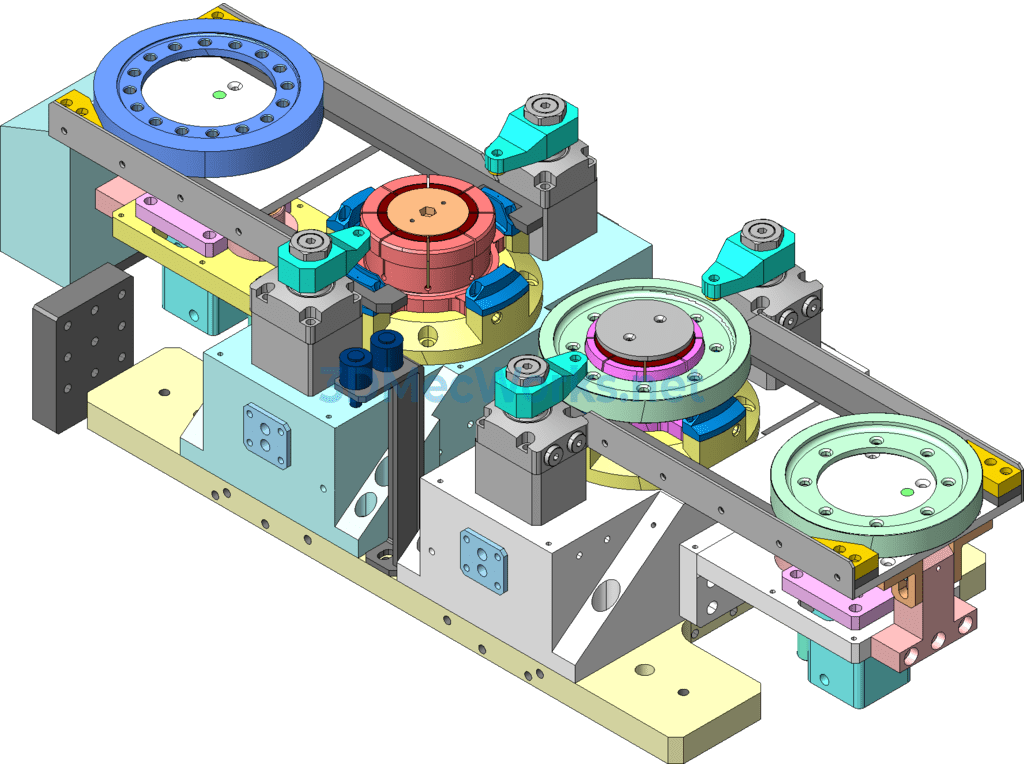

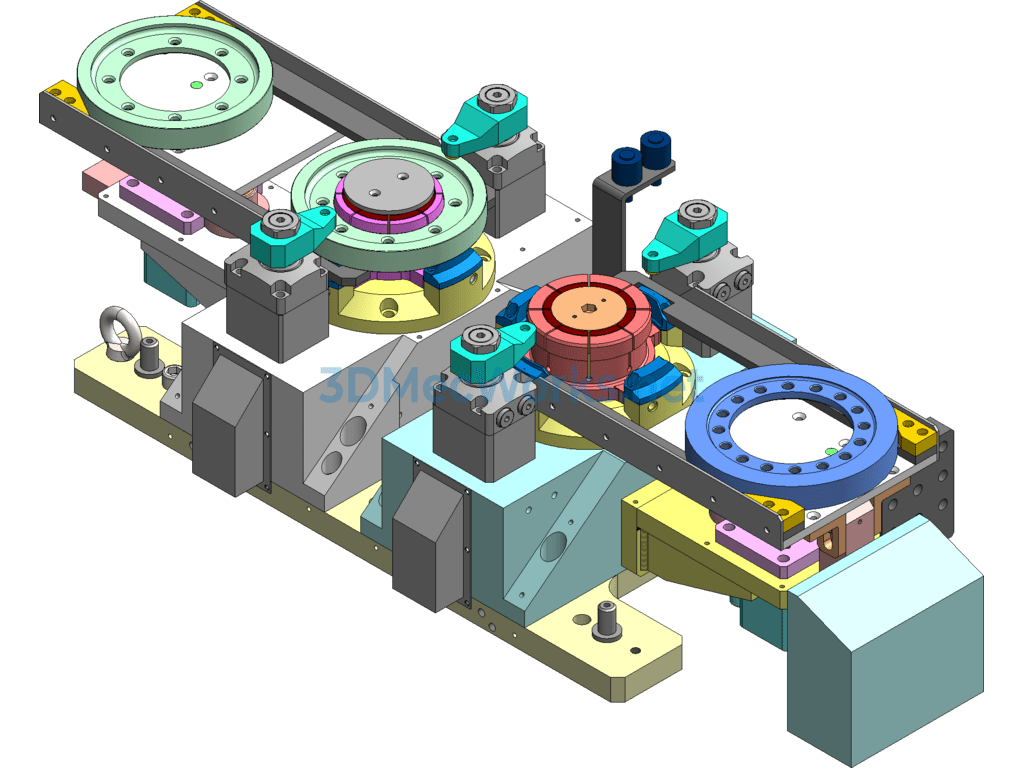

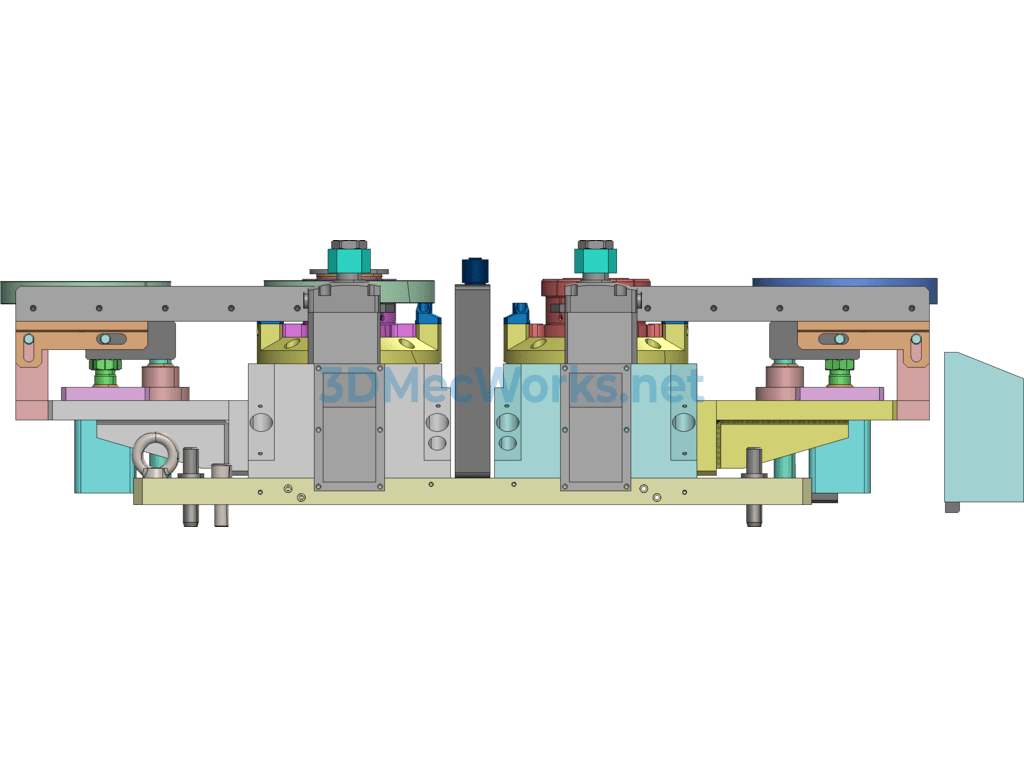

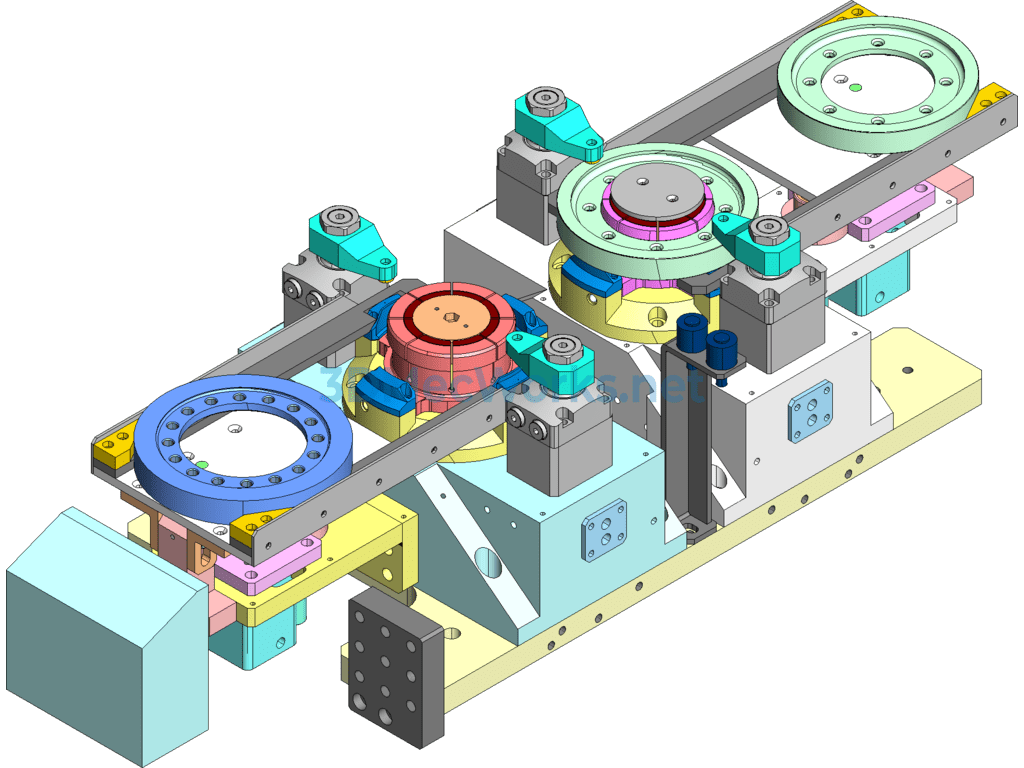

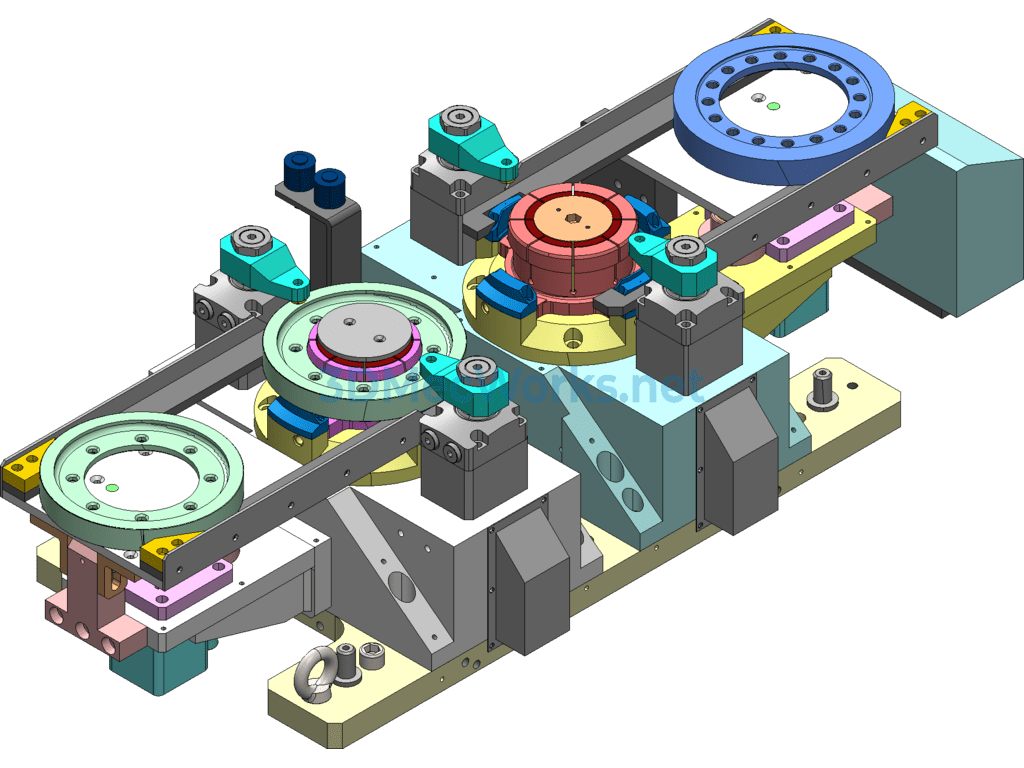

This drawing is an assembly diagram of a ring gear hydraulic fixture, compatible with machine tool CMV-850A, with a worktable size of 950X500; this fixture uses workpiece center positioning; oil circuit: 3 in and 3 out, operation sequence: collet → rotary cylinder → ejection cylinder; air circuit: 2 in for air-tightness detection; fixture weight is approximately: 300KG;
Specification: Gear Fixture Drawing
|
