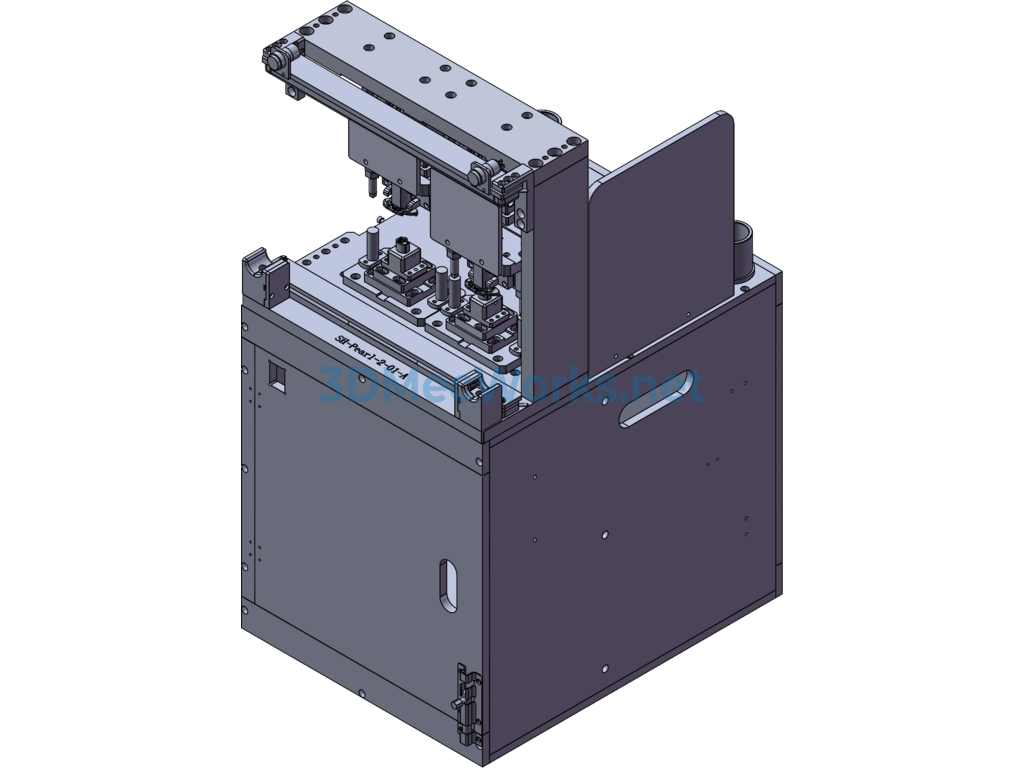

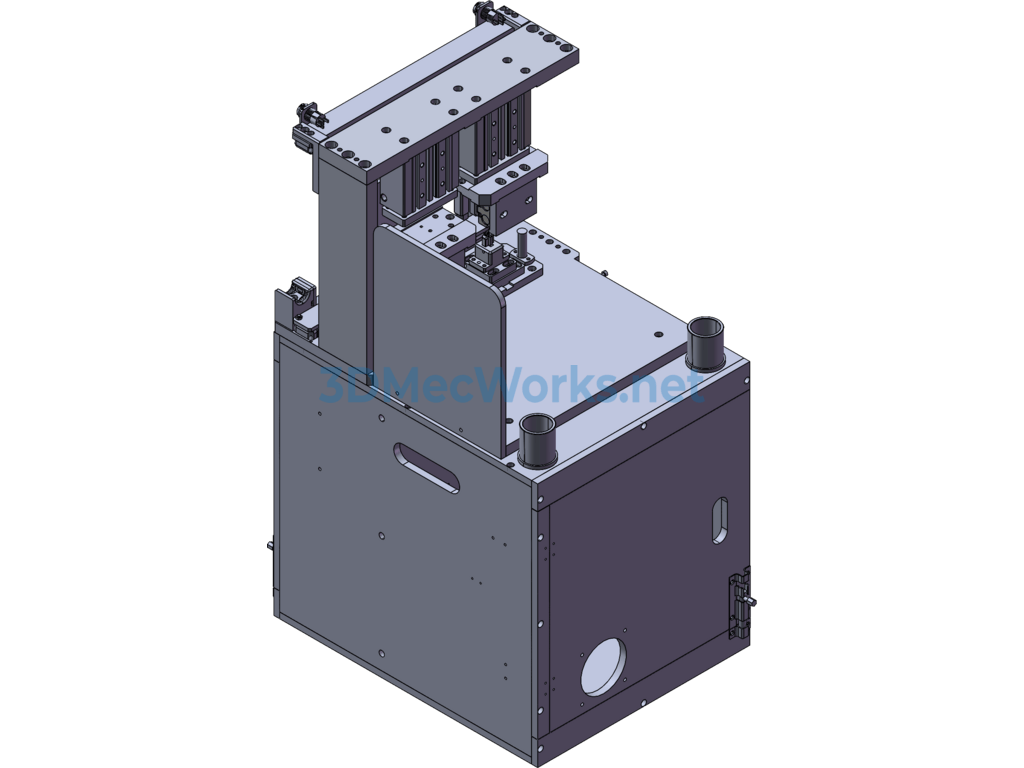

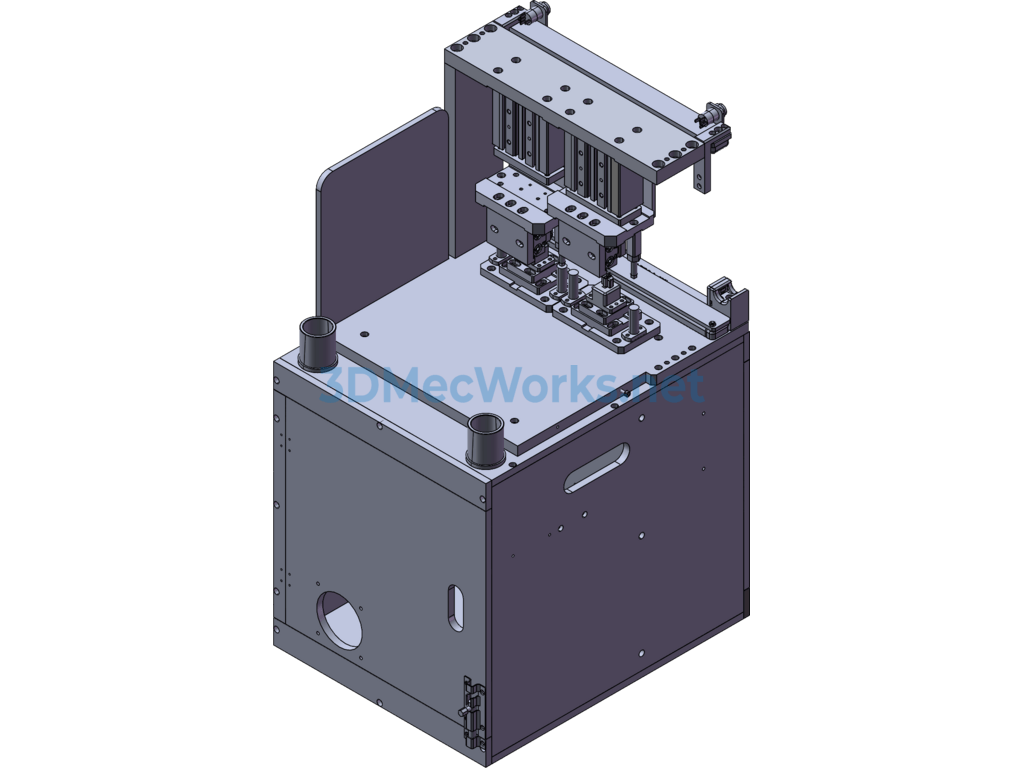

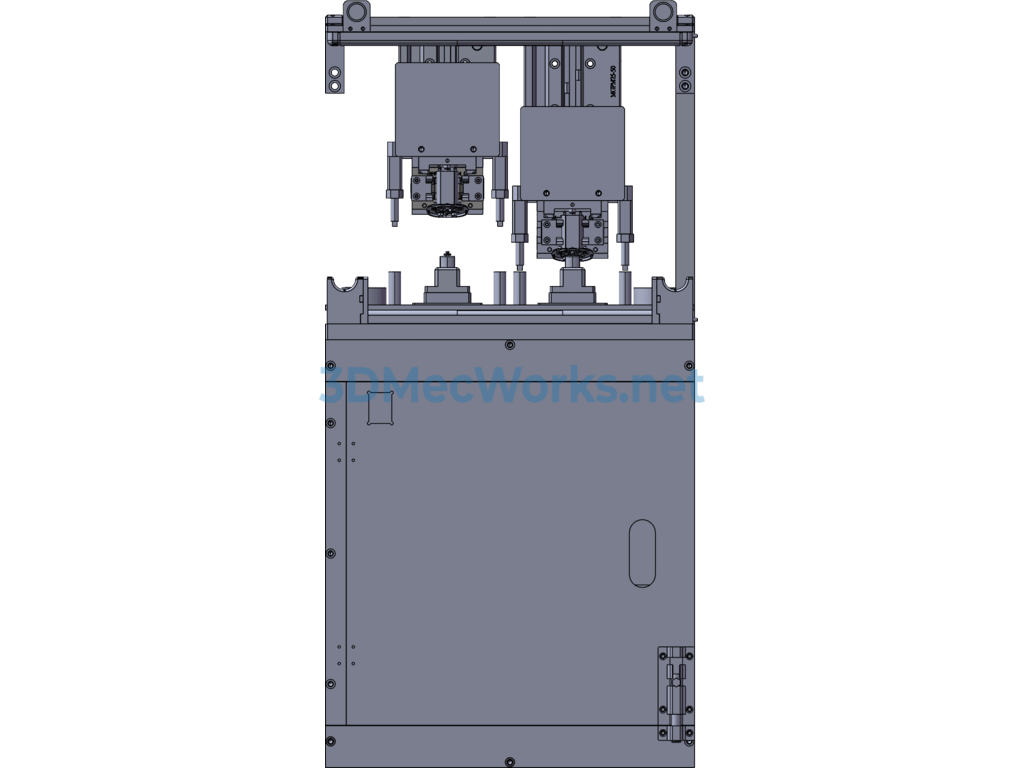

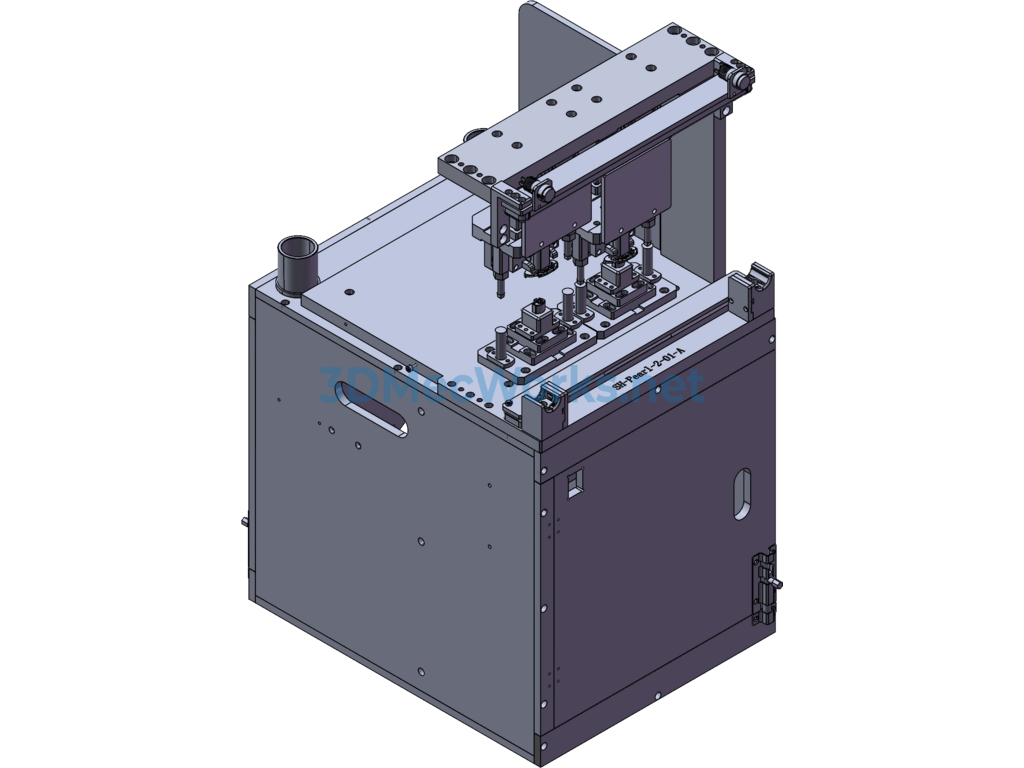

Gear Automatic Assembly Machine Solidworks 2014 Design sldasm and sldprt Source Files Sharing. The gear assembly machine includes a base, a workbench is set on the base, and the workbench is equipped with a clamping device for holding the shaft. A vibrating feeder for placing gears is set on the side of the workbench. The workbench is equipped with an assembly device for automatically installing gears, and the assembly device is connected to the vibrating feeder through a guiding slot. The assembly device includes a lateral telescopic mechanism and a longitudinal telescopic mechanism. The end of the longitudinal telescopic mechanism is equipped with a rotating electromagnetic mechanism. The longitudinal telescopic mechanism is fixed on the lateral telescopic mechanism, and the end of the rotating electromagnetic mechanism is equipped with magnetic claws.
