Gds115 Diaphragm Compressor (complete Set of Drawings)

A super stylish mass-produced device: GDS115 diaphragm compressor 3D model. It is a complete set of drawings with a particularly beautiful and comprehensive system. As a type of positive displacement compressor, the diaphragm compressor is characterized by its large compression ratio and good sealing due to its structural features. It is widely used for compressing and transporting various high-purity gases, valuable rare gases, toxic and harmful gases, and corrosive gases. As an irreplaceable positive displacement compressor, it will find broader applications with the advancement of science and technology and improvements in people’s living standards. The main application fields of the diaphragm compressor are aerospace, nuclear power and energy, food and pharmaceuticals, petrochemicals, electronics industry, materials industry, national defense industry, and scientific experiments and other industry sectors.

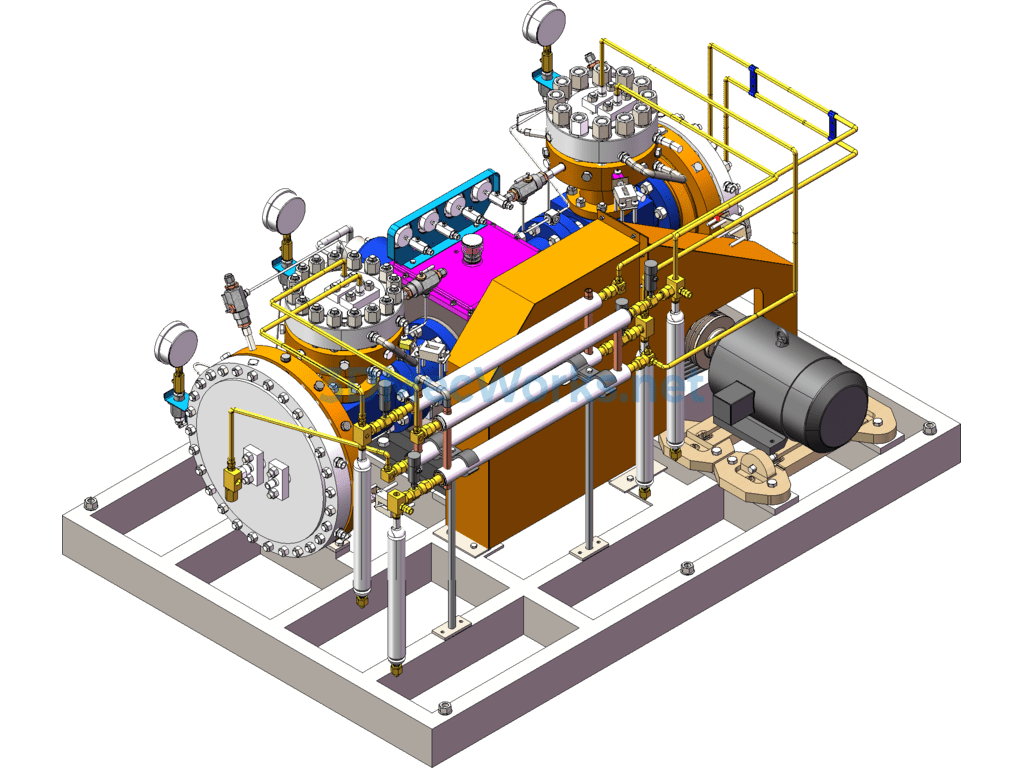

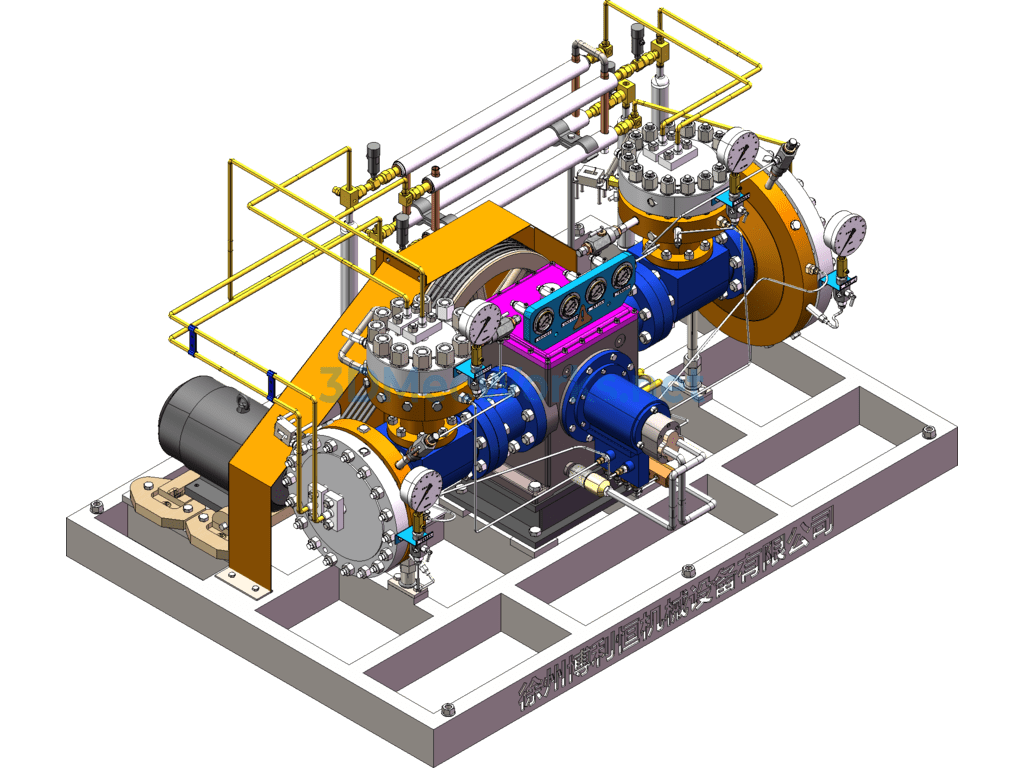

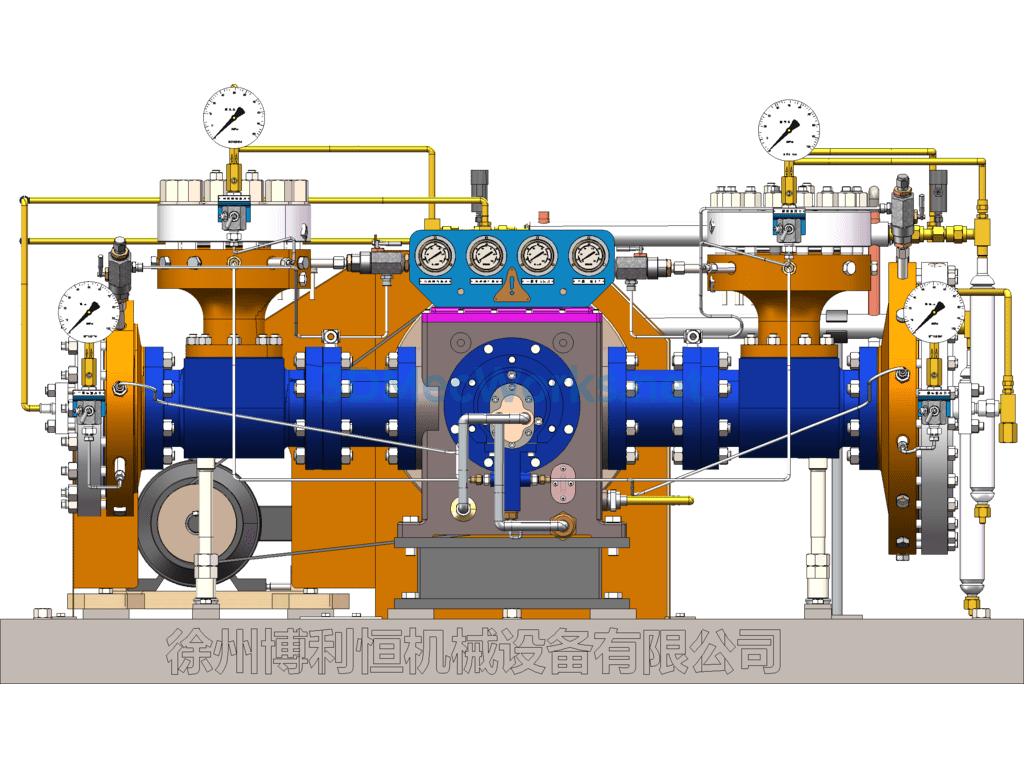

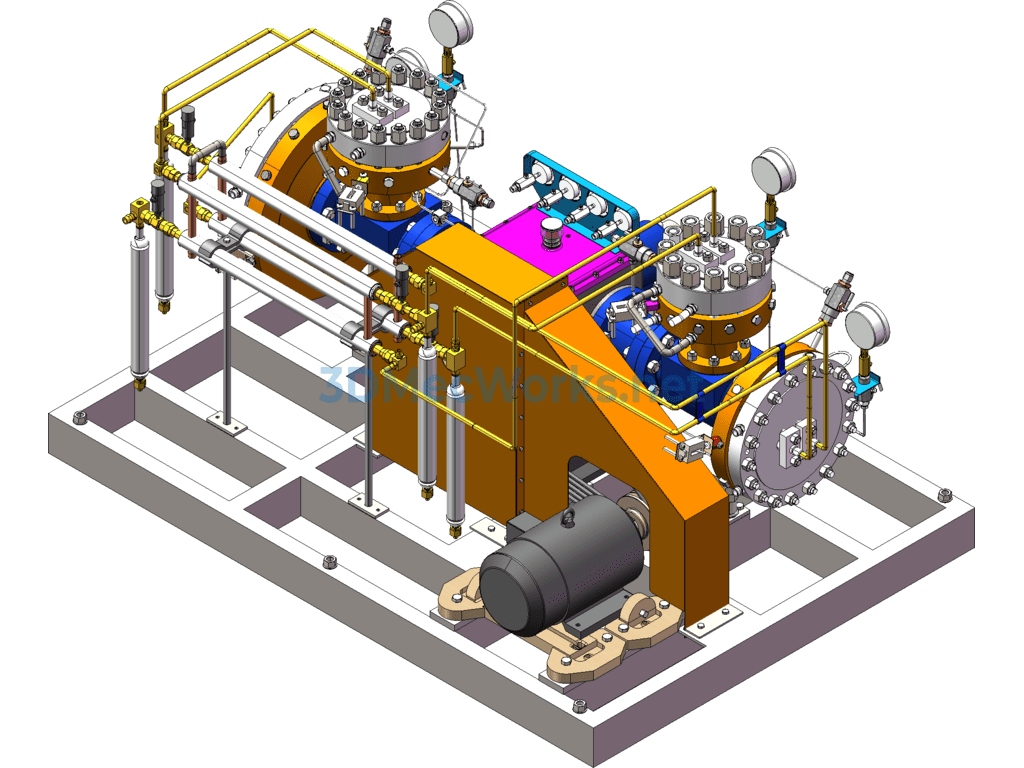

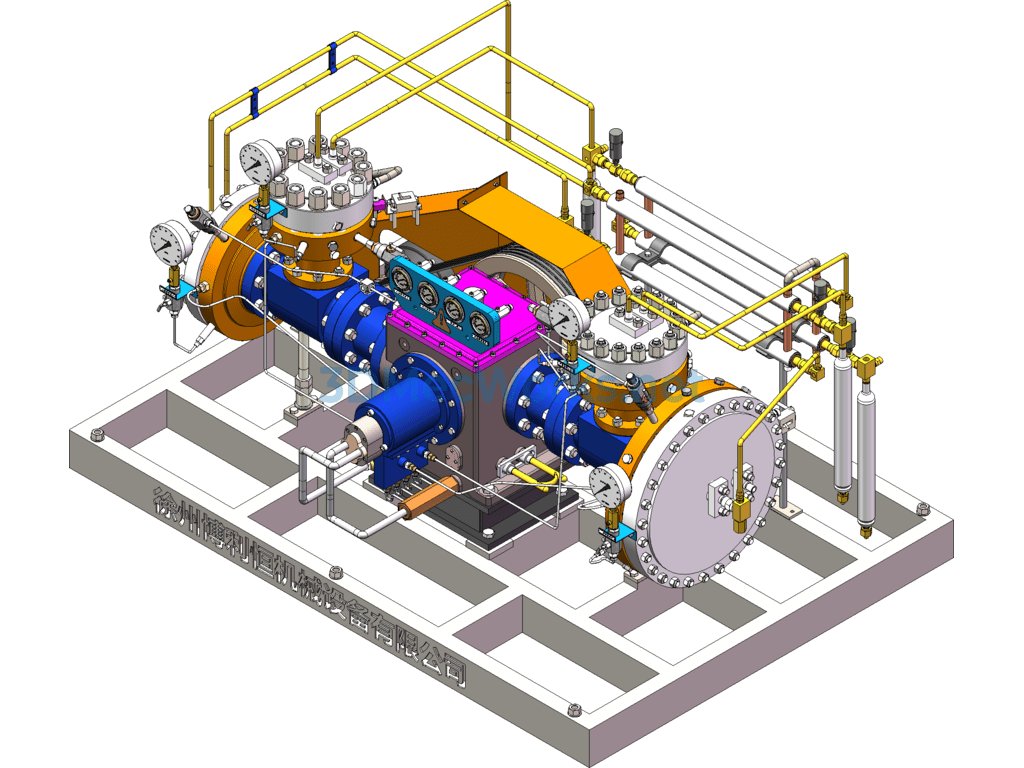

This large diaphragm compressor 3D model is designed using SolidWorks2014, with the source documents provided, and parameters can be edited. The GDS115 series diaphragm compressor has a very complex structural assembly, including: case filter components, pressure gauge components, oil pressure instrument components, case components, air pressure instrument pipeline components, pressure regulating valve components, exhaust valve components, intake valve accessories, cylinder check valve components, large V-belt pulley, overflow valve components, breather, diaphragm alarm, oil cooler components, filter assembly and many more super detailed designs. The power can only be appreciated once opened.
