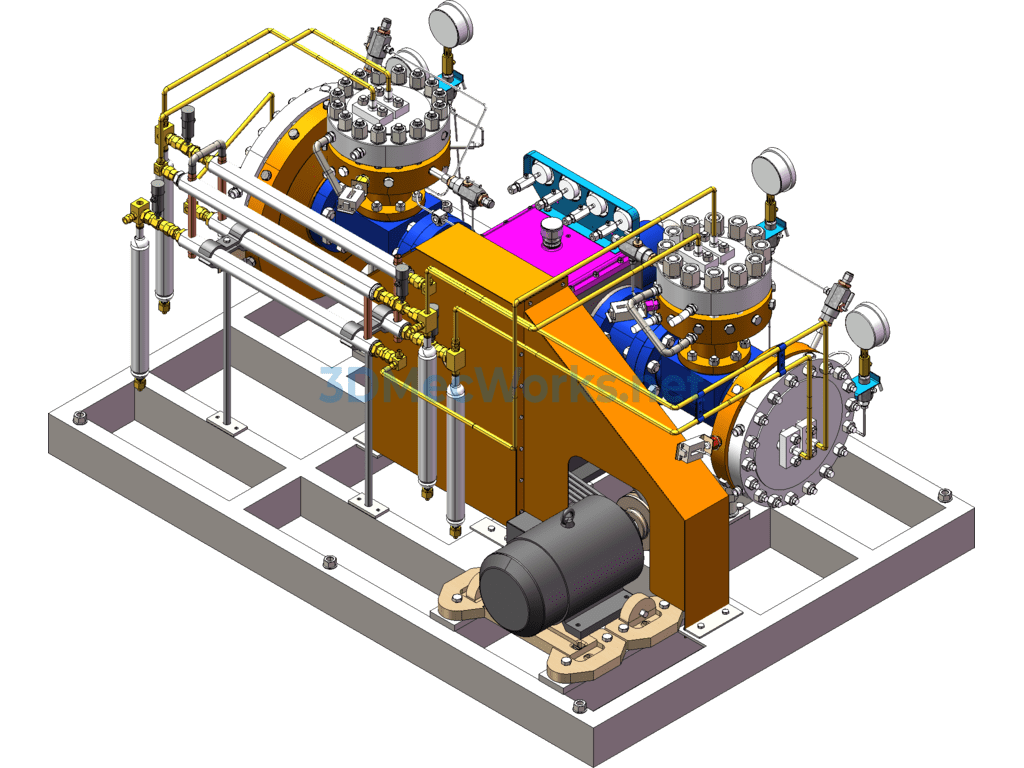

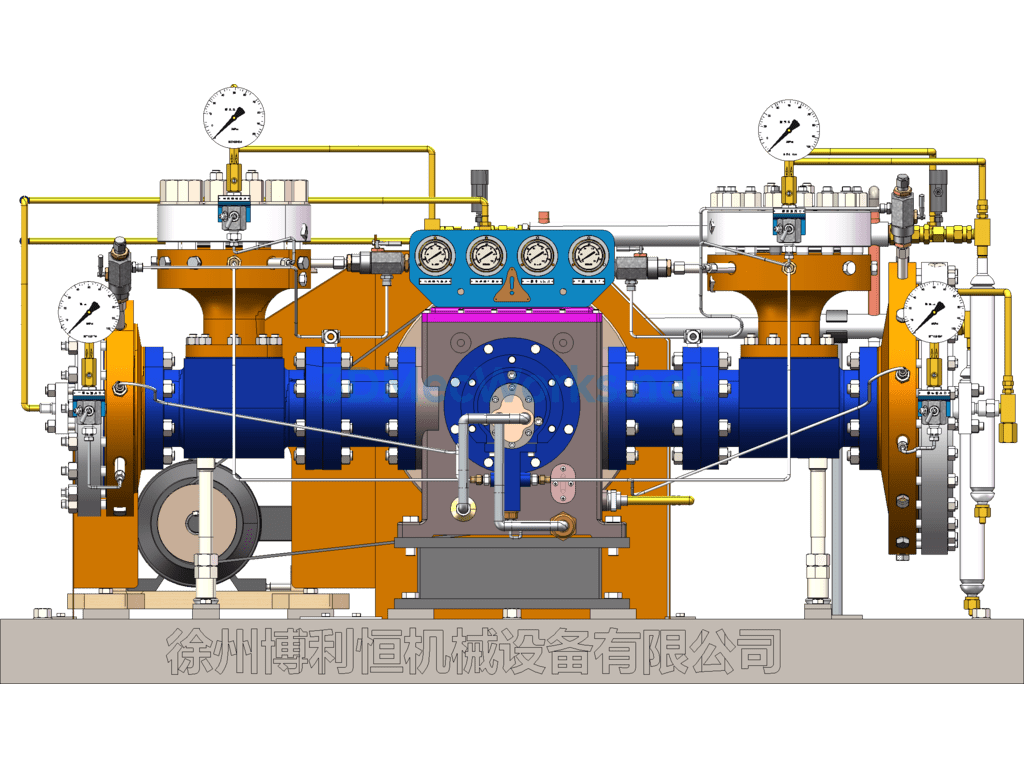

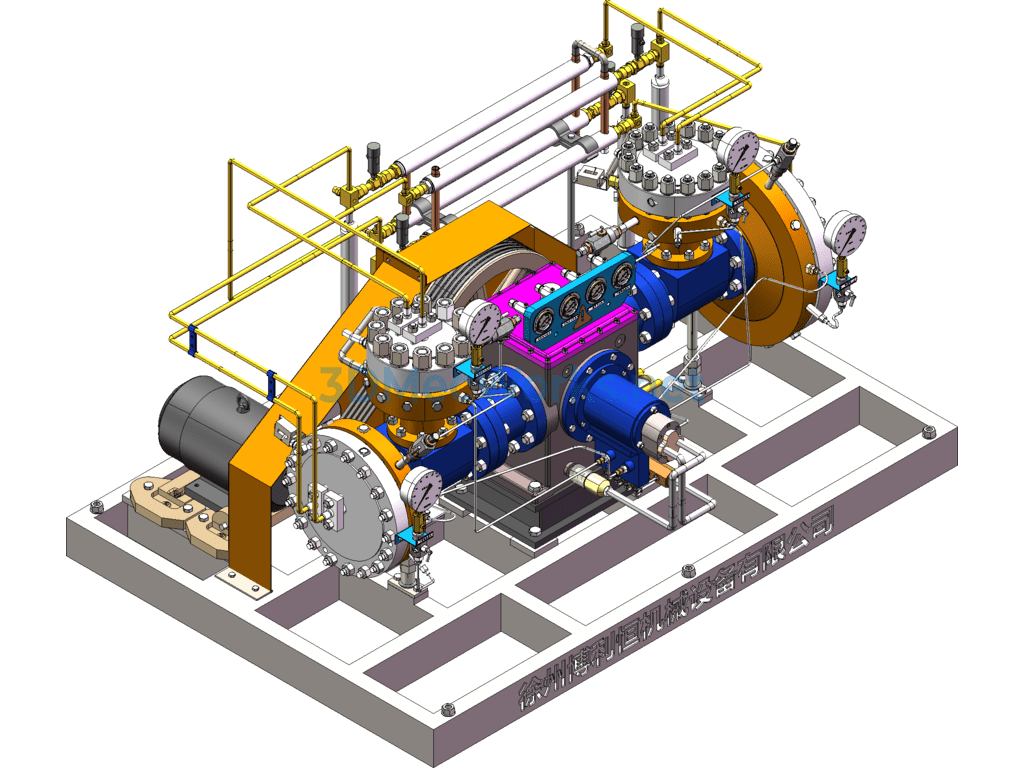

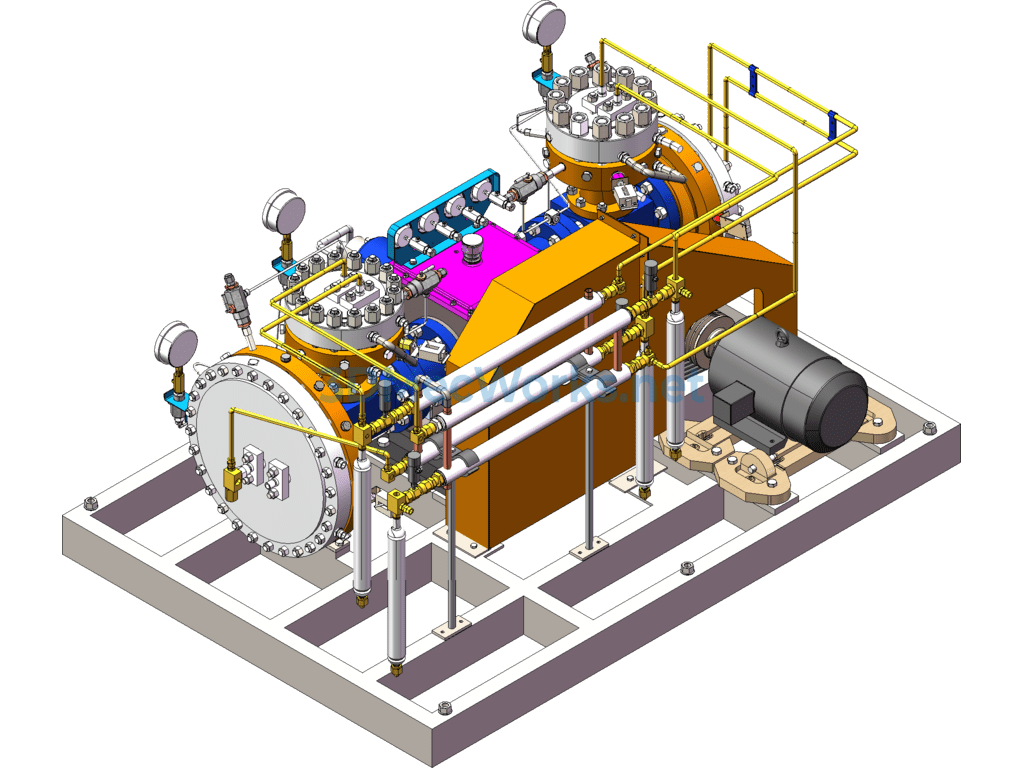

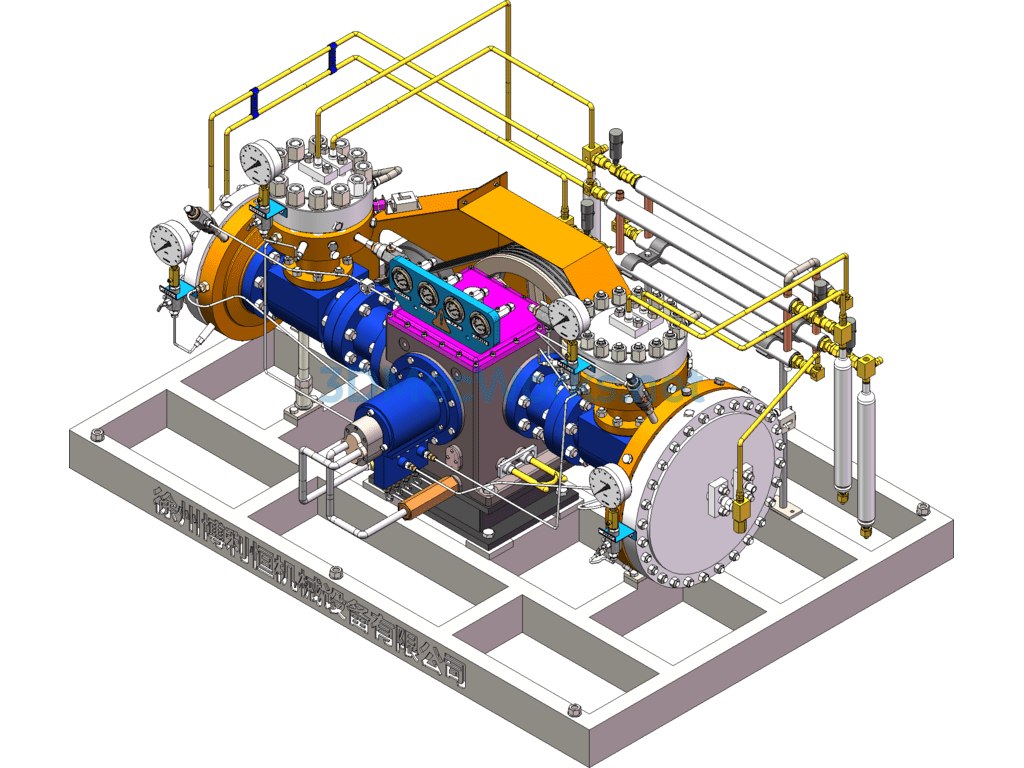

Gds112 Series Diaphragm Compressor

The complete set of drawings for our company’s GDS112 series diaphragm compressor is shared here. Please ask the administrator to grant me point credits before it can be displayed.

A diaphragm compressor is a volumetric compressor with a special structure, considered the highest level of compression in the field of gas compression. This compression method avoids secondary pollution and offers excellent protection for the compressed gas. It features a high compression ratio, good sealing, and ensures that the compressed gas is not contaminated by lubricating oil or other solid impurities. Therefore, it is suitable for compressing high-purity, rare, flammable and explosive, toxic, hazardous, corrosive, and high-pressure gases. Internationally, this method is typically specified for compressing high-purity gases, flammable and explosive gases, toxic gases, oxygen, etc.
