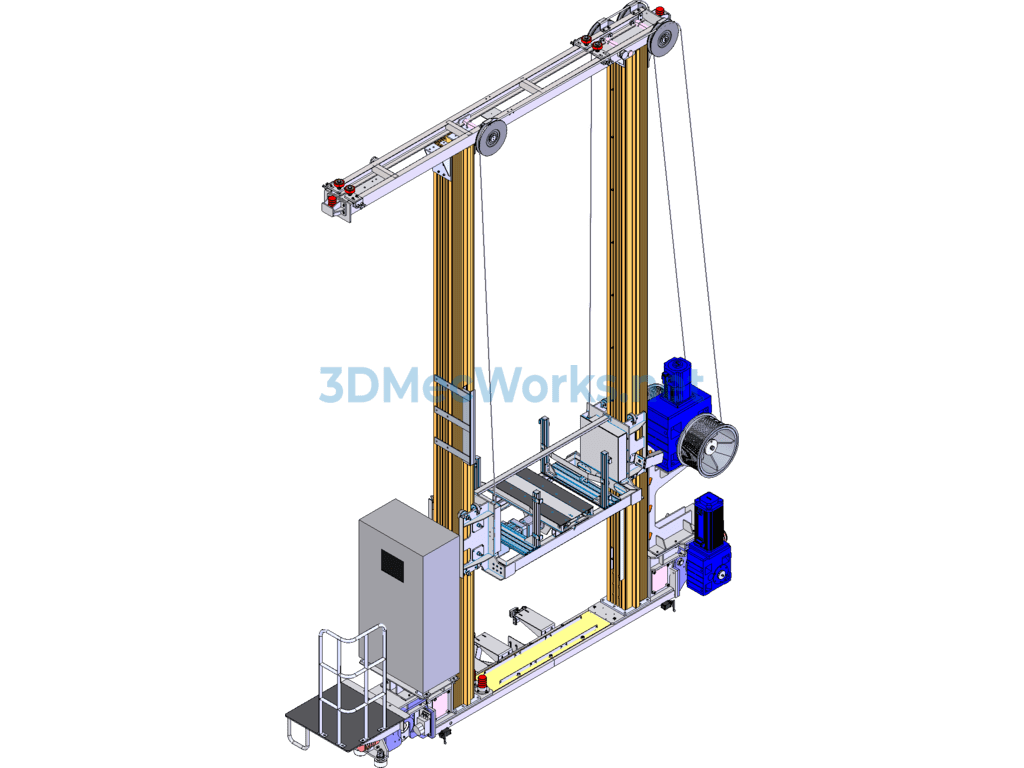

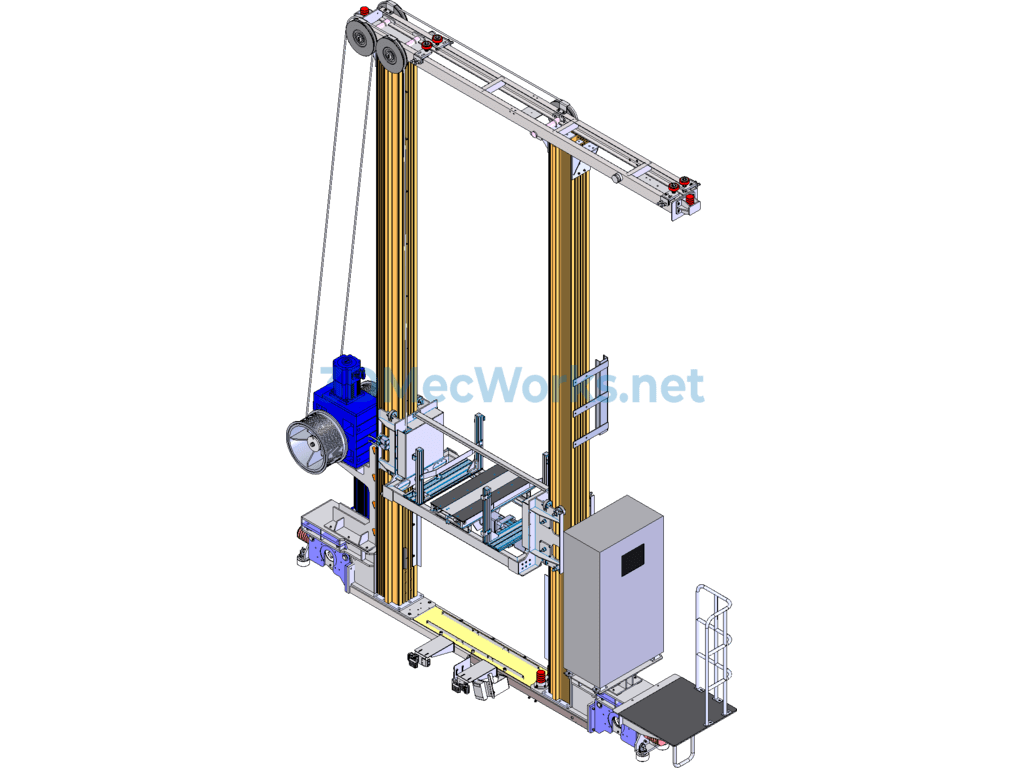

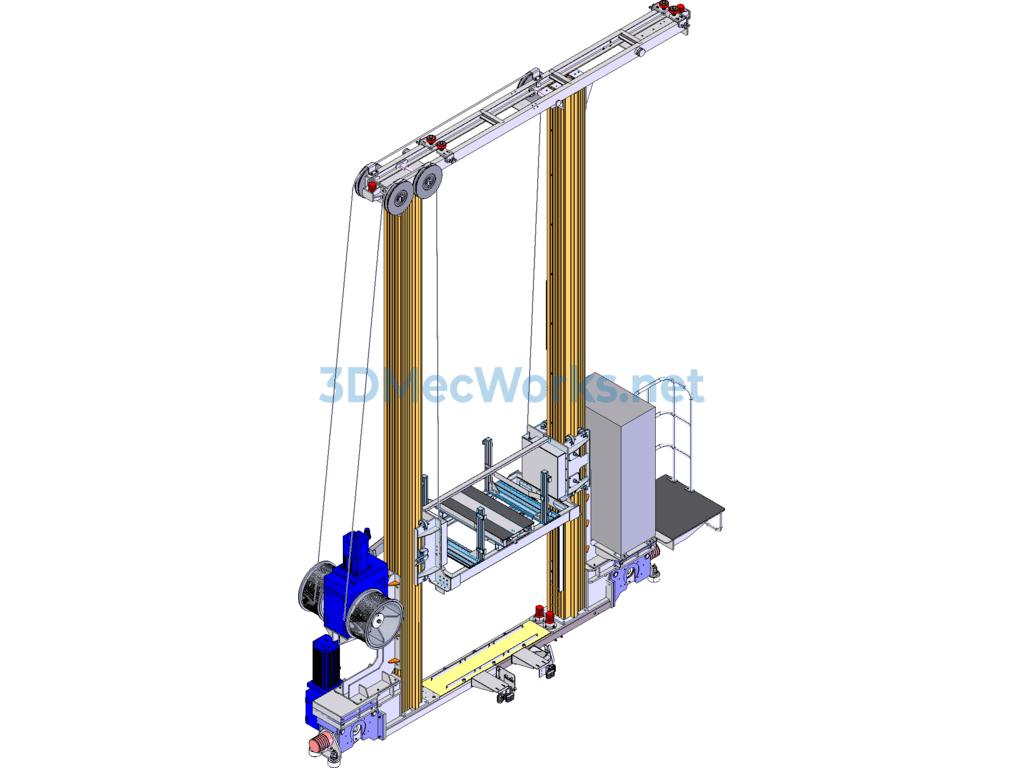

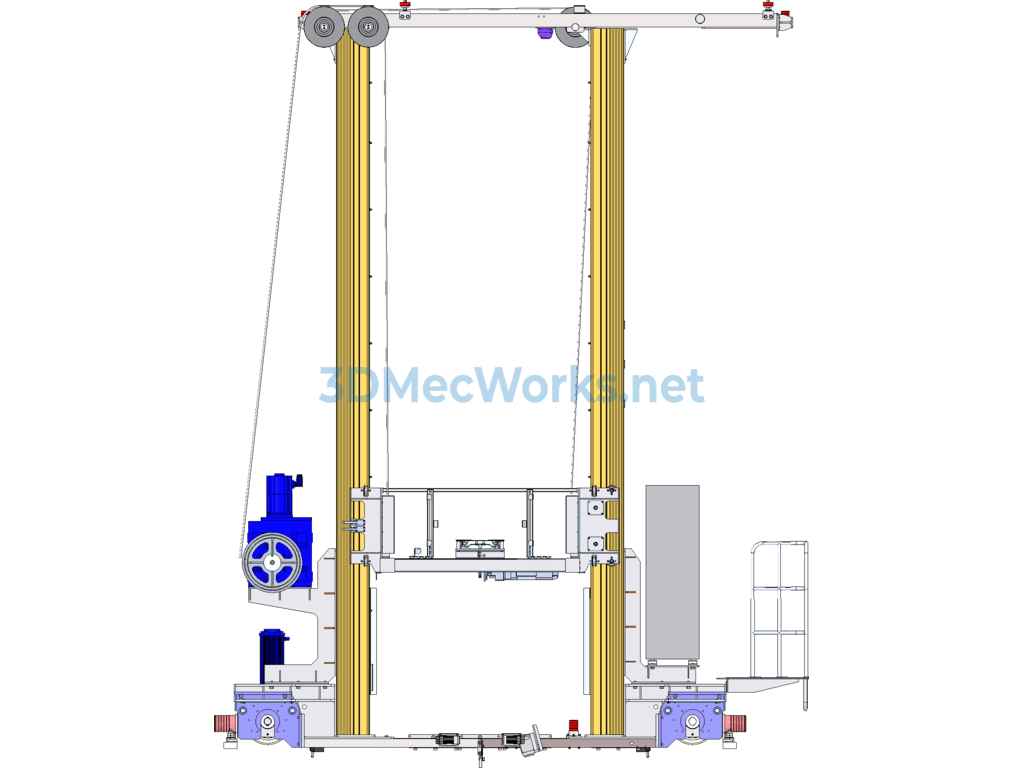

Gantry-type double-column stacker, with walking mechanism at the bottom, wire rope lifting, walking mechanism at the bottom, lifting height approximately 4.2 meters, gantry width 1.65 meters. The structure details can be directly used for drawing and production. Welcome everyone to download and learn.

Specification: Gantry-Type Double-Column Stacker - SolidWorks - Free Download

Design Software	SolidWorks
Editable	Editable, No parameters
File Formats	Sldasm, Sldprt, x_t
Industry Application	Mechanical Equipment
Sharing Level	Diamond
Version	2012
