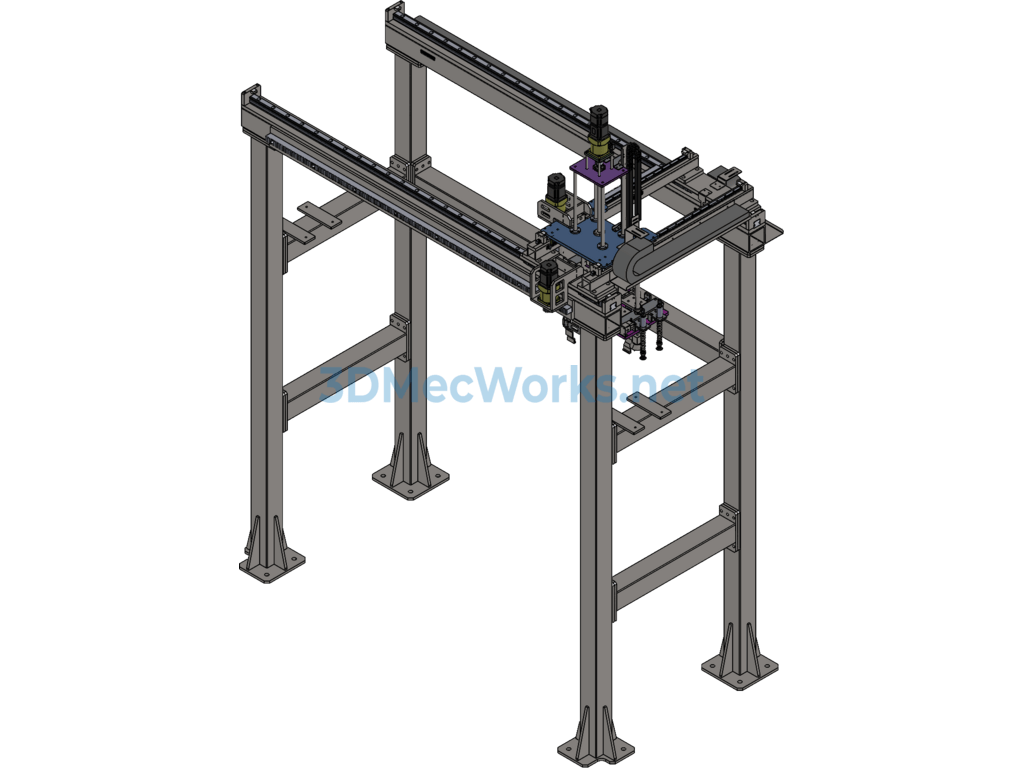

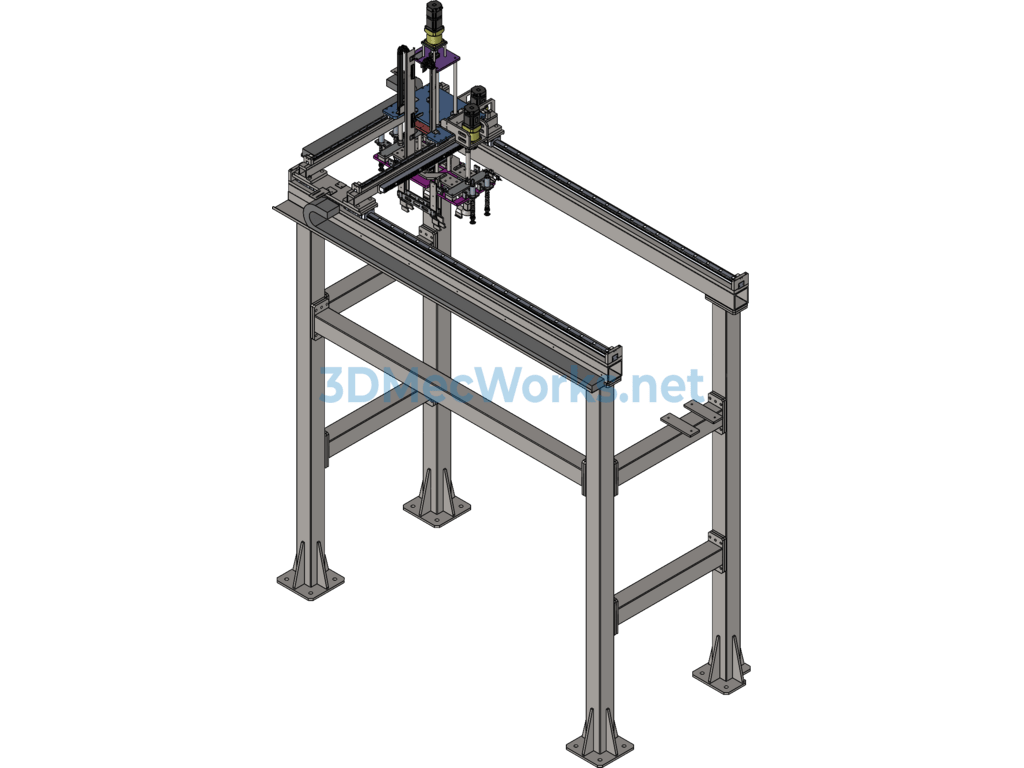

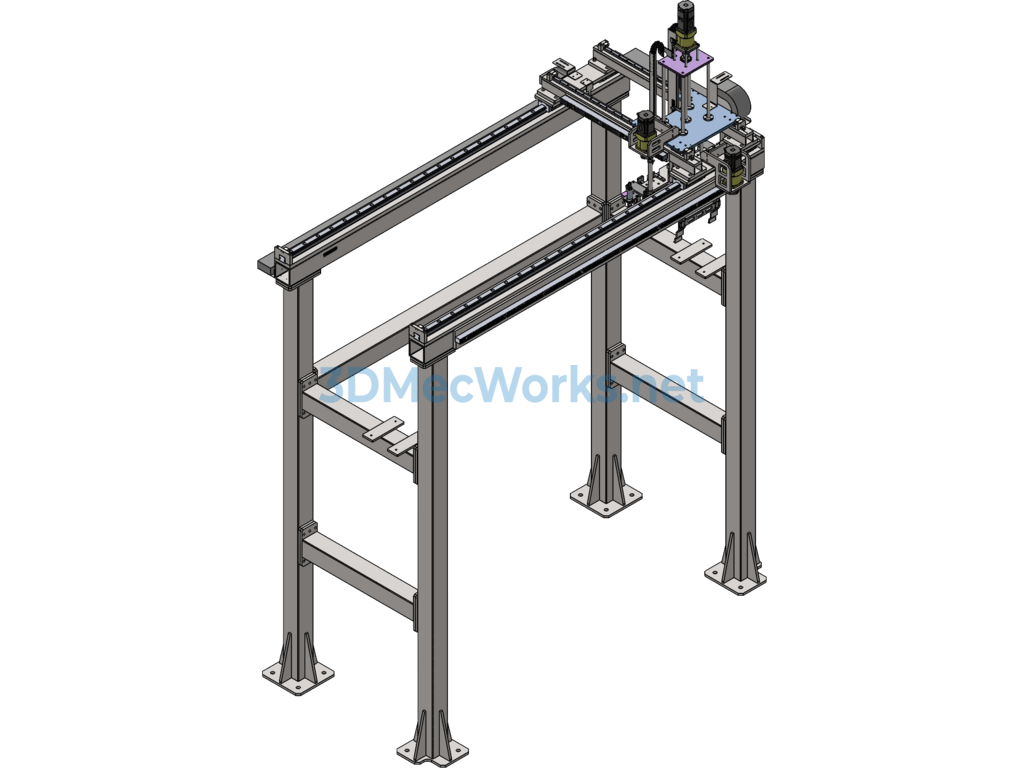

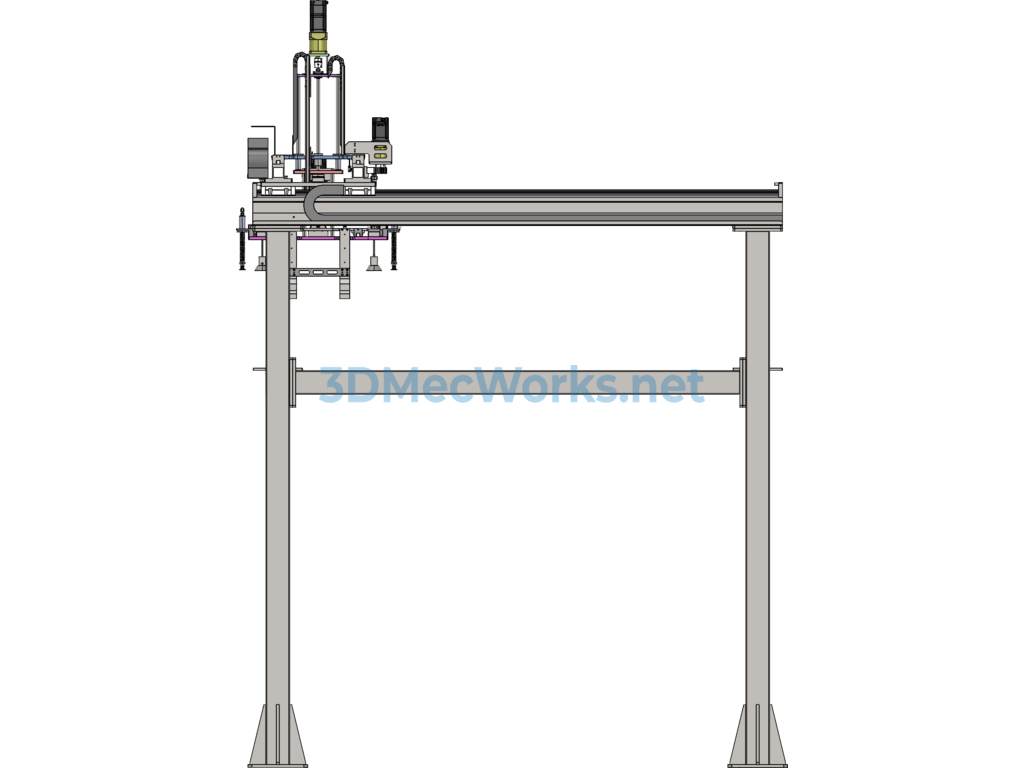

Gantry Transport Manipulator

This is a transport manipulator. The manipulator features clamping and suction cup adsorption functions. Unlike lead screws and timing belts, it uses rack and pinion transmission. The lifting mechanism employs an inverted lead screw to achieve the functionality of an electric cylinder. The dimensions are fully customizable, allowing for immediate production upon drawing completion. All standard parts are named as individual components. It is commonly used for long-stroke, heavy-duty transport.
