Fully Automatic Winding Machine With Round Wire Enameled Wire Stripping Machine

Automatic Winding Machine with Round Enamel Wire Stripper

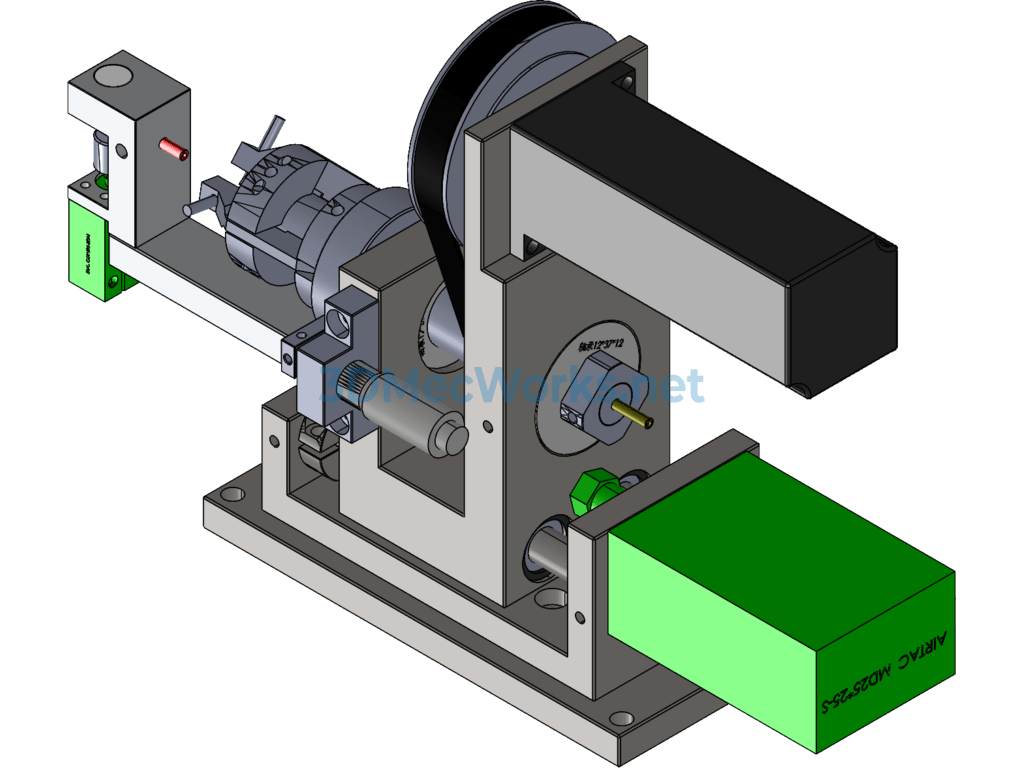

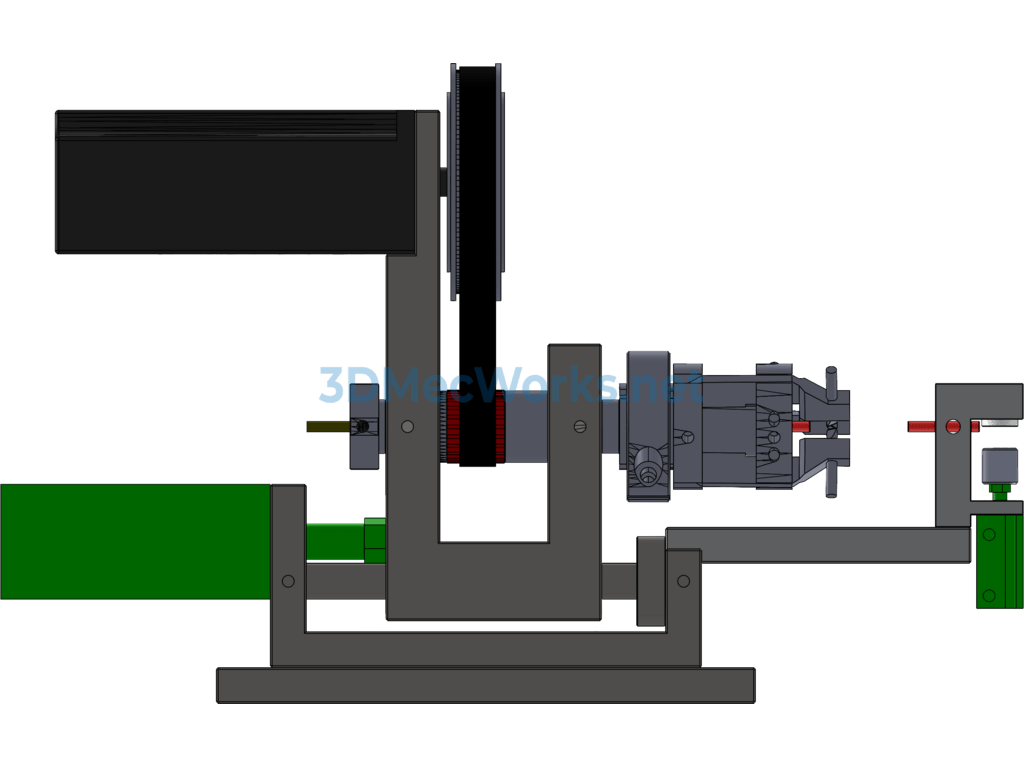

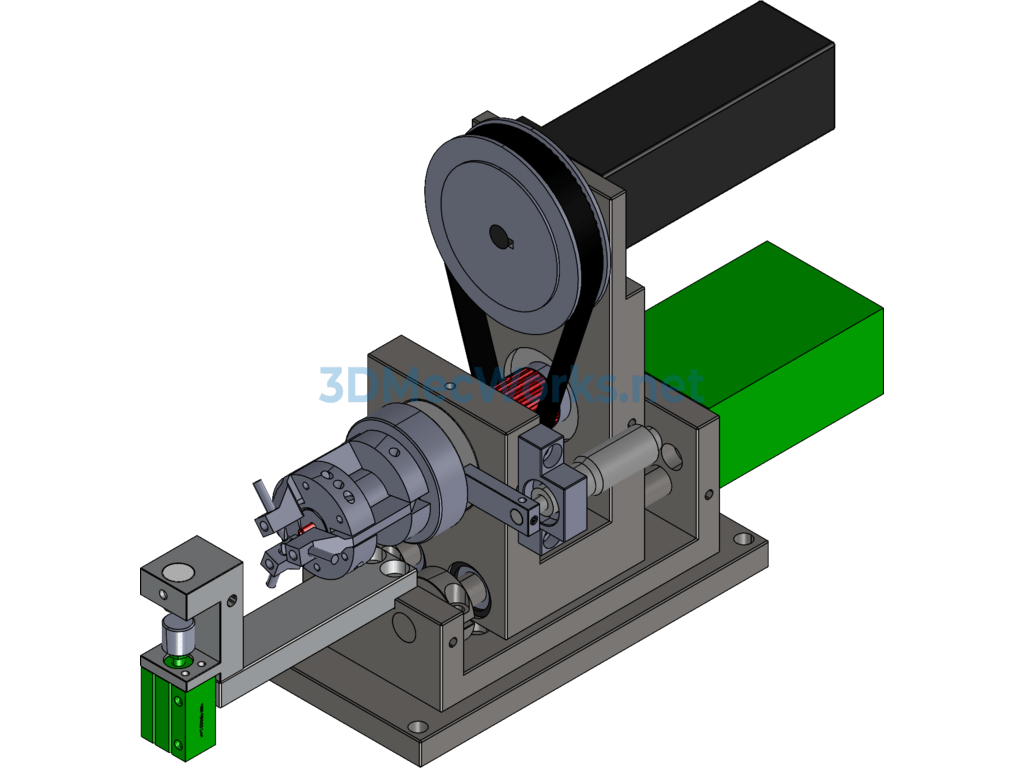

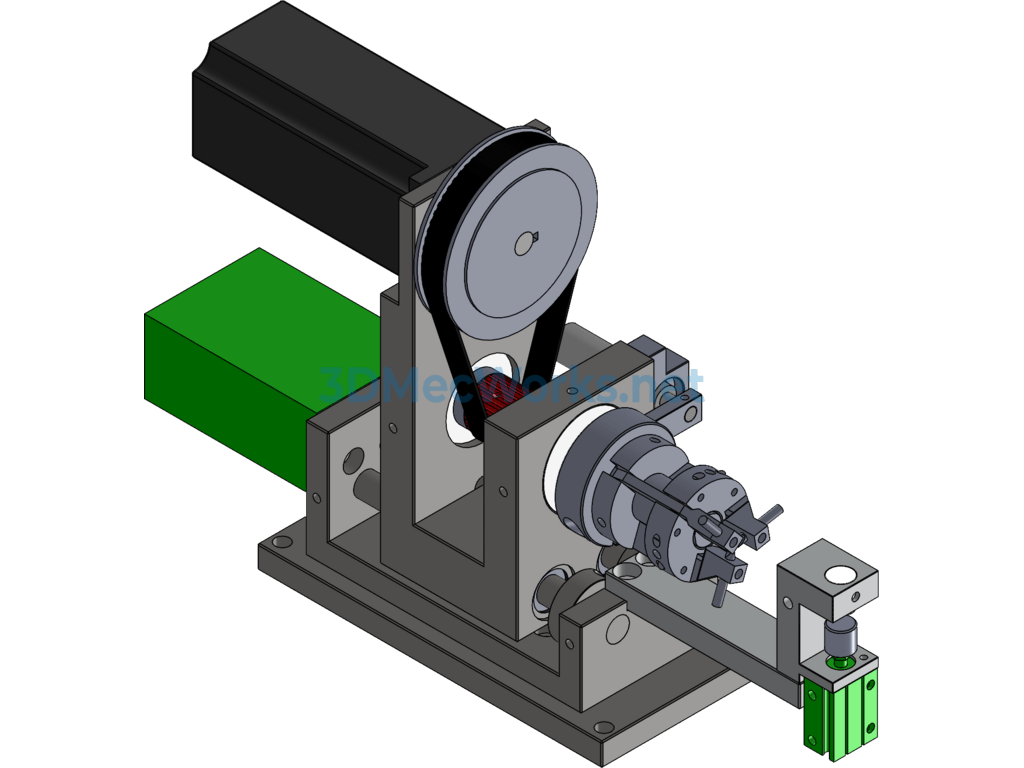

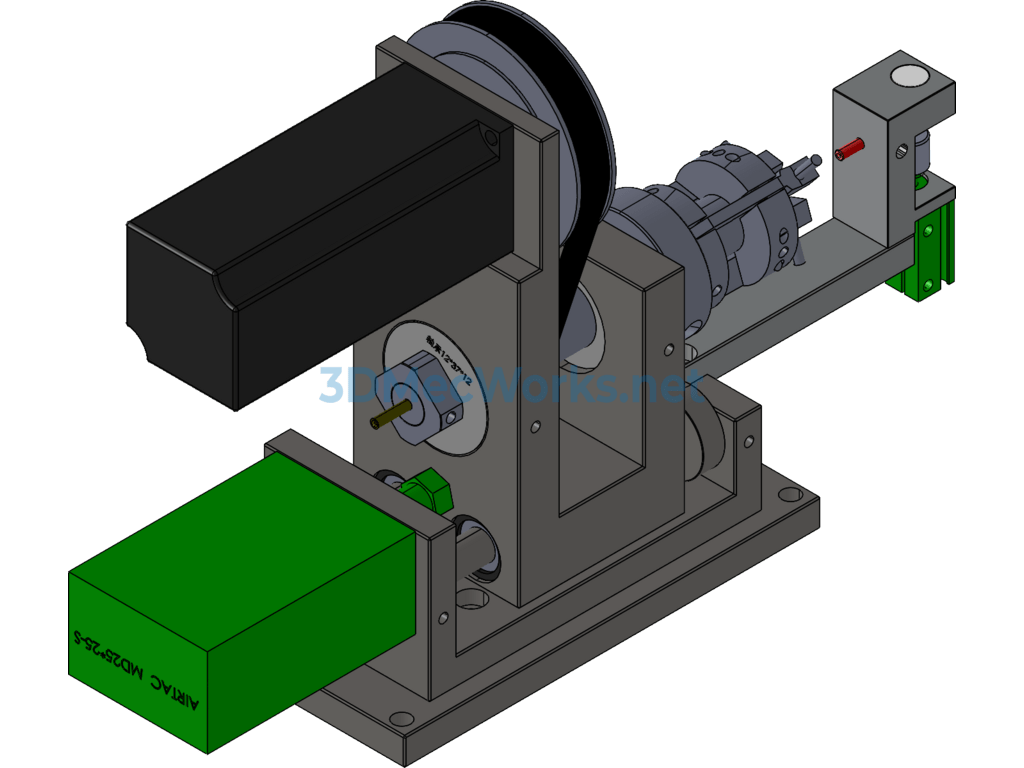

During the production process of an automatic winding machine, it is often necessary to strip the leads of the coils. This equipment synchronizes the stripping process with the winding process, effectively saving subsequent labor and material costs. The design emphasizes simplification and low-cost manufacturing. Additionally, while meeting the necessary precision requirements, it enables the automatic stripping of enameled round copper wires ranging from 0.13mm to 0.5mm. Stability, efficiency, and low cost are the core principles of my design. Feedback and suggestions are welcome, thank you! All 3D drawings of the components are included.
