Fully Automatic Winding and Tying Machine (sw Design)

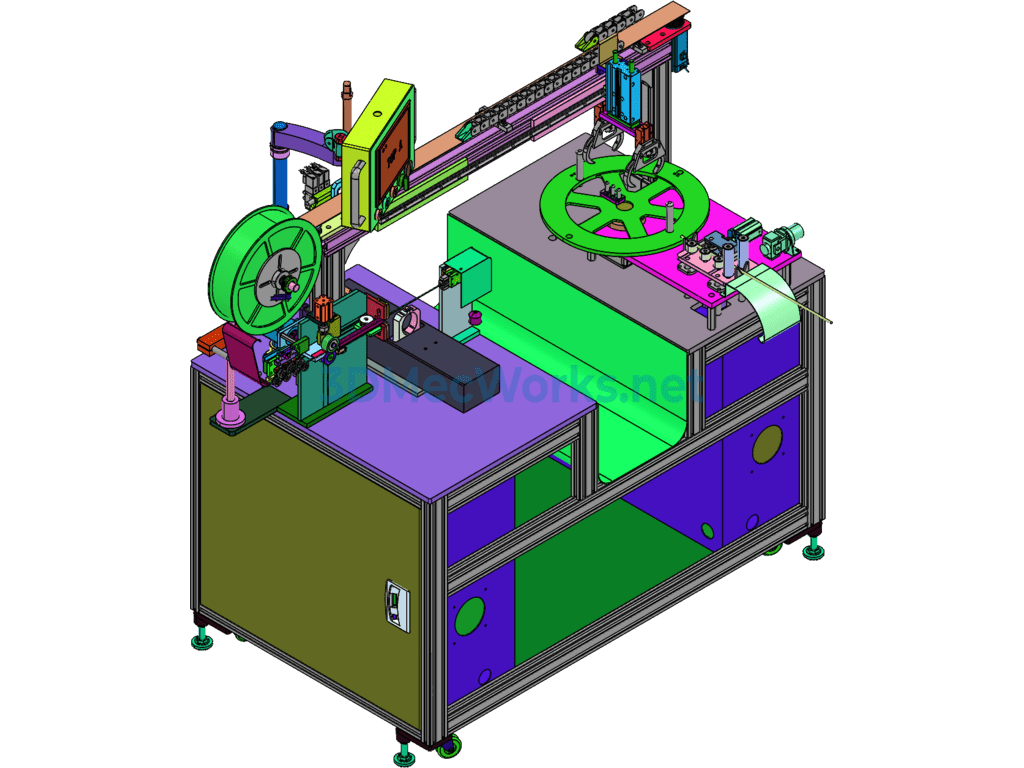

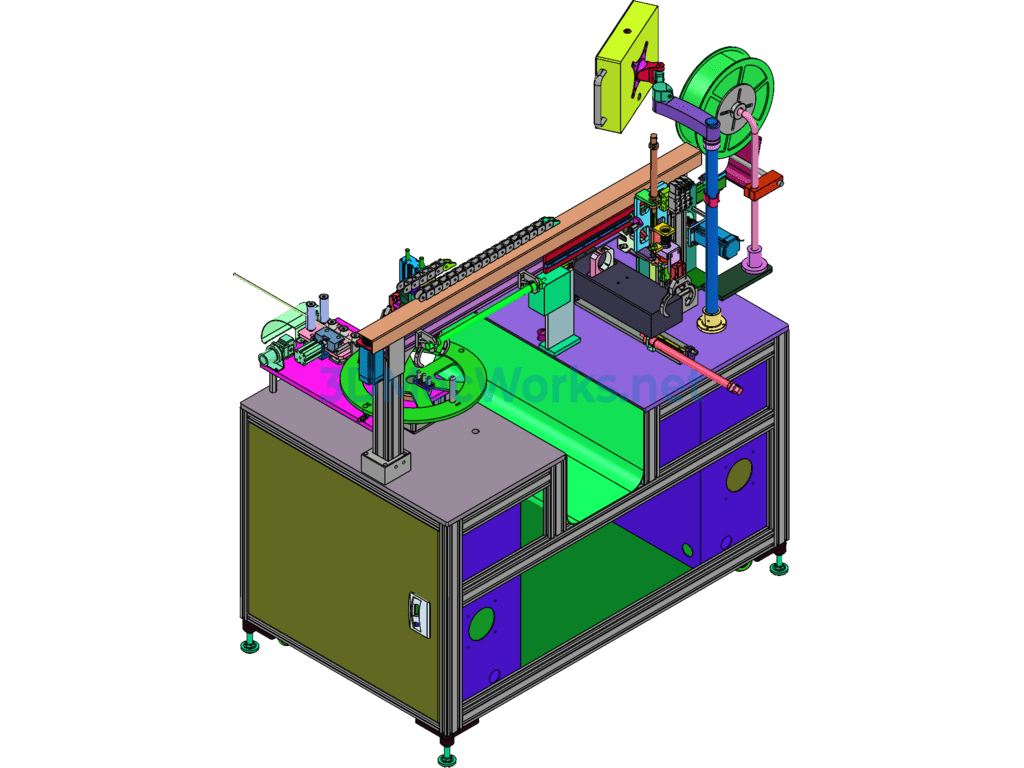

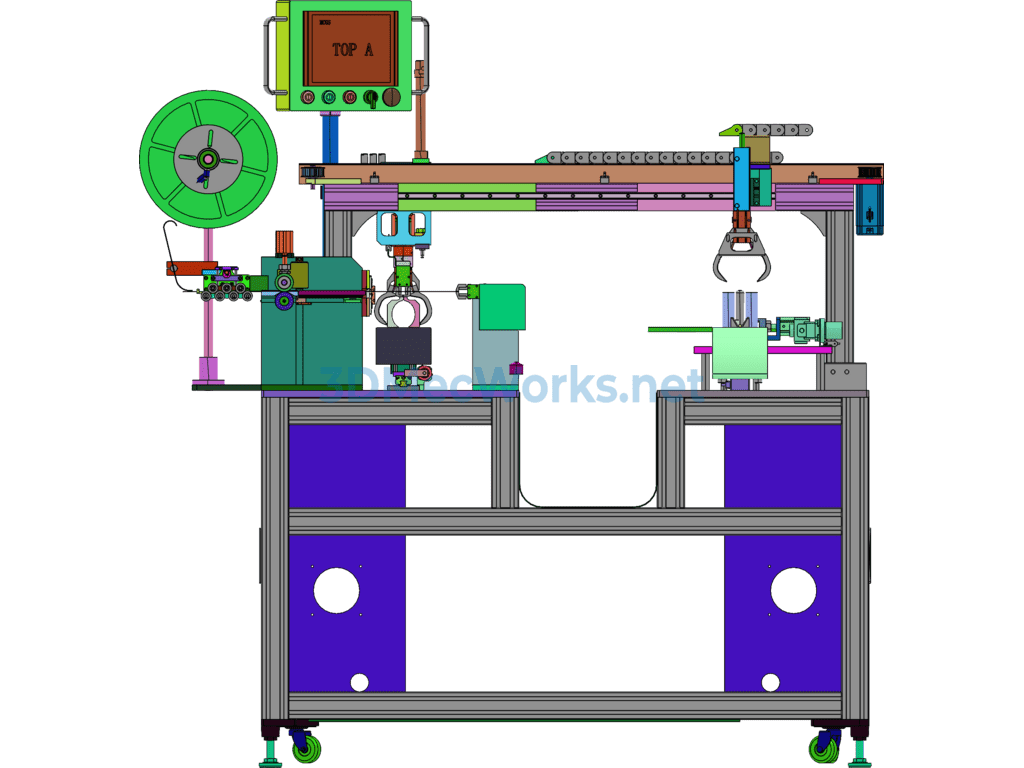

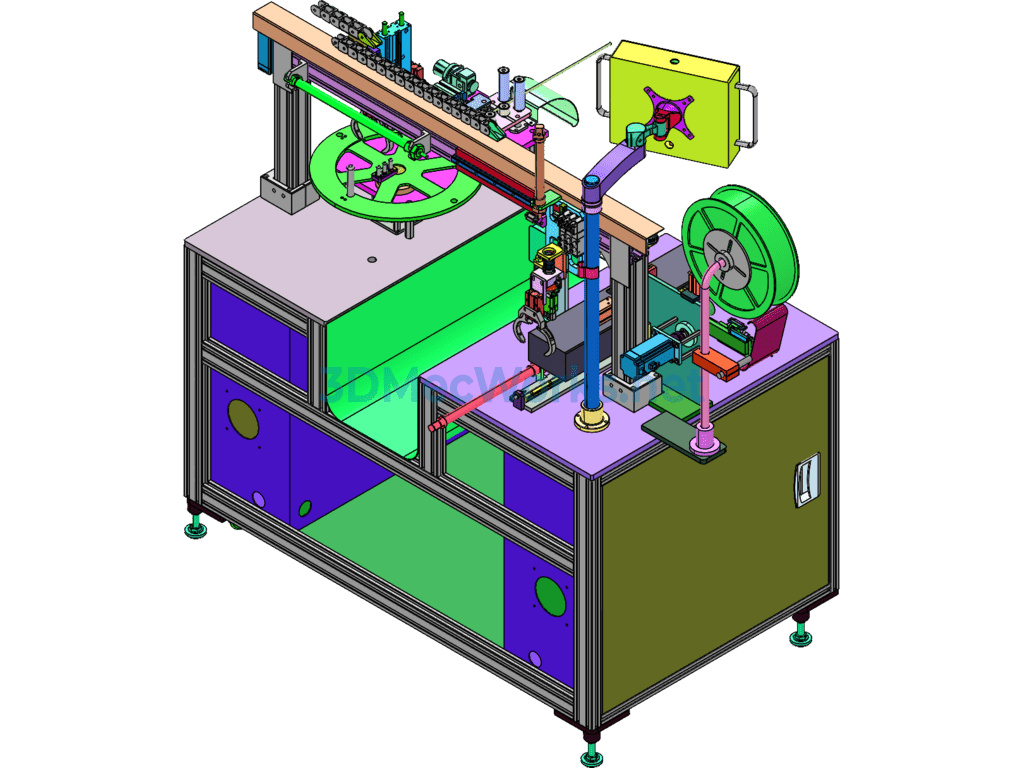

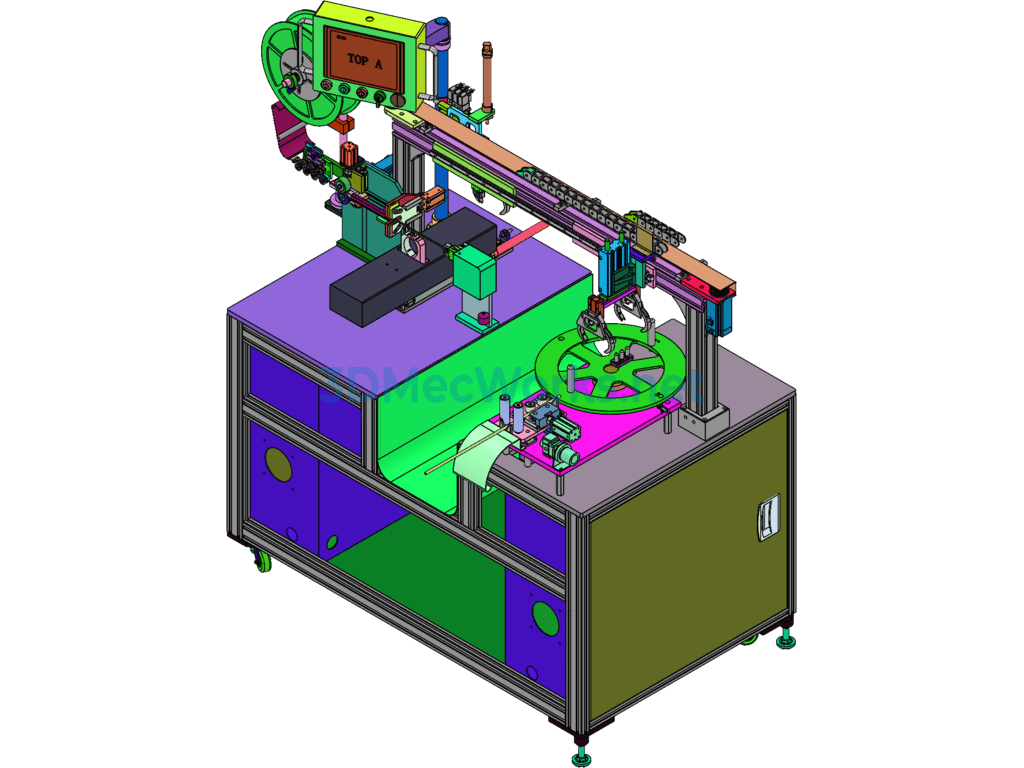

This equipment is a linear bundling machine, a two-wire winding machine used for winding and bundling items such as USB cables, plug wires, etc. The equipment possesses core technology, and with modifications, it can be transformed into other devices, making it a valuable reference for learning. The fully automatic winding bundling machine 3D model designed with Solidworks 2014 includes 303 sldasm and sldprt source files.

This machine is controlled by a programmable logic controller (PLC) and operated via a human-machine interface. It can be set to cruise mode, allowing for continuous operation with just a single switch press, overcoming the disadvantage of having to press the switch each time an operation is performed.
