Fully Automatic Three-Axis Load Tester, Insertion Force Tester

The fully automatic three-axis load test machine (insertion and extraction force test machine) is used for insertion and withdrawal tests of various connectors, force and tactile feedback tests of various buttons, lifespan tests, and destruction tests for various specimens; Principle: A certain load and speed are applied through a servo control system, and then the force is sensed by a force sensor and transmitted in the form of signals to a computer system, thus determining the various performances of the specimens. This equipment is the only universal test machine in the country that integrates insertion and extraction load, and includes a patented automatic centering device. The equipment model, parameters, BOM list, equipment trial manual, and engineering drawings are very complete, and can be directly used for production, and the actual equipment has already been manufactured. The model includes two types of fixtures; by removing the fixtures and slightly modifying the Z-axis, it can be used as a multifunctional tabletop three-axis coordinate device, such as a three-axis screw machine, dispenser, soldering machine, etc. Welcome to download the three-axis load test machine, also known as the insertion and extraction force test machine, for study and reference!
Contains:

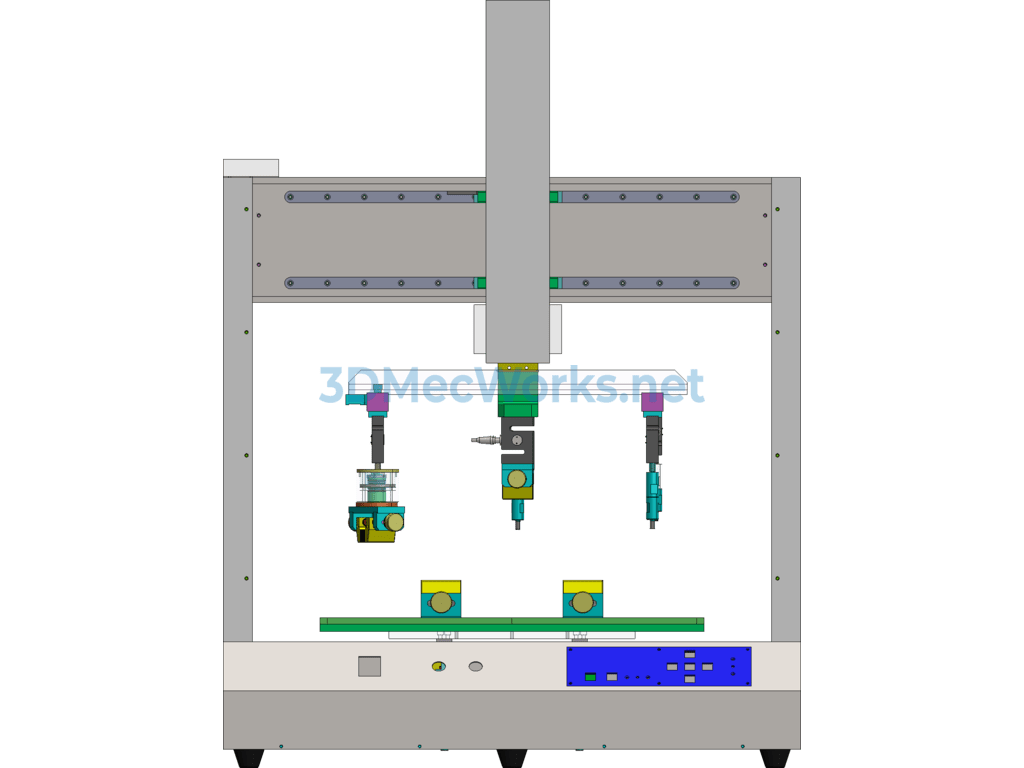

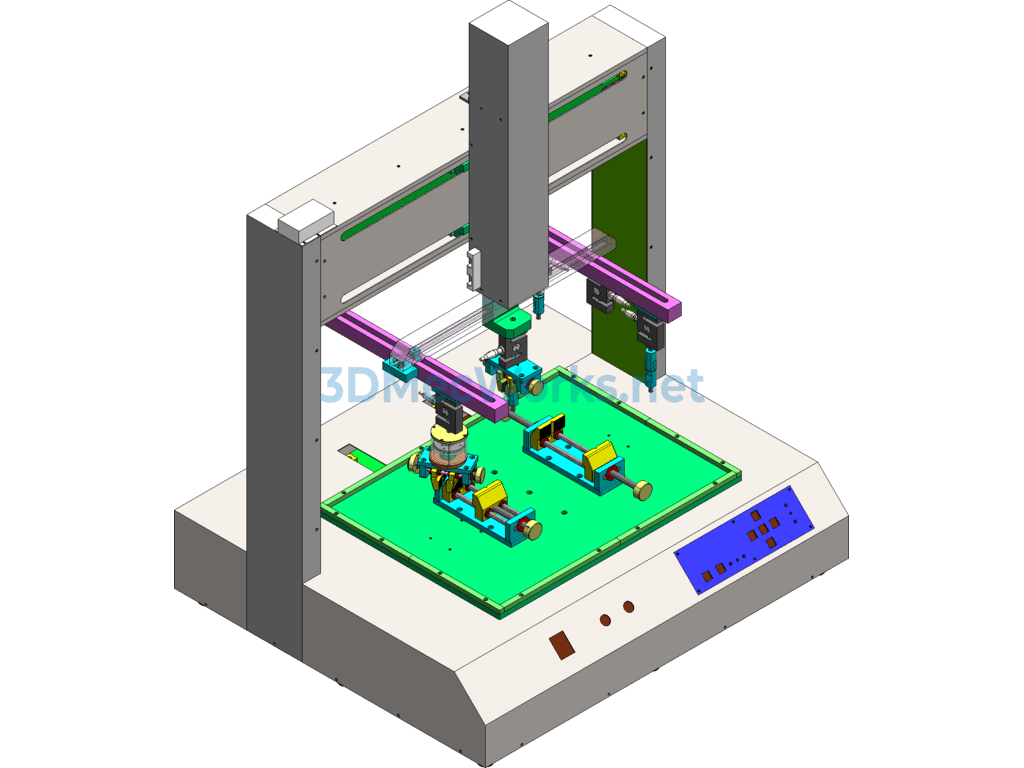

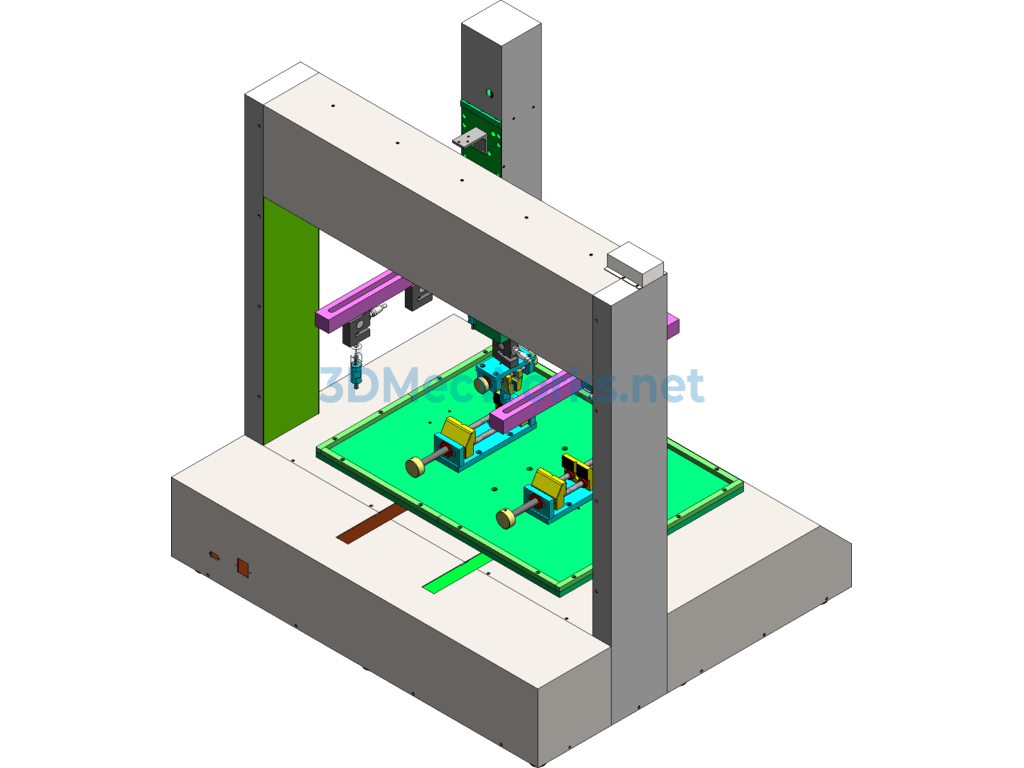

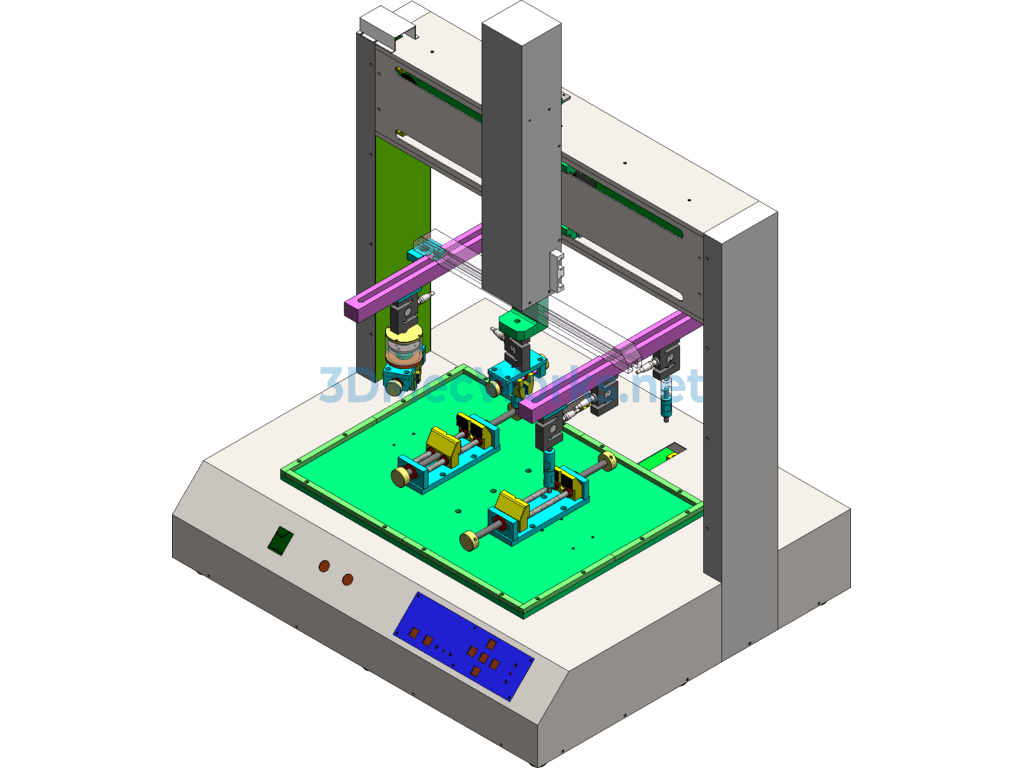

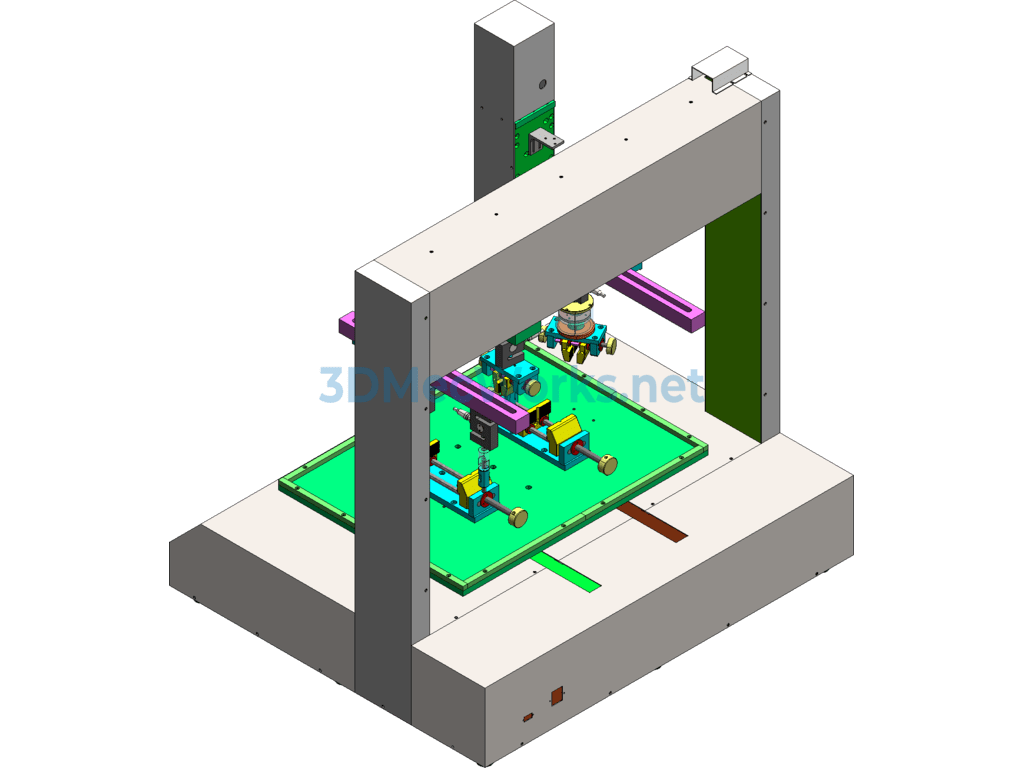

Three-axis load test machine 3D model SW source files editable + engineering drawings
Three-axis load test machine accessory list.xls
Three-axis load test machine BOM list.xls
Three-axis load structure description.ppt
Fully automatic three-axis load test machine assembly drawing – Drawing 1.pdf
