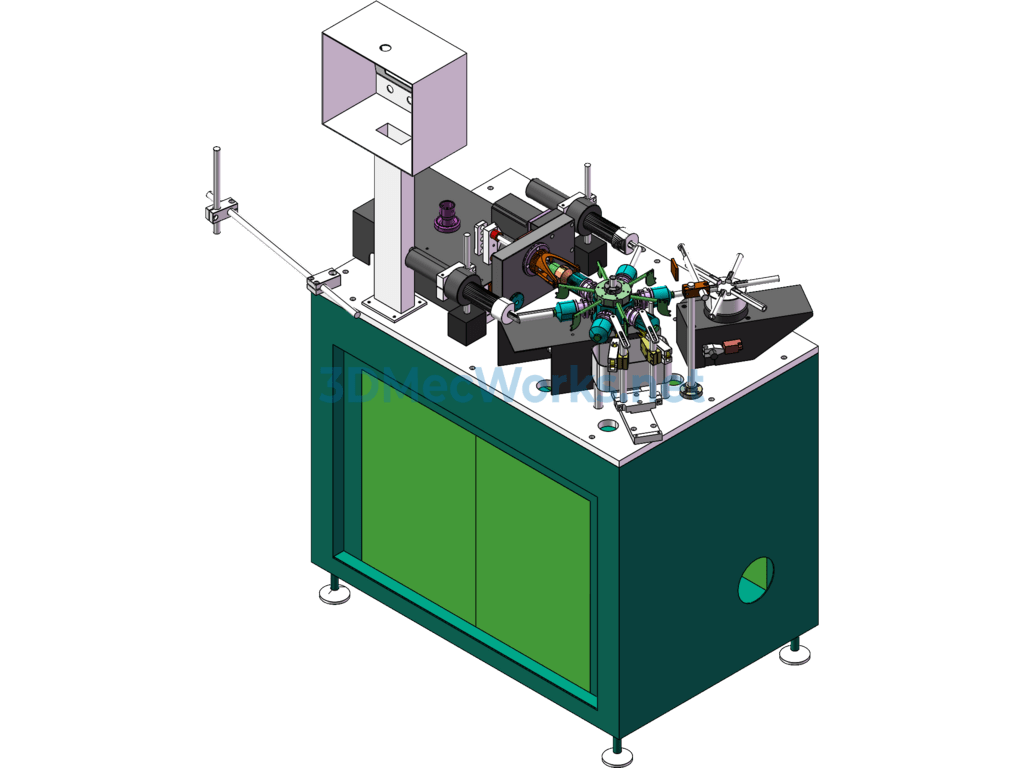

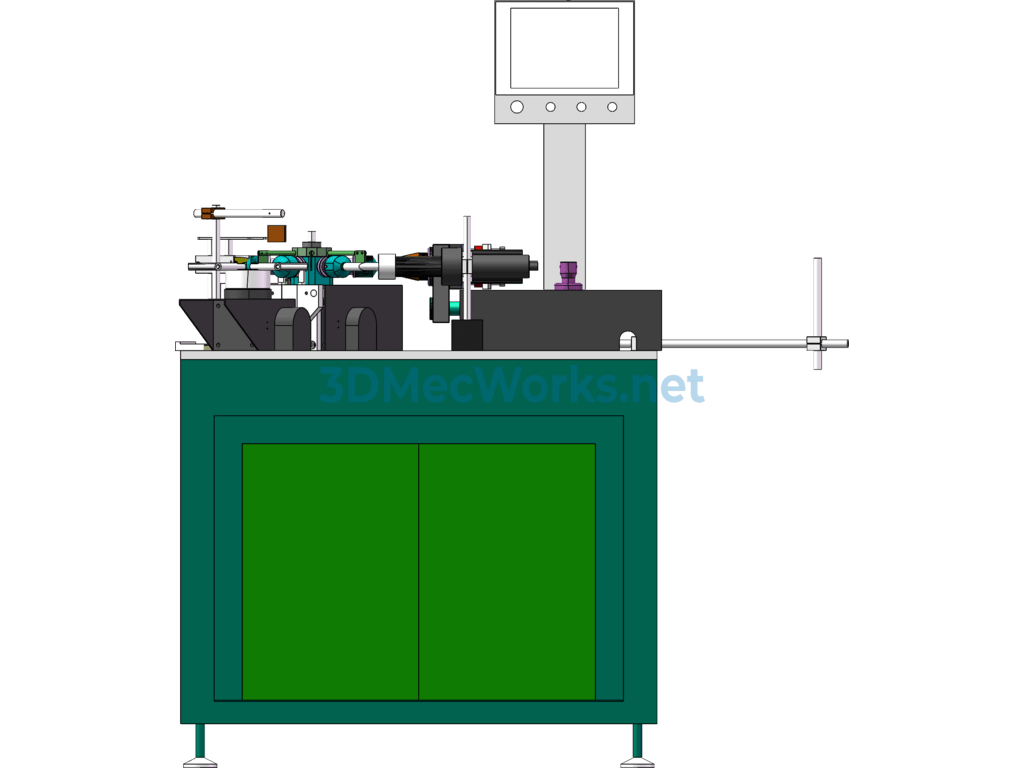

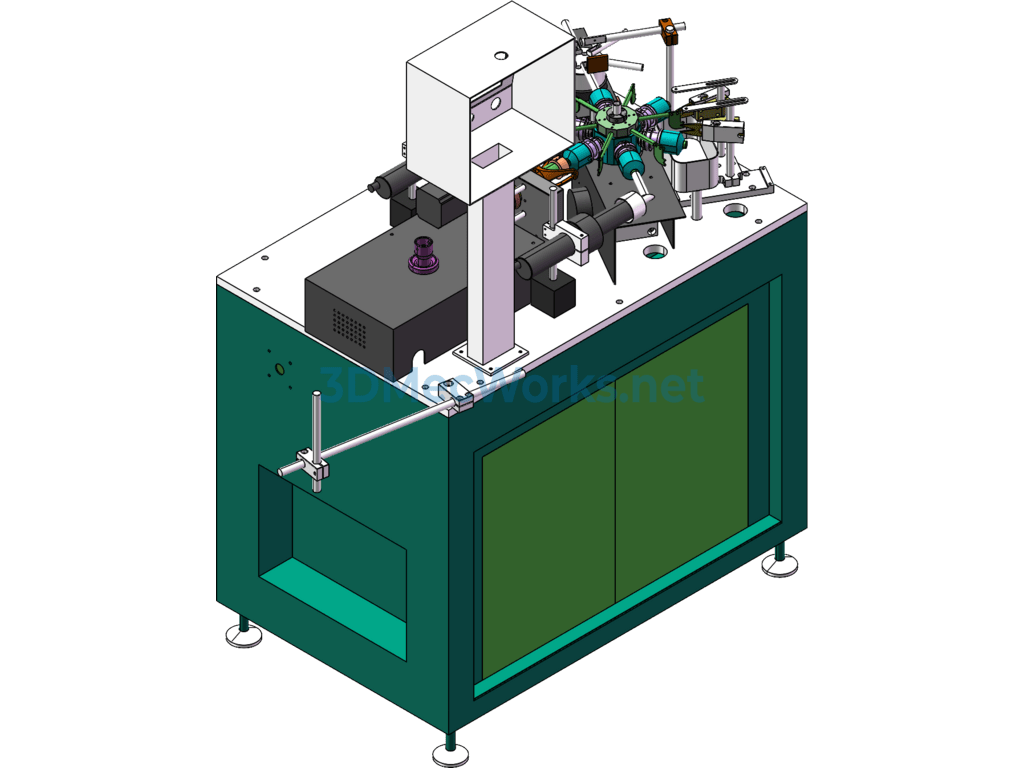

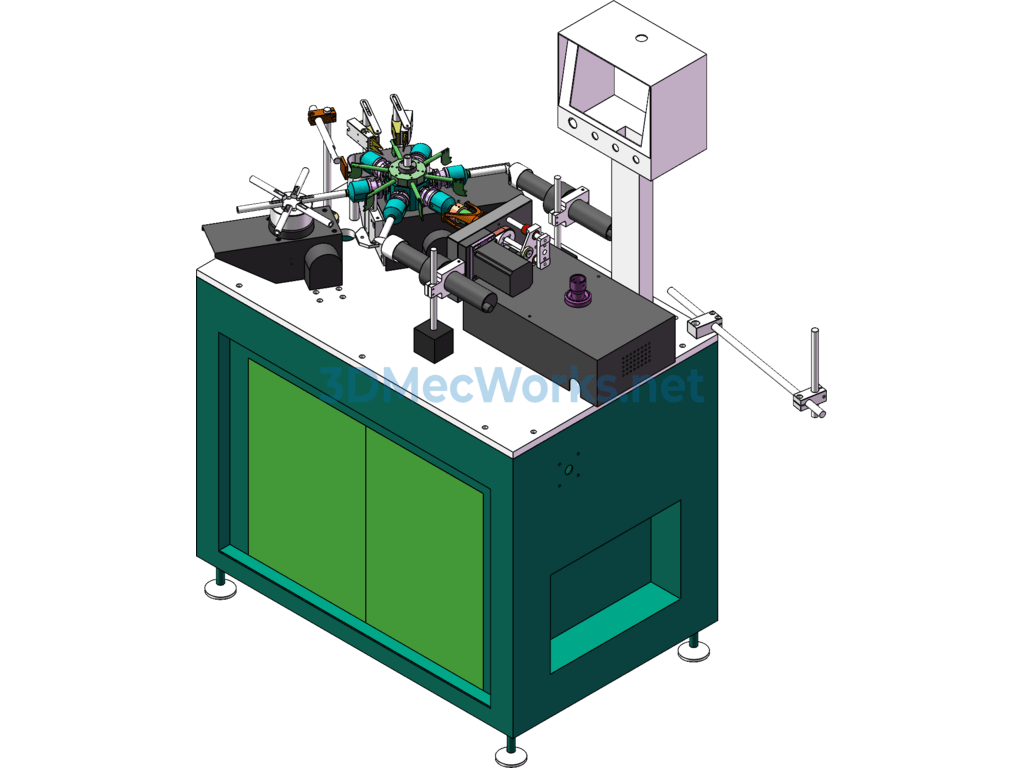

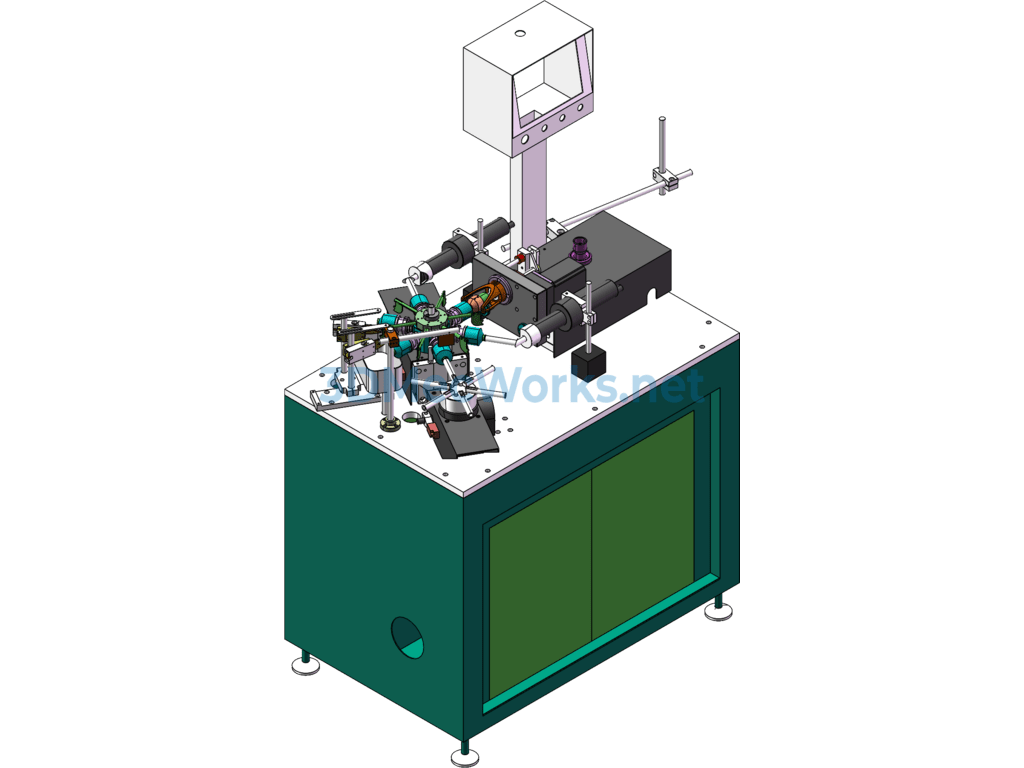

Fully Automatic Six-Axis Hollow Voice Coil Winding Machine

Fully Automatic Six-Axis Hollow Voice Coil Winding Machine, also known as the Six-Head Fully Automatic Voice Coil Winding Machine, draws on the design of Japanese voice coil winding machines. Combined with years of debugging experience, it has been continuously improved and optimized to ultimately meet the domestic requirements for low cost, high efficiency, and superior stability. It is compatible with ultra-fine self-bonding enameled wires ranging from 0.025mm to 0.15mm, supporting independent domestic production without relying on imports. Includes 3D drawings of all components.

The voice coil motor is a special form of direct drive motor. The non-standard fully automatic voice coil winding machine comes with 3D model SW design files in sldasm and sldprt formats. As a rare reference device domestically, it is hoped that everyone will cherish it, learn from it, and create better non-standard automated motor winding machines.
