Fully Automatic Screen Printing Equipment (vacuum Screen Printer + Rotary Table Screen Printer)

This model includes two devices: suction screen printer and disc screen printer. The complete 3D model is shared entirely, which could be helpful for friends interested in making screen printers.
The full name of the screen printer is “Screen Printer Machine.” It is a type of equipment that transfers solder paste or adhesive onto PCB pads through a screen. It can be divided into vertical screen printers, inclined arm screen printers, rotary screen printers, four-column screen printers, and fully automatic screen printers. It is mainly used in the electronics processing industry, for screen printing logos on printed circuit boards and instrument panel faces, and for solder paste printing during the PCB processing.

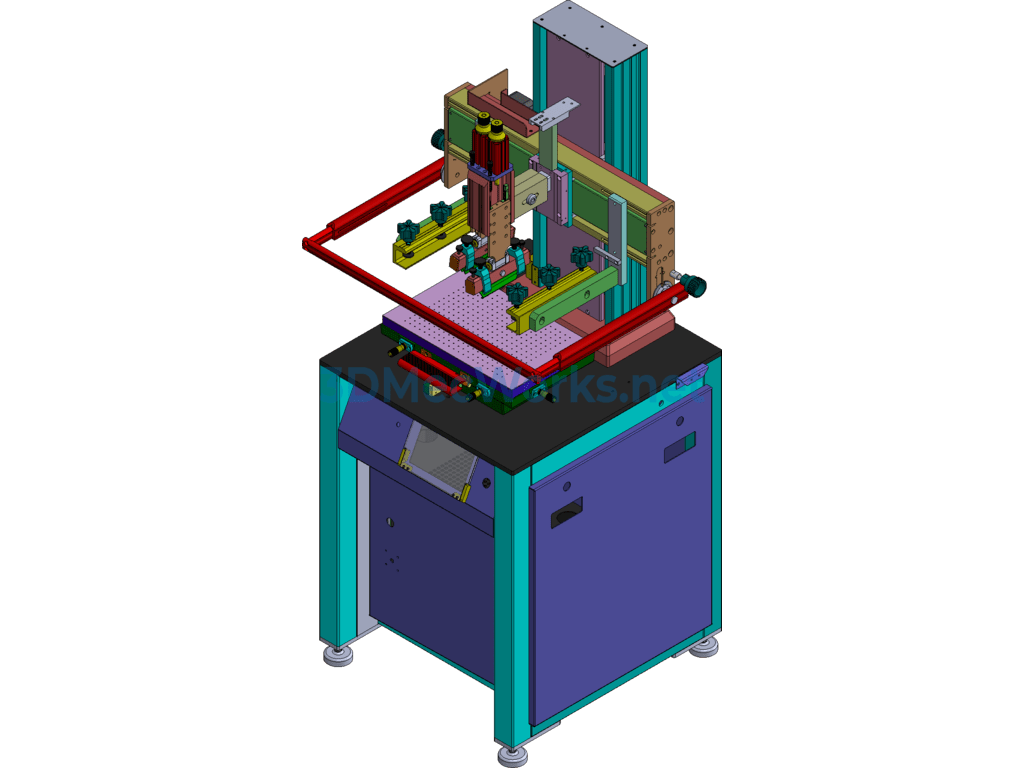

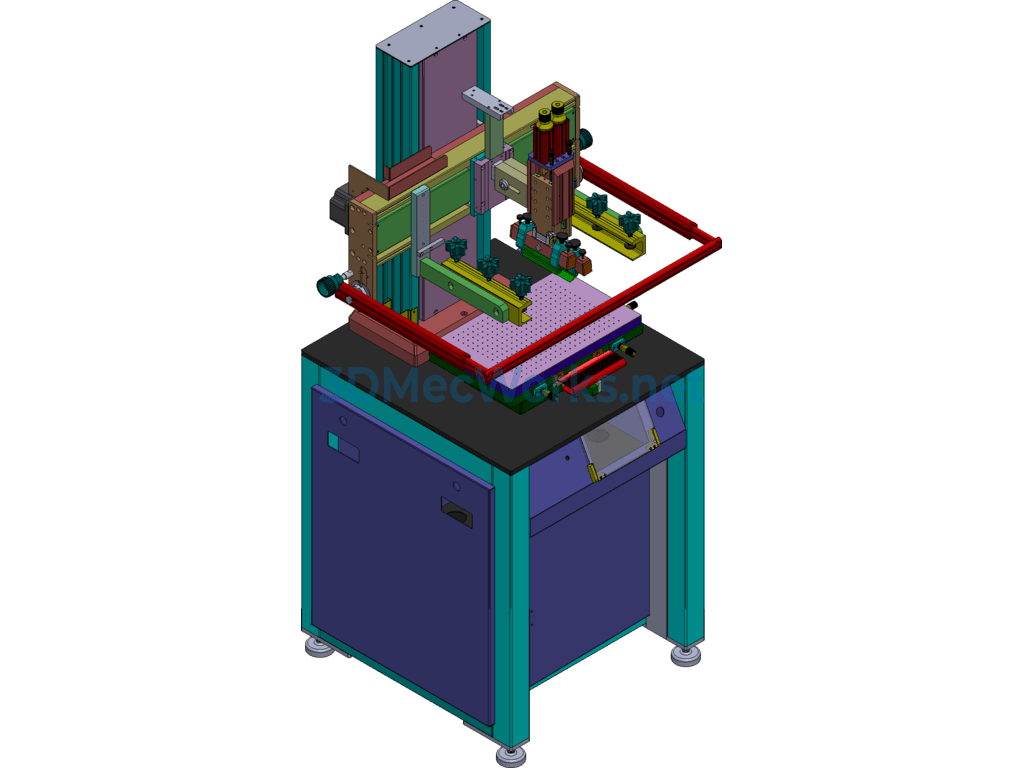

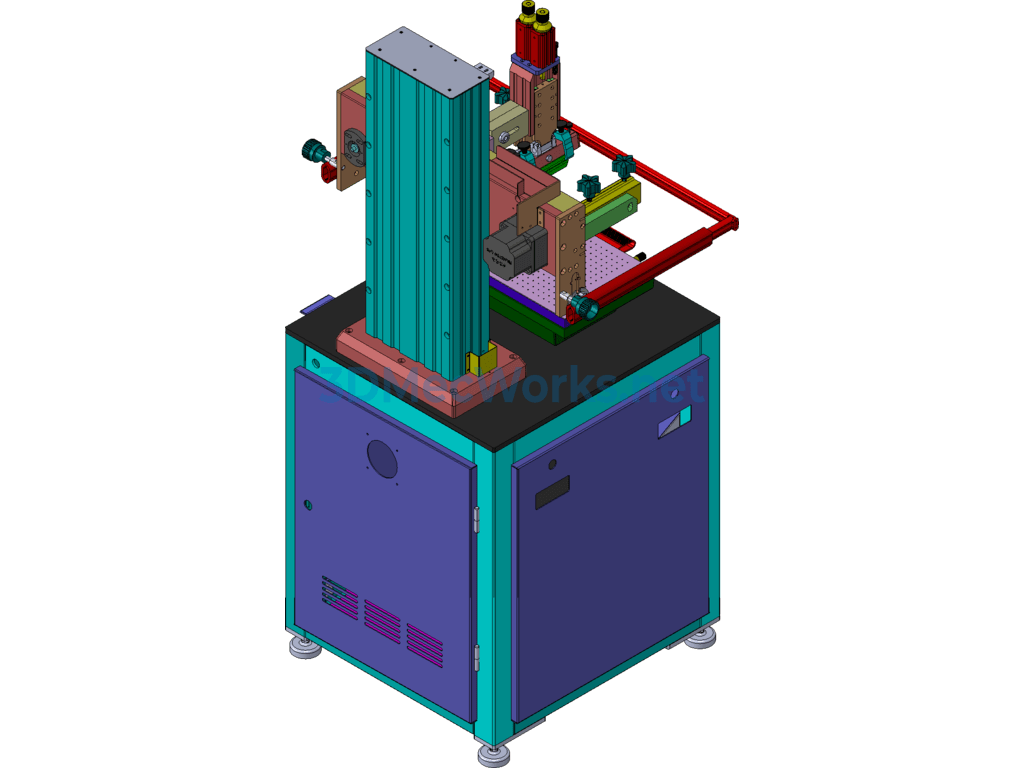

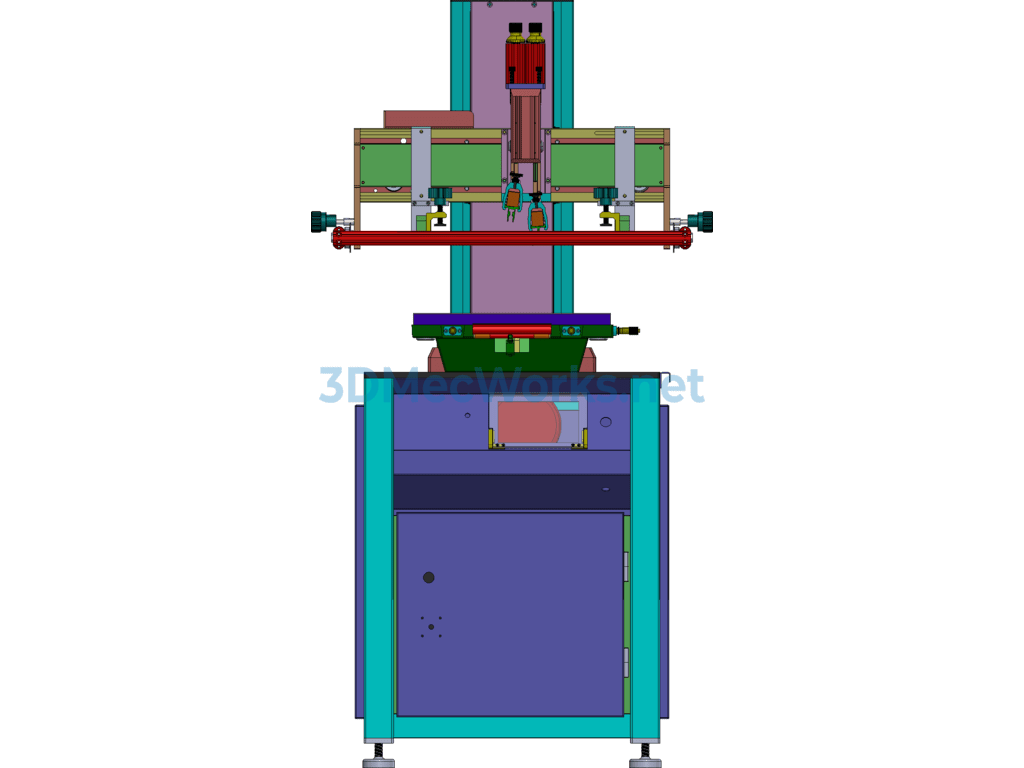

The model of the Fully Automatic Screen Printing Equipment 3 is provided as SolidWorks 2010 design source files, which are parameter editable. Many surface commands and advanced mates were used in creating the model. The whole machine is exquisitely designed with high technical content. It is recommended to open it using SolidWorks 2010 or later versions.
